AD9610TH datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> AD9610TH

AD9610TH: DescriptionOP-AMP, 1000uV OFFSET-MAX, 100MHz BAND WIDTH, MBCY12, METAL CAN, TO-8, 12 PIN; CategoryAnalog mixed-signal IC Amplifier circuit; File Size1MB，9 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

AD9610TH Overview

OP-AMP, 1000uV OFFSET-MAX, 100MHz BAND WIDTH, MBCY12, METAL CAN, TO-8, 12 PIN

AD9610TH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	TO-8
package instruction	,
Contacts	12
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	50 µA
Nominal Common Mode Rejection Ratio	50 dB
Maximum input offset voltage	1000 µV
JESD-30 code	O-MBCY-W12
JESD-609 code	e0
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Filter level	MIL-STD-883
Nominal slew rate	3.5 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	MIL-STD-883 V
Nominal Uniform Gain Bandwidth	100000 kHz

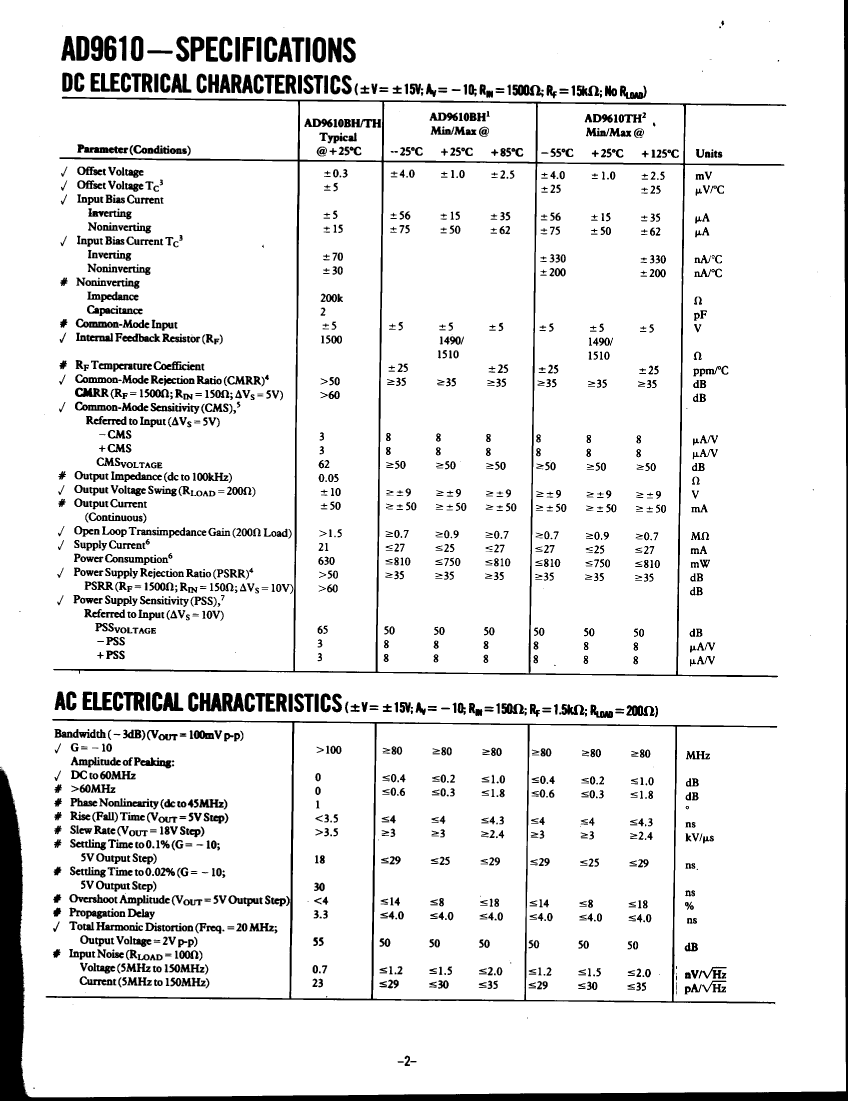

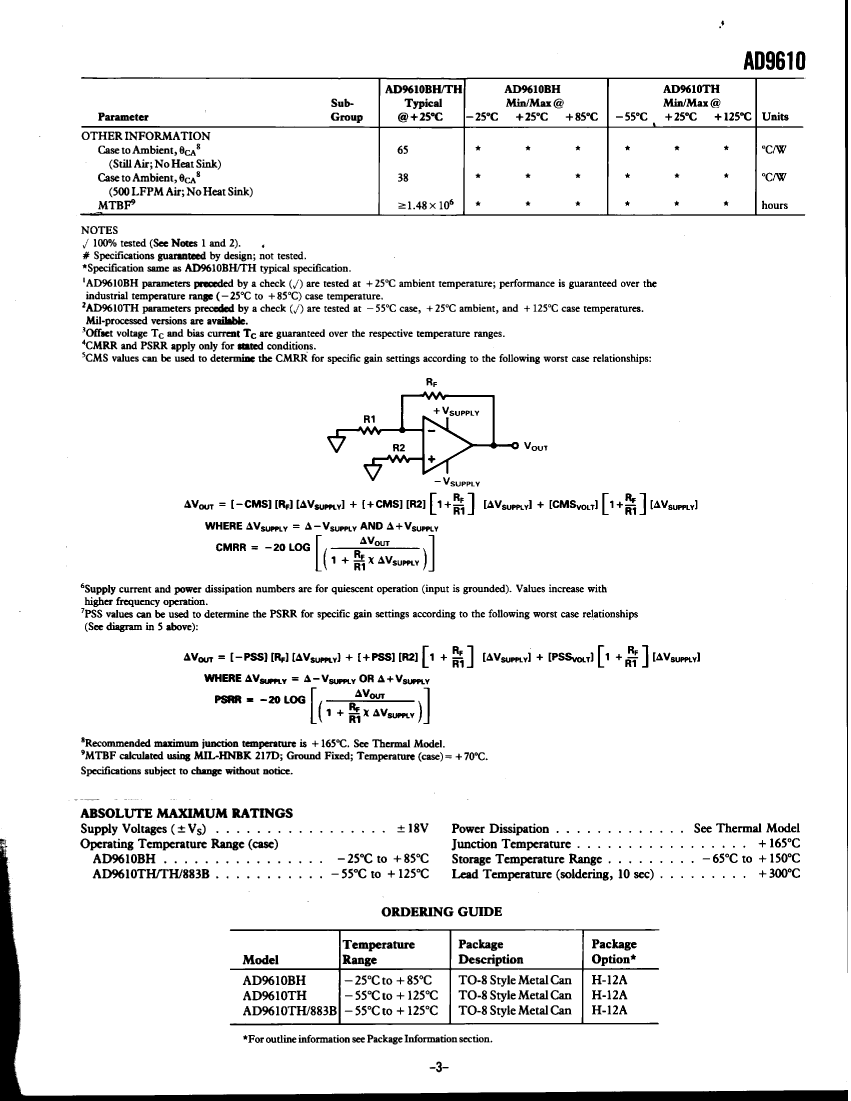

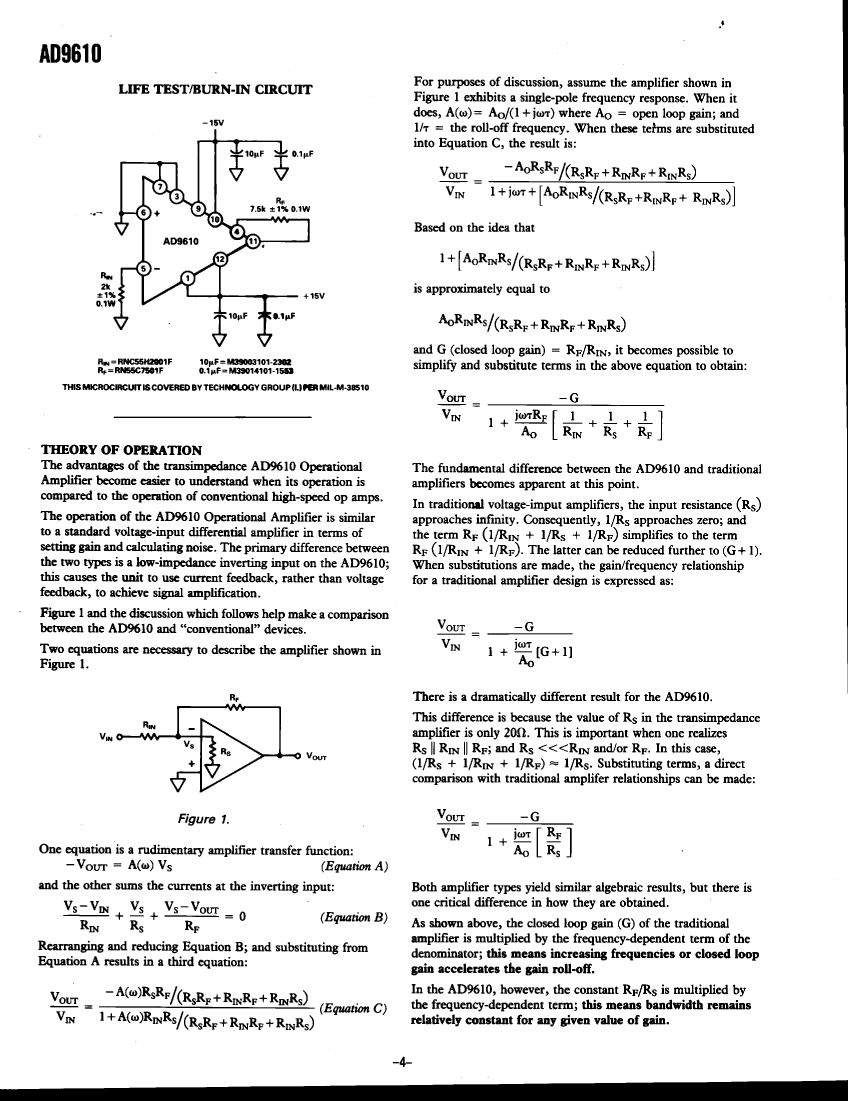

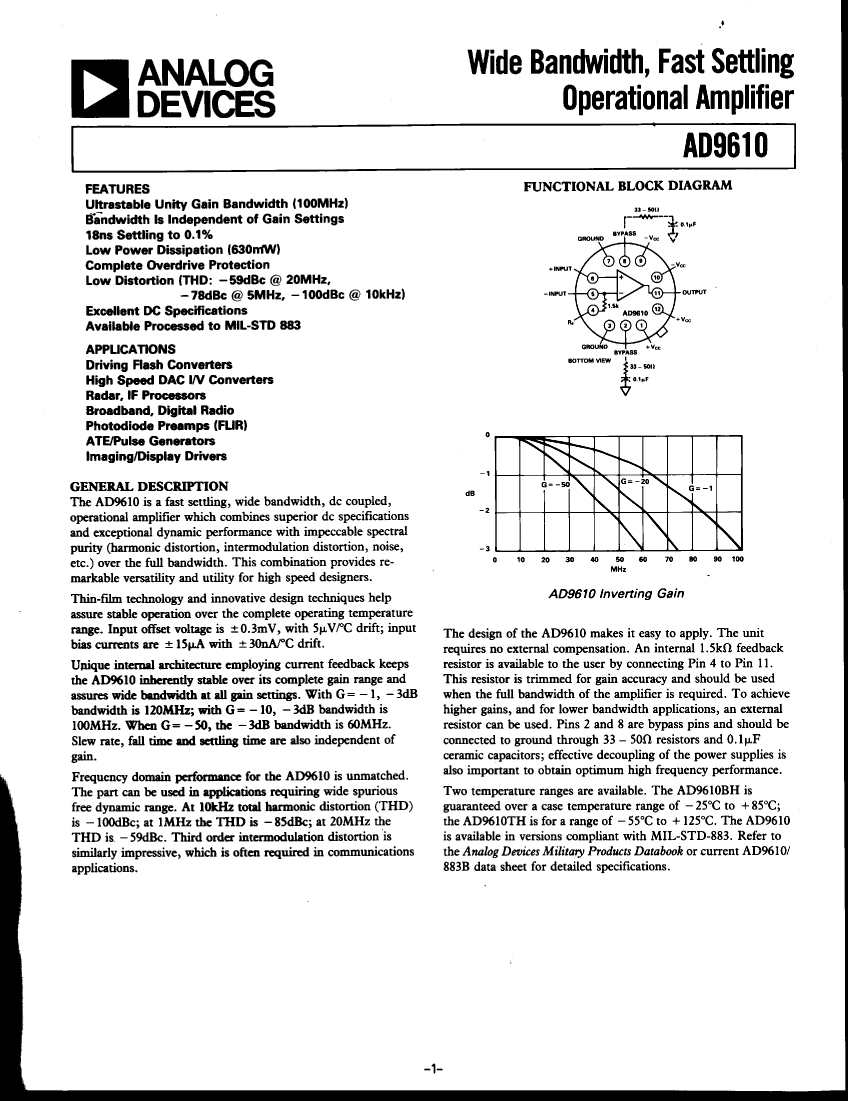

AD9610TH Preview
