MRFIC1808R2

Description
Narrow Band Low Power Amplifier, 1700MHz Min, 2100MHz Max, GAAS,
CategoryWireless rf/communication    Radio frequency and microwave
File Size277KB，13 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

MRFIC1808R2 Overview

Narrow Band Low Power Amplifier, 1700MHz Min, 2100MHz Max, GAAS,

MRFIC1808R2 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
package instructionSOP8,.25
Reach Compliance Codeunknown
structureCOMPONENT
Maximum input power (CW)3 dBm
JESD-609 codee0
Installation featuresSURFACE MOUNT
Number of terminals8
Maximum operating frequency2100 MHz
Minimum operating frequency1700 MHz
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeSOP8,.25
power supply3 V
RF/Microwave Device TypesNARROW BAND LOW POWER
Maximum slew rate6.5 mA
surface mountYES
technologyGAAS
Terminal surfaceTin/Lead (Sn/Pb)

MRFIC1808R2 Preview

Order this document by MRFIC1808/D
MRFIC1808
Low Noise Amplifier
Designed primarily for use in wireless Personal Communication Systems
(PCS) applications such as Digital European Cordless Telephone (DECT),
Japan’s Personal Handy System (PHS) and the emerging North American
systems as a preamp for discrete or integrated downmixers. The
MRFIC1808 and MRFIC1808DM are two–stage low noise amplifiers in
low–cost SO–8 and Micro–8 packages. The amplifier can be matched to
optimize gain or noise figure with simple off–chip input matching. The design
employs a novel stacked MESFET design which reuses bias current for the
highest gain at minimal current. A CMOS compatible Rx Enable pin allows
for very low standby current while the system is in transmit mode.
•
Usable Frequency Range = 1.7 to 2.1 GHz
1.9 GHz GaAs
LOW NOISE AMPLIFIER
SEMICONDUCTOR
TECHNICAL DATA
LIFETIME BUY
•
•
•
•
•
•
•
•
19 dB Typ Gain (MRFIC1808), 18 dB (MRFIC1808DM)
1.6 dB Typ Noise Figure
Simple Off–chip Matching for Maximum Gain/Noise Figure Flexibility
High Reverse Isolation = 34 dB (Typ) MRFIC1808,
32 dB (Typ) MRFIC1808DM
Single Bias Supply = 2.7 to 4.5 V
Low Standby Current = 8
µA
(Typ)
Low Cost Surface Mount Plastic Package
Device Marking = M1808
8
1
8
1
PLASTIC PACKAGE
CASE 751
(SO–8, Tape & Reel Only)
Not Recommended for New Design
DM SUFFIX
PLASTIC PACKAGE
CASE 846A
(Micro–8, Tape & Reel Only)
PIN CONNECTIONS
Simplified Block Diagram
VDD1
N.C.
RF Out
LNA CAP
1
2
3
4
8
7
6
5
Rx Enable
Gnd
RF In
Gnd
(Top View)
RF In
RF Out
ORDERING INFORMATION
Device
MRFIC1808R2
TA = –30 to 85°C
This device contains 5 active transistors.
MRFIC1808DMR2
Operating
Temp Range
Package
SO–8*
Tape & Reel
Micro–8**
Tape & Reel
*2,500 Units per 16 mm, 13 inch reel.
**2,500 Units per 12 mm, 13 inch reel.
©
Motorola, Inc. 1999
Rev 5
MOTOROLA RF/IF DEVICE DATA
1
LAST ORDER 19/12/99
(Scale 2:1)
LAST SHIP 18/06/00
1.9 GHz GaAs
MRFIC1808
MAXIMUM RATINGS
(TA = 25°C, unless otherwise noted)
Rating
Supply Voltage
RF Input Power
Enable Voltage
Storage Temperature Range
Operating Ambient Temperature
Symbol
VDD
PRF
Rx Enable
Tstg
TA
Value
5.5
3.0
5.5
–65 to 150
–30 to 85
Unit
Vdc
dBm
Vdc
°C
°C
NOTES:
1. Meets Human Body Model (HBM)
≤500
V and Machine Model (MM)
≤200
V.
2. ESD data available upon request.
RECOMMENDED OPERATING RANGES
Parameter
RF Frequency
Supply Voltage
Symbol
fRF
VDD
Rx Enable
Rx Enable
Min
1.7
2.7
2.7
0
Typ
–
–
–
–
Max
2.1
4.5
VDD
0.2
Unit
GHz
Vdc
Vdc
Vdc
LIFETIME BUY
Rx Enable Voltage, ON
Rx Enable Voltage, OFF
ELECTRICAL CHARACTERISTICS
(VDD = 3.0 V, TA = 25°C, RF = –30 dBm @ 1.9 GHz, Rx Enable = 3.0 V, unless otherwise noted.
Tested in Circuit Shown in Figure 1)
Characteristic
RF Gain
MRFIC1808
MRFIC1808DM
SSB Noise Figure
RF Output 3rd Order Intercept Point
Output 1 dB Gain Compression
Reverse Isolation (s12)
Input Return Loss
Output Return Loss
Supply Current, Rx Mode
MRFIC1808
MRFIC1808DM
Supply Current, Standby Mode (Rx Enable = 0 V)
MRFIC1808
MRFIC1808DM
Symbol
–
16
16
–
–
–
–
–
–
–
–
–
–
–
–
8
–
25
50
4.2
5.0
6.5
7.5
–
–
–3.0
–
–
–
19
18
1.6
13
1.0
–34
–12
–15
–
–
–
–
–
–
–
–
dB
dBm
dBm
dB
dB
dB
mA
Min
Typ
Max
Unit
dB
m
A
Figure 1. Applications Circuit Configuration
VDD
C4
1
2
8
7
L1
C3
Rx Enable
For MRFIC1808:
C1
2 pF
C2
1.8 pF
C3, C4 22 pF
L1
5.6 nH
RF In
C2
For MRFIC1808DM:
C1
1.4 pF
C2
1.4 pF
C3, C4 22 pF
L1
4.7 nH
RF Out
3
6
C1
4
5
2
MOTOROLA RF/IF DEVICE DATA
LAST ORDER 19/12/99
LAST SHIP 18/06/00
MRFIC1808

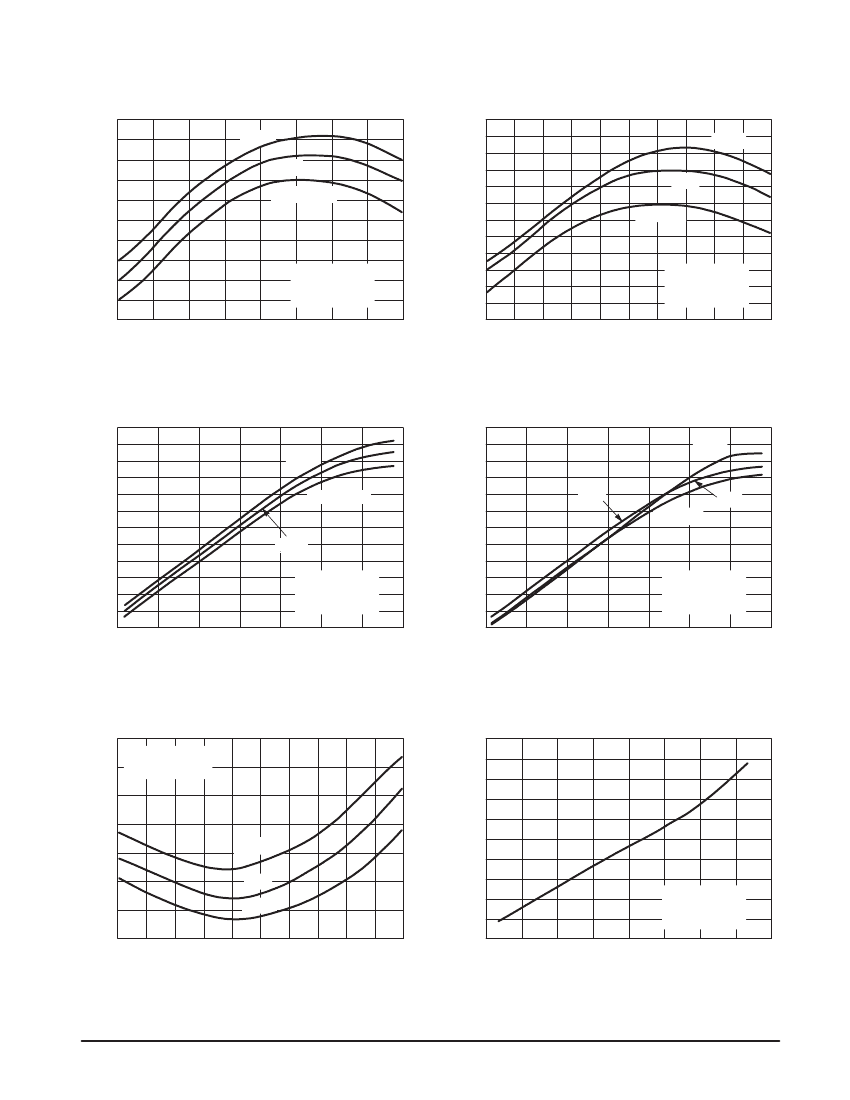

TYPICAL CHARACTERISTICS
(For SO–8 Packaged MRFIC1808)
Figure 2. Gain versus Frequency
21
5.0 V
20
G, GAIN (dB)
20
4.0 V
G, GAIN (dB)
VDD = 3.0 V
19
18
17
17
Pin = –30 dBm
TA = 25°C
Rx Enable = 3.0 V
1.85
1.9
f, FREQUENCY (GHz)
1.95
2.0
16
15
1.8
1.82
1.84 1.86
1.88 1.9 1.92 1.94
f, FREQUENCY (GHz)
1.96 1.98
2.0
Pin = –30 dBm
VDD = 3.0 V
Rx Enable = 3.0 V
25°C
TA = 85°C
21
–30°C
Figure 3. Gain versus Frequency
19
18
16
1.8
LIFETIME BUY
Figure 4. Output Power versus Input Power
6.0
3.0
0
5.0 V
VDD = 3.0 V
6.0
Figure 5. Output Power versus Input Power
–30°C
Pout , OUTPUT POWER (dBm)
3.0
0
–3.0
–6.0
–9.0
–12
–31
VDD = 3.0 V
f = 1.9 GHz
Rx Enable = 3.0 V
–28
–22
–19
–25
–16
Pin, INPUT POWER (dBm)
–13
–10
25°C
TA = 85°C
Pout , OUTPUT POWER (dBm)
25°C
–3.0
4.0 V
TA = 25°C
f = 1.9 GHz
Rx Enable = 3.0 V
–28
–25
–22
–19
–16
Pin, INPUT POWER (dBm)
–13
–10
–6.0
–9.0
–12
–31
Figure 6. Noise Figure versus Frequency
4.5
4.0
NF, NOISE FIGURE (dB)
3.5
3.0
2.5
2.0
1.5
1.0
1.7
1.8
TA = 85°C
25°C
–30°C
VDD = 3.0 to 5.0 V
Rx Enable = VDD
5.25
Figure 7. Supply Current versus Voltage
5.0
4.75
4.5
f = 1.9 GHz
TA = 25°C
Rx Enable = 3.0 V
3.1
4.6
3.4
4.3
3.7
4.0
VDD, SUPPLY VOLTAGE (VOLTS)
4.9
5.2
4.25
4.0
2.8
2.0
1.9
f, FREQUENCY (GHz)
2.1
2.2
MOTOROLA RF/IF DEVICE DATA
3
LAST ORDER 19/12/99
IDD , SUPPLY CURRENT (mA)
LAST SHIP 18/06/00
MRFIC1808
TYPICAL CHARACTERISTICS
(For SO–8 Packaged MRFIC1808)
Figure 8. Reverse Isolation versus Frequency
–33
–32
–30°C
REVERSE ISOLATION (dB)
–34
REVERSE ISOLATION (dB)
VDD = 3.0 V
4.0 V
–35
5.0 V
–33
25°C
Figure 9. Reverse Isolation versus Frequency
–34
–35
TA = 85°C
Pin = –30 dBm
VDD = 3.0 V
Rx Enable = 3.0 V
1.82 1.84
1.86 1.88 1.9 1.92 1.94
f, FREQUENCY (GHz)
1.96 1.98
2.0
–36
Pin = –30 dBm
TA = 25°C
Rx Enable = 3.0 V
1.84 1.86 1.88 1.9 1.92 1.94
f, FREQUENCY (GHz)
1.96 1.98
2.0
–36
–37
1.8 1.82
–37
1.8
LIFETIME BUY
4
MOTOROLA RF/IF DEVICE DATA
LAST ORDER 19/12/99
LAST SHIP 18/06/00
MRFIC1808
Table 1. Scattering Parameters For SO–8 Packaged MRFIC1808
(VDD = 3.0 V, TA = 25°C, Rx Enable = 3.0 V, 50
W
System)
f
(MHz)
1500
1530
1560
1590
1620
1650
1680
1710
1740
1770
S11
|S11|
0.859
0.870
0.866
0.871
0.873
0.876
0.877
0.880
0.876
0.876
0.885
0.879
0.881
0.885
0.878
0.873
0.860
0.866
0.859
0.861
0.850
0.844
0.834
0.834
0.830
0.817
0.812
0.811
0.800
0.794
0.791
0.784
0.774
0.769
0.751
0.737
0.707
φ
–40.95
–41.50
–42.06
–42.92
–43.47
–43.60
–44.86
–45.35
–46.03
–47.22
–48.69
–48.55
–49.87
–50.71
–51.81
–52.42
–52.98
–54.24
–56.12
–56.69
–57.79
–58.53
–60.21
–61.26
–62.53
–63.84
–64.69
–66.64
–67.89
–69.40
–72.05
–73.59
–75.60
–78.81
–80.46
–83.20
–86.12
|S21|
2.58
2.79
3.01
3.18
3.30
3.37
3.52
3.68
3.80
3.87
3.98
3.98
3.98
4.00
4.09
4.19
4.15
3.98
3.85
3.89
4.04
4.18
4.21
4.15
4.17
4.22
4.21
4.14
3.95
3.83
3.88
4.09
4.30
4.33
4.31
4.23
4.08
S21
φ
139.07
134.79
130.60
125.11
118.70
112.85
106.23
100.77
94.40
88.75
82.96
76.83
71.11
66.38
61.64
56.66
51.32
44.93
40.93
37.99
35.71
31.89
26.88
22.38
18.75
14.85
9.17
4.09
1.20
0.29
0.33
–2.06
–8.63
–16.94
–23.37
–27.46
–32.67
|S12|
0.013
0.013
0.013
0.014
0.012
0.012
0.012
0.011
0.012
0.011
0.010
0.010
0.009
0.009
0.009
0.008
0.007
0.006
0.005
0.004
0.004
0.004
0.003
0.003
0.004
0.004
0.005
0.006
0.007
0.008
0.009
0.012
0.014
0.015
0.018
0.021
0.024
S12
φ
103.72
105.63
99.14
98.40
98.00
97.39
92.68
93.90
93.12
88.55
88.40
89.46
94.75
97.00
88.22
87.57
88.75
100.17
87.86
99.30
98.94
118.15
137.84
141.53
–164.13
–172.30
–165.76
–148.57
–153.96
–144.49
–133.12
–138.06
–138.55
–146.05
–148.25
–149.08
–155.44
|S22|
0.583
0.530
0.474
0.412
0.348
0.285
0.229
0.186
0.168
0.182
0.221
0.272
0.324
0.376
0.425
0.474
0.522
0.564
0.599
0.634
0.661
0.691
0.714
0.734
0.760
0.776
0.787
0.805
0.808
0.819
0.822
0.826
0.824
0.821
0.815
0.798
0.767
S22
φ
–79.05
–80.94
–82.85
–83.57
–83.11
–80.54
–73.01
–60.35
–40.74
–20.50
–6.82
–0.29
3.05
4.39
4.25
3.79
2.22
0.85
–0.87
LIFETIME BUY
1800
1830
1860
1890
1920
1950
1980
2010
2040
2070
2100
2130
2160
2190
2220
2250
2280
2310
2340
2370
2400
2430
2460
2490
2520
2550
2580
–4.59
–6.96
–8.94
–11.49
–13.48
–15.27
–17.20
–19.42
–21.63
–23.38
–26.10
–28.21
–30.43
–32.72
–35.42
–37.56
–39.31
MOTOROLA RF/IF DEVICE DATA
5
LAST ORDER 19/12/99
–3.01
LAST SHIP 18/06/00
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Electric heating comb circuit

Bilateral current source circuit

Wind energy battery charger circuit

RS422 interface circuit

Three-phase AC motor star-delta wiring method

Computer motherboard circuit diagram 810 3_15

Question B, what are your opinions?
[i=s] This post was last edited by paulhyde on 2014-9-15 09:09 [/i] Please give me some suggestions so that we can make progress together...
alanever Electronics Design Contest
"D" amplifier production information
If the downloaded software needs a decompression password, the password may be: wwww.ec66.com or www.ecbbs.com. If the above password still cannot be decompressed, there are two possible reasons: 1. A...
fighting Embedded System
[2022 Digi-Key Innovation Design Competition] Distributed Temperature and Humidity Acquisition System-STM32H745I-DISCO Basic Learning
[i=s]This post was last edited by lansebuluo on 2022-7-3 20:22[/i]STM32H745I-DISCO is very powerful. Today I will start to learn how to use the development board. I am used to using IAR development so...
lansebuluo DigiKey Technology Zone
Start at 2pm: TI MSP430 development training, online hands-on demo + analysis by frontline experts
TI's original offline training, which was limited to 30 people, has been moved online due to the epidemic. The MSP430 entry-level training will be launched from 14:00 to 17:00 in the afternoon. Netize...
nmg Microcontroller MCU
The Art of Software Testing Myer Edition
[i=s]This post was last edited by Xin Xin on 2015-3-10 14:10[/i] I'd better post it in the thread next time. The download center is so annoying. There are almost no chances to open and download it. It...
辛昕 Programming Basics
Why is the lithium battery power display often inaccurate?
Nowadays, lithium batteries are increasingly used in mobile electronic products, and it is very necessary to display and control the battery power. For example, the amount of power in a mobile phone i...
qwqwqw2088 Analogue and Mixed Signal
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. RK73H1ERTTP3903D
  2. SK072A683JAA
  3. TMCFD6VP0010W
  4. 54122-506101250LF
  5. BT0507DH3C106EB20
  6. PCF2010P-02-2K03DT1
  7. VJ2225A152FLCAR2L
  8. CHP2208100PPM1.6K0.5%FTR0131E2
  9. 1.5SMCJ14CAT/R7
  10. D3961HD-22P-WH-G30
  11. TR1812D1333P
  12. 2010W2J0304T4S

Popular Articles

  1. New version of classic instrumentation amplifier (PGIA) offers greater design flexibility
  2. WNEVC 2021 | Yu Hailong, Senior Engineer, Institute of Physics, Chinese Academy of Sciences: Technical Challenges of All-Solid-State Lithium Secondary Batteries
  3. Design of eight-way buzzer-beater based on 51 single-chip microcomputer
  4. STM8 microcontroller triggers ADC synchronous sampling via PWM
  5. Demystifying the RF Signal Chain—Part 2: Basic Building Blocks
  6. The first Snapdragon 8 flagship without a hole! Lenovo Legion Y90 has a central camera
  7. Improving customer experience: a business imperative and a potential business opportunity for today’s enterprises
  8. Interference types and sources of PLC operation and its anti-interference design
  9. How does a multimeter differentiate between PNP sensors and NPN type sensors?
  10. LPC824-SPI interface (continued 2)

Technical ResourceMore

  1. Research on GPS Fully Automatic Bus Voice Announcer
  2. High-speed PCB design and APSIM simulation tools
  3. Design of microcomputer protection device interfaced with electronic mutual inductor
  4. AVR MCU DAC Example Program
  5. Remote Sewage Tester Based on MSP430
  6. Chinese Notes on Cisco Routers
  7. TLP2403,datasheet
  8. Interactive TV networking technology knowledge
  9. SD card standards
  10. Creative LOVE Lantern Appreciation

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2540  808  2090  2891  1506  52  17  43  59  31
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
