TSOP6237-TR

Description
Photo IC,
CategoryLED optoelectronic/LED    photoelectric
File Size722KB,14 Pages
ManufacturerVishay Telefunken (Vishay)
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

TSOP6237-TR Overview

Photo IC,

TSOP6237-TR Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerVishay Telefunken (Vishay)
Reach Compliance Codeunknown
JESD-609 codee0
Installation featuresSURFACE MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Nominal supply voltage5 V
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
VISHAY
TSOP62..
Vishay Semiconductors
IR Receiver Modules for Remote Control Systems
Description
The TSOP62.. - series are miniaturized SMD-IR
Receiver Modules for infrared remote control sys-
tems. PIN diode and preamplifier are assembled on
lead frame, the epoxy package is designed as IR fil-
ter.
The demodulated output signal can directly be
decoded by a microprocessor. TSOP62.. is the stan-
dard IR remote control SMD-Receiver series, sup-
porting all major transmission codes.
16797
Features
Photo detector and preamplifier in one package
Internal filter for PCM frequency
Continuous data transmission possible
TTL and CMOS compatibility
Output active low
Low power consumption
High immunity against ambient light
Suitable burst length
10 cycles/burst
Taping available for topview and sideview assem-
bly
• Low power consumption
Block Diagram
3
30 kΩ
Input
PIN
AGC
Band
Pass
Demo-
dulator
V
S
4
OUT
1;2
Control Circuit
GND
Special Features
• Improved immunity against ambient light
• Suitable burst length
10 cycles/burst
• Taping available for Topview and Sideview
assembly
Parts Table
Part
TSOP6230
TSOP6233
TSOP6236
TSOP6237
TSOP6238
TSOP6240
TSOP6256
30 kHz
33 kHz
36 kHz
36.7 kHz
38 kHz
40 kHz
56 kHz
Carrier Frequency
Document Number 82177
Rev. 3, 15-Oct-02
www.vishay.com

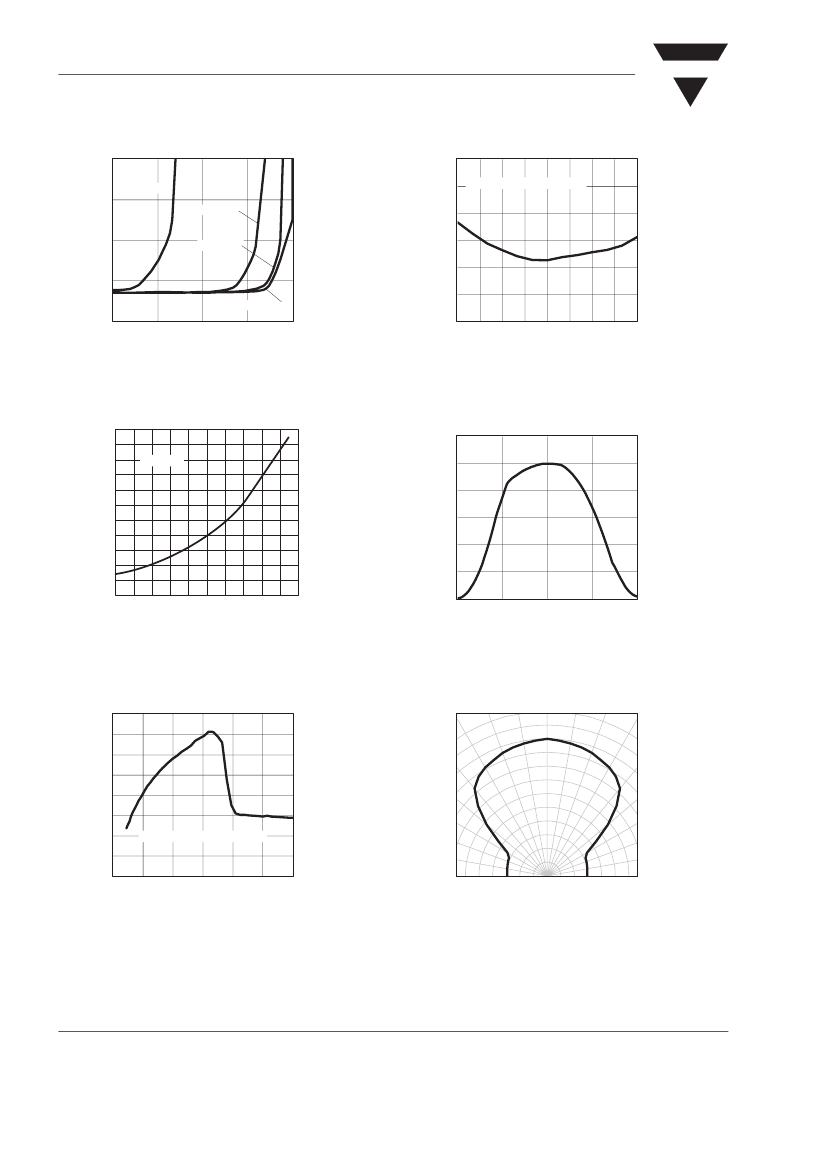

1
