71231-0507 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 71231-0507

71231-0507: DescriptionRectangular Power Connector, 5 Contact(s), Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size531KB，5 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

71231-0507 Overview

Rectangular Power Connector, 5 Contact(s), Male, Solder Terminal, Receptacle

71231-0507 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MINI-FIT, POLARIZED, POSITIVE LATCH
body width	0.358 inch
subject depth	0.578 inch
body length	1.02 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	2200VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	6 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYESTER
Terminal length	0.126 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	5
UL Flammability Code	94V-0
Evacuation force-minimum value	3.9198 N

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 2 to 12 circuits

Positive latching system

Polarized

Flanged mating envelope for ease in blind mating

PCB pegs optional

Surface Mount Compatible

Reference Information

Product Speciﬁcation: PS-71690-001

Packaging: Tray

UL File No.: E29179

CSA File No.: LR19980

Mates With:

71694

and

5557

Designed In: Inches

Electrical

Voltage: 600V

Current: Receptacle and header

Wire Gauge

2 Circuit

7.00

6.00

5.00

4.50

3 to 12 Circuit

6.00

5.25

4.50

4.00

4.20mm (.165") Pitch

Mini-Fit

™

Wire-to-Board

Header

Power Connectors

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 2200V AC

Insulation Resistance: 1000 M

Ω

min.

Mechanical

Insertion Force to PCB: 21N (4.72 lb) min.

Retention Force to PCB: 18N (4.05 lb) min.

Mating Force: 6.86N (1.54 lb) max.

Unmating Force: 3.92N (.89 lb) max.

Durability: 30 cycles

Physical

Housing: High temperature glass-filled polyester, UL 94V-0

Contact: Brass

Plating: See Table

Operating Temperature: -40 to +105˚C

71231

Single Row, Vertical

SMC

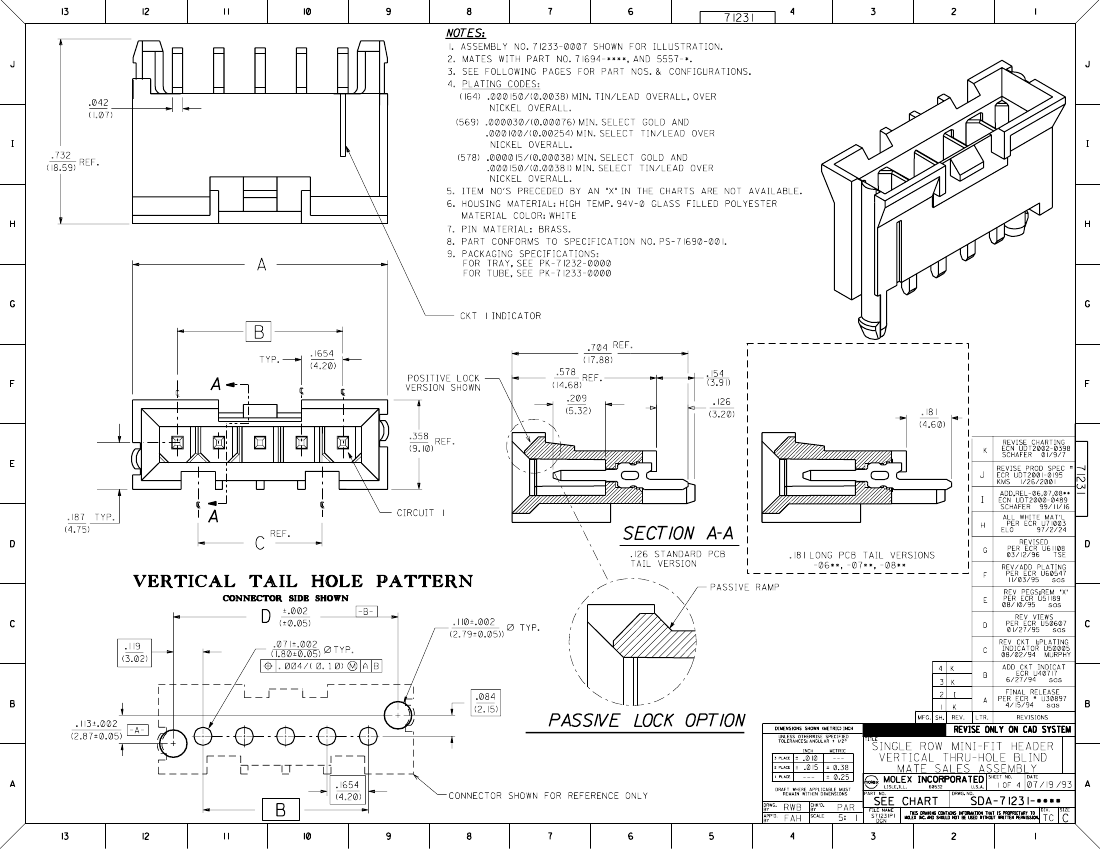

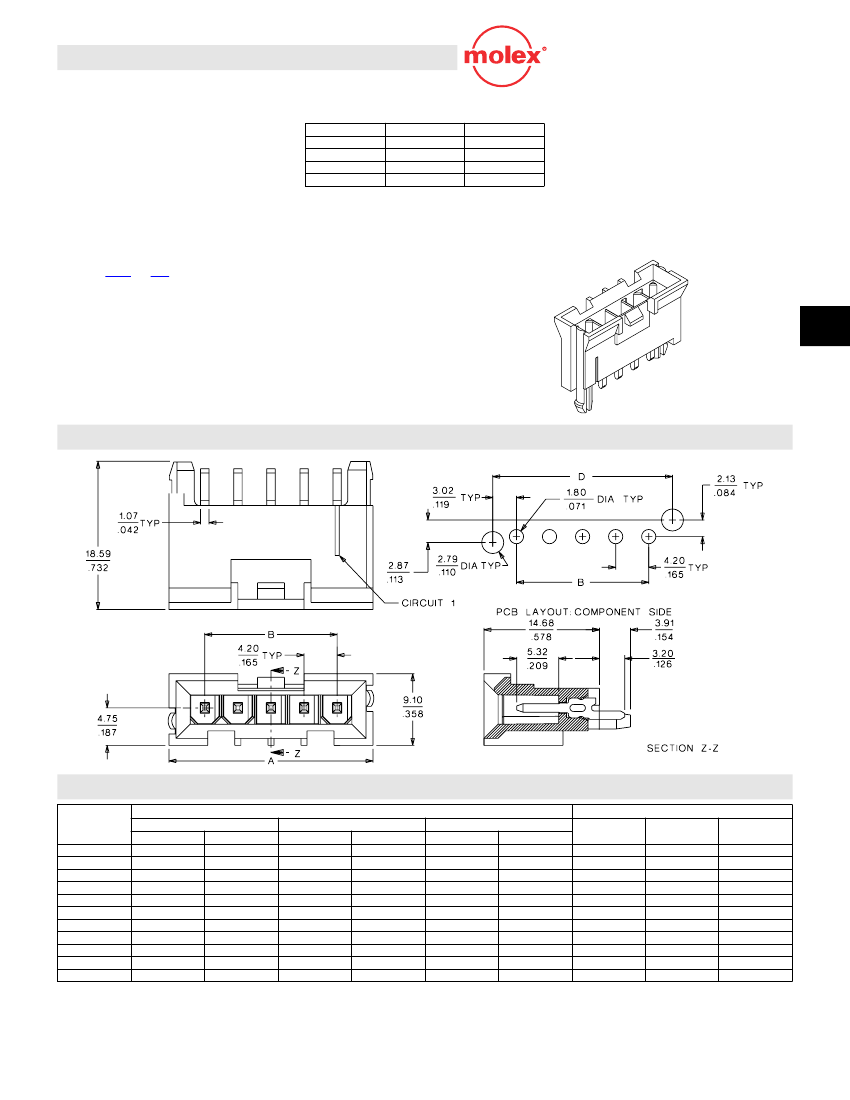

CATALOG DRAWING (FOR REFERENCE ONLY)

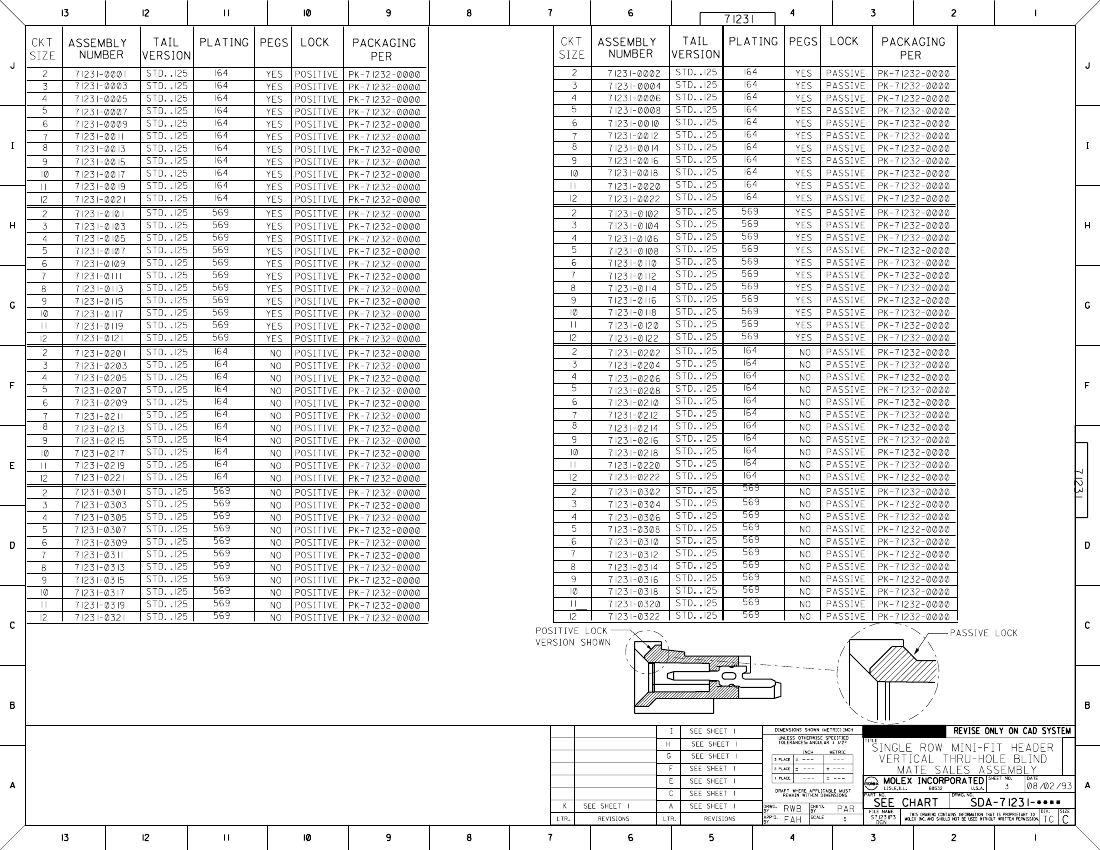

ORDERING INFORMATION AND DIMENSIONS

Circuits

Tin/Lead

With Pegs

Without Pegs

• 71231-0001

71231-0201

• 71231-0003

71231-0203

• 71231-0005

71231-0205

• 71231-0007

71231-0207

• 71231-0009

71231-0209

• 71231-0011

71231-0211

• 71231-0013

71231-0213

• 71231-0015

71231-0215

• 71231-0017

71231-0217

• 71231-0019

71231-0219

• 71231-0021

71231-0221

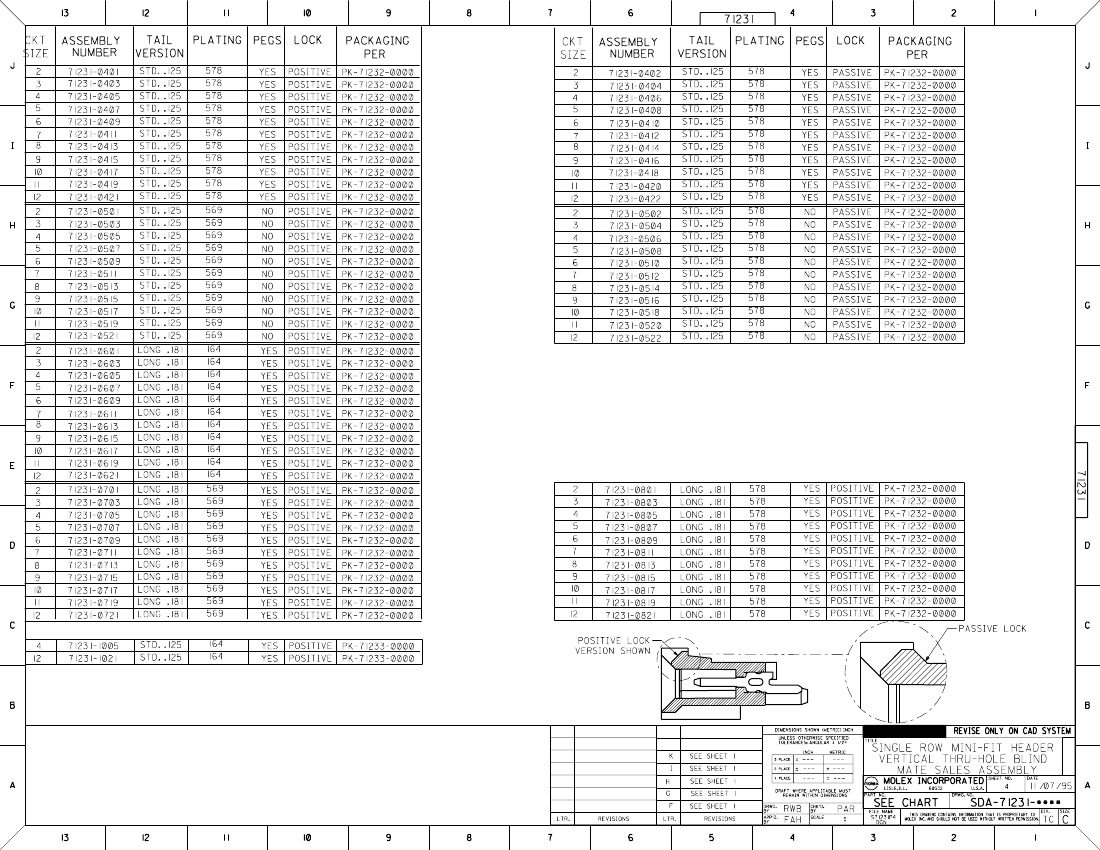

Order No.

" Gold

With Pegs

Without Pegs

71231-0401

71231-0501

71231-0403

71231-0503

71231-0405

71231-0505

71231-0407

71231-0507

71231-0409

71231-0509

71231-0411

71231-0511

71231-0413

71231-0513

71231-0415

71231-0515

71231-0417

71231-0517

71231-0419

71231-0519

71231-0421

71231-0521

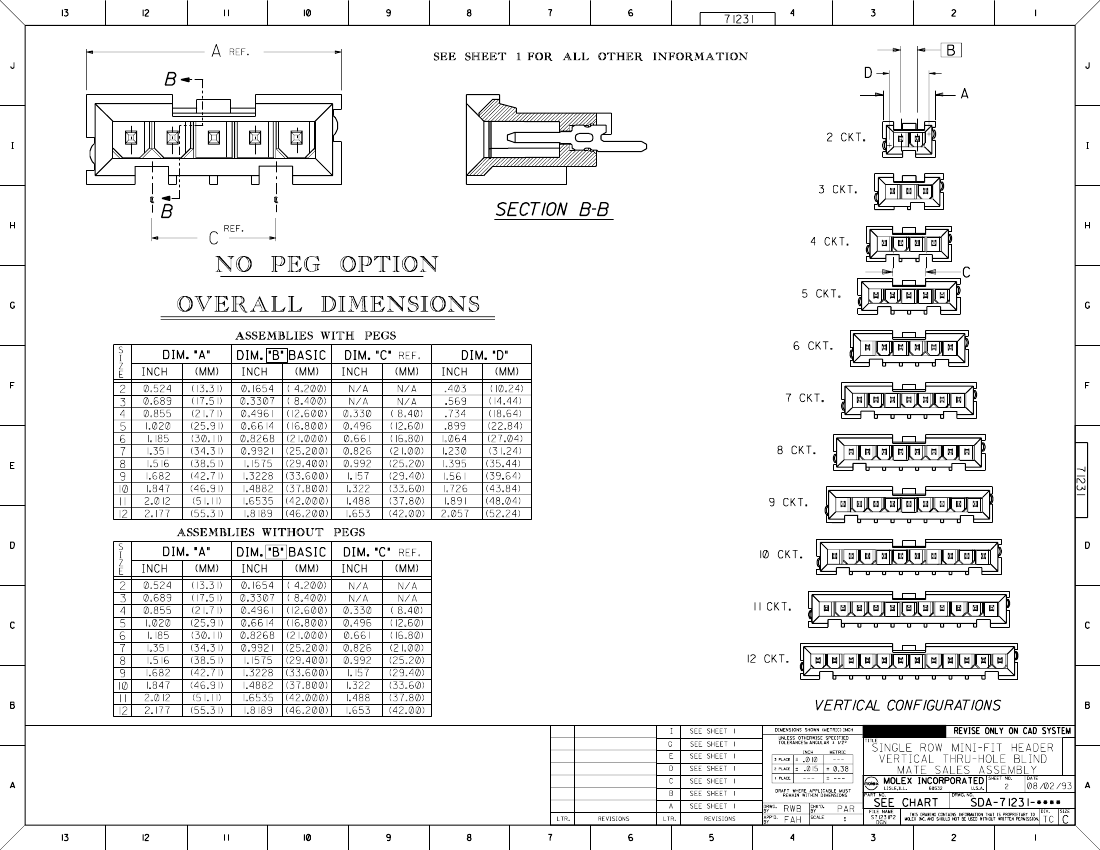

Dimension

" Gold

With Pegs

Without Pegs

71231-0101

71231-0301

71231-0103

71231-0303

71231-0105

71231-0305

71231-0107

71231-0307

71231-0109

71231-0309

71231-0111

71231-0311

71231-0113

71231-0313

71231-0115

71231-0315

71231-0117

71231-0317

71231-0119

71231-0319

71231-0121

71231-0321

13.31

17.50

21.71

25.91

30.10

34.31

38.50

42.72

46.91

51.10

55.30

(.524)

(.689)

(.855)

(1.020)

(1.185)

(1.351)

(1.516)

(1.682)

(1.847)

(2.012)

(2.177)

4.20

8.40

12.60

16.80

21.00

25.20

29.40

33.60

37.80

42.00

46.20

(.165)

(.331)

(.496)

(.661)

(.827)

(.992)

(1.158)

(1.323)

(1.488)

(1.654)

(1.819)

10.24

14.43

18.61

22.84

27.03

31.24

35.44

39.65

43.84

48.03

52.25

(.403)

(.569)

(.734)

(.899)

(1.064)

(1.230)

(1.395)

(1.561)

(1.726)

(1.891)

(2.057)

• US Standard Product, available through Molex franchised distributors

MX01

F-59
