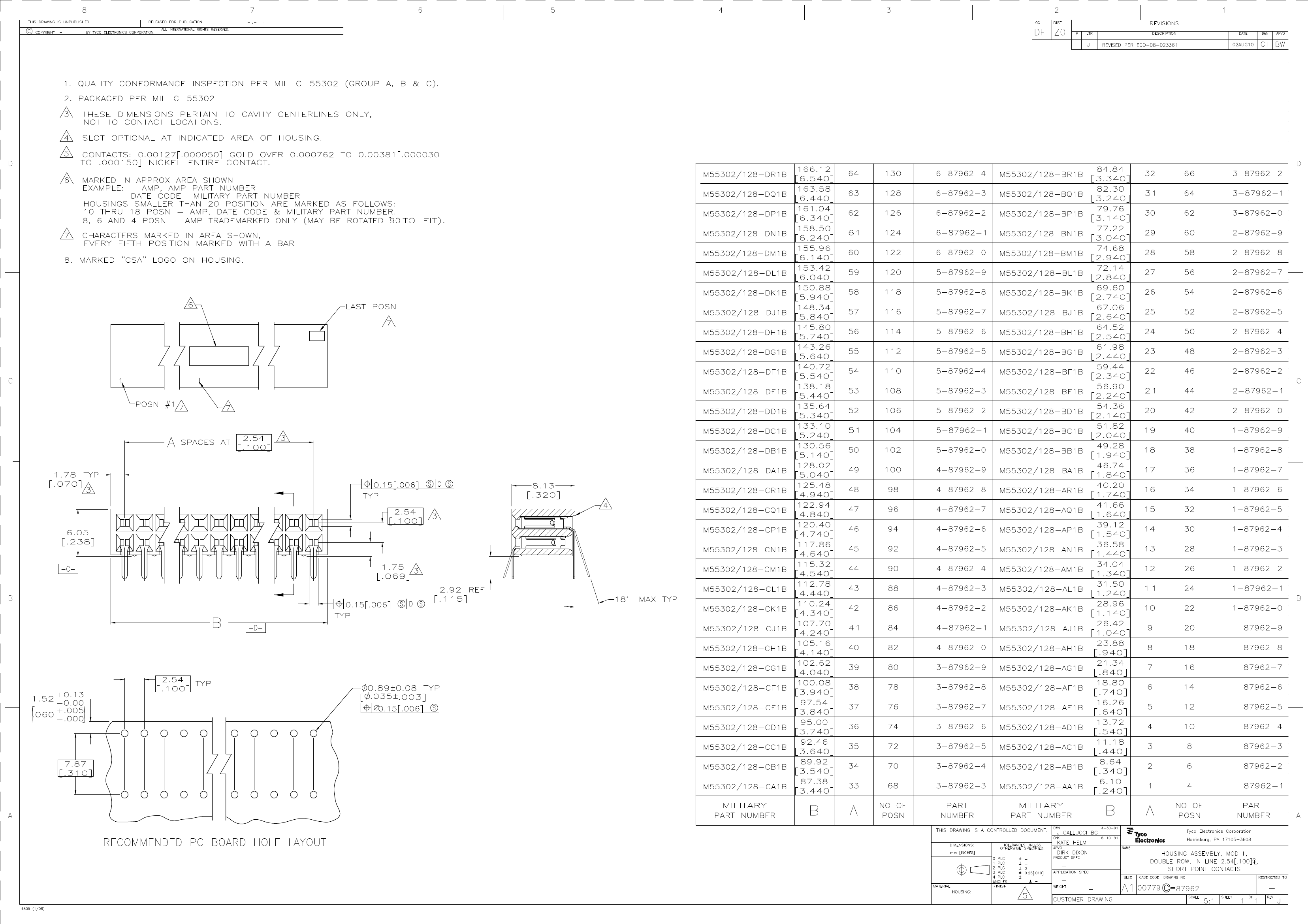

112 MODII HORZ DR CE 100CL/115
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| body width | 0.238 inch |
| subject depth | 0.32 inch |
| body length | 5.64 inch |
| Body/casing type | RECEPTACLE |
| Connector type | RECTANGULAR CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | Nickel (Ni) |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 12 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1050VAC V |
| Durability | 200 Cycles |
| IEC compliance | NO |
| maximum insertion force | 2.224 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | NATURAL |
| insulator material | POLYPHENYLENE SULPHIDE |
| MIL compliance | NO |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 7.874 mm |
| Plating thickness | 50u inch |
| Rated current (signal) | 3 A |
| Guideline | CSA, UL |
| reliability | COMMERCIAL |
| Terminal length | 0.115 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 112 |
| Evacuation force-minimum value | .278 N |
| 5-87962-5 | 10120783-G01-03ALF | 1-87962-7 | 10120783-G01-09ULF | 4-87962-1 | 6-87962-3 | 87962-6 | 6-87962-1 | 5-87962-6 | M55302/128-CH1B | |
|---|---|---|---|---|---|---|---|---|---|---|
| Description | 112 MODII HORZ DR CE 100CL/115 | Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | 36 MODII HORZ DR CE 100CL/115 | Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Black Insulator | 84 MODII HORZ DR CE 100CL/115 | 120 MODII HORZ DR CE 100CL/115 | 14 MODII HORZ DR CE 100CL/115 | 124 MODII HORZ DR CE 100CL/115 | 114 MODII HORZ DR CE 100CL/115 | 82 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| Connector type | RECTANGULAR CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact completed and terminated | Nickel (Ni) | Matte Tin (Sn) - with Nickel (Ni) barrier | NICKEL | Matte Tin (Sn) - with Nickel (Ni) barrier | Nickel (Ni) | Nickel (Ni) | Nickel (Ni) | Nickel (Ni) | Nickel (Ni) | Gold (Au) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE | MALE | FEMALE | MALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | COPPER ALLOY | NOT SPECIFIED | COPPER ALLOY | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | NOT SPECIFIED |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Terminal pitch | 2.54 mm | 2.0066 mm | 2.54 mm | 2.0066 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SURFACE MOUNT | SOLDER | SURFACE MOUNT | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 112 | 6 | 36 | 18 | 84 | 128 | 14 | 124 | 114 | 82 |
| Brand Name | AMP | - | AMP | - | AMP | AMP | AMP | AMP | AMP | - |
| Is it lead-free? | Lead free | - | Lead free | - | Lead free | Lead free | Lead free | Lead free | Lead free | - |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | - |
| body width | 0.238 inch | 0.157 inch | 0.238 inch | 0.157 inch | 0.238 inch | 0.238 inch | 0.238 inch | 0.238 inch | 0.238 inch | - |
| subject depth | 0.32 inch | 0.461 inch | 0.238 inch | 0.461 inch | 0.32 inch | 0.32 inch | 0.32 inch | 0.32 inch | 0.32 inch | - |
| body length | 5.64 inch | 0.236 inch | 1.84 inch | 0.709 inch | 4.24 inch | 6.44 inch | 0.74 inch | 6.24 inch | 5.74 inch | - |
| Body/casing type | RECEPTACLE | - | RECEPTACLE | - | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | - |
| Contact to complete cooperation | NOT SPECIFIED | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - |
| Contact resistance | 12 mΩ | - | 12 mΩ | - | 12 mΩ | 12 mΩ | 12 mΩ | 12 mΩ | 12 mΩ | - |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - |
| DIN compliance | NO | - | NO | - | NO | NO | NO | NO | NO | NO |
| Dielectric withstand voltage | 1050VAC V | - | - | - | 1050VAC V | 1050VAC V | 1050VAC V | 1050VAC V | 1050VAC V | - |
| Durability | 200 Cycles | - | 200 Cycles | - | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | 200 Cycles | - |
| IEC compliance | NO | - | NO | - | NO | NO | NO | NO | NO | NO |
| maximum insertion force | 2.224 N | - | 2.224 N | - | 2.224 N | 2.224 N | 2.224 N | 2.224 N | 2.224 N | - |
| Insulation resistance | 5000000000 Ω | - | 5000000000 Ω | - | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | - |
| Insulator color | NATURAL | BLACK | NATURAL | BLACK | NATURAL | NATURAL | NATURAL | NATURAL | NATURAL | - |
| insulator material | POLYPHENYLENE SULPHIDE | GLASS FILLED POLYETHYLENE | POLYPHENYLENE SULFIDE | GLASS FILLED POLYETHYLENE | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULFIDE | POLYPHENYLENE SULPHIDE | POLYPHENYLENE SULFIDE | POLYPHENYLENE SULFIDE | - |
| MIL compliance | NO | - | NO | - | YES | NO | YES | NO | NO | YES |
| Plug contact pitch | 0.1 inch | 0.079 inch | 0.1 inch | 0.079 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - |
| Match contact row spacing | 0.1 inch | 0.079 inch | 0.1 inch | 0.079 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | - |
| Installation option 1 | LOCKING | LOCKING | GUIDE PIN | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | - |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE | ONE | - |
| PCB row number | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | - |
| Maximum operating temperature | 125 °C | - | 125 °C | - | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | - |
| Minimum operating temperature | -65 °C | - | -65 °C | - | -65 °C | -65 °C | -65 °C | -65 °C | -65 °C | - |
| Options | GENERAL PURPOSE | - | GENERAL PURPOSE | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - |
| PCB contact row spacing | 7.874 mm | - | 7.874 mm | - | 7.874 mm | 7.874 mm | 7.874 mm | 7.874 mm | 7.874 mm | - |
| Plating thickness | 50u inch | 30u inch | 50u inch | 30u inch | 50u inch | 50u inch | 50u inch | 50u inch | 50u inch | - |
| Rated current (signal) | 3 A | - | 3 A | - | 3 A | 3 A | 3 A | 3 A | 3 A | - |
| Guideline | CSA, UL | UL | UL, CSA | UL | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA | - |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | COMMERCIAL | - | - | - |
| Terminal length | 0.115 inch | - | 0.115 inch | - | 0.115 inch | 0.115 inch | 0.115 inch | 0.115 inch | 0.115 inch | - |
| Evacuation force-minimum value | .278 N | - | .278 N | - | .278 N | .278 N | .278 N | .278 N | .278 N | - |
| Objectid | - | 7072668852 | 1430664823 | 7072668872 | - | 2064615284 | - | 2064615282 | 2103835048 | 1899600393 |
| YTEOL | - | 8.4 | 9.1 | 8.4 | - | 9.1 | - | 9.1 | 9.1 | - |
| Filter function | - | - | NO | - | NO | NO | NO | NO | NO | NO |
| Mixed contacts | - | - | NO | - | NO | NO | NO | NO | NO | NO |
| UL Flammability Code | - | - | 94V-0 | - | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
