KSC2333RJ69Z

Description
Power Bipolar Transistor, 2A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size145KB，5 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

KSC2333RJ69Z Overview

Power Bipolar Transistor, 2A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

KSC2333RJ69Z Parametric

Parameter NameAttribute value
MakerFairchild
Parts packaging codeSFM
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codeunknown
Maximum collector current (IC)2 A
Collector-emitter maximum voltage400 V
ConfigurationSINGLE
Minimum DC current gain (hFE)20
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeNPN
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON

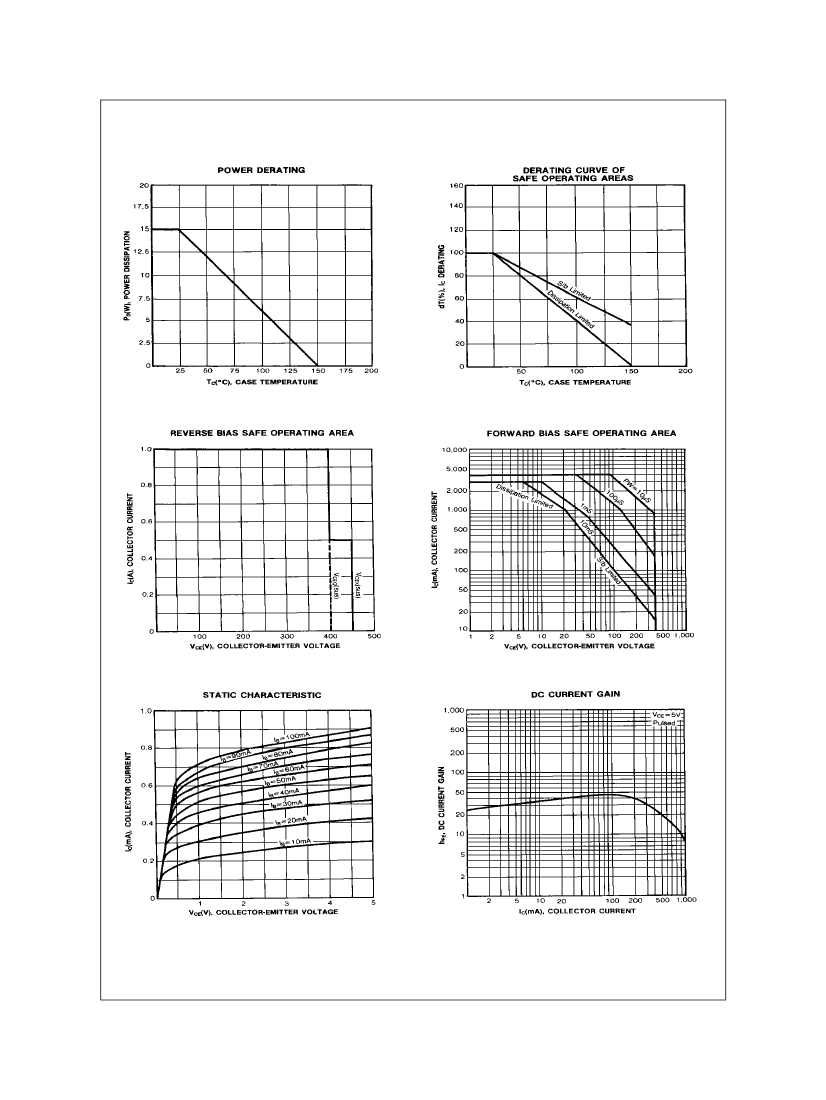

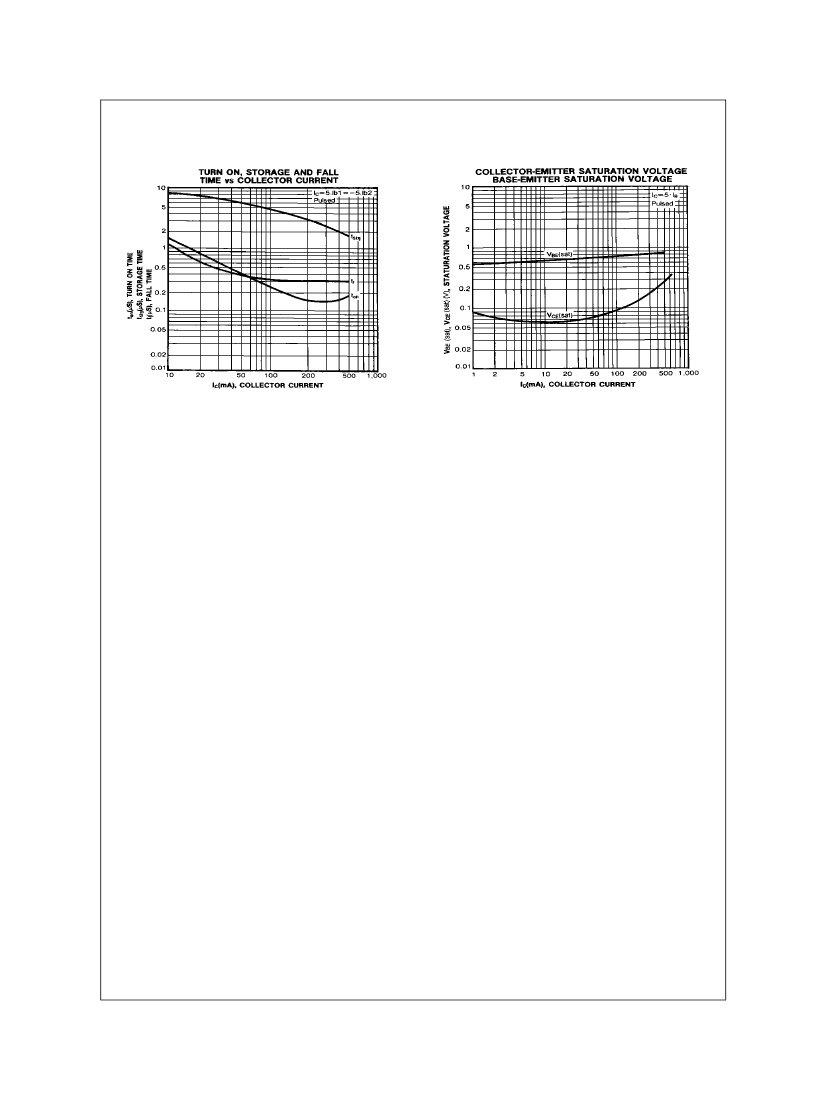

Preview
