SUBMINIATURE — SEALED
DCJK Series

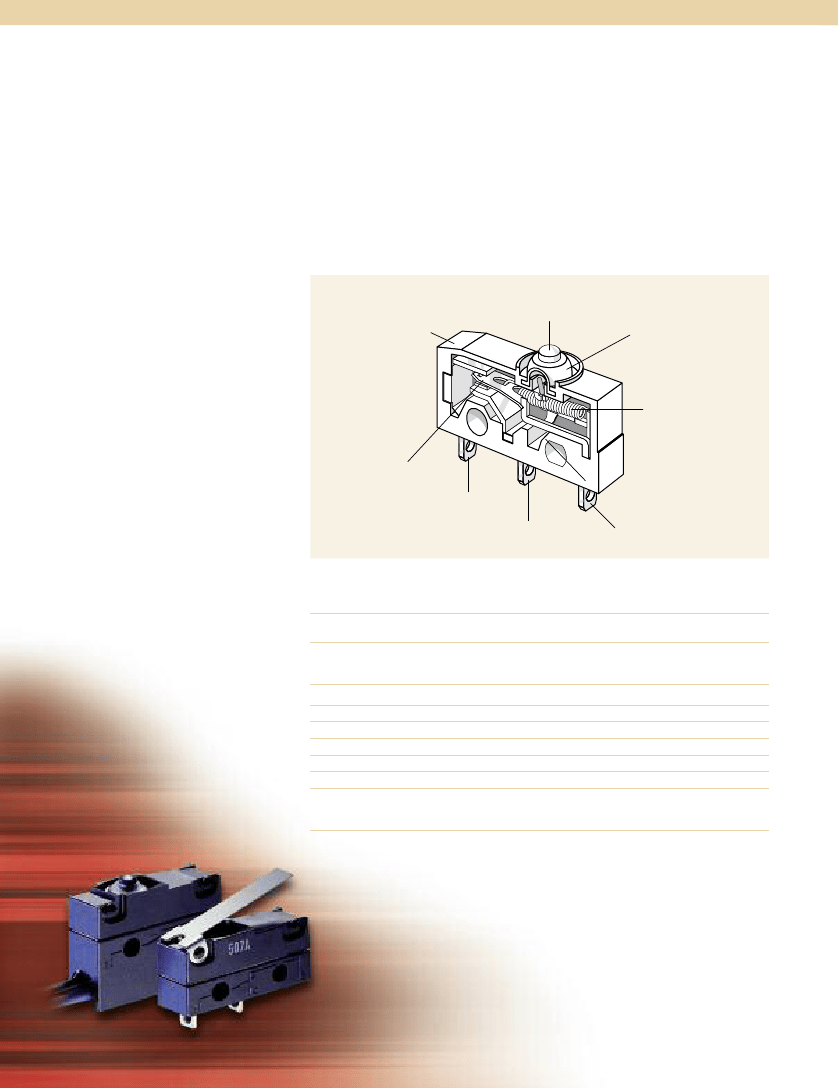

Features
Enclosed switch complying with IP 6K7
Silicon-free version available
Models available for operating
temperatures up to 120°C
Rated for currents up to
10 amp at 250VAC
Stainless steel spring
Thermoplastic
case and cover
Thermoplastic
actuating button
Silicon gasket
Range of auxiliary actuators
available (can also be retrofitted);
two mounting positions
Wide variety of terminal types;
3 pedestal heights
High contact stability thanks to selection
of application-specific contact materials
Mechanical life: min. 2 x 10 operations
6
Silver-nickel or
gold crosspoint contacts
NC terminal
NO terminal
Common terminal
Specifications
Electrical
Temperature Rating:
Flammability Rating:
-40° to +85°C /+120°C
(without wire leads)
-40° to +85C / +105°C
(with wire leads)
UL94V-O
(PET)
UL94V-2
(PA)
UL94HB
(POM)
PET
PET/PA
POM
(85°C)
/ PA
(120°C)
Stainless Steel or Plastic
Silver-Plated Copper-Zinc
Silver Alloy; Silver;
Gold-Plated Silver Crosspoint;
Gold Crosspoint
Materials
Base:
Cover:
Actuator:
Auxiliary Actuator:
Terminals:
Contacts:
PA = Polyamide • PET = Polyethyleneterephthalate • POM = Polyacetal

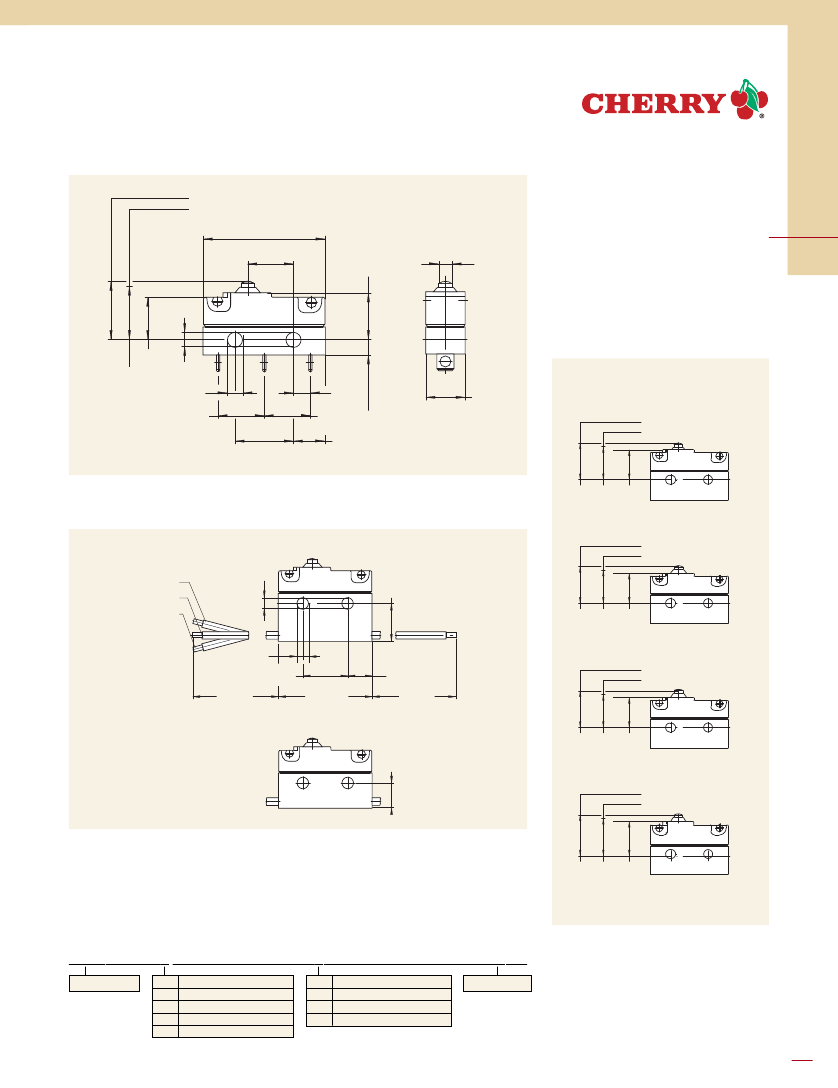

Dimensions
inches (mm)
Auxiliary Actuators
Switches in the DCJK family have two
mountings for attaching auxiliary actuators.
This, combined with the range of actuators
available in the DC switch family and
various operating points, means that
a wide variety of operating forces
and travel combinations is feasible.
To find the perfect fit for your
requirements, please contact us.
Rest Position
Operating Point
max. 0.303
(7.7)
max. 0.787
(20.0)
0.295
(7.5)
ø0.087
(ø2.2)
max.
0.362
(9.2)
Switching Point
Options
inches (mm)
0.331±0.012
(8.4±0.3)
0.272
(6.9)
0.089
(2.25)
0.100
(2.54)
0.295
(7.5)
0.375
(9.53)
0.107
(2.73)
max. 0.098
(2.5)
0.295
(7.5)
0.203
(5.16)
0.251
(6.4)
For customizing to individual requirements,
switches in the DCJK family are available
with four different switching points.
Rest Position
Operating Point
max. 0.326
(9.2)
0.331±0.012
(8.4±0.3)
Dimensions
inches (mm)
Model with Electrical Leads
0.319 (8.1) from base to drill hole
NO Lead (Blue)
NC Lead (Grey)
COM Lead (Black)
max. 0.303
(7.7)
Rest Position
Operating Point
max. 0.303
(7.7)
Rest Position
Operating Point
max. 0.303
(7.7)
Rest Position
Operating Point
max. 0.323
(8.2)
max.0.319
(8.1)
8.089
(2.25)
max. 0.374
(9.5)
0.203
(5.16)
max. 0.787
min. »L«
(20.0)
Leads attached on side opposite actuator
max. 0.205
(5.2)
max. 0.382
(9.7)
max. 0.406
(10.3)
0.100
(2.54)
max. 0.375
(9.53)
min. »L«
Leads attached on actuator side
Example
Because of the huge variety of options available, there is no fully descriptive order code.
Please give us details of your requirements so that we can find the right solution to suit
your needs and tell you the precise order code to use.
0.370±0.012
(9.4±0.3)
Ordering Information
DCJK
Series/Prefix
1
Code
1
2
3
5
Contact Material
Silver Alloy
Silver
Gold Crosspoint
Gold-Plated Silver Crosspoint
2
Code
1
2
3
Pedestal Height
Short Pedestal 0.098 (2.5)
Medium Pedestal 0.205 (5.2)
Tall Pedestal 0.319 (8.1)
xx
Serial Number
Specifications subject to change without notice.
0.350±0.012
(8.9±0.3)
Model with Electrical Leads
0.205 (5.2) from base to drill hole
0.343±0.012
(8.7±0.3)
25
