Digital Timer
®
• Compact 17.5 mm
• Multi-voltage, Multi-function(8 or 17)
• 3 digit LCD for Preset time and Run time
• Option to select Up/Down counting
• Tamper proof with key lock function
• All settings accomplished with only two keys
Cat. No.
Parameters
Supply Voltage (Un)
Operating Range
Frequency
Power Consumption (Max.)
Timing Ranges
Repeat Accuracy
Relay Output
Contact Rating
Contact Material
Electrical Life
Mechanical Life
Switching Frequency
@ rated max load
Utilization Category
Operating Temperature
Storage Temperature
LED Indication
Housing
Dimension (W x H x D)
Weight
Mounting
Certification
Degree of Protection
Humidity (Non - Condensing)
EMI/ EMC
Radio Interference Suppression
ESD
Electrical Fast Transients
Surges
Voltage Dips, Interruptions
Vibration
AC - 15
DC - 13
V0DDTS1, V0DDTS
24 - 240 VAC/DC
-15% to +10% of Un
50 - 60 Hz, + / - 2 Hz
10 VA
0.1s to 999h
+/- 0.5% of selected range
1 C/O (SPDT)
8A (resistive) @ 240 VAC / 24 VDC
Ag alloy
1x10
5
2x10
7
1800 Operations / h
V0DDTD1, V0DDTD
2 NO (DPST)
Rated Voltage (Ue): - 125/240 V, Rated Current (Ie) :- 3/1.5 A
Rated Voltage (Ue): - 125/250 V, Rated Current (Ie) :- 0.22/0.1 A
-10° C to +55° C
-20° C to +65° C
Red LED
Relay ON
Flame Retardant UL94V0
17.5 X 89 X 76 (in mm)
85 g (unpacked)
Base / DIN rail
RoHS
Compliant
IP 30 (Enclosure), IP 20 (Terminals)
93% Rh
CISPR 14-1 Class B
IEC 61000-4-2 Level II
IEC-61000-4-4 Level IV
IEC-61000-4-5 Level IV
IEC-61000-4-11 (AC), IEC-61000-4-29 (DC)
IEC-60068-2-6
ORDERING INFORMATION
Cat. No.
V0DDTS
V0DDTD
V0DDTS1
V0DDTD1
Description
24-240 VAC/DC, 8 Functions, 1C/O
24-240 VAC/DC, 8 Functions, 2 NO
24-240 VAC/DC, 17 Functions, 1C/O
24-240 VAC/DC, 17 Functions, 2 NO

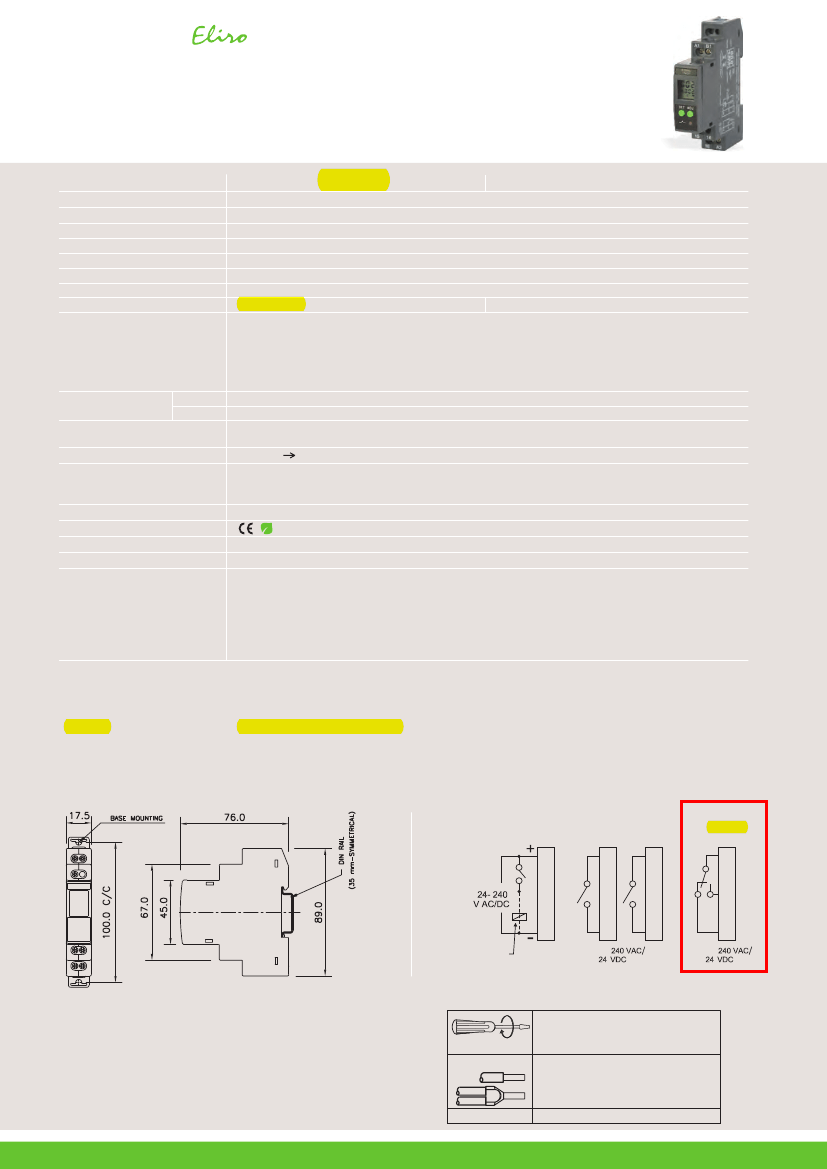

MOUNTING DIMENSION (mm)
CONNECTION DIAGRAM
Supply Connections
V0DDTD1,
V0DDTD
15
25
V0DDTS1,
V0DDTS
15
A1
B1
18
A2
OPTIONAL
LOAD >1mA
18
8A@
28
8A@
16
TERMINAL TORQUE & CAPACITY
Torque 0.54 N.m (5 Lb. in)
Terminal Screw M2.5
1 x 0.2 - 2.5 mm
2
Solid Wire /
single wire ferrule
2 x 0.2 - 0.5 mm
2
Insulated with
twin ferrule
AWG
1 x 24 to 13
Ø3.5 mm
16
Digital Timer
®

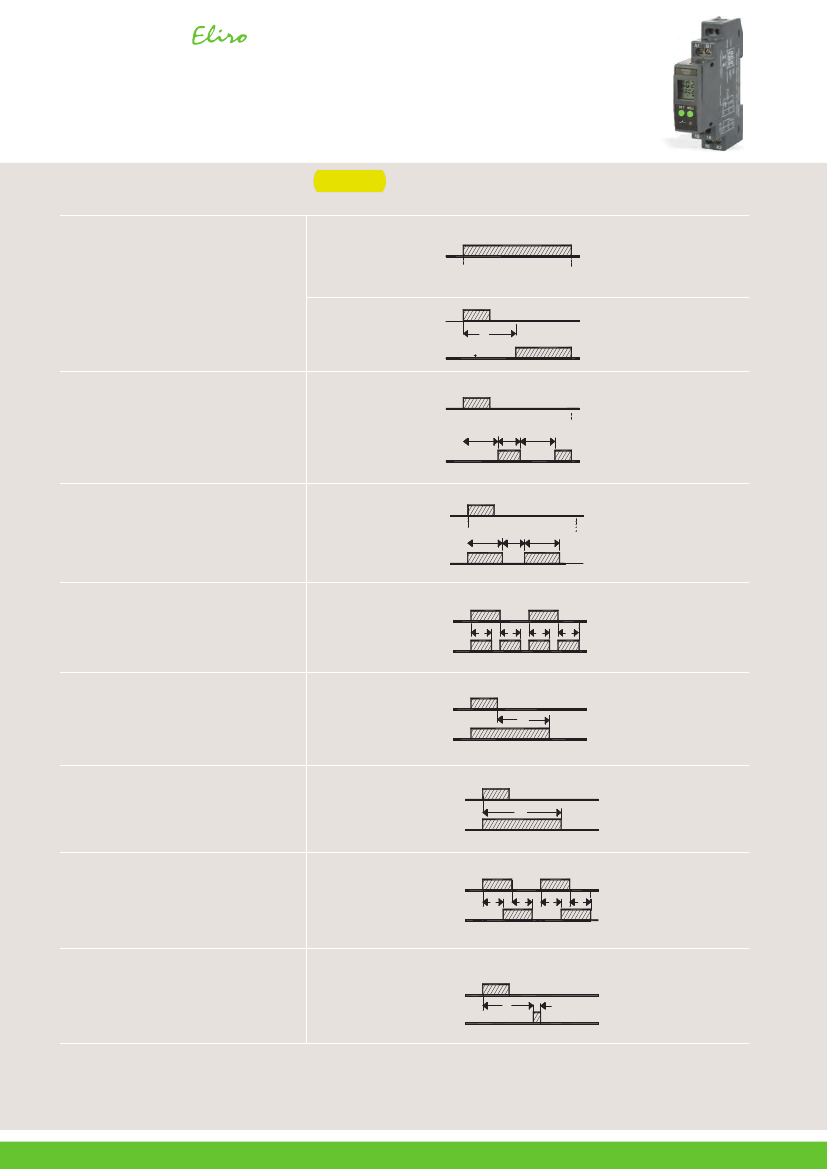

FUNCTIONAL DIAGRAMS FOR V0DDTS & V0DDTD
P : A1- A2
P: Power-On operation
S : B1
ON DELAY (
A
)
R :
T
S :
B1
T OFF T ON T OFF T ON
CYCLIC OFF/ON
{OFF Start, (Sym, Asym)} ( b)
R :
S : B1
CYCLIC ON/OFF
{ON Start, (Sym, Asym)} ( C)
R :
T ON
T OFF T ON
T OFF
S : B1
SIGNAL ON/OFF ( d)
R :
T
T
T
T
S : B1
SIGNAL OFF DELAY ( E)
R :
T
S :
B1
INTERVAL ( F)
R :
T
S :
B1
SIGNAL OFF / ON ( G)
R :
T
T
T
T
B1
ONE SHOT OUTPUT ( H)
S :
T
R :
1 SEC.
Note:
1. For Power-On operation (P) connect the terminal B1 to A1 permanently.
2. If the Signal (S) changes during the Timer Duration (T), it does not change the output relay but re-triggering
takes places and the Timer Duration is extended.
18
