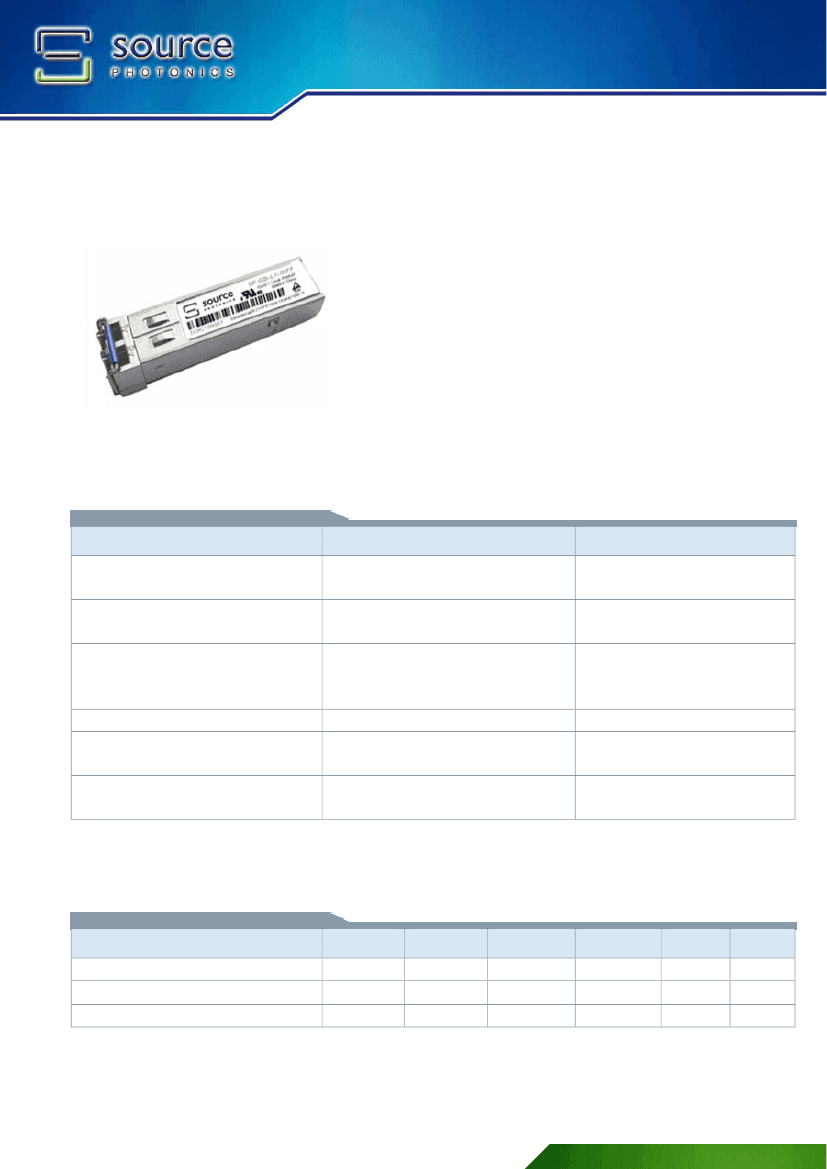

SP-GB-ELX-CDFH
Features
Dual data-rate 1.25Gbps/1.0625Gbps
Up to 20km transmission on SMF
1310nm FP laser and PIN photodetector
SFP MSA package with duplex LC connector
Digital diagnostic monitor interface compliant with
SFF-8472
+3.3V single power supply
Operating case temperature: -5 to +70°C
RoHS compliant
Regulatory Compliance
Table 1 - Regulatory Compliance
Electrostatic Discharge
(ESD) to the Electrical Pins
Electrostatic Discharge (ESD) to the
Duplex LC Receptacle
Electromagnetic
Interference (EMI)
Immunity
Laser Eye Safety
RoHS
MIL-STD-883E
Method 3015.7
IEC 61000-4-2
GR-1089-CORE
FCC Part 15 Class B
EN55022 Class B (CISPR 22B)
VCCI Class B
IEC 61000-4-3
FDA 21CFR 1040.10 and 1040.11
EN60950, EN (IEC) 60825-1,2
2002/95/EC 4.1&4.2
2005/747/EC
Class 2(>2000 V)
Compliant with standards
Compliant with standards
Compliant with standards
Compliant with Class I laser
product.
Compliant with RoHS 6
Absolute Maximum Ratings
Table 2 - Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage
Operating Relative Humidity
Symbol
T
S
V
CC
RH
Min.
-40
-0.5
+5
Typical
-
-
-
Max.
+85
+3.6
+95
Unit
°C
V
%
Notes
DS-5203 Rev 0.1 2008-11-17
SP-GB-ELX-CDFH
Recommended Operating Conditions
Table 3 – Recommended Operating Conditions
Parameter
Operating Case Temperature
Power Supply Voltage
Power Supply Current
Power Dissipation
Data Rate
Symbol
T
C
V
CC
I
CC
P
D
Min.
-5
3.13
-
-
1.0625
Typical
-
3.3
-
-
1.25
Max.
+70
3.47
300
1
Unit
°C
V
mA
W
Gbps
Notes
Optical Characteristics
Table 4 – Optical Characteristics
Transmitter
Parameter
Centre Wavelength
Average Output Power
Symbol
λ
C
P
0UT
P
0UT
Δλ
EX
9
0.26
0.431
0.43
0.2
0.21
IEEE 802.3ah and ANSI Fibre Channel compliant
Receiver
Centre Wavelength
Receiver Sensitivity
Receiver Overload
λ
C
P
IN
P
IN
LOS
A
LOS
D
1
1.25G
1.0625G
1.25G
1.0625G
T
J
-3
1260
1570
-22
nm
dBm
dBm
5
5
2
Min.
1270
-8
Typical
1310
Max.
1355
-3
-45
4
Unit
nm
dBm
dBm
nm
dB
ns
UI
UI
2
3
3
4
1
1
Notes
P
0ut
@
TX Disable Asserted
Spectral Width (RMS)
Extinction Ratio
Rise/Fall Time (20%½80%)
1.25G
1.0625G
1.25G
1.0625G
t
r
/t
f
T
J
Total Jitter
Deterministic
Jitter
Optical Eye Mask
D
J
Return Loss
LOS Assert
LOS Deassert
LOS Hysteresis
12
-35
-23
4
0.749
0.61
0.462
0.36
dB
dBm
dBm
dB
UI
UI
3
3
Total Jitter
Deterministic
Jitter
D
J
DS-5203 Rev 0.1 2008-11-17
SP-GB-ELX-CDFH
Notes:
1. The optical power is launched into SMF.
2. Unfiltered, measured with a PRBS 2
7
-1 test pattern @1.25Gbps
3. Meet the specified maximum output jitter requirements if the specified maximum input jitter is present.
4. Measured with a PRBS 2
7
-1 test pattern @1.25Gbps/1.0625Gbps.
5. Measured with a PRBS 2
7
-1 test pattern @1.25Gbps, worst-case extinction ratio, BER
≤1×10
-12
.
Electrical Characteristics
Table 5 – Electrical Characteristics
Transmitter
Parameter
Data Input Swing Differential
Input Differential Impedance
Tx_DIS Disable
Tx_DIS Enable
TX_ Fault (Fault)
TX_ Fault (Normal)
Data Output Swing Differential
Rx_LOS Fault
Rx_LOS Normal
Notes:
1.
Internally AC coupled
V
OUT
V
LOS-Fault
V
LOS-Normal
Symbol
V
IN
Z
IN
V
D
V
EN
Min.
500
90
2.0
GND
2.0
0
Receiver
370
2.0
GND
2000
Vcc+0.3
GND+0.8
mV
V
V
1
100
Typical
Max.
2400
110
V
CC
GND+0.8
Vcc+0.3
0.8
Unit
mV
Ω
V
V
V
V
Notes
1

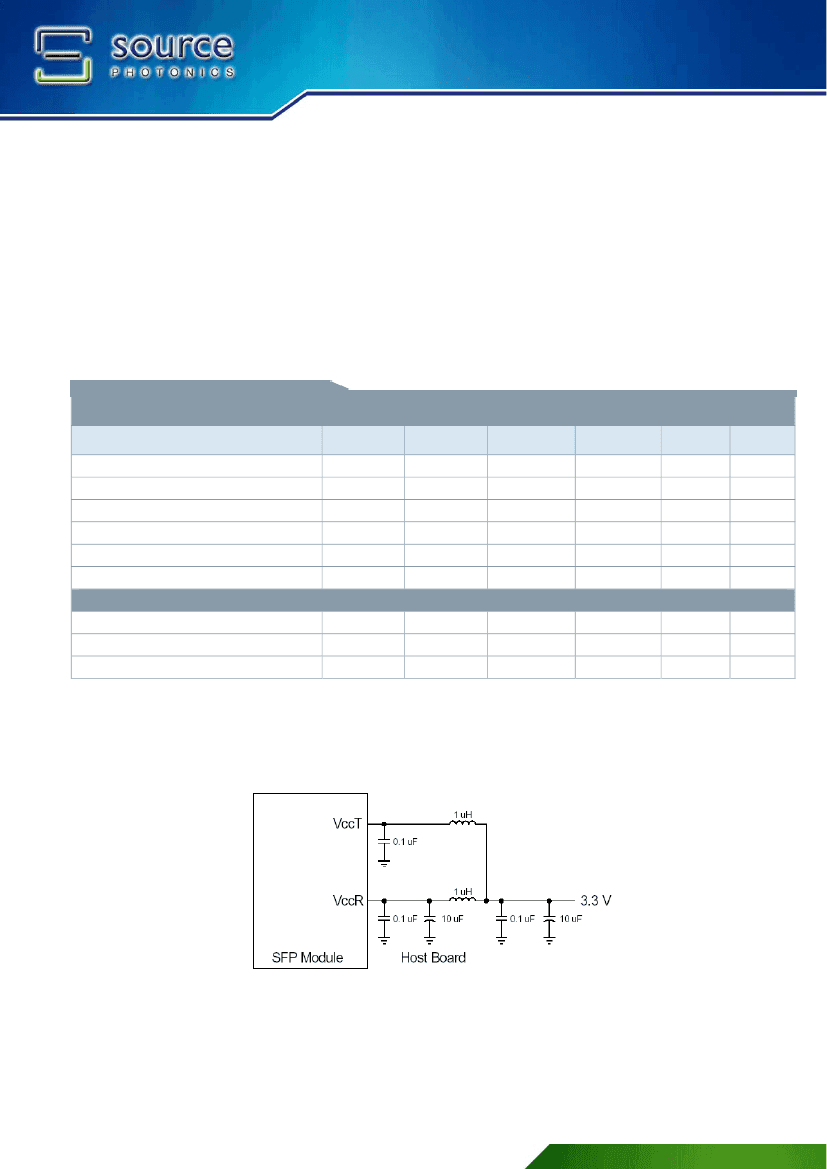

Recommended Host Board Power Supply Circuit
Figure 1, Recommended Host Board Power Supply Circuit
DS-5203 Rev 0.1 2008-11-17
SP-GB-ELX-CDFH

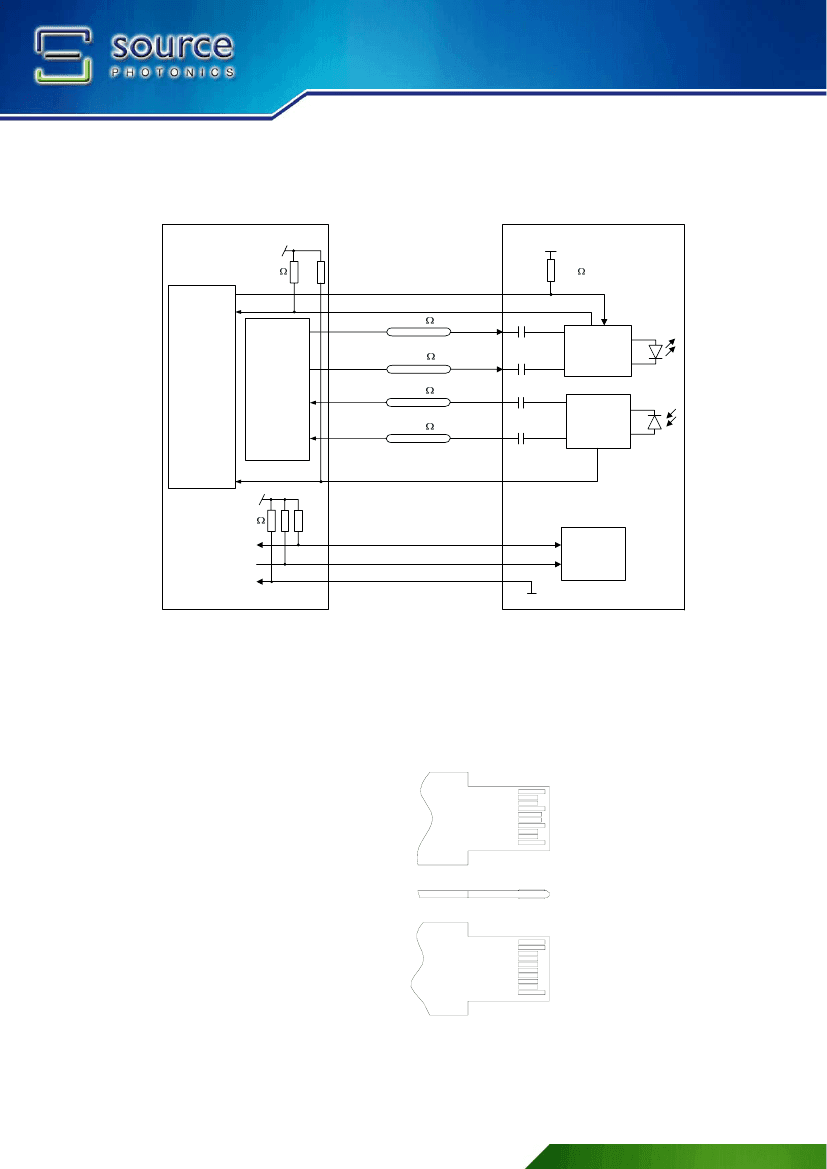

Recommended Interface Circuit
Host Board
Vcc (+3.3V)
2×4.7K to 10K
TX Disable
TX Fault
SerDat Out +
SFP Module
VccT
10K
Z=50
TD +
SerDat Out -
Z=50
TD -
Laser
driver
Protocol
IC
SERDES
IC
SerDat In +
Z=50
RD +
SerDat In -
Z=50
Amplifier
RD -
LOS
Vcc (+3.3V)
3×4.7K to 10K
MOD-DEF2
MOD-DEF1
MOD-DEF0
EEPROM
RGND
Figure 2, Recommended Interface Circuit
Pin Definitions
Figure 3 below shows the pin numbering of SFP electrical interface. The pin functions are described in Table
6 with some accompanying notes.
P in 2 0
T O P V IE W
OF BOARD
P in 1 1
P in 1 0
B O T T O M V IE W
OF BOARD
P in 1
Figure 3, Pin View
DS-5203 Rev 0.1 2008-11-17
SP-GB-ELX-CDFH
Table 6 - Pin Function Definitions
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Notes:
1. TX Fault is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor on the host board to
a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; logic 1 indicates a laser fault of
some kind. In the low state, the output will be pulled to less than 0.8V.
2. TX Disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module
with a 4.7k~10kΩ resistor. Its states are:
Low (0~0.8V):
(>0.8V, <2.0V):
High (2.0~3.465V):
Open:
Transmitter on
Undefined
Transmitter Disabled
Transmitter Disabled
Name
VeeT
TX Fault
TX Disable
MOD-DEF2
MOD-DEF1
MOD-DEF0
Rate Select
LOS
VeeR
VeeR
VeeR
RD-
RD+
VeeR
VccR
VccT
VeeT
TD+
TD-
VeeT
Function
Transmitter Ground
Transmitter Fault Indication
Transmitter Disable
Module Definition 2
Module Definition 1
Plug Seq.
1
3
Notes
Note 1
Note 2
Note 3
3
3
3
3
3
3
1
1
1
3
3
1
2
2
1
3
3
1
Note 3
Note 3
Note 4
Module Definition 0
Not Connected
Loss of Signal
Receiver Ground
Receiver Ground
Receiver Ground
Inv. Received Data Out
Received Data Out
Receiver Ground
Receiver Power
Transmitter Power
Transmitter Ground
Transmit Data In
Inv. Transmit Data In
Transmitter Ground
Note 5
Note 5
Note 6
Note 6
3. MOD-DEF 0,1,2 are the module definition pins. They should be pulled up with a 4.7k~10kΩ resistor on the host
board. The pull-up voltage shall be VccT or VccR.
MOD-DEF 0 is grounded by the module to indicate that the module is present
MOD-DEF 1 is the clock line of two wires serial interface for serial ID
MOD-DEF 2 is the data line of two wires serial interface for serial ID
4. LOS is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor on the host board to a
voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; logic 1 indicates loss of signal. In the
low state, the output will be pulled to less than 0.8V.
5. These are the differential receiver output. They are internally AC-coupled 100Ω differential lines which should
be terminated with 100Ω (differential) at the user SERDES.
DS-5203 Rev 0.1 2008-11-17
