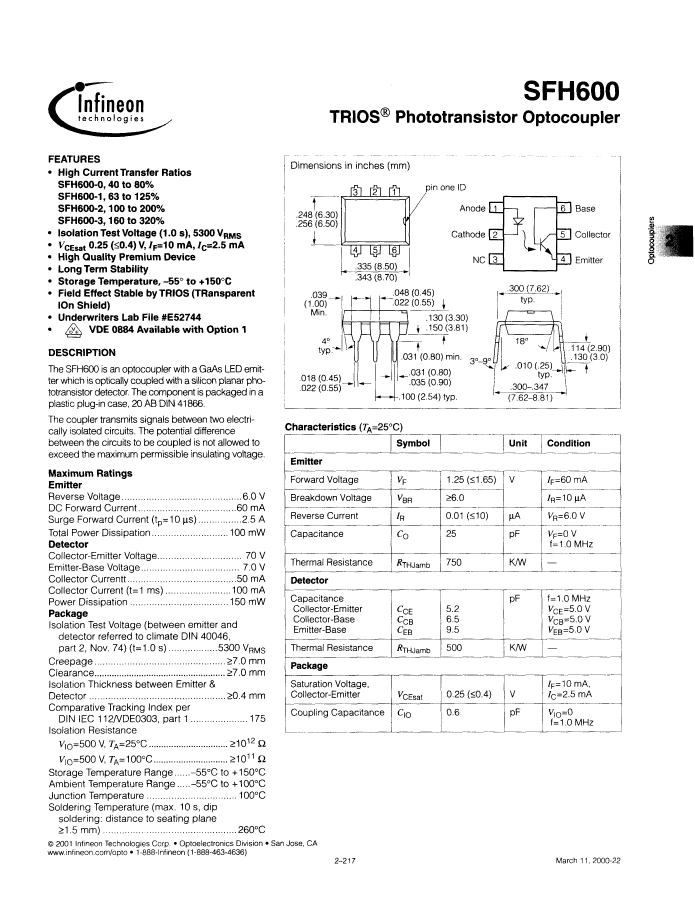

SFH600-1-X001 datasheet, PDF - EEWORLD Datasheet

SFH600-1-X001: DescriptionTransistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, PLUG-IN, 6 PIN; CategoryLED optoelectronic/LED photoelectric; File Size268KB，4 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

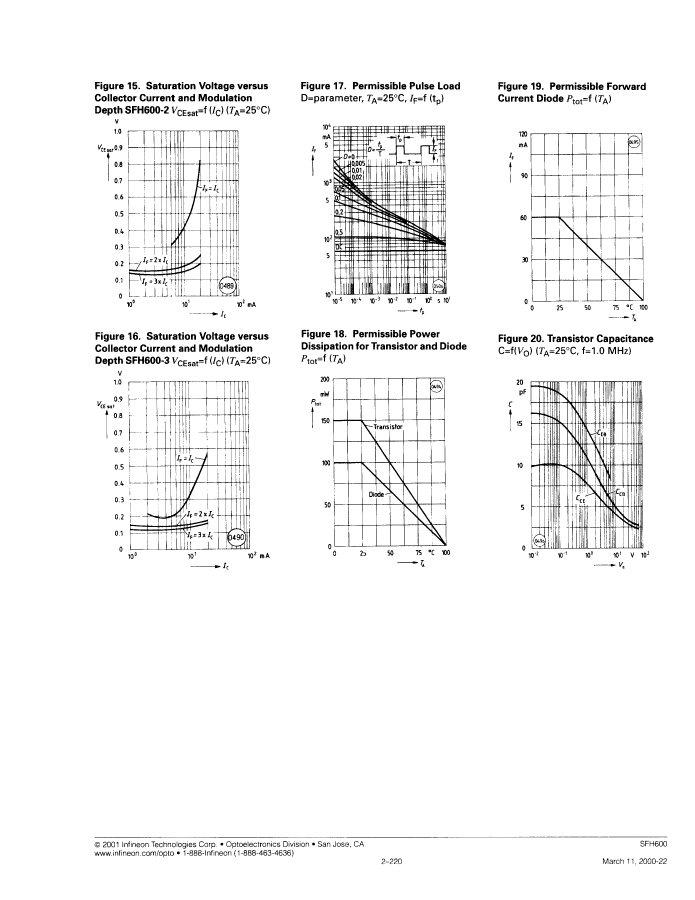

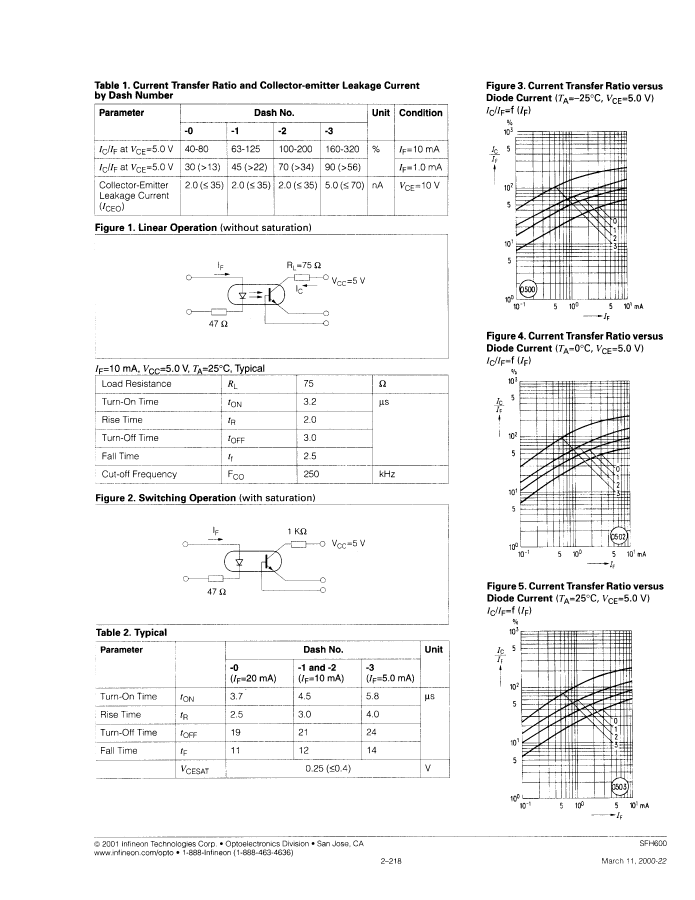

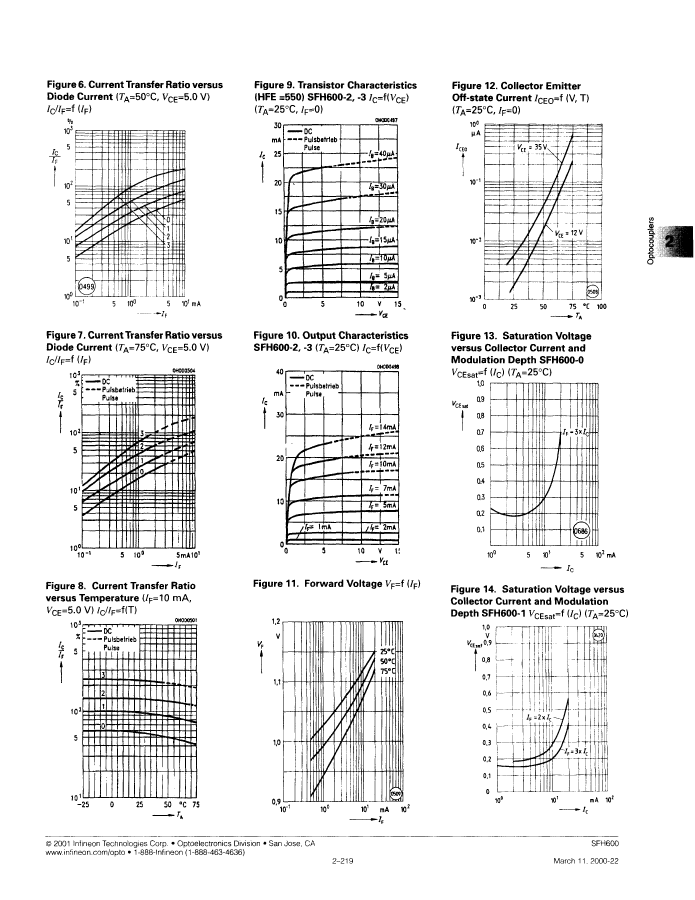

SFH600-1-X001 Overview

Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, PLUG-IN, 6 PIN

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
package instruction	PLASTIC, PLUG-IN, 6 PIN
Reach Compliance Code	compliant
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	70 V
Configuration	SINGLE
Nominal current transfer ratio	63%
Maximum dark power	35 nA
Maximum forward current	0.06 A
Maximum insulation voltage	5300 V
JESD-609 code	e0
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER
Terminal surface	Tin/Lead (Sn/Pb)

	SFH600-1-X001	SFH600-2-X001	SFH600-0-X001	SFH600-3-X001
Description	Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, PLUG-IN, 6 PIN	Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, PLUG-IN, 6 PIN	Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, PLUG-IN, 6 PIN	Transistor Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, PLUG-IN, 6 PIN
Maker	Infineon	Infineon	Infineon	Infineon
package instruction	PLASTIC, PLUG-IN, 6 PIN	PLASTIC, PLUG-IN, 6 PIN	PLASTIC, PLUG-IN, 6 PIN	PLASTIC, PLUG-IN, 6 PIN
Reach Compliance Code	compliant	unknown	unknown	unknown
Other features	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	70 V	70 V	70 V	70 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Nominal current transfer ratio	63%	100%	40%	160%
Maximum dark power	35 nA	35 nA	35 nA	70 nA
Maximum forward current	0.06 A	0.06 A	0.06 A	0.06 A
Maximum insulation voltage	5300 V	5300 V	5300 V	5300 V
Number of components	1	1	1	1
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER	TRANSISTOR OUTPUT OPTOCOUPLER
