RD-0505D/H: DescriptionDC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, ROHS COMPLIANT, SIP-7/5; CategoryPower/power management The power supply circuit; File Size1MB，5 Pages; ManufacturerRECOM; Environmental Compliance

Download Datasheet Parametric View All

RD-0505D/H Overview

DC-DC Unregulated Power Supply Module, 2 Output, 2W, Hybrid, ROHS COMPLIANT, SIP-7/5

RD-0505D/H Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	RECOM
package instruction	SIP-7/5
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO AVAILABLE OUTPUT VOLTAGE: -5V; SEATED HGT CALCULATED
Analog Integrated Circuits - Other Types	DC-DC UNREGULATED POWER SUPPLY MODULE
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-XSMA-T5
JESD-609 code	e3
length	19.65 mm
Maximum load regulation	15%
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	0.2 A
Maximum output voltage	5.25 V
Minimum output voltage	4.75 V
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	SIP5/7,.05
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	10.45 mm
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	2 W
Fine-tuning/adjustable output	NO
width	7.05 mm

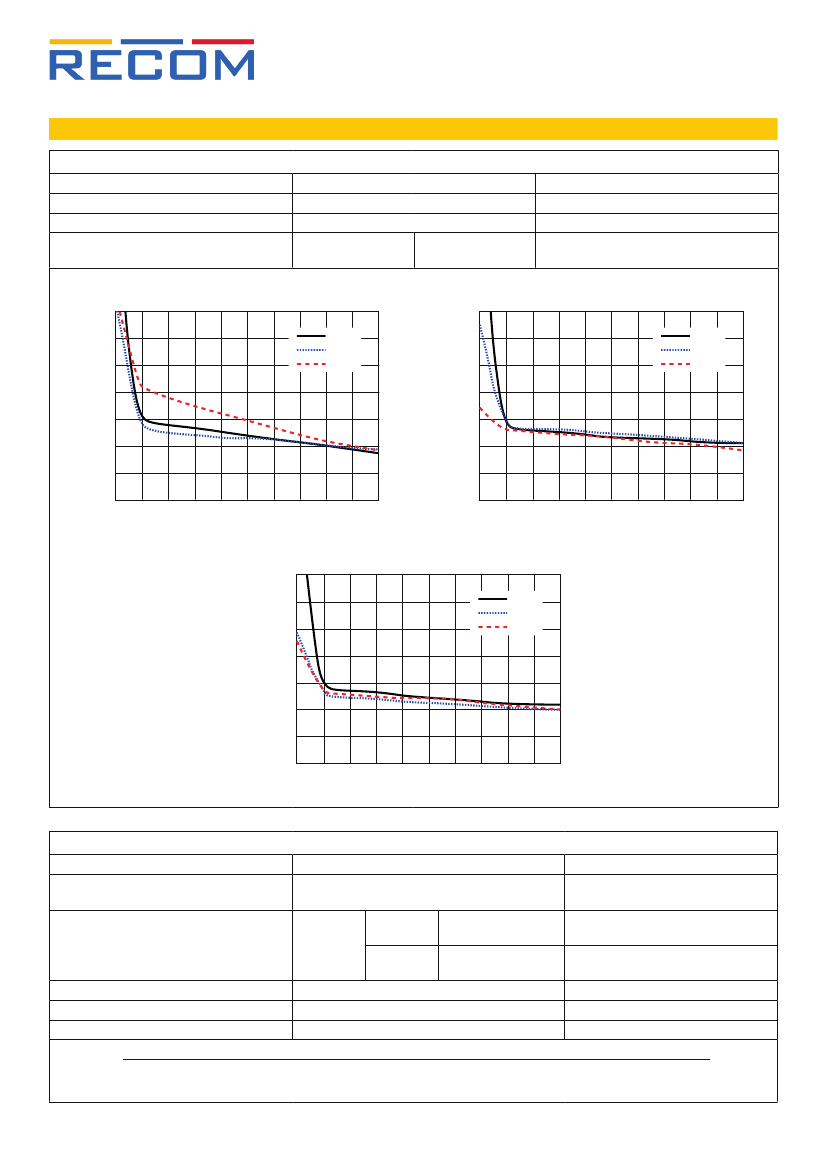

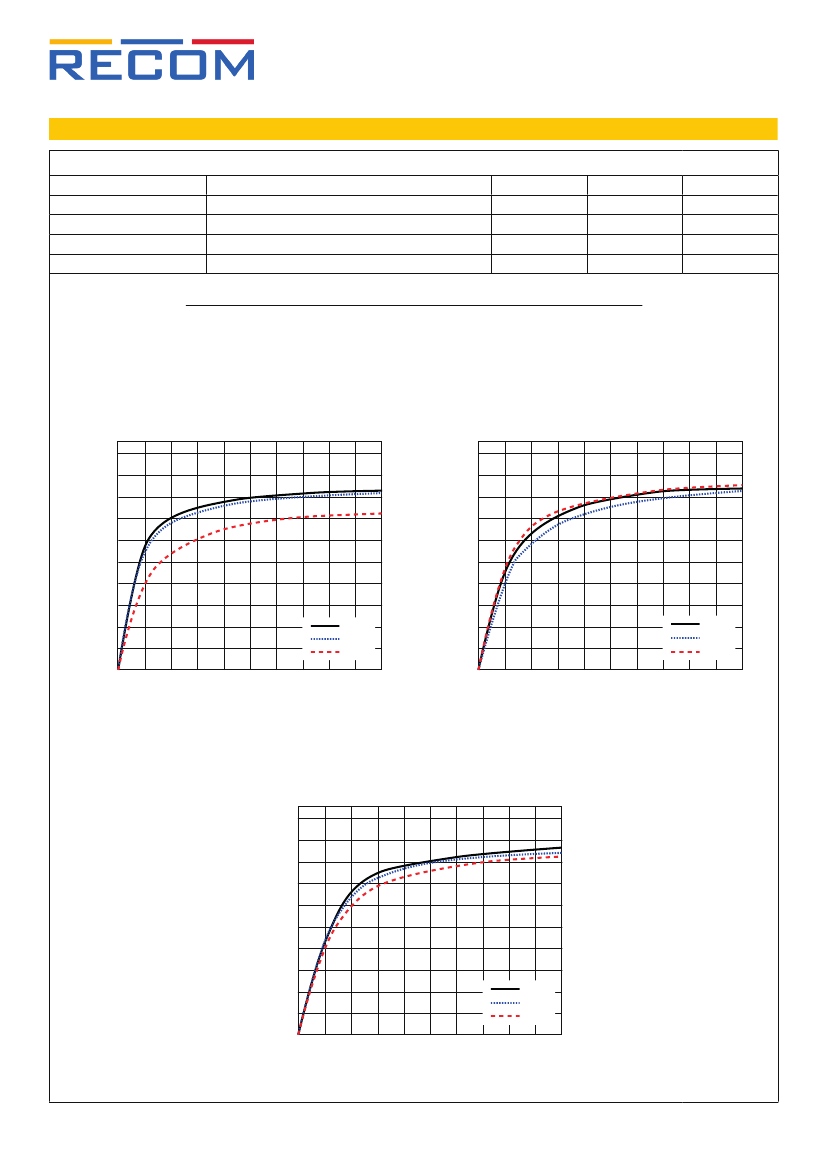

Preview

Download Datasheet

View All

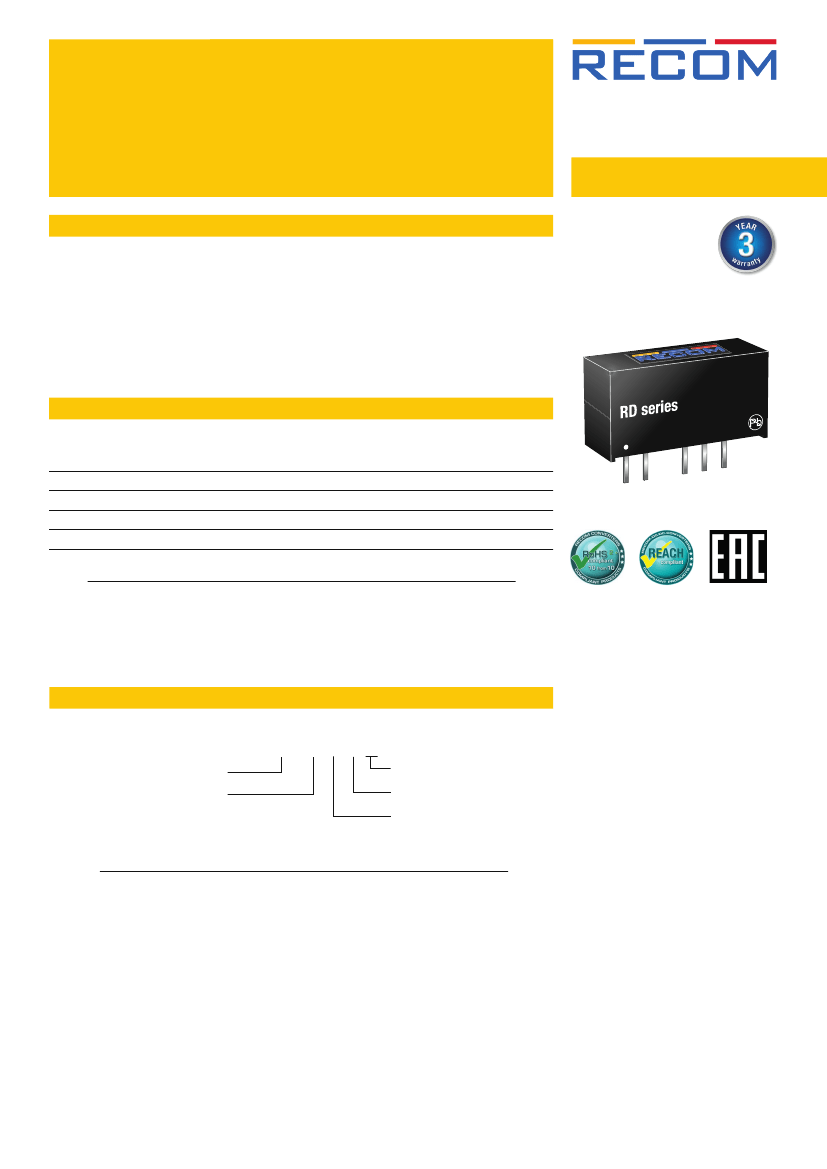

Features

Unregulated

Converters

Description

•

2W dual output converter

Industry standard SIP7 packages

Power sharing on outputs

Optional continuous short circuit protection

1kVDC and 2kVDC basic isolation

UL94 V-0 package material

Efficiency up to 87%

DC/DC Converter

The RD series have been specifically designed for applications where dual power rails need to

be created from a single rail supply and a low cost solution is required. With efficiencies up to 87%,

the full output power is available over the operating temperature range -40°C to +85°C and

the converters can be used in ambient temperatures of up to 100°C with derating. The wide selection

of industry standard input voltage and output voltage options plus an input to output isolation of 1kVDC

or 2kVDC makes these converters suitable for many industrial applications.

2 Watt

SIP7

Dual Output

Selection Guide

Part

Number

RD-xx05D

(3,4)

RD-xx12D

(3,4)

RD-xx15D

(3,4)

RD-xx24D

(3,4)

nom. Input

Voltage

[VDC]

5, 12, 24

Output

Voltage

[VDC]

±5

±12

±15

±24

Output

Current

[mA]

±200

±84

±66

±42

Efficiency

typ.

(1)

[%]

75-86

81-85

82-86

max. Capacitive

Load

(2)

[µF]

±470

±330

±100

Notes:

Note1: Efficiency is tested at nominal input and full load at +25°C ambient

Note2: Max Cap Load is tested at nominal input and full resistive load and is defined as the

capacitive load that will allow start up in under 1s without damage to the converter

EN60950-1 certified

IEC60950-1 certified

Model Numbering

RD- __ __D/_

Input Voltage

Output Voltage

Protection

(3)

Isolation Option

(4)

Dual

Notes:

Note3: standard part is without Continuous Short Circuit Protection

add suffix „/P“ for Continuous Short Circuit Protection

Note4: add suffix „/H“ for 2kVDC Isolation

or add suffix „/HP“ for Continuous Short Circuit Protection and 2kVDC Isolation

Ordering Examples:

RD-123.3D/P: 12V Input Voltage, ±3.3V Output Voltage, Dual Output with continuous short circuit protection

RD-0509D/HP: 5V Input Voltage, ±9V Output Voltage, Dual Output with 2kVDC Isolation and continuous short circuit protection

www.recom-power.com

REV.: 1/2018

ECO-1
