GD54HCT688 datasheet, PDF - EEWORLD Datasheet

GD54HCT688: DescriptionIdentity Comparator, HCT Series, 8-Bit, Inverted Output, CMOS, PDIP20,; Categorylogic logic; File Size96KB，4 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric View All

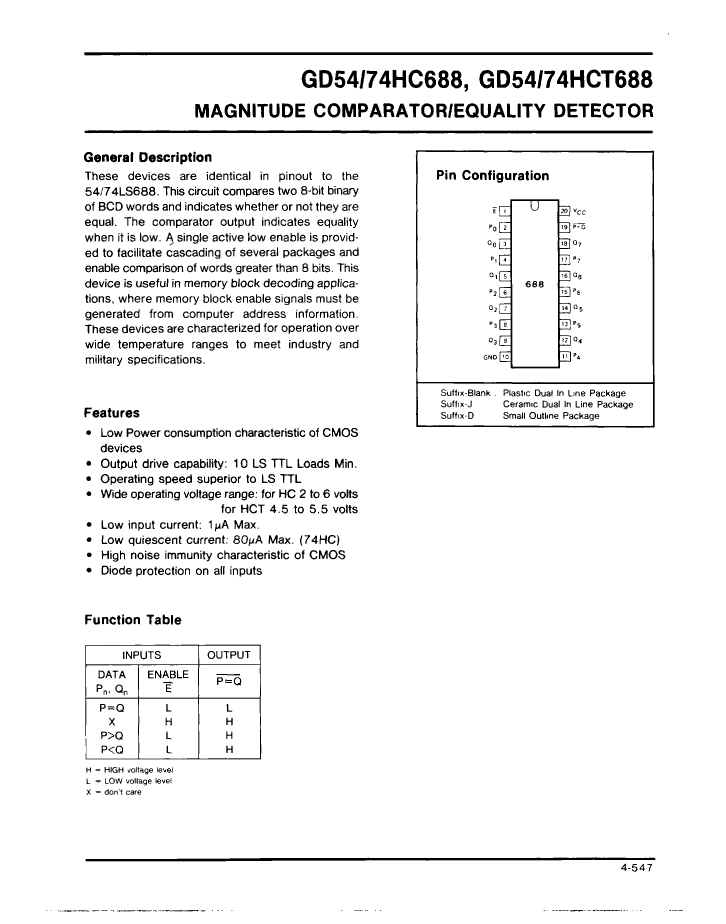

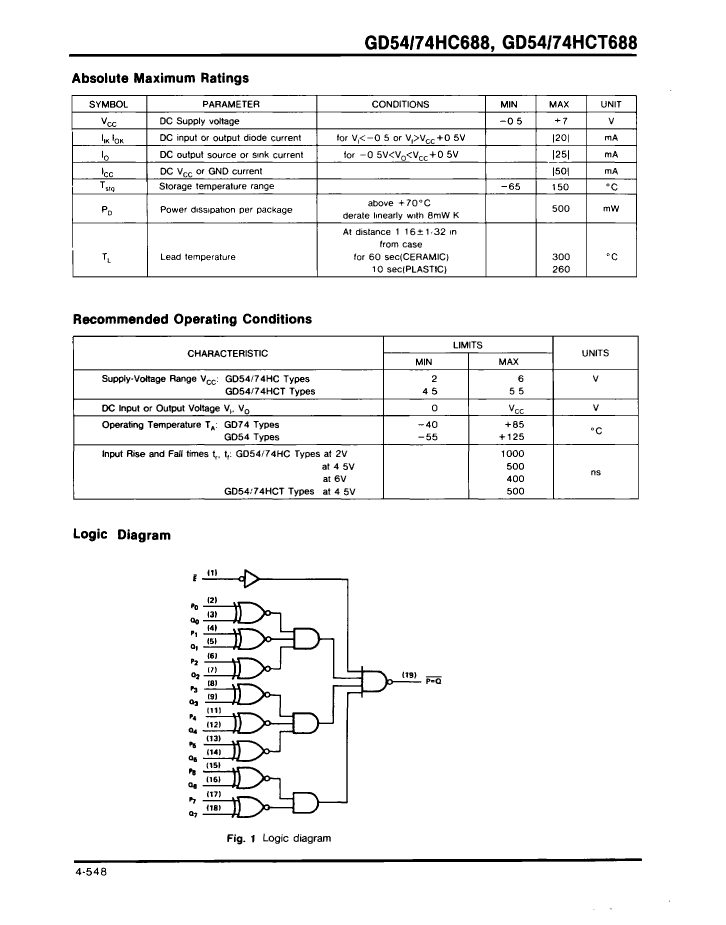

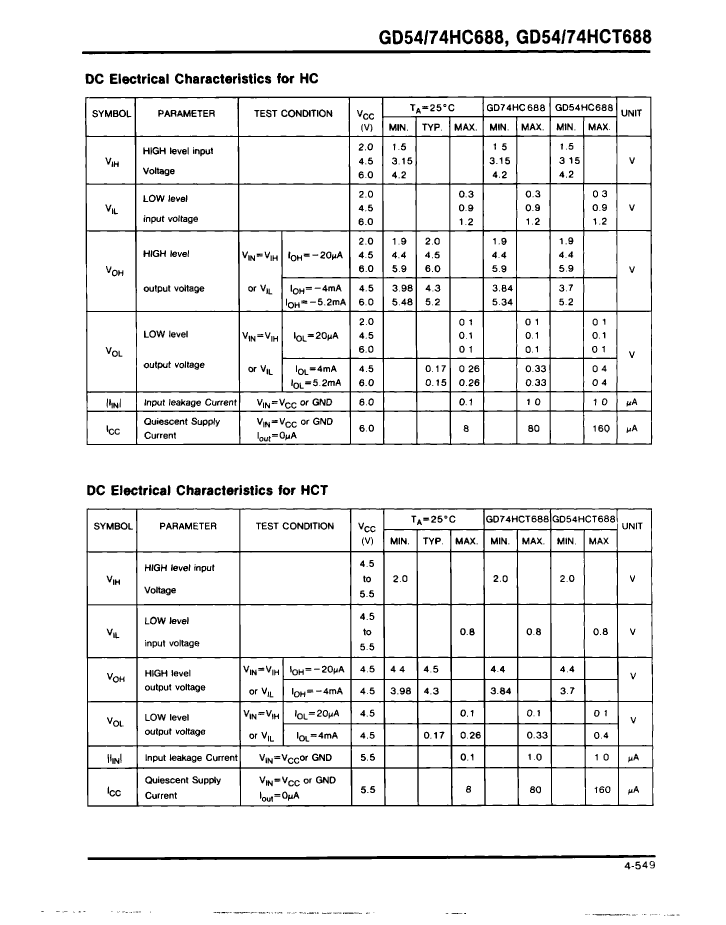

GD54HCT688 Overview

Identity Comparator, HCT Series, 8-Bit, Inverted Output, CMOS, PDIP20,

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
Other features	CASCADABLE
series	HCT
JESD-30 code	R-PDIP-T20
Load capacitance (CL)	50 pF
Logic integrated circuit type	IDENTITY COMPARATOR
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE

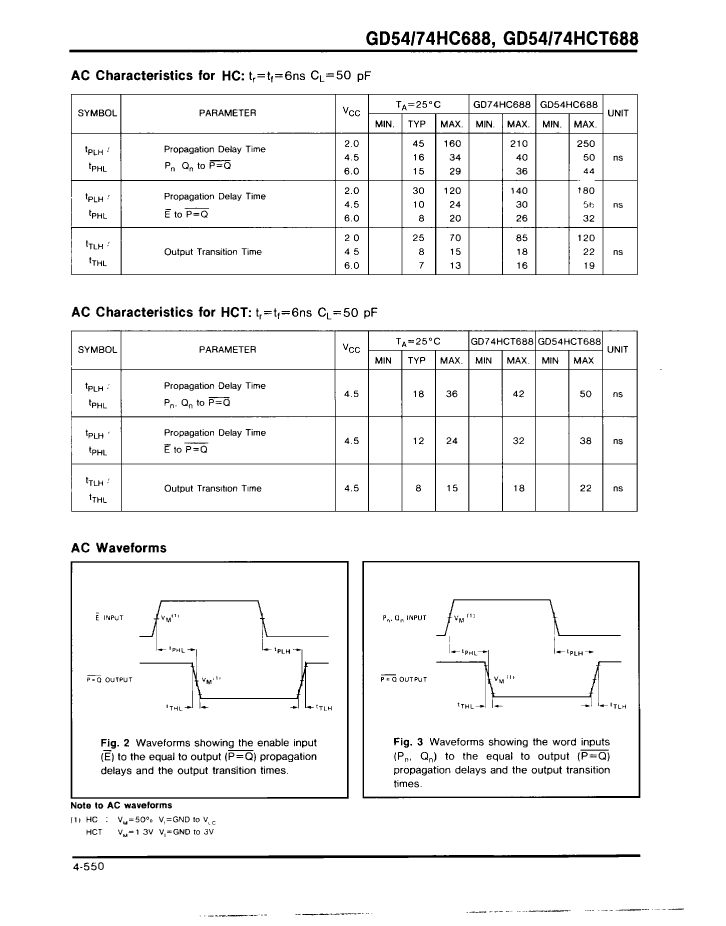

propagation delay (tpd)	50 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
