D13W3S17B5UX3CLF Overview

D Subminiature Connector, 13 Contact(s), Female, Solder Terminal, LEAD FREE

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (16) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	D13W3S17B5UX3C
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	13
UL Flammability Code	94V-0

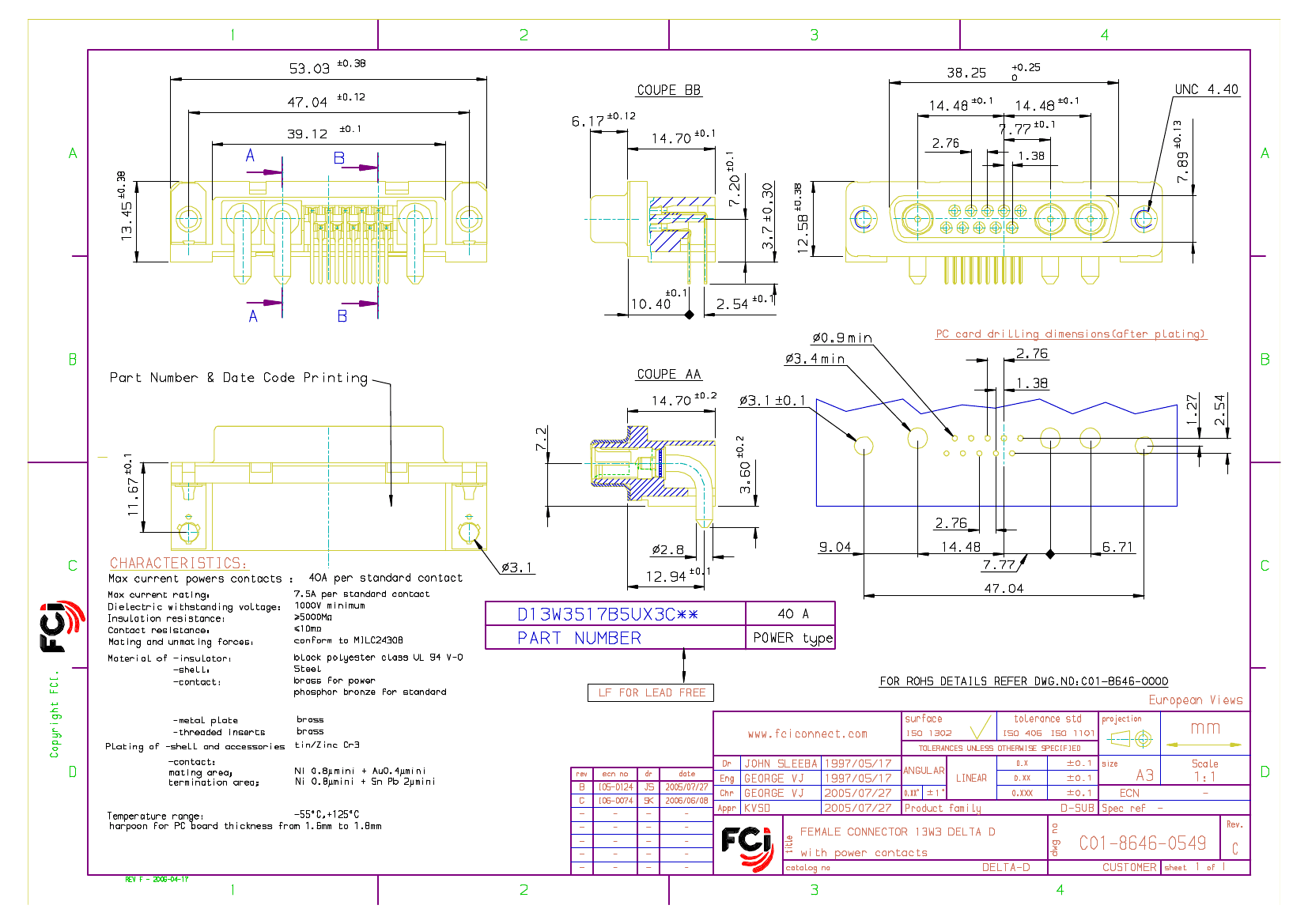

PDM: Rev:C

STATUS:

Released

Printed: Jan 18, 2011

.

	D13W3S17B5UX3CLF	D13W3S17B5UX3C
Description	D Subminiature Connector, 13 Contact(s), Female, Solder Terminal, LEAD FREE	D Subminiature Connector, 13 Contact(s), Female, Solder Terminal
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYESTER	POLYESTER
MIL compliance	NO	NO
Manufacturer's serial number	D13W3S17B5UX3C	D13W3S17B5UX3C
Mixed contacts	YES	YES
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL
Housing size	3/B	3/B
Termination type	SOLDER	SOLDER
Total number of contacts	13	13
UL Flammability Code	94V-0	94V-0
