GD74HCT273J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> GD74HCT273J

GD74HCT273J: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,; Categorylogic logic; File Size266KB，6 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

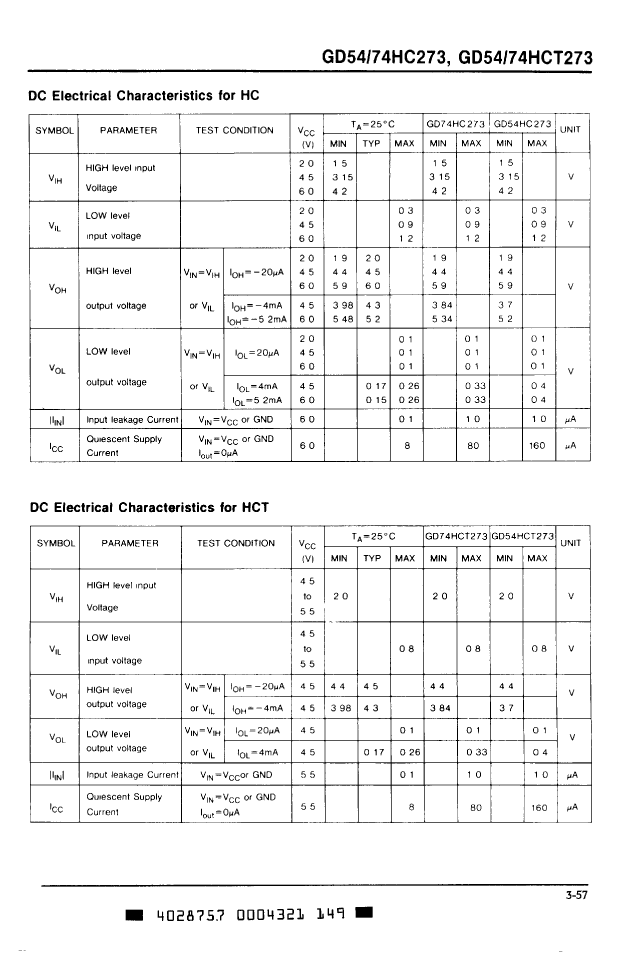

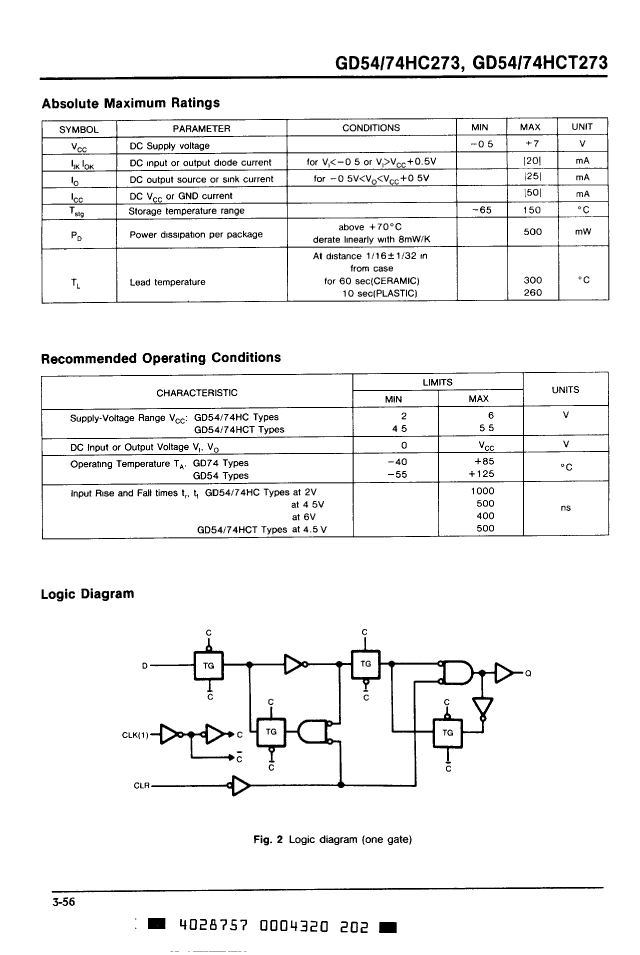

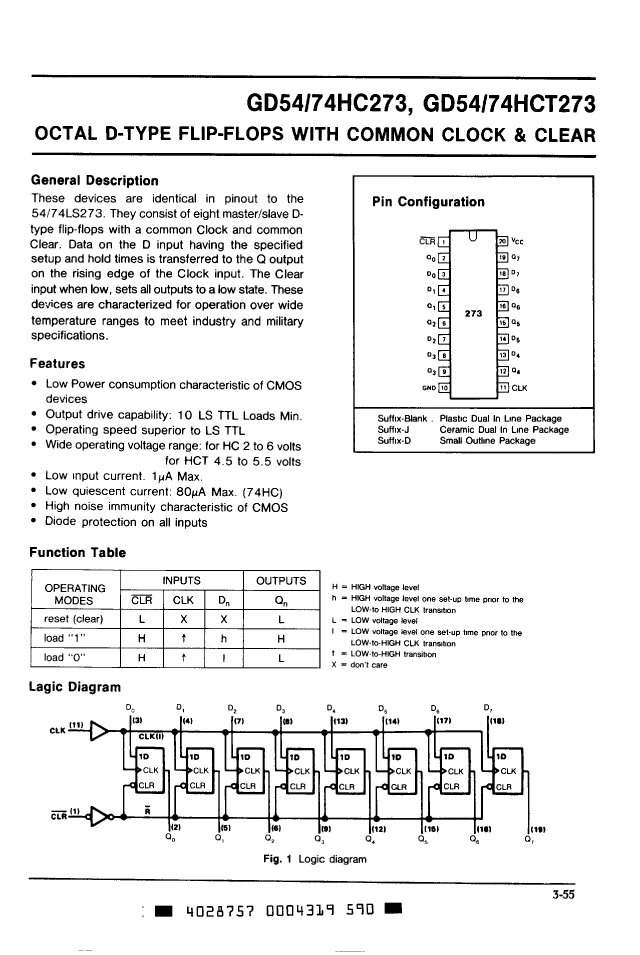

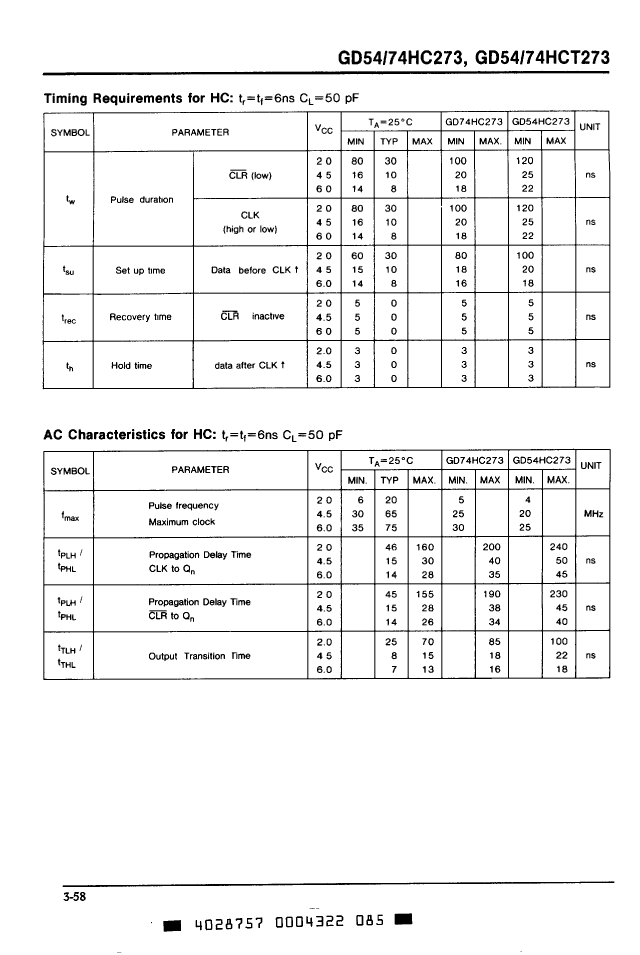

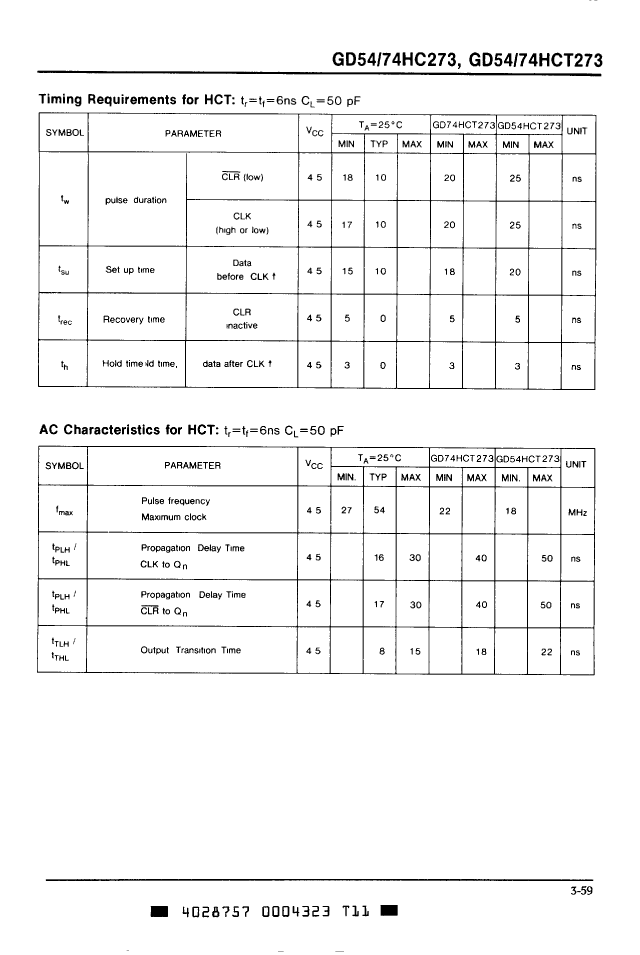

GD74HCT273J Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,

GD74HCT273J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LG Semicon Co., Ltd.
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	22000000 Hz
MaximumI(ol)	0.004 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE

Preview

Download Datasheet

View All

GD74HCT273J Related Products

	GD74HCT273J	GD54HC273J	GD74HC273	GD74HC273J	GD54HCT273J	GD74HCT273D	GD74HCT273	GD74HC273D
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T20	R-XDIP-T20	R-PDIP-T20	R-XDIP-T20	R-XDIP-T20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	22000000 Hz	20000000 Hz	25000000 Hz	25000000 Hz	18000000 Hz	22000000 Hz	22000000 Hz	25000000 Hz
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A	0.004 A
Number of functions	8	8	8	8	8	8	8	8
Number of terminals	20	20	20	20	20	20	20	20
Maximum operating temperature	85 °C	125 °C	85 °C	85 °C	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	SOP	DIP	SOP
Encapsulate equivalent code	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	DIP20,.3	SOP20,.4	DIP20,.3	SOP20,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
power supply	5 V	2/6 V	2/6 V	2/6 V	5 V	5 V	5 V	2/6 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Maker	LG Semicon Co., Ltd.	-	-	-	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
package instruction	DIP, DIP20,.3	DIP, DIP20,.3	-	DIP, DIP20,.3	DIP, DIP20,.3	-	-	SOP, SOP20,.4
