TMP94C241CFG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP94C241CFG

TMP94C241CFG: DescriptionIC MICROCONTROLLER, PQFP160, 28 X 28 MM, 0.65 MM PITCH, QFP-160, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size5MB，240 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric View All

TMP94C241CFG Overview

IC MICROCONTROLLER, PQFP160, 28 X 28 MM, 0.65 MM PITCH, QFP-160, Microcontroller

TMP94C241CFG Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	,
Contacts	160
Reach Compliance Code	unknown
JESD-30 code	S-PQFP-G160
Number of terminals	160
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Terminal form	GULL WING
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

TMP94C241CFG Preview

TOSHIBA Original CMOS 32-Bit Microcontroller

TLCS-900/H2 Series

TMP94C241CFG

Semiconductor Company

Preface

Thank you very much for making use of Toshiba microcomputer LSI.

Before using this LSI, refer to section “Points of Note and Restrictions”.

Especially, take care below cautions.

**CAUTION**

How to release the HALT mode

Usually, interrupts can release all halts status. However, the interrupts

(

NMI

INT0), which can release the HALT mode may not be able to do so if they are

input during the period CPU is shifting to the HALT mode (for about 3 clocks of

X1) with IDLE or STOP mode (RUN is not applicable to this case). (In this case,

an interrupt request is kept on hold internally.)

If another interrupt is generated after it has shifted to HALT mode completely,

halt status can be released without difficultly. The priority of this interrupt is

compare with that of the interrupt kept on hold internally, and the interrupt with

higher priority is handled first followed by the other interrupt.

TMP94C241C

CMOS 32-bit Microcontroller

TMP94C241CFG

Outline and Device Characteristics

TMP94C241C is high-speed advanced 32-bit microcontroller developed for controlling

equipment which processes mass data.

TMP94C241C is a microcontroller which has a high-performance CPU (900/H2 CPU) and

various built-in I/Os. And TMP94C241C is enhanced memory interface functions.

TMP94C241CFG is housed in an 160-pin mini flat package.

Device characteristics are as follows:

(1) CPU: 32-bit CPU (900/H2 CPU)

•

Compatible with TLCS-900, 900/L, 900/L1, 900/H’s instruction code

16 Mbytes of linear address space

General-purpose registers and register banks

Micro DMA: 8 channels (250 ns/4 bytes at 20 MHz)

(2) Minimum instruction execution time: 50 ns (at 20 MHz)

(3) Internal memory

Internal RAM: 2 Kbytes (can use for code section)

Internal ROM: None

RESTRICTIONS ON PRODUCT USE

•

The information contained herein is subject to change without notice.

20070701-EN GENERAL

•

TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor

devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical

stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of safety

in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of such

TOSHIBA products could cause loss of human life, bodily injury or damage to property.

In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as

set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and

conditions set forth in the “Handling Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability

Handbook” etc.

•

The TOSHIBA products listed in this document are intended for usage in general electronics applications (computer,

personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances, etc.).These

TOSHIBA products are neither intended nor warranted for usage in equipment that requires extraordinarily high

quality and/or reliability or a malfunction or failure of which may cause loss of human life or bodily injury

(“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or spaceship

instruments, transportation instruments, traffic signal instruments, combustion control instruments, medical

instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in his document shall

be made at the customer’s own risk.

•

The products described in this document shall not be used or embedded to any downstream products of which

manufacture, use and/or sale are prohibited under any applicable laws and regulations.

•

The information contained herein is presented only as a guide for the applications of our products. No responsibility

is assumed by TOSHIBA for any infringements of patents or other rights of the third parties which may result from its

use. No license is granted by implication or otherwise under any patents or other rights of TOSHIBA or the third

parties.

•

Please contact your sales representative for product-by-product details in this document regarding RoHS

compatibility. Please use these products in this document in compliance with all applicable laws and regulations that

regulate the inclusion or use of controlled substances. Toshiba assumes no liability for damage or losses occurring

as a result of noncompliance with applicable laws and regulations.

94C241C-1

2008-11-07

TMP94C241C

(4) External memory expansion

•

Expandable up to 16 Mbytes (shared program/data area)

Can simultaneously support 8-/16-bit width external data bus

Chip select output: 6 channels

Direct interface (supported 8-/16-/32-bit external data bus)

(7) 8-bit timer: 4 channels

(8) 16-bit timer: 4 channels

(9) Serial interface: 2 channels

(10) 10-bit AD converter: 8 channels (with sample hold circuit)

(11) 8-bit DA converter: 2 channels (with CMOS-AMP)

(12) Watchdog timer

(13) Interrupt controller

18 internal interrupts

10 external interrupts

(14) I/O port: 64 pins

(15) Package: 160-pin QFP (QFP160-P-2828-0.65A)

(5) Memory controller

(6) DRAM controller: 2 channels

94C241C-2

2008-11-07

TMP94C241C

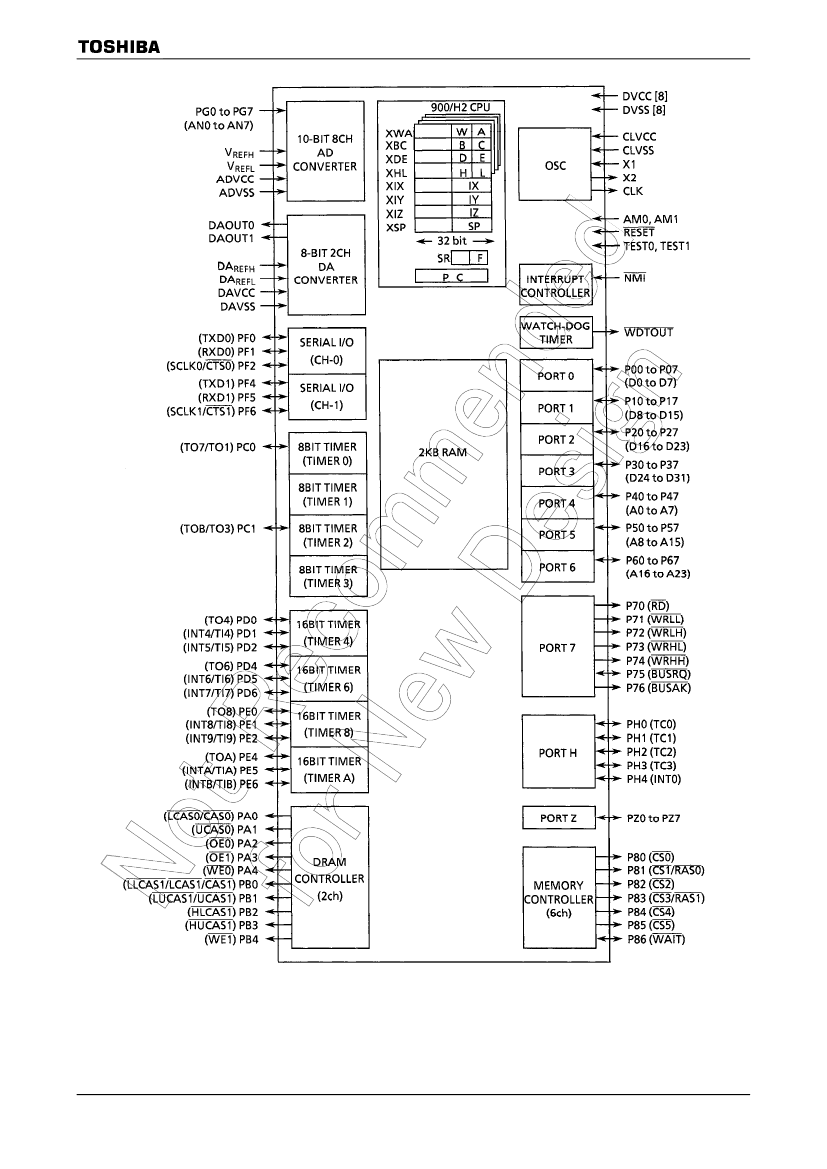

Figure 1.1 TMP94C241C Block Diagram

94C241C-3

2008-11-07

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
