2N5016 datasheet, PDF - EEWORLD Datasheet

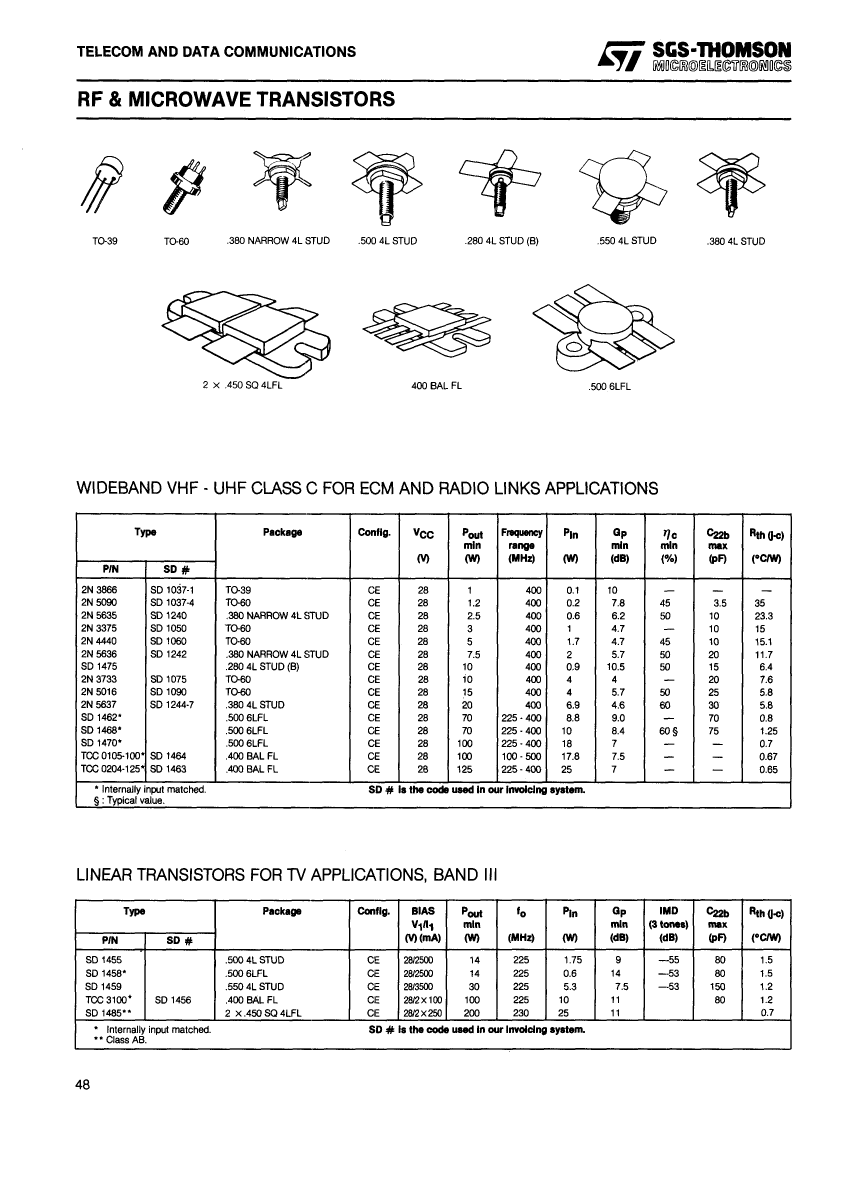

2N5016: DescriptionTRANSISTOR,BJT,NPN,30V V(BR)CEO,4.5A I(C),TO-210AB; CategoryDiscrete semiconductor The transistor; File Size51KB，1 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

2N5016 Overview

TRANSISTOR,BJT,NPN,30V V(BR)CEO,4.5A I(C),TO-210AB

Parameter Name	Attribute value
Reach Compliance Code	compli
Maximum collector current (IC)	4.5 A
Configuration	Single
Minimum DC current gain (hFE)	10
Maximum operating temperature	175 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	30 W
surface mount	NO
Nominal transition frequency (fT)	500 MHz
Base Number Matches	1

	2N5016	2N5636	2N5637	2N5635	2N5090	2N4440
Description	TRANSISTOR,BJT,NPN,30V V(BR)CEO,4.5A I(C),TO-210AB	TRANSISTOR,BJT,NPN,35V V(BR)CEO,1.5A I(C),STX-8	TRANSISTOR,BJT,NPN,35V V(BR)CEO,3A I(C),STX-8	TRANSISTOR,BJT,NPN,35V V(BR)CEO,1A I(C),STX-8	UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-60, TO-60, 3 PIN	UHF BAND, Si, NPN, RF POWER TRANSISTOR, TO-60, M137, 3 PIN
Reach Compliance Code	compli	compli	compli	compli	compli	compli
Maximum collector current (IC)	4.5 A	1.5 A	3 A	1 A	0.4 A	1.5 A
Configuration	Single	Single	Single	Single	SINGLE	SINGLE
Minimum DC current gain (hFE)	10	5	5	5	10	10
Maximum operating temperature	175 °C	200 °C	200 °C	200 °C	175 °C	175 °C
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN
Maximum power dissipation(Abs)	30 W	15 W	30 W	7.5 W	4 W	11 W
surface mount	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1
Nominal transition frequency (fT)	500 MHz	450 MHz	400 MHz	500 MHz	-	400 MHz
