D15S13A4RL108LF: DescriptionD Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, LEAD FREE; CategoryThe connector The connector; File Size148KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15S13A4RL108LF Overview

D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, M3, LEAD FREE

D15S13A4RL108LF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
body width	0.531 inch
subject depth	0.577 inch
body length	1.541 inch
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	MATTE TIN (79) OVER NICKEL
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	D
Plug contact pitch	0.109 inch
Mixed contacts	NO
Installation option 1	M3
Installation option 2	INSERT
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	ZINC CHROMIUM
Shell material	STEEL
Housing size	2/A
Terminal length	0.083 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

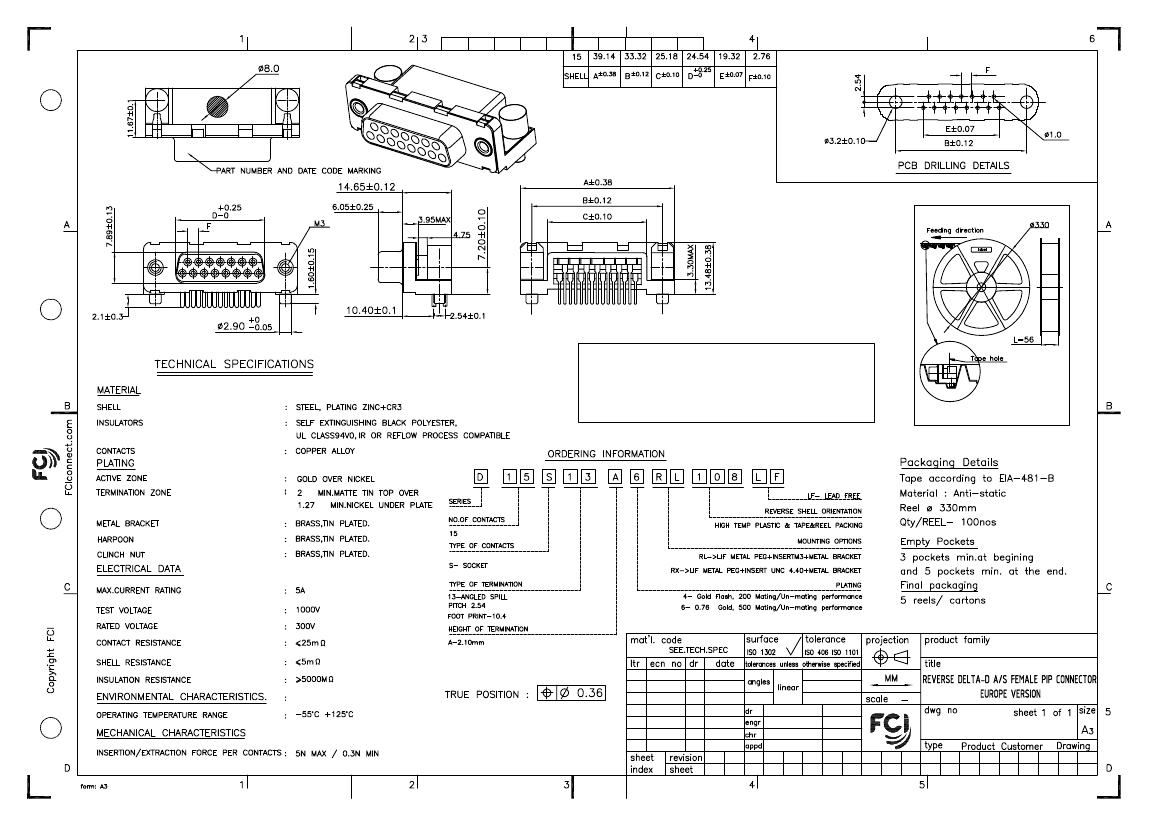

D15S13A4RL108LF Preview
