D15S80C6GX3F datasheet, PDF - EEWORLD Datasheet

D15S80C6GX3F: DescriptionD Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal; CategoryThe connector The connector; File Size122KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15S80C6GX3F Overview

D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	D
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	15

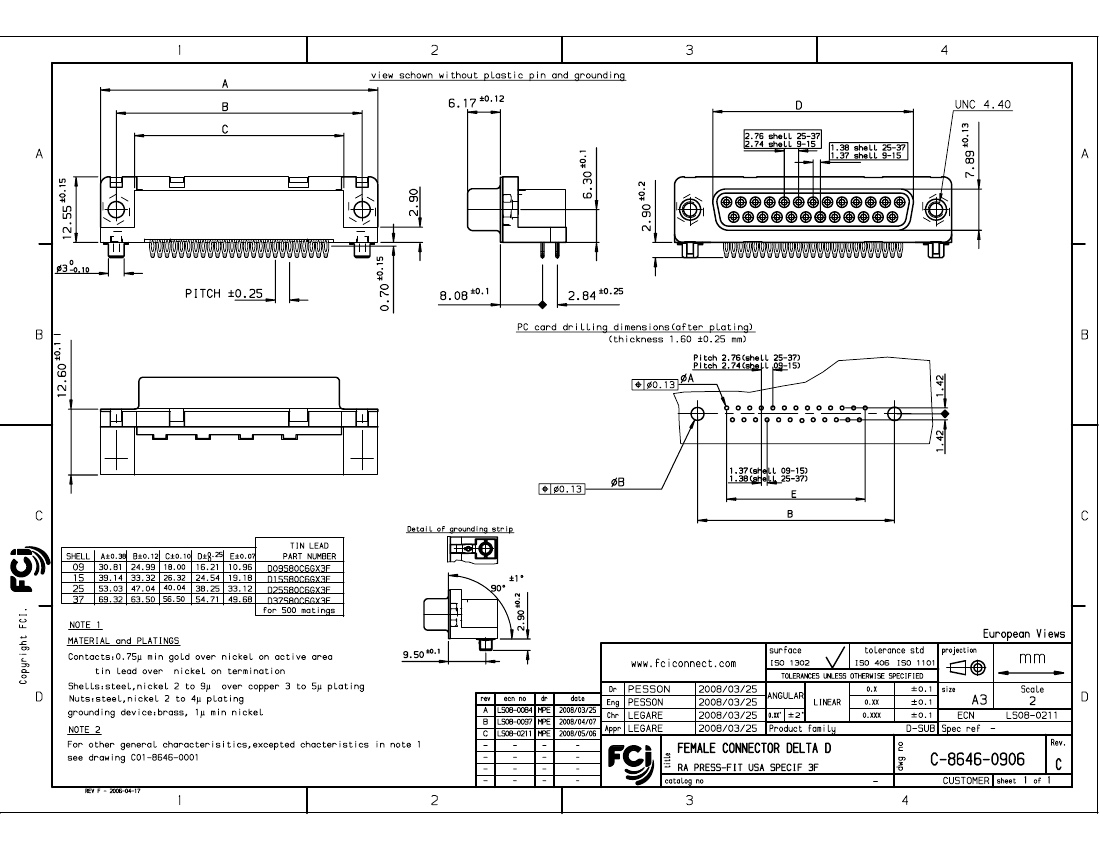

PDM: Rev:C

STATUS:

Released

Printed: Jan 18, 2011

.

	D15S80C6GX3F	D09S80C6GX3F	D25S80C6GX3F	D37S80C6GX3F
Description	D Subminiature Connector, 15 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 9 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 25 Contact(s), Female, Press Fit Terminal	D Subminiature Connector, 37 Contact(s), Female, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	D	D	D	D
Mixed contacts	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	1/E	3/B	4/C
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	15	9	25	37
