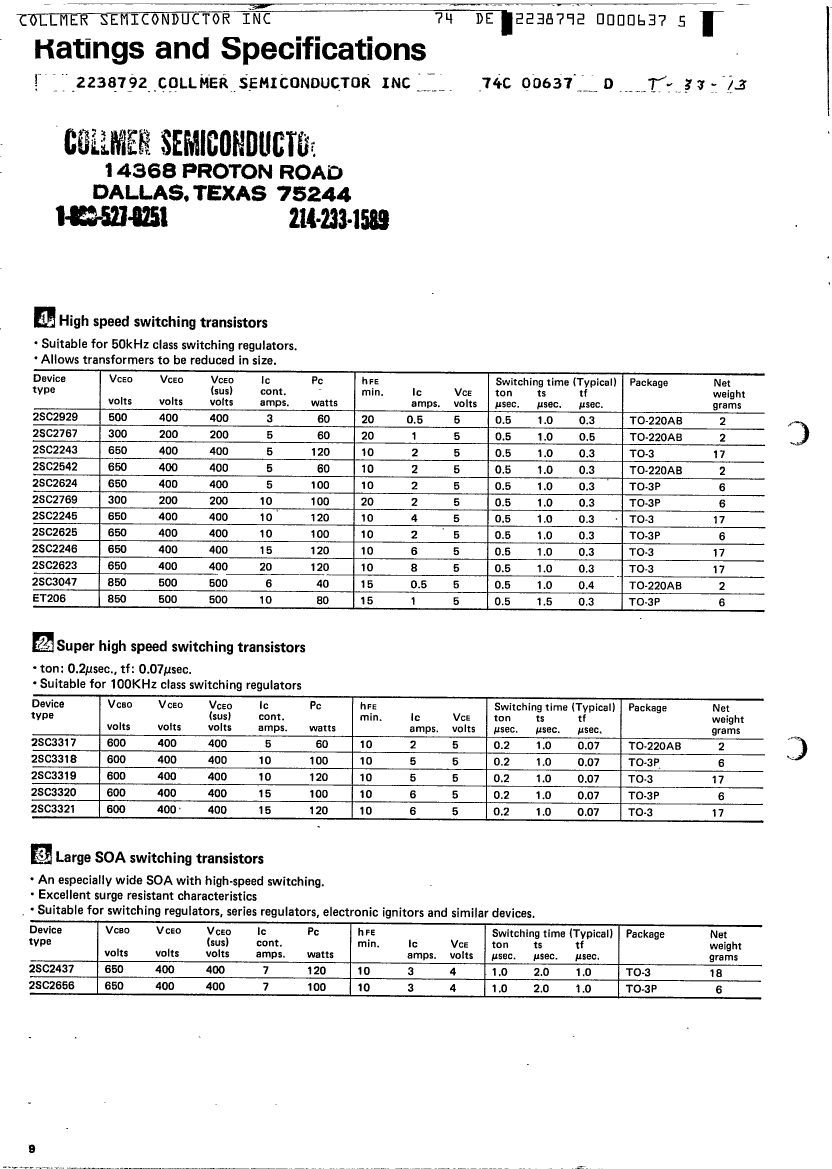

Power Bipolar Transistor, 7A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, SC-65, 3 PIN

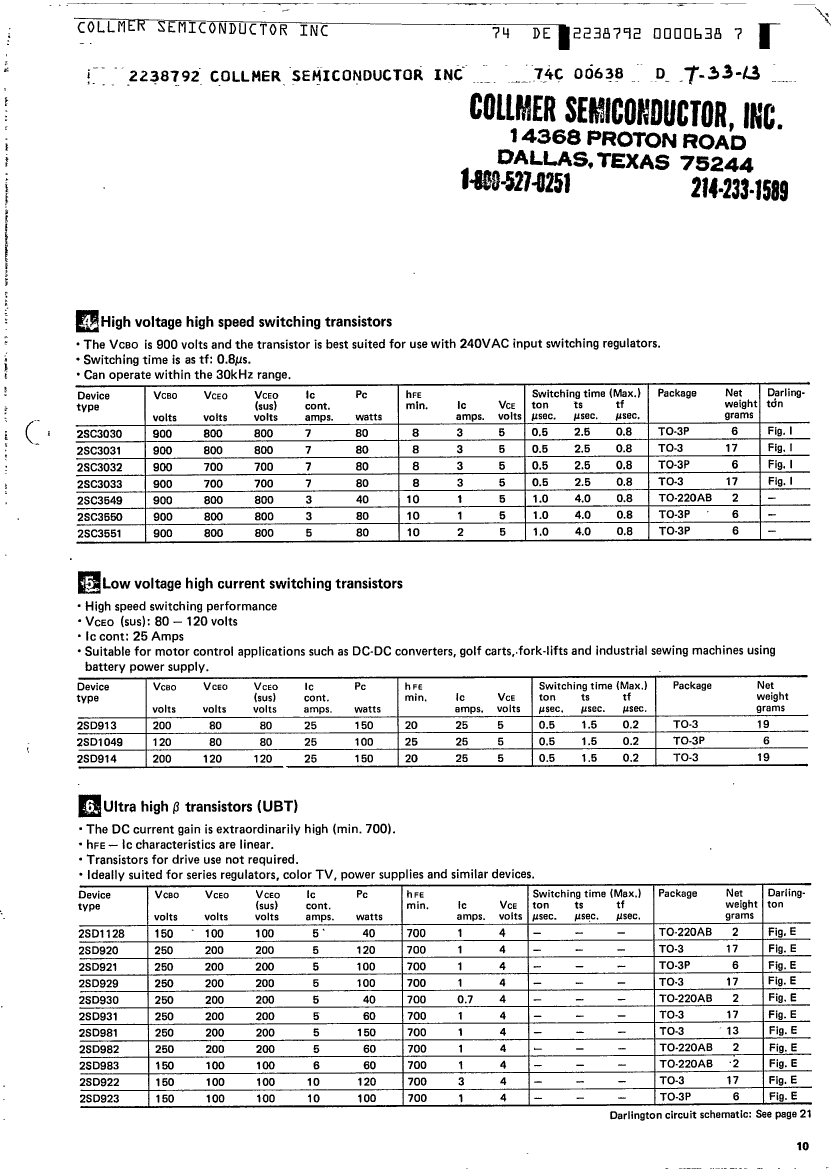

| Parameter Name | Attribute value |
| Parts packaging code | TO-3P |
| package instruction | FLANGE MOUNT, R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknow |
| Other features | HIGH RELIABILITY |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 7 A |
| Collector-emitter maximum voltage | 400 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 10 |
| JESD-30 code | R-PSFM-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Polarity/channel type | NPN |
| Maximum power consumption environment | 80 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Base Number Matches | 1 |
| 2SC2656 | 2SC2243 | 2SC3030 | 2SC3549 | ET206 | |
|---|---|---|---|---|---|
| Description | Power Bipolar Transistor, 7A I(C), 400V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, SC-65, 3 PIN | Transistor | Power Bipolar Transistor, 7A I(C), 800V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-3P, 3 PIN | Power Bipolar Transistor, 3A I(C), 800V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, SC-46, 3 PIN | Power Bipolar Transistor, 10A I(C), 500V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-3P, SC-65, 3 PIN |
| package instruction | FLANGE MOUNT, R-PSFM-T3 | , | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 | FLANGE MOUNT, R-PSFM-T3 |
| Reach Compliance Code | unknow | unknow | unknow | unknow | unknown |
| Maximum collector current (IC) | 7 A | 5 A | 7 A | 3 A | 10 A |
| Configuration | SINGLE | Single | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 10 | 10 | 8 | 10 | 15 |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN |
| surface mount | NO | NO | NO | NO | NO |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Parts packaging code | TO-3P | - | TO-3P | TO-220AB | TO-3P |
| Contacts | 3 | - | 3 | 3 | 3 |
| Other features | HIGH RELIABILITY | - | HIGH RELIABILITY | HIGH RELIABILITY | HIGH RELIABILITY |
| Collector-emitter maximum voltage | 400 V | - | 800 V | 800 V | 500 V |
| JESD-30 code | R-PSFM-T3 | - | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| Number of components | 1 | - | 1 | 1 | 1 |
| Number of terminals | 3 | - | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | - | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Maximum power consumption environment | 80 W | - | 80 W | 40 W | 80 W |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified |
| Terminal form | THROUGH-HOLE | - | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | - | SINGLE | SINGLE | SINGLE |
| transistor applications | SWITCHING | - | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | - | SILICON | SILICON | SILICON |
| Maximum power dissipation(Abs) | - | 120 W | 80 W | 40 W | 80 W |
| Maximum off time (toff) | - | - | 3300 ns | 4800 ns | 4500 ns |
| Maximum opening time (tons) | - | - | 500 ns | 1000 ns | 1000 ns |
