2SC3330-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC3330-S

2SC3330-S: DescriptionSmall Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SPA, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size110KB，3 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric Compare View All

2SC3330-S Overview

Small Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SPA, 3 PIN

2SC3330-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1935487262
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.2 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE
Minimum DC current gain (hFE)	140
JESD-30 code	R-PSIP-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.3 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	200 MHz

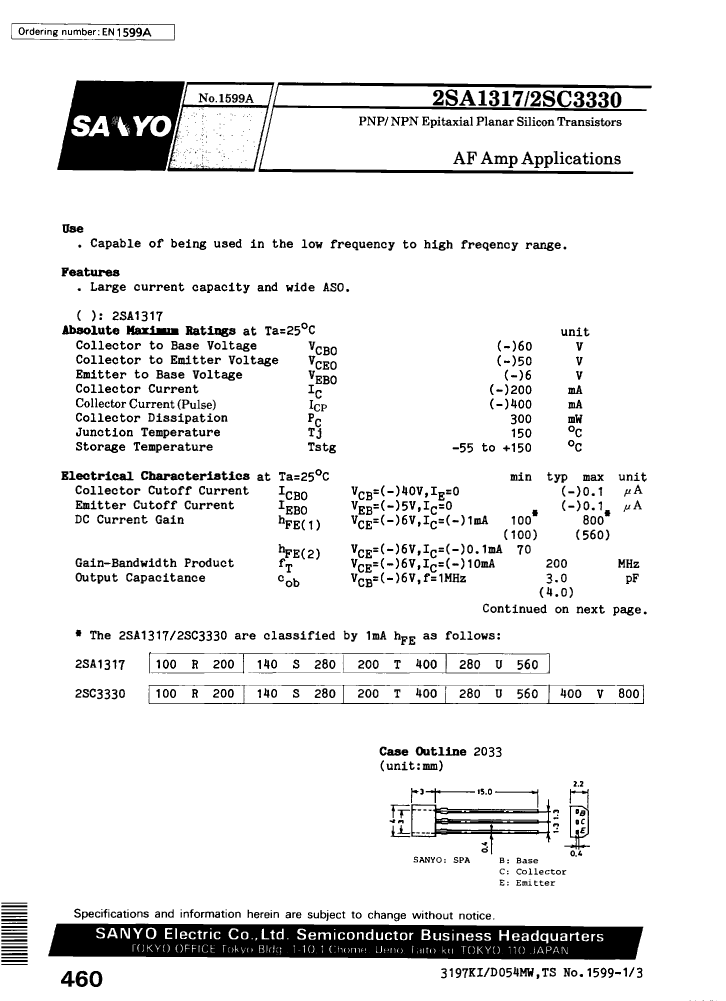

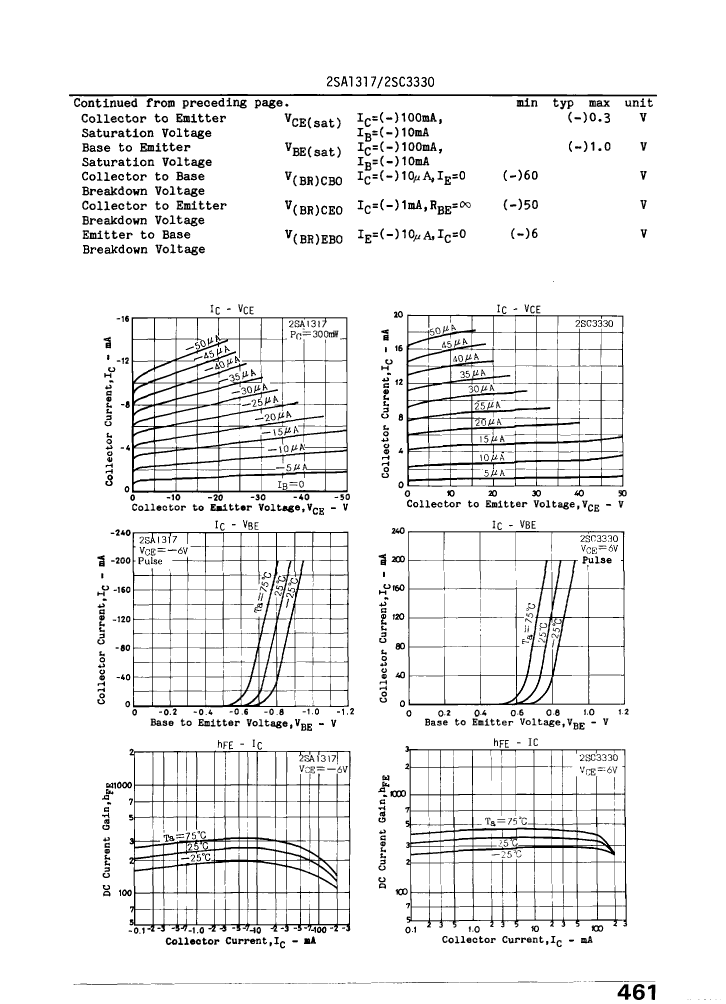

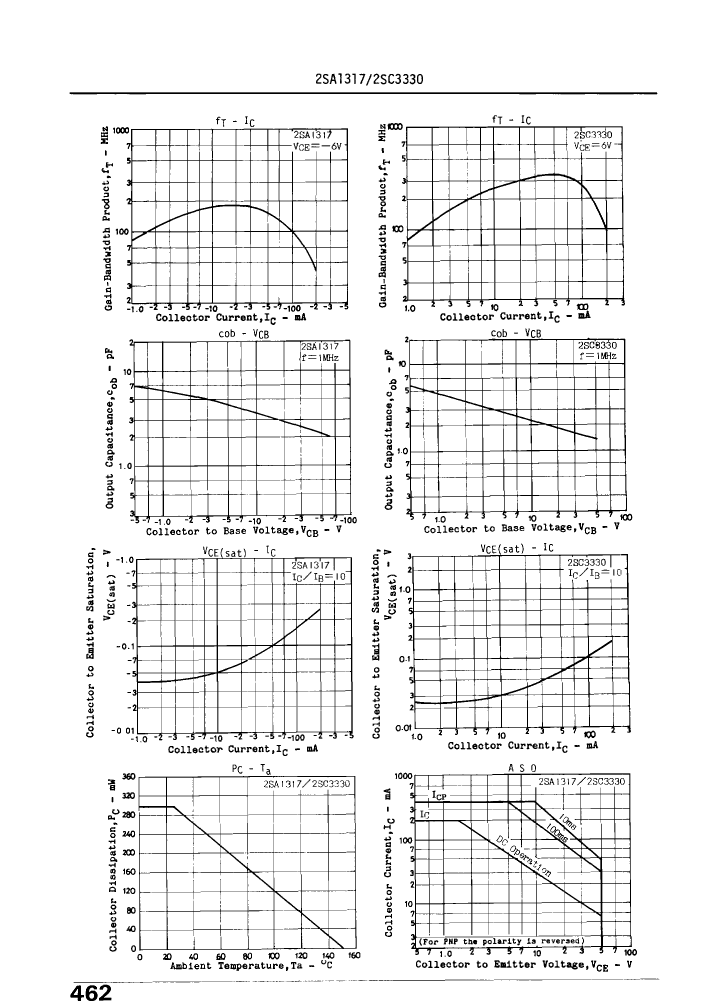

Preview

Download Datasheet

View All

2SC3330-S Related Products

	2SC3330-S	2SA1317-R	2SA1317-S	2SA1317-T	2SC3330-R	2SC3330-T	2SC3330-U	2SC3330-V	2SA1317-U
Description	Small Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SPA, 3 PIN	200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92	Small Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SPA, 3 PIN	Small Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SPA, 3 PIN	Small Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SPA, 3 PIN	Small Signal Bipolar Transistor, 0.2A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SPA, 3 PIN	200mA, 50V, PNP, Si, SMALL SIGNAL TRANSISTOR, TO-92
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	IN-LINE, R-PSIP-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	IN-LINE, R-PSIP-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknow
Maximum collector current (IC)	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V	50 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	140	100	140	200	100	200	280	400	280
JESD-30 code	R-PSIP-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	O-PBCY-T3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	ROUND	ROUND	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND
Package form	IN-LINE	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL
Polarity/channel type	NPN	PNP	PNP	PNP	NPN	NPN	NPN	NPN	PNP
Maximum power dissipation(Abs)	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W	0.3 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	BOTTOM	BOTTOM	BOTTOM	SINGLE	SINGLE	SINGLE	SINGLE	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz	200 MHz
Objectid	1935487262	-	-	-	1935487261	1935487263	1935487264	1935487265	-
Contacts	3	-	-	-	3	3	3	3	-
ECCN code	EAR99	-	-	-	EAR99	EAR99	EAR99	EAR99	-
