D15S33E4GX09 datasheet, PDF - EEWORLD Datasheet

D15S33E4GX09: DescriptionD Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket; CategoryThe connector The connector; File Size92KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

D15S33E4GX09 Overview

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	D15S33E4GX09
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM
Shell material	STEEL
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

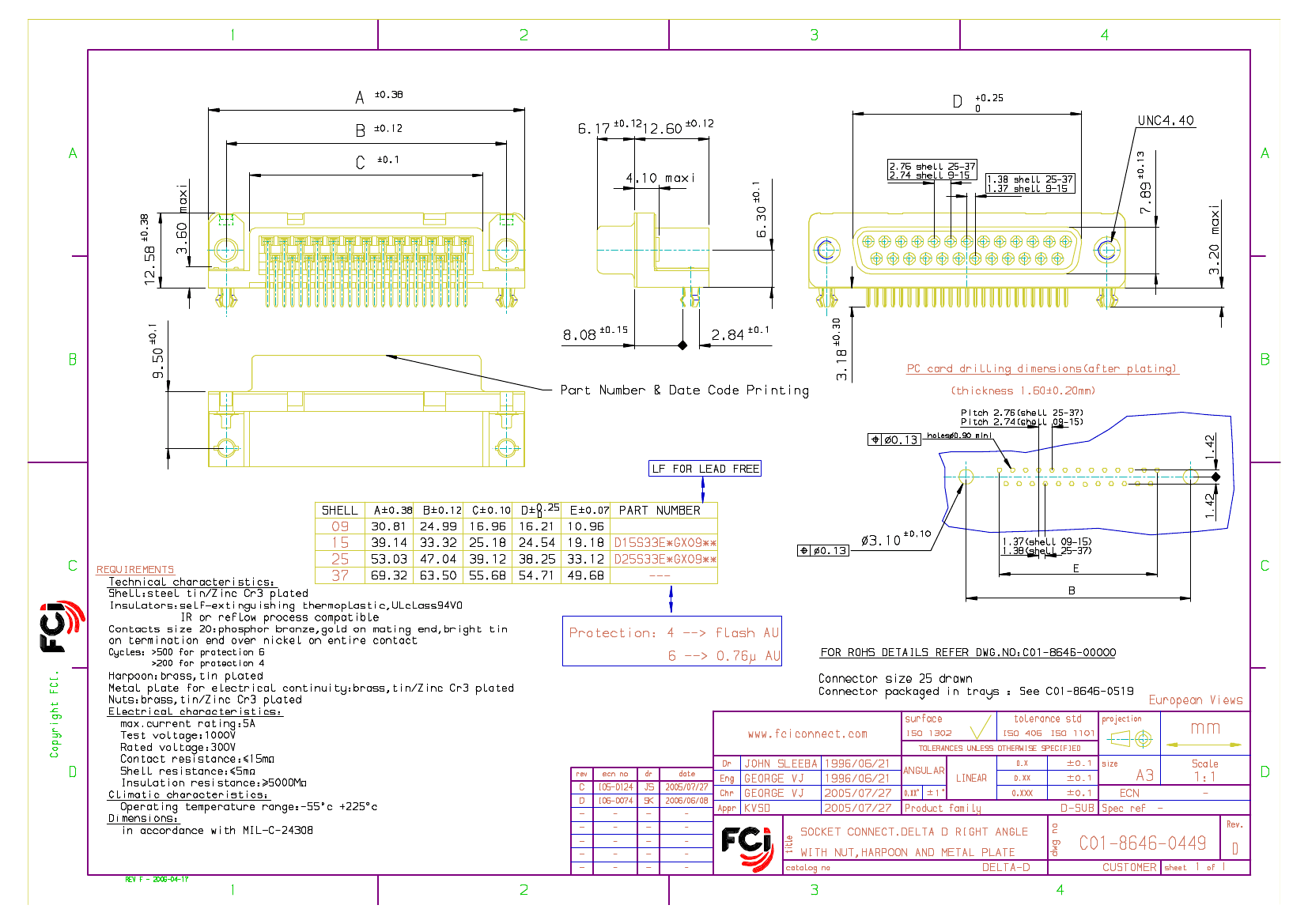

PDM: Rev:D

STATUS:

Released

Printed: Jan 18, 2011

.

	D15S33E4GX09	D15S33E4GX09LF	D15S33E6GX09
Description	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket	D Subminiature Connector, 15 Contact(s), Female, 0.055 inch Pitch, Solder Terminal, Socket, LEAD FREE	D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, Socket
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	unknown
Body/casing type	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO
Manufacturer's serial number	D15S33E4GX09	D15S33E4GX09LF	D15S33E6GX09
Mixed contacts	NO	NO	NO
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM	TIN/ZINC CHROMIUM
Shell material	STEEL	STEEL	STEEL
Housing size	2/A	2/A	2/A
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15
UL Flammability Code	94V-0	94V-0	94V-0
