TMP87P409M datasheet, PDF - EEWORLD Datasheet

TMP87P409M: DescriptionIC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PDSO28, 0.450 INCH, 1.27 MM PITCH, PLASTIC, SOP-28, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size424KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

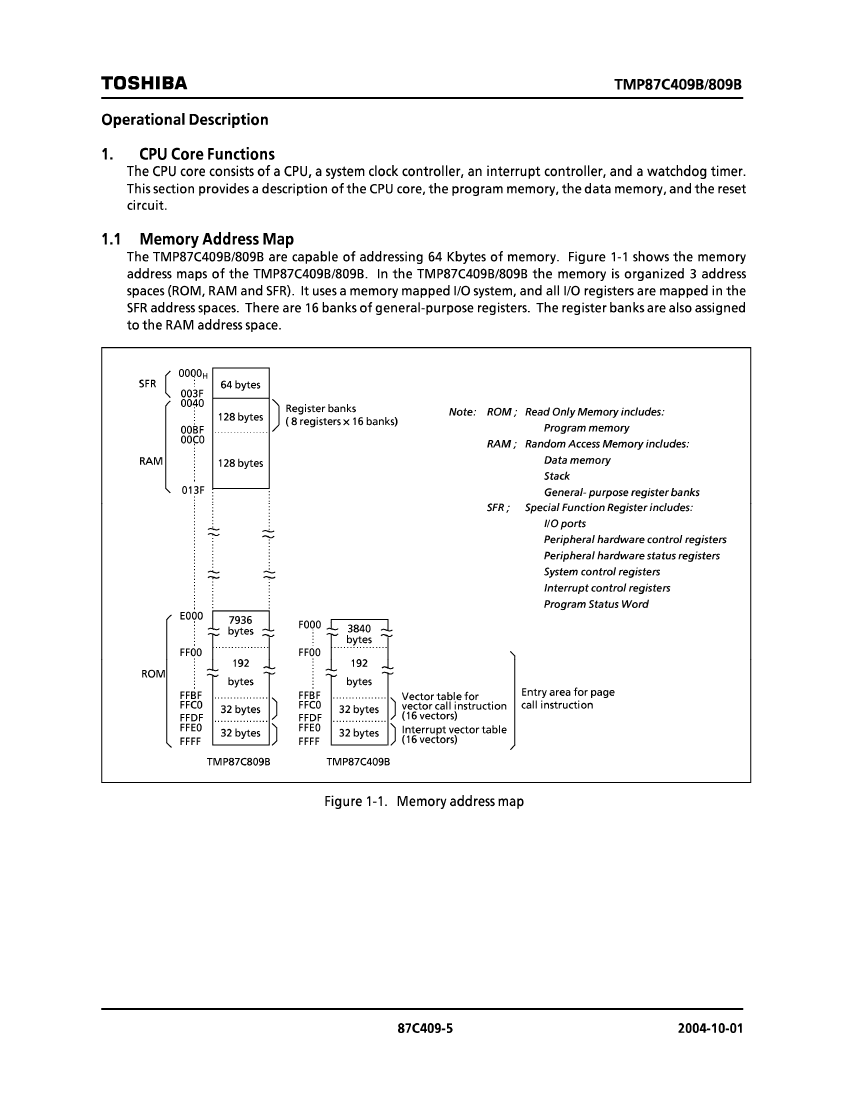

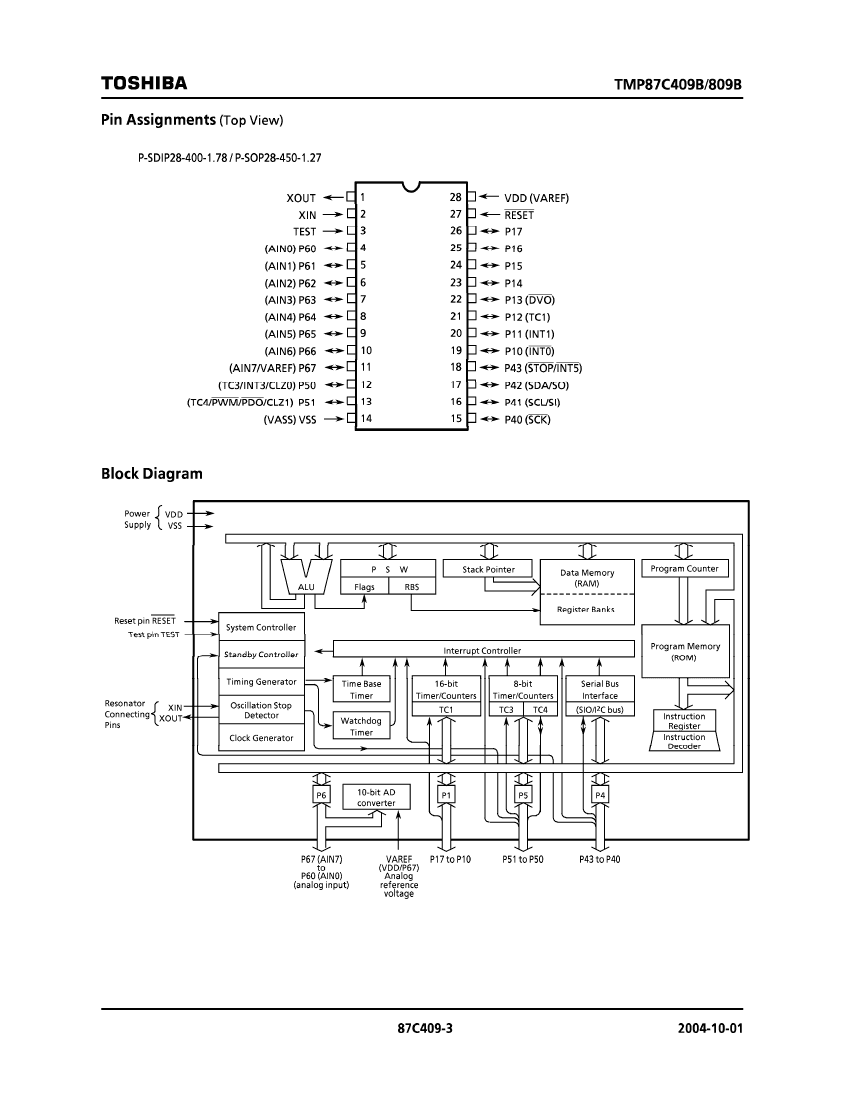

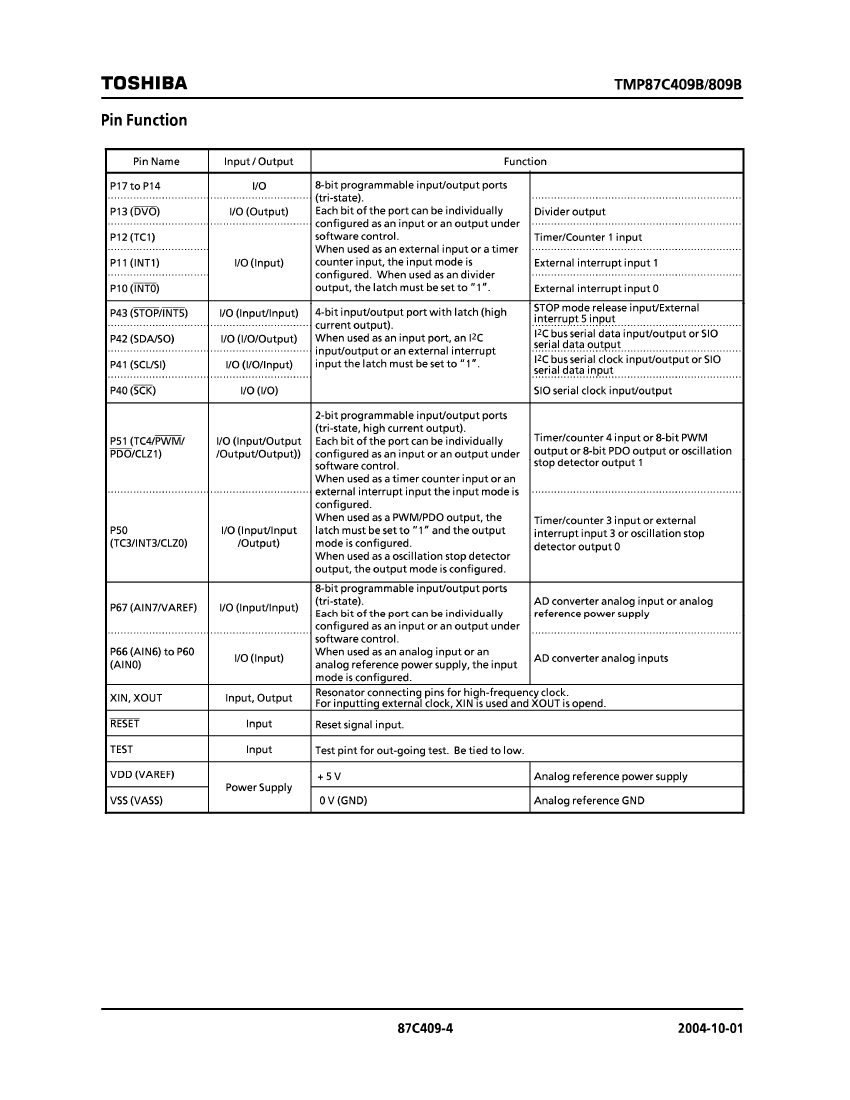

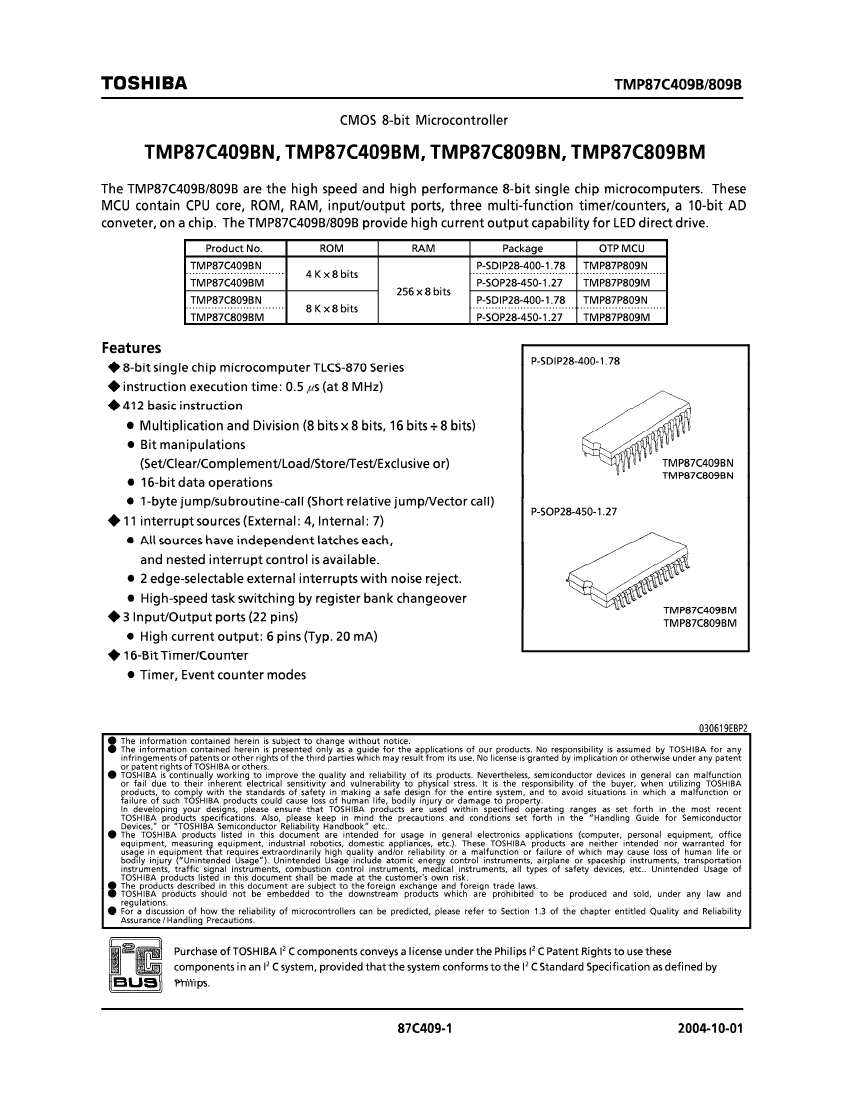

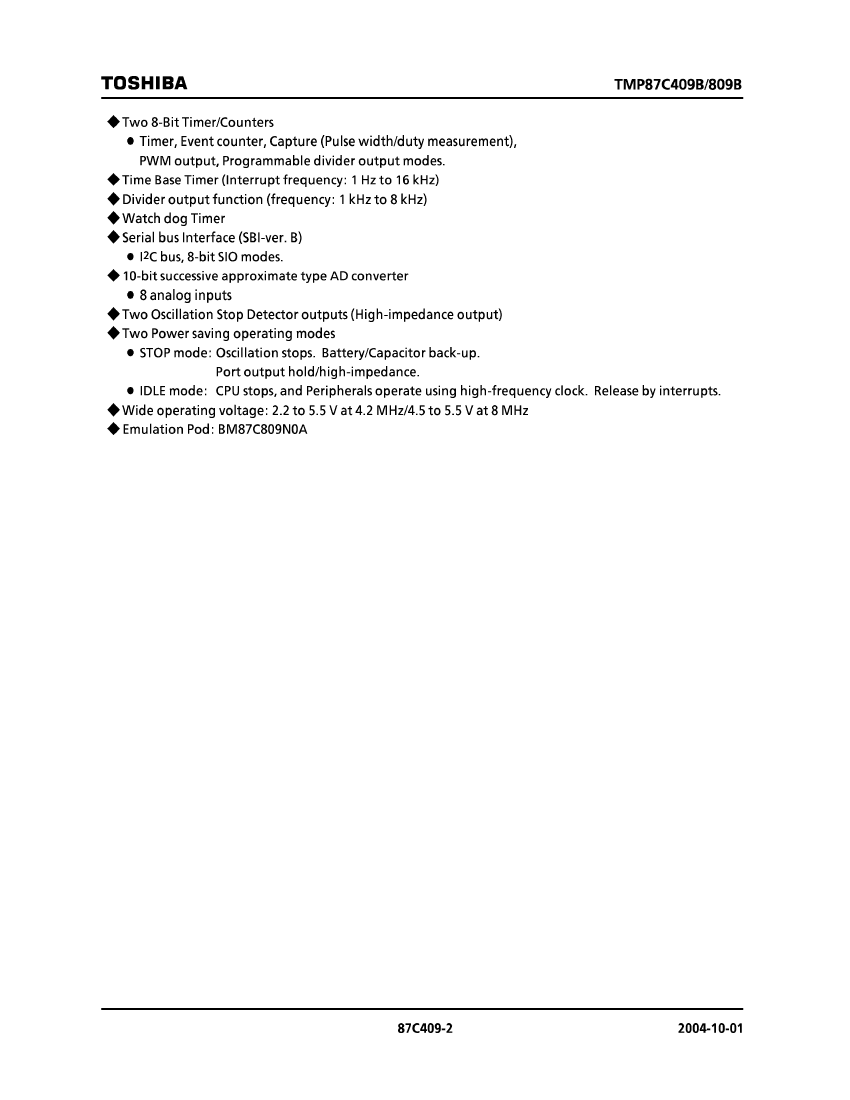

TMP87P409M Overview

IC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PDSO28, 0.450 INCH, 1.27 MM PITCH, PLASTIC, SOP-28, Microcontroller

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	28
Reach Compliance Code	unknown
Has ADC	YES
Other features	OPERATES AT 2.2V MINIMUM SUPPLY @ 4.2 MHZ
Address bus width
bit size	8
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G28
Number of I/O lines	22
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
ROM programmability	MROM
speed	8 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	TMP87P409M	TMP87P409N
Description	IC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PDSO28, 0.450 INCH, 1.27 MM PITCH, PLASTIC, SOP-28, Microcontroller	IC 8-BIT, MROM, 8 MHz, MICROCONTROLLER, PDIP28, 0.400 INCH, 1.78 MM PITCH, PLASTIC, SDIP-28, Microcontroller
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	DIP
package instruction	SOP,	DIP,
Contacts	28	28
Reach Compliance Code	unknown	unknow
Has ADC	YES	YES
Other features	OPERATES AT 2.2V MINIMUM SUPPLY @ 4.2 MHZ	OPERATES AT 2.2V MINIMUM SUPPLY @ 4.2 MHZ
bit size	8	8
maximum clock frequency	8 MHz	8 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	R-PDSO-G28	R-PDIP-T28
Number of I/O lines	22	22
Number of terminals	28	28
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C
PWM channel	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
ROM programmability	MROM	MROM
speed	8 MHz	8 MHz
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	OTHER	OTHER
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
