DATA SHEET
DATA SHEET
MOS INTEGRATED CIRCUIT
µ
PD78C10A, 78C11A, 78C12A
8-BIT SINGLE-CHIP MICROCOMPUTER (WITH A/D CONVERTER)
DESCRIPTION
The
µ
PD78C11A is a CMOS 8-bit microprocessor which can integrate 16-bit ALU, ROM, RAM, an A/D converter,
a multi-function timer/event counter, and a general-purpose serial interface into a single chip, then expand the
memory (ROM/RAM) up to 60K bytes externally. The
µ
PD78C10A is a ROM-less product of the
µ
PD78C11A, and can
directly address the external memory up to 64k bytes. The
µ
PD78C12A is a product which has more built-in ROM
capacity than the
µ
PD78C11A, and its memory (ROM/RAM) can be externally extended up to 56K bytes. The
µ
PD78C10A,
µ
PD78C11A, and
µ
PD78C12A operated at low power consumption, because they have a CMOS
construction. Also, they can hold data with low power consumption by using standby function.
On-chip PROM products,
µ
PD78CP14 and
µ
PD78CP18 which are ideal for evaluation or preproduction use during
system development, early start-up and short-run multiple-device production of application sets, are available.
FEATURES
•
Abundant 159 types of instructions : 87AD series instruction set, multiplication/division instructions,
16-bit operation instructions
•
Instruction cycle : 0.8
µ
s (at 15 MHz operation)
•
On-chip ROM : 4096W
×
8 (
µ
PD78C11A), 8192W
×
8 (
µ
PD78C12A)
Non (
µ
PD78C10A)
•
On-chip RAM : 256W
×
8
•
High-precision 8-bit A/D converter : 8 analog inputs
•
General-purpose serial interface : Asynchronous, synchronous, I/O interface mode
•
Multi-function 16-bit timer/event counter
•
Two 8-bit timers
•
I/O lines : 32 (
µ
PD78C10A), 44 (
µ
PD78C11A, 78C12A)
•
Interrupt function (external - 3, internal - 8) : Non-maskable interrupt
×
1, maskable interrupt
×
10
•
Standby function : HALT mode, hardware/software STOP mode
•
Zero-cross detection function : (2 inputs)
•
On-chip pull-up resistor (port A, B, C:
µ
PD78C11A, 78C12A only) by mask option
Caution
The
µ
PD78C10A does not hava a mask option.
The information in this document is subject to change without notice.
Document No. IC-2678C
(O. D. No. IC-7769E)
Date Published February 1995 P
Printed in Japan
The mark
5
shows major revised points.
©
1990
µ
PD78C10A,78C11A,78C12A
ORDERING INFORMATION
Ordering Code
Package
64-pin
64-pin
64-pin
68-pin
64-pin
64-pin
64-pin
64-pin
68-pin
64-pin
64-pin
64-pin
64-pin
68-pin
plastic
plastic
plastic
plastic
plastic
plastic
plastic
plastic
plastic
plastic
plastic
plastic
plastic
plastic
shrink DIP (750 mil)
QFP (14
×
20 mm)
QUIP
QFJ ( 950 mil)
shirink DIP (750 mil)
QFP (14
×
20 mm)
QUIP
QUIP straight
QFJ ( 950 mil)
shrink DIP (750 mil)
QFP (14
×
20 mm)
QUIP
QUIP straight
QFJ ( 950 mil)
On-Chip ROM
None
None
None
None
Mask ROM
Mask ROM
Mask ROM
Mask ROM
Mask ROM
Mask ROM
Mask ROM
Mask ROM
Mask ROM
Mask ROM
µ
PD78C10ACW
µ
PD78C10AGF-3BE
µ
PD78C10AGQ-36
µ
PD78C10AL
µ
PD78C11ACW-×××
µ
PD78C11AGF-×××-3BE
µ
PD78C11AGQ-×××-36
µ
PD78C11AGQ-×××-37
µ
PD78C11AL-×××
µ
PD78C12ACW-×××
µ
PD78C12AGF-×××-3BE
µ
PD78C12AGQ-×××-36
µ
PD78C12AGQ-×××-37
µ
PD78C12AL-×××
2
µ
PD78C10A,78C11A,78C12A

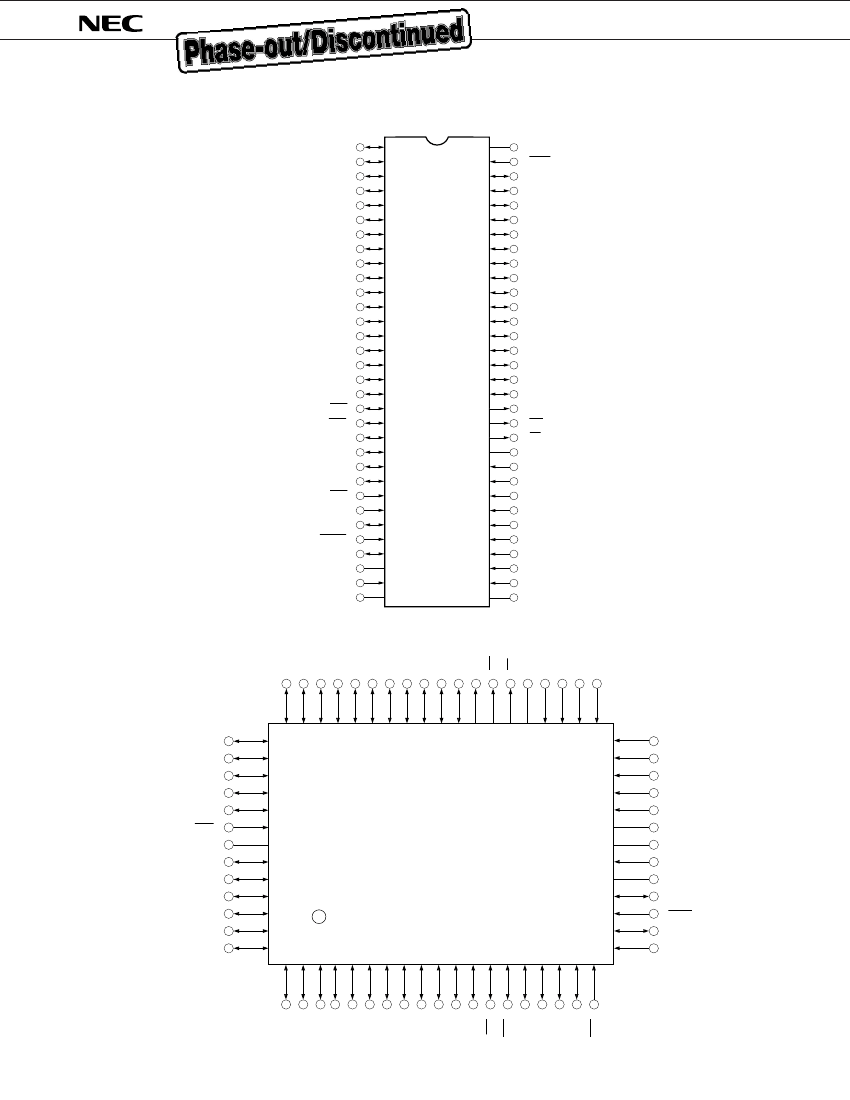

PIN CONFIGURATION (TOP VIEW)
•
For
µ
PD78C10ACW,
µ
PD78C10AGQ-36,
µ
PD78C11ACW-×××,
µ
PD78C11AGQ-×××-36/37,
µ
PD78C12ACW-×××,
µ
PD78C12AGQ-×××-36/37.
PA0
PA1
PA2
PA3
PA4
PA5
PA6
PA7
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
PC0/T
X
D
PC1/R
X
D
PC2/SCK
PC3/INT2
PC4/TO
PC5/CI
PC6/CO0
PC7/CO1
NMI
INT1
MODE1
RESET
MODE0
X2
X1
V
SS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
V
DD
STOP
PD7
PD6
PD5
PD4
PD3
PD2
PD1
PD0
PF7
PF6
PF5
PF4
PF3
PF2
PF1
PF0
ALE
WR
RD
AV
DD
V
AREF
AN7
AN6
AN5
AN4
AN3
AN2
AN1
AN0
AV
SS
•
For
µ
PD78C10AGF-3BE,
µ
PD78C11AGF-×××-3BE,
µ
PD78C12AGF-×××-3BE
V
AREF
AV
DD
AN7
AN6
34
AN5
33
32
31
30
29
28
27
26
25
24
23
22
21
1
2
3
4
5
6
7
8
PD2
PD1
PD0
ALE
PF7
PF6
PF5
PF4
PF3
PF2
PF1
PF0
WR
39
RD
38
PD3
PD4
PD5
PD6
PD7
STOP
V
DD
PA0
PA1
PA2
PA3
PA4
PA5
51
52
53
54
55
56
57
58
59
60
61
62
63
64
50
49
48
47
46
45
44
43
42
41
40
37
36
35
AN4
AN3
AN2
AN1
AN0
AV
SS
V
SS
X1
X2
MODE0
RESET
MODE1
INT1
m
9
10
11
12
13
14
15
16
17
18
20
19
PC0/T
X
D
PC2/SCK
PC1/R
X
D
PC3/INT2
PC4/TO
PC5/CI
PC6/CO0
PC7/CO1
NM1
PA6
PA7
PB0
PB1
PB2
PB3
PB4
PB5
PB6
PB7
3
