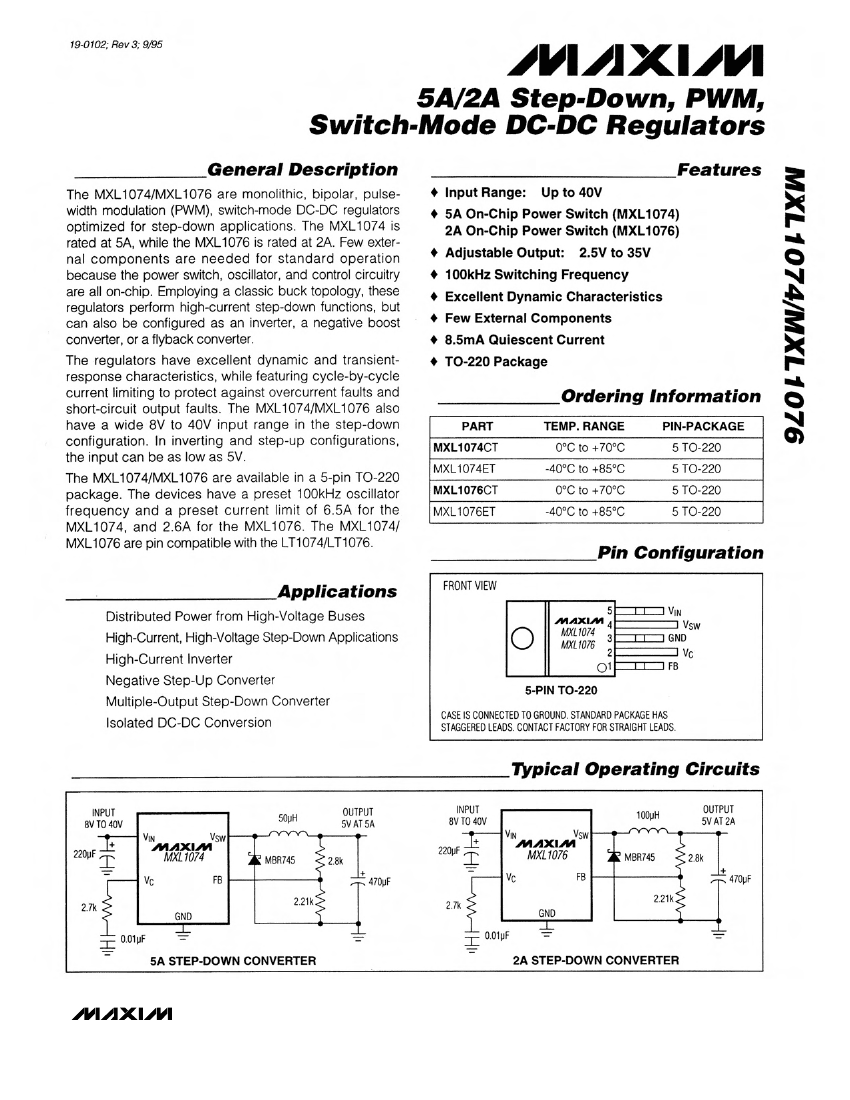

Preview

LT1074HVCK: DescriptionSwitching Regulator, Current-mode, 5.5A, 100kHz Switching Freq-Max, BIPolar, MBFM4; CategoryPower/power management The power supply circuit; File Size1MB，5 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

LT1074HVCK Overview

Switching Regulator, Current-mode, 5.5A, 100kHz Switching Freq-Max, BIPolar, MBFM4

LT1074HVCK Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
package instruction	, CAN4/5,.45FL
Reach Compliance Code	not_compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	60 V
Minimum input voltage	8 V
JESD-30 code	O-MBFM-P4
JESD-609 code	e0
Humidity sensitivity level	1
Number of functions	1
Number of terminals	4
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	5.5 A
Package body material	METAL
Encapsulate equivalent code	CAN4/5,.45FL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum supply current (Isup)	12 mA
surface mount	NO
Switch configuration	BUCK
Maximum switching frequency	100 kHz
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED

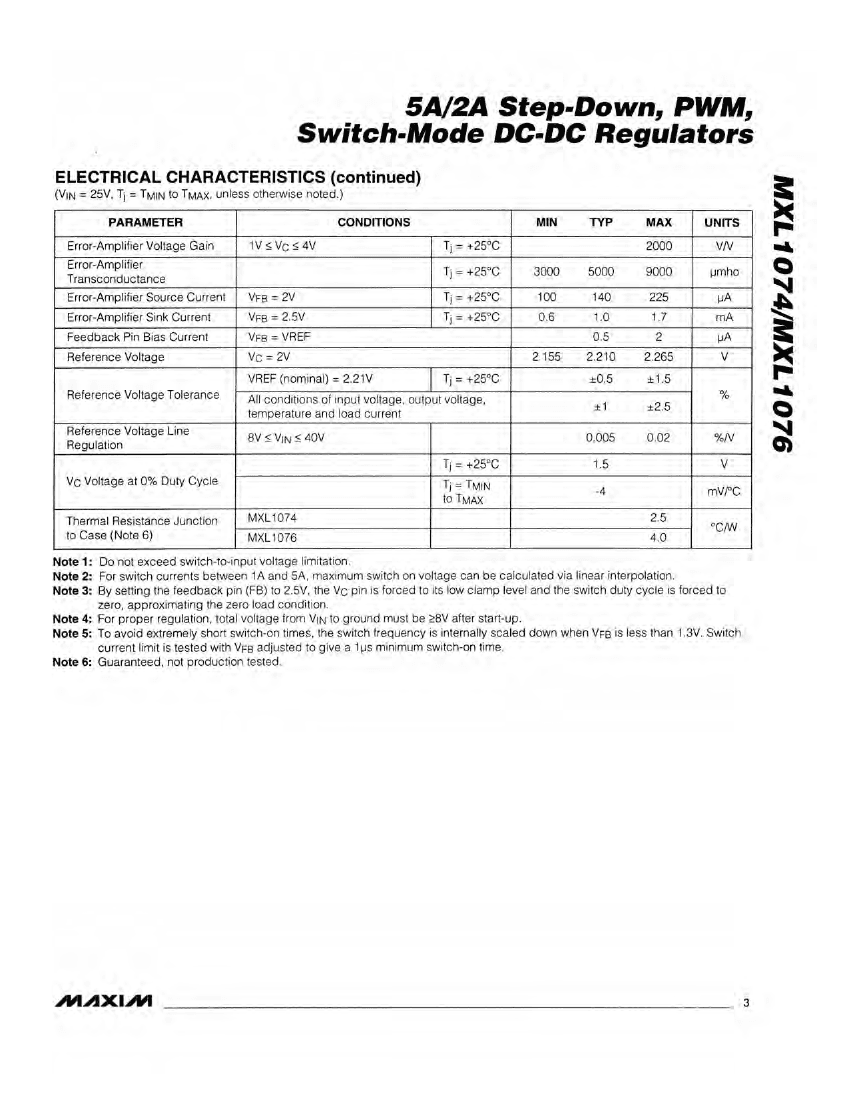

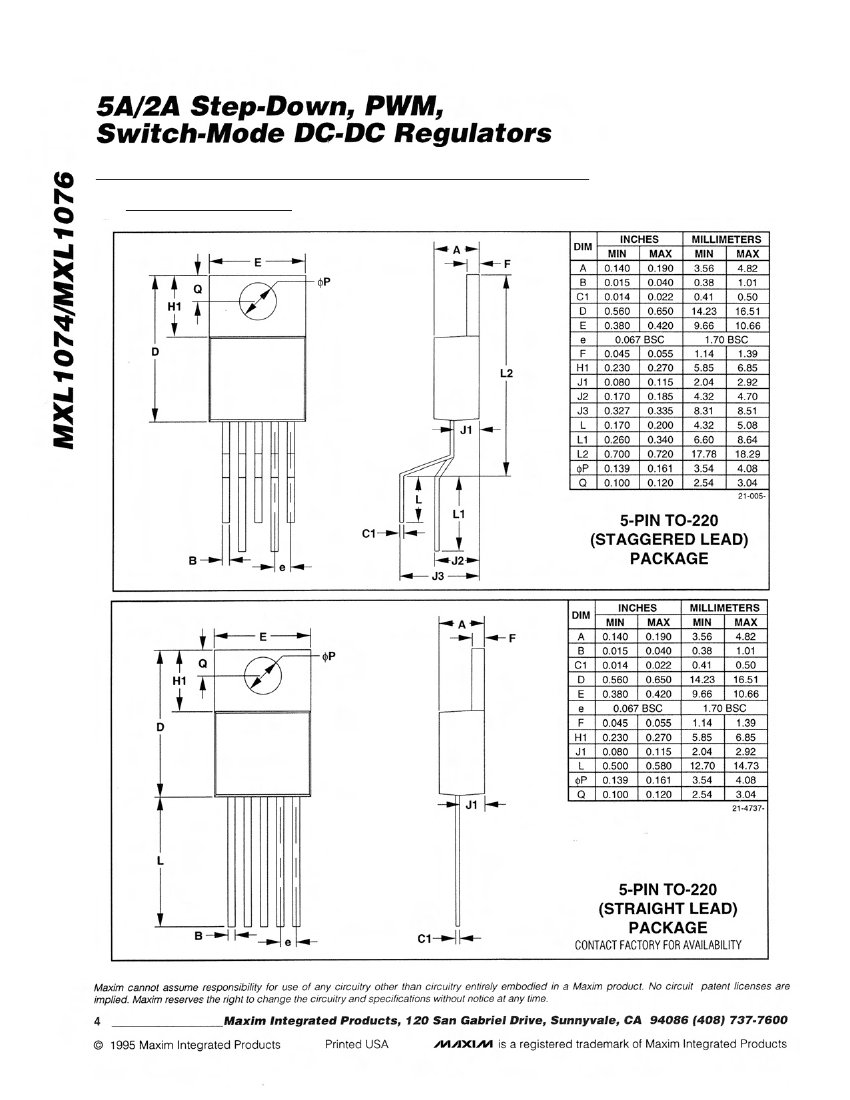

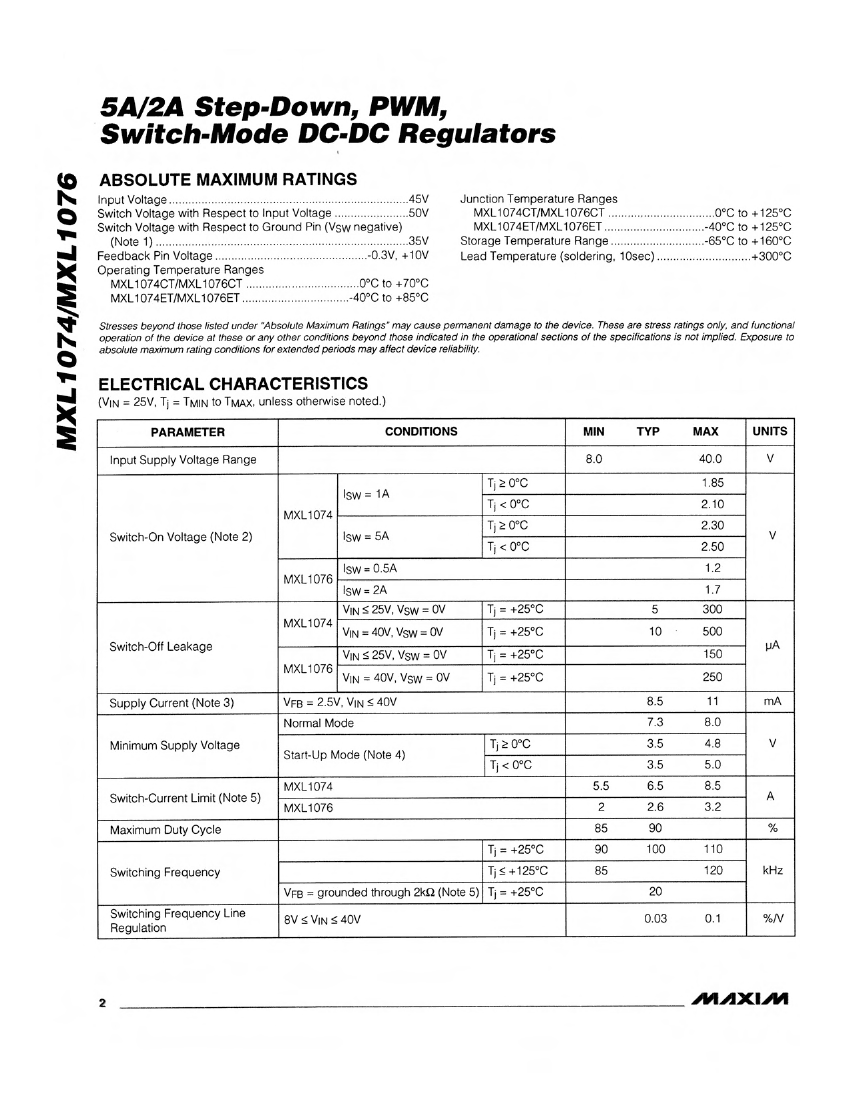

Preview

Download Datasheet

View All

Not Recommended for New Designs

This product was manufactured for Maxim by an outside wafer foundry

using a process that is no longer available. It is not recommended for

new designs. The data sheet remains available for existing users.

A Maxim replacement or an industry second-source may be available.

Please see the QuickView data sheet for this part or contact technical

support for assistance.

For further information,

contact Maxim’s Applications Tech Support.

LT1074HVCK Related Products

	LT1074HVCK	LT1074CT	LT1074HVCT	LT1074HVMK
Description	Switching Regulator, Current-mode, 5.5A, 100kHz Switching Freq-Max, BIPolar, MBFM4	Switching Regulator, Current-mode, 5.5A, 100kHz Switching Freq-Max, BIPolar, PZFM5	Switching Regulator, Current-mode, 5.5A, 100kHz Switching Freq-Max, BIPolar, PZFM5	Switching Regulator, Current-mode, 5.5A, 100kHz Switching Freq-Max, BIPolar, MBFM4
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim
package instruction	, CAN4/5,.45FL	ZIP, ZIP5,.15,.2,67TB	ZIP, ZIP5,.15,.2,67TB	, CAN4/5,.45FL
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	60 V	40 V	60 V	60 V
Minimum input voltage	8 V	8 V	8 V	8 V
JESD-30 code	O-MBFM-P4	R-PZFM-T5	R-PZFM-T5	O-MBFM-P4
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Number of terminals	4	5	5	4
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C
Maximum output current	5.5 A	5.5 A	5.5 A	5.5 A
Package body material	METAL	PLASTIC/EPOXY	PLASTIC/EPOXY	METAL
Encapsulate equivalent code	CAN4/5,.45FL	ZIP5,.15,.2,67TB	ZIP5,.15,.2,67TB	CAN4/5,.45FL
Package shape	ROUND	RECTANGULAR	RECTANGULAR	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	240	240	240	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	12 mA	11 mA	12 mA	12 mA
surface mount	NO	NO	NO	NO
Switch configuration	BUCK	BUCK	BUCK	BUCK
Maximum switching frequency	100 kHz	100 kHz	100 kHz	100 kHz
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	THROUGH-HOLE	THROUGH-HOLE	PIN/PEG
Terminal location	BOTTOM	ZIG-ZAG	ZIG-ZAG	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Humidity sensitivity level	1	1	1	-
