HM2P71PNF1P4GF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HM2P71PNF1P4GF

HM2P71PNF1P4GF: DescriptionBoard Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal; CategoryThe connector The connector; File Size135KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P71PNF1P4GF Overview

Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal

HM2P71PNF1P4GF Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (31) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	133
UL Flammability Code	94V-0

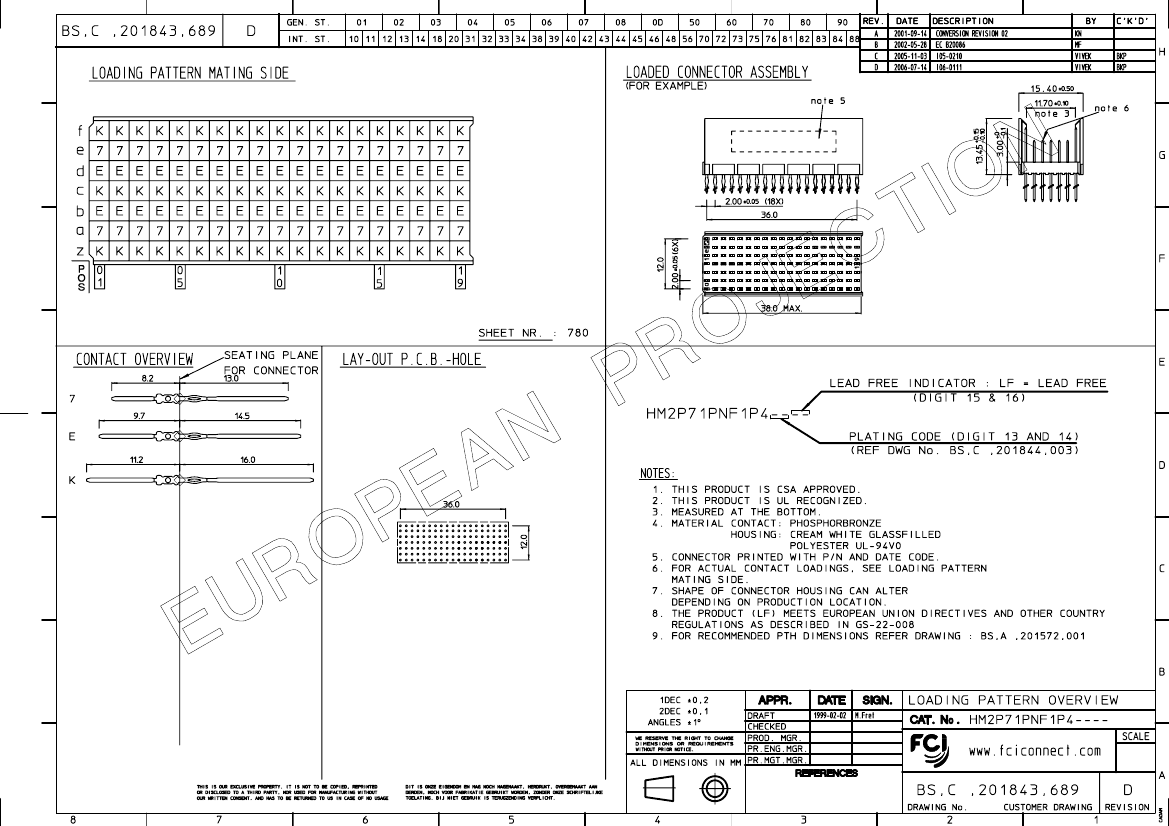

HM2P71PNF1P4GF Preview

PDM: Rev:D

STATUS:

Released

Printed: Apr 15, 2008

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HM2P71PNF1P4GF Related Products

	HM2P71PNF1P4GF	HM2P71PNF1P4GCLF	HM2P71PNF1P4GC	HM2P71PNF1P4GFLF	HM2P71PNF1P4GLLF	HM2P71PNF1P4GL
Description	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 133 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	38 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	GOLD (31) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	133	133	133	133	133	133
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	EAR99	EAR99	-	-
