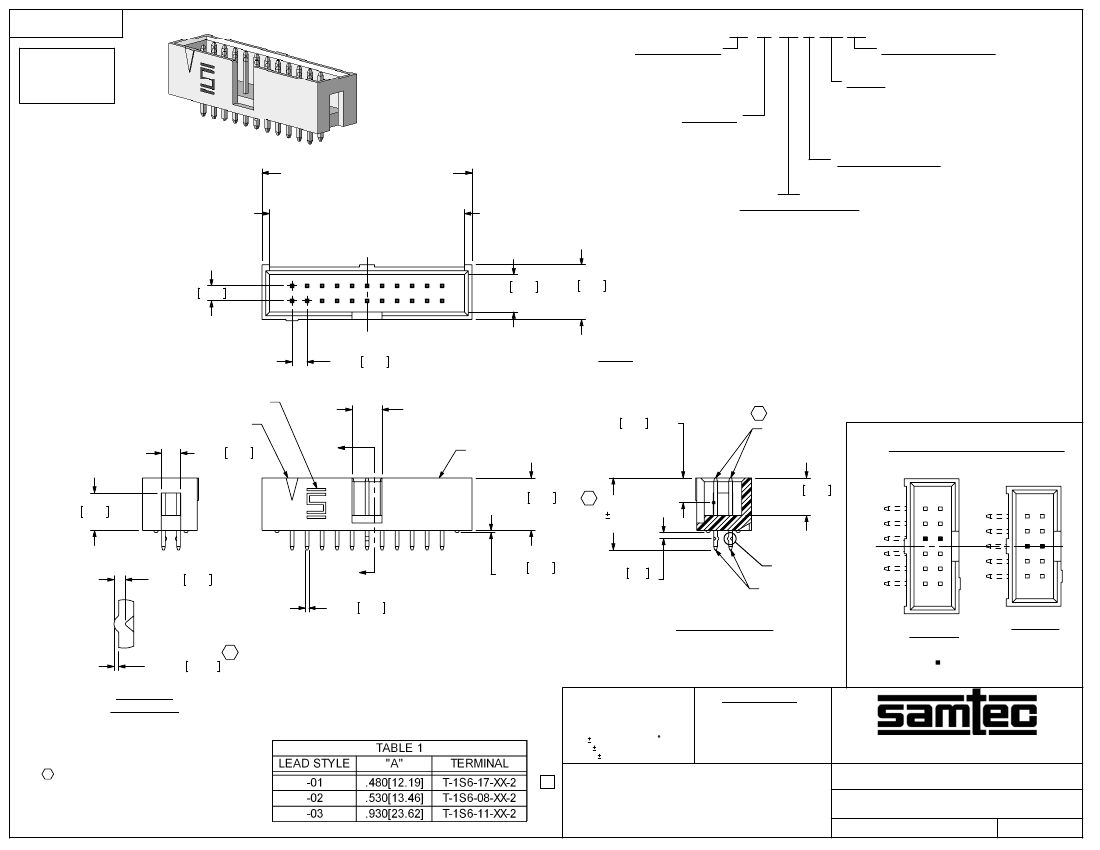

REVISION J
DO NOT
SCALE FROM
THIS PRINT
HTST-1XX-XX-XX-D-XX-XX
No OF POSITIONS
-02 (STRAIGHT ONLY)
-03 THRU -18, -20, -24,
-25, -28, -30, -32 & -36
LEAD STYLE
SEE TABLE 1
& TABLE 2
((No OF POS x .100) + .300) REF
[2.54] [7.62]
((No OF POS x .100) + .200) REF
[2.54] [5.08]
02 04
C
L
POLARIZATION OPTION
-XX: INDICATES POSITION OMITTED
OPTION
BLANK: STRAIGHT (STYLES -04 & -05 N/A)
-RA: RIGHT ANGLE (STYLES -01, -02 & -03 N/A)
-LL: LOCKING LEAD (STRAIGHT ONLY)
-LA: -RA OPTION WITH -LL OPTION
ROW SPECIFICATION
-D: DOUBLE ROW
(USE HTST-XX-D)
.100 2.54 REF
.250 6.35
REF
01
03
.365 9.27
REF
.100 2.53
SEE NOTE 6
POS #1 INDICATOR
.130 3.30
REF
HTST-111-01-XX-D-LL SHOWN
FIG. 1
PLATING SPECIFICATION
-G: GOLD - .000010 Au (CONTACT AREA) OVER .000050 Ni
-T: TIN - .000200 Sn OVER .000050 Ni
-S: SELECTIVE - .000030 Au (CONTACT AREA) OVER .000050 Ni
-L: LIGHT SELECTIVE - .000010 Au (CONTACT AREA),
.000200 Sn ON TAIL, OVER .000050 Ni
-H: HEAVY GOLD - .000030 Au (CONTACT AREA) OVER .000050 Ni
-F: FLASH SELECTIVE - .000003 Au (CONTACT AREA),
.000200 Sn ON TAIL, OVER .000050 Ni
-P: GOLD FLASHED PALLADIUM NICKEL - .000003 Au OVER .000030 PdNi
(CONTACT AREA), .000150 Sn ON TAIL, OVER .000050 Ni
-TM: MATTE TIN - .00010 TO .00030 MATTE TIN OVER .000050 TO .00012 Ni
-SM: SELECTIVE HEAVY GOLD, MATTE TIN TAIL - (SEE -S,& -TM)
-FM: FLASH SELECTIVE GOLD, MATTE TIN TAIL - (SEE -F,& -TM)
-LM: SELECTIVE LIGHT GOLD, MATTE TIN TAIL - (SEE -L,& -TM)
.160[4.06] REF (-03 POS)
.200[5.08] REF (ALL OTHER POS)
"A"
HTST-XX-D
.165 4.19 REF
GOLD PLATE
(SEE NOTE 3)
C1
SEE NOTE 4
-LL & -LA CRIMP LOCATIONS
.250 6.35 REF
.350 8.89
REF
C2
"A"
.000[0.00]
(SEE NOTE 4)
.010[0.25]
.250 6.35
REF
C
L
*.019 0.49 MIN
"A"
.025 0.64 SQ
REF (TYP)
.015 0.38
REF
*.04 1.0
(TYP)
'B'
TERMINAL
(SEE TABLE 1)
SECTION "A"-"A"
EVEN POS
ODD POS
C3
*.0080 0.203
= CRIMP LOCATION
* DIMENSIONS APPLY WHEN USING -LL OPTION ONLY
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
DETAIL 'B'
SCALE 6 : 1
NOTES:
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. TERMINAL PUSHOUT FORCE: 3 lbs.
3. ASSEMBLE GOLD PLATED END AS SHOWN.
4. TERMINALS TO BE FLUSH TO .010[.25] BELOW
TOP OF SHROUD.
J
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR: ZENITE 5145, COLOR: NATURAL
ALTERNATE MATERIAL: VECTRA V143LC
COLOR: NATURAL
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\HTST-1XX-XX-XX-D-XX-XX-MKT.SLDDRW
HIGH TEMP TOP SHROUD TERMINAL STRIP
BY:
BRATCHER 01/16/04
HTST-1XX-XX-XX-D-XX-XX
SHEET
1
OF
2
REVISION J

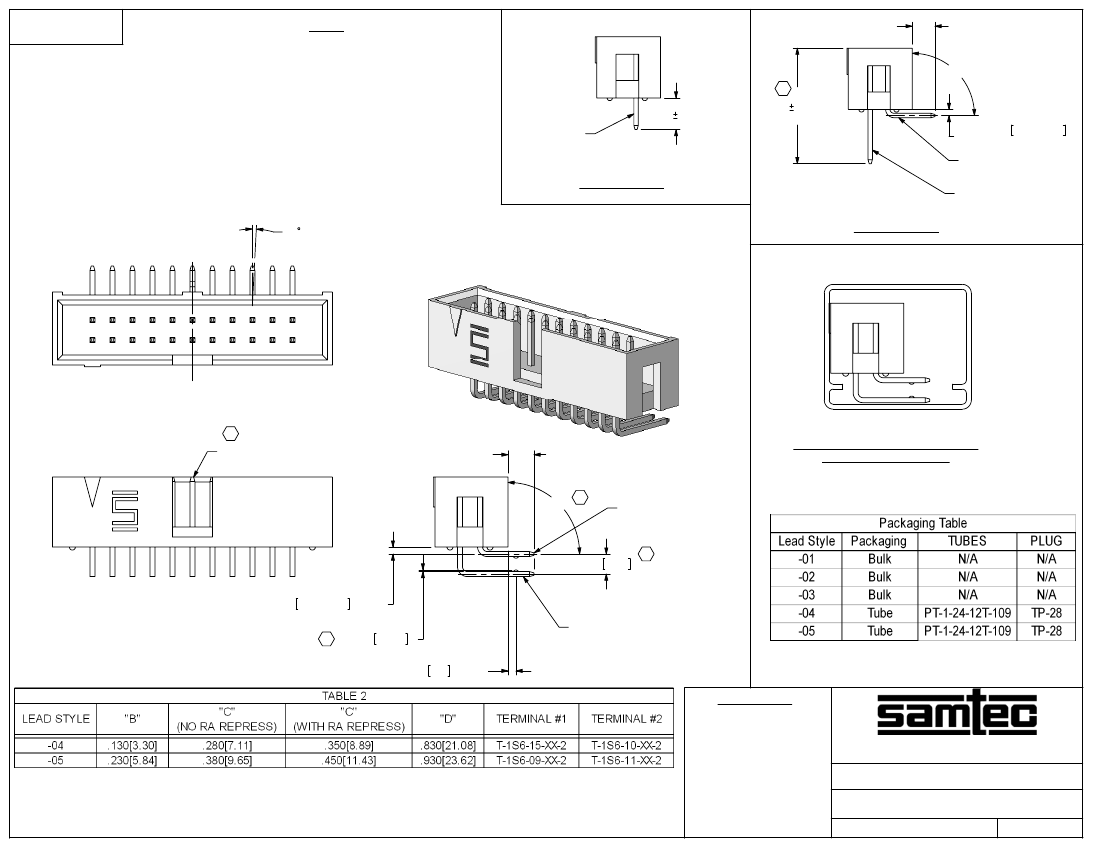

FIG. 2
-RA & -LA OPTIONS
(HTST-111-04-XX-D-LA SHOWN)
(SAME AS FIG. 1, UNLESS OTHERWISE STATED)
C8
.010[0.25]
"B" REF
(SEE TABLE 2)
90°
.010[0.25]
.000[0.00]
TERMINAL #1
(SEE TABLE 2)
"C"
(SEE TABLE 2)
"D"
.000[0.00]
(SEE NOTE 4)
.035±.010 0.89±0.25
(TYP)
TERMINAL #1
(SEE TABLE 2)
TERMINAL #2
(SEE TABLE 2)
IN-PROCESS 1
IN-PROCESS 2
02
04
C
L
2 MAX SWAY
(TYP)
01
03
C4
SEE NOTE 4
"B"
(SEE TABLE 2)
C5
TUBE PACKAGING VIEW FOR
04 & 05 LEAD STYLES
90°
TERMINAL #1
(SEE TABLE 2)
C6
.100 2.54
.035±.010 0.89±0.25 (TYP)
C7
* DIMENSIONS APPLY WHEN USING -LA OPTION ONLY
*.0080 0.203
(TYP)
*.04 1.0 (TYP)
TERMINAL #2
(SEE TABLE 2)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
HIGH TEMP TOP SHROUD TERMINAL STRIP
F:\DWG\MISC\MKTG\HTST-1XX-XX-XX-D-XX-XX-MKT.SLDDRW
BY:
BRATCHER 01/16/04
HTST-1XX-XX-XX-D-XX-XX
SHEET
2
OF
2
