HM2P27PKU2K0GFLF: DescriptionBoard Connector, 60 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P27PKU2K0GFLF Overview

Board Connector, 60 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P27PKU2K0GFLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (31) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2P27PKU2K0
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	60
UL Flammability Code	94V-0

HM2P27PKU2K0GFLF Preview

1 e

P

O

S

LEAD FREE INDICATOR : LF = LEAD FREE

(DIGIT 15 & 16)

PLATING CODE (DIGIT 13 AND 14)

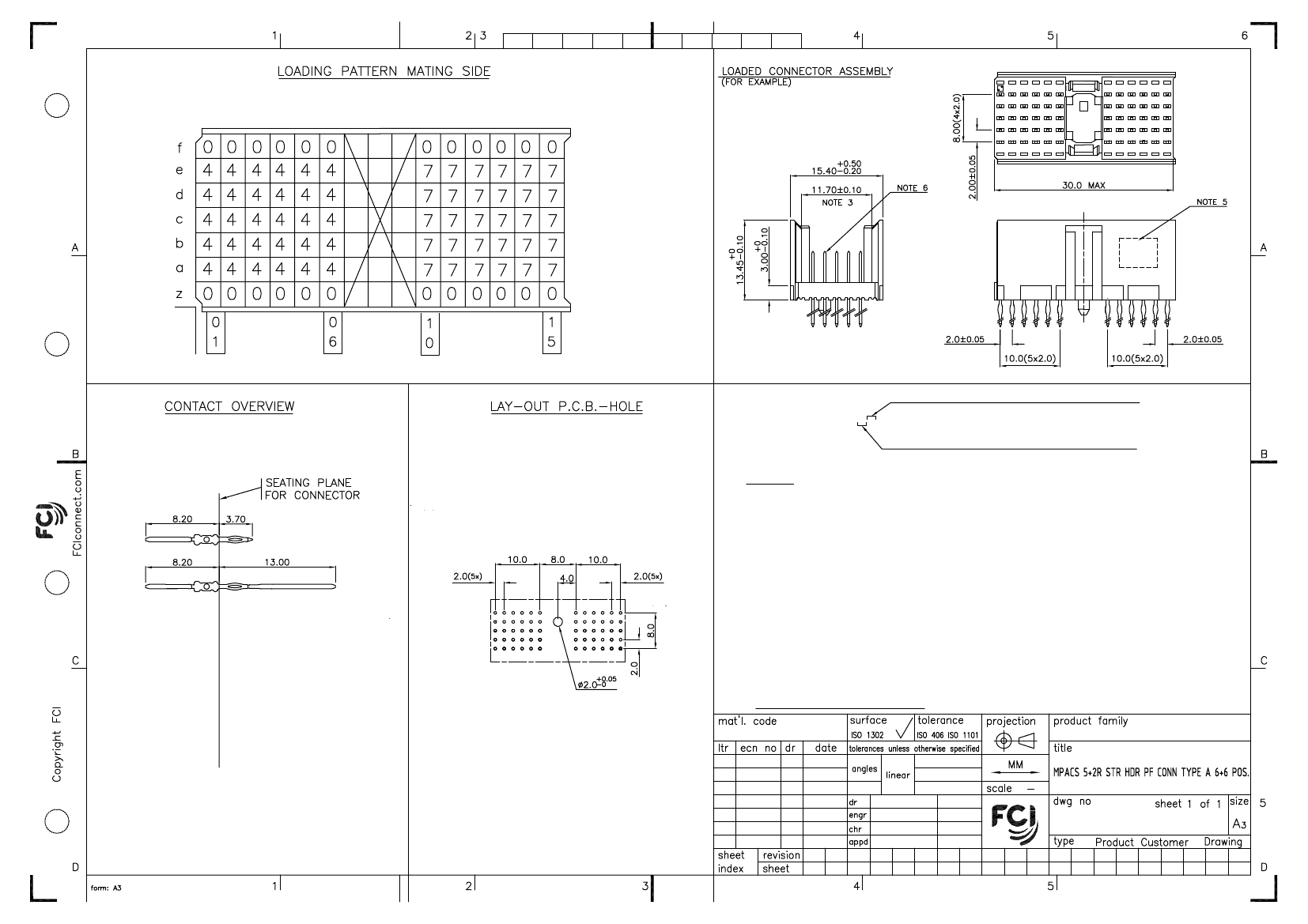

(REF DRW NO. BS,C , 201844 , 003)

HM2P27PKU2K0----

NOTES

1. THIS PRODUCT IS CSA APPROVED.

2. THIS PRODUCT IS UL RECOGNIZED.

3. MEASURED AT THE BOTTOM.

4. MATERIAL CONTACT: PHOSPHORBRONZE

HOUSING: CREAM WHITE GLASS FILLED POLYESTER UL-94V0

5. CONNECTOR PRINTED WITH P/N AND DATE CODE.

6. FOR ACTUAL CONTACT LOADINGS, SEE LOADING PATTERN MATING SIDE.

7. SHAPE OF CONNECTOR HOUSING CAN ALTER DEPENDING ON

PRODUCTION LOCATION

8. THE PRODUCT (LF) MEETS EUROPEAN UNION DIRECTIVES AND OTHER COUNTRY

REGULATIONS AS DESCRIBED IN GS-22-008

9. FOR RECOMMENDED PTH DIMENSIONS REFER DRAWING : BS, A , 201572 , 001

4

7

CATALOG NO: HM2P27PKU2K0----

SEE NOTE 4

A

B

C

D

I03-0016

I03-0063

I05-0171

I06-0077

MKV

MINI

28/05/2003

01/11/2003

0°±1°

BIJU K PAUL

K V SIVADAS

D

1

.0±0.2

.00±0.1

.000±.00X

MINI K VANDANATH 06/05/2003

06/05/2003

20/06/2006

a

MILLIPACS

MINI 23/09/2005

MINI 20/06/2006

BS, C ,203028, 028

6

PDM: Rev:D

STATUS:

Released

2 5

Printed: Dec 03, 2007

.
