MODM-LJ-04-8P8C-H-S3-6-5: DescriptionTelecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Surface Mount Terminal, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size949KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

MODM-LJ-04-8P8C-H-S3-6-5 Overview

Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Surface Mount Terminal, Jack, ROHS COMPLIANT

MODM-LJ-04-8P8C-H-S3-6-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	4 PORTS, 8 POSITIONS EACH, SHEILDED
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	BRASS
Termination type	SURFACE MOUNT
Total number of contacts	32

Preview

Download Datasheet

View All

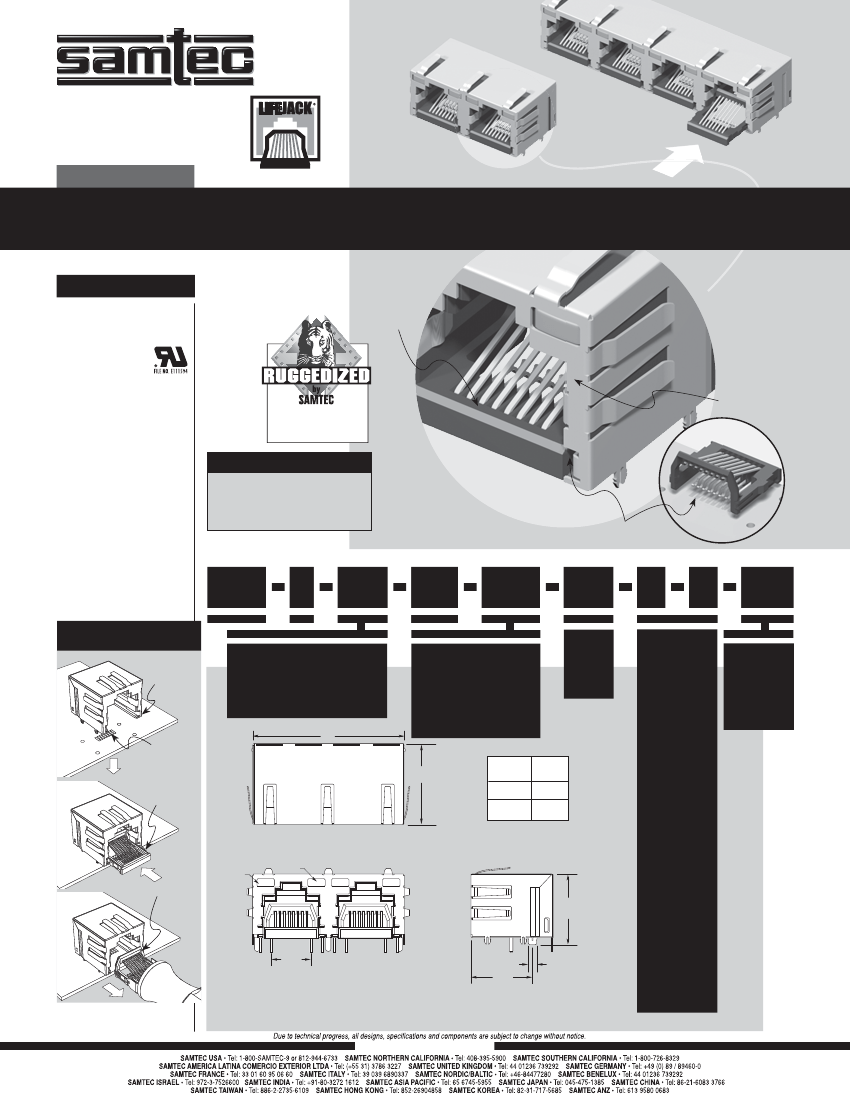

F-213 SUPPLEMENT

MODM–LJ–04–8P8C–H–S3–G–Y

MODM-LJ SERIES

MODM–LJ–02–8P8C–H–S3–G–G

FIELD REPLACEABLE GANGED JACKS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?MODM-LJ

Insulator Material:

Black LCP

Contact Material:

BeCu

Shield Material:

Brass

Operating Temp Range:

-55°C to +90°C

Current Rating:

1.5 A per contact

Voltage Rating:

120 VAC max

Contact Resistance:

20 mΩ

Minimum Cycles:

500 per contact array (LJRS)

System Applications:

CAT3, CAT5, CAT5e

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

Packaging:

Packaged and shipped in

Bulk Packaging Trays; Trays

suitable for automation are

available upon request.

End-user

replaceable

contact array for

100,000 or more

cycles (See

LJRS Series)

• Replaceable

contact array

extends life

Single row

of contacts

for true serial

pinout

ALSO AVAILABLE

Replacement Contact Array:

LJRS-8P8C-H-01

Extraction Tool:

CAT-EX-LJRS-01

• Replace contacts in

high cycle applications

• Replace damaged contacts

• Replace contacts without

desoldering connector or

opening box

Compression contacts

interface with PCB

MODM

NO. OF

PORTS

8P8C

PLATING

SHIELD

STYLE

LED

OPTION

APPLICATIONS

Solder

housing

to PCB

–02

= Two Ports

–S3

–H

= 30µ" (0,76 µm) Gold on

contact assembly,

Nickel on shield

(See LJRS Series for

replacement contact

assemblies)

= Shielded,

3 sided

panel

ﬂange

–04

= Four Ports

(Leave Blank

for no LED)

(Leave

(Callouts required Blank for no

Alignment Pin)

for both LED

options)

Voltage

= Alignment

Forward/Reverse

–A

–G

= Green

(33,27)

1.310

(66,04)

2.600

Serial in-line

pinout (Gold)

Easily insert

contact array

(17,81)

.701

NO. OF

PORTS

–02

–04

–Y

= Yellow

–1*

= Green/Orange

–2*

=Yellow/Orange

LED 1

LED 2

Easily

remove

contact

array

(8,64)

.340

(13,54)

.533

–4*

=Green/Red

(15,62)

.615

–4*

=Yellow/Red

(1,78)

.070

DIA

–5*

=Green/Yellow

Signal Contact Array Shown inserted.

(Customer assembly required after soldering shield with insulator to PCB)

Housing and contact array shipped separately.

–6*

= Yellow/Green

WWW.SAMTEC.COM
