CXA1106 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > CXA1106

Preview

CXA1106: Description8-BIT 35 MSPS HIGH-SPEED D/A CONVERTER; File Size293KB，19 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp

Download Datasheet Compare View All

CXA1106 Overview

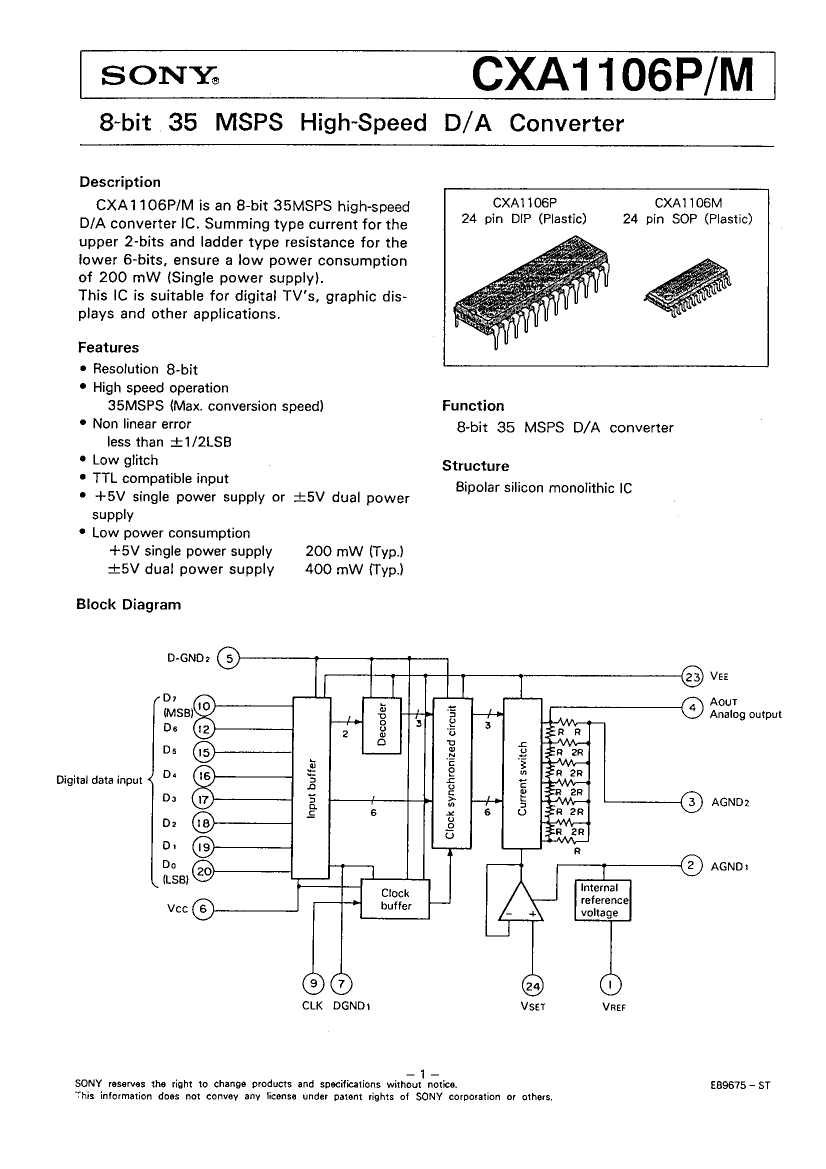

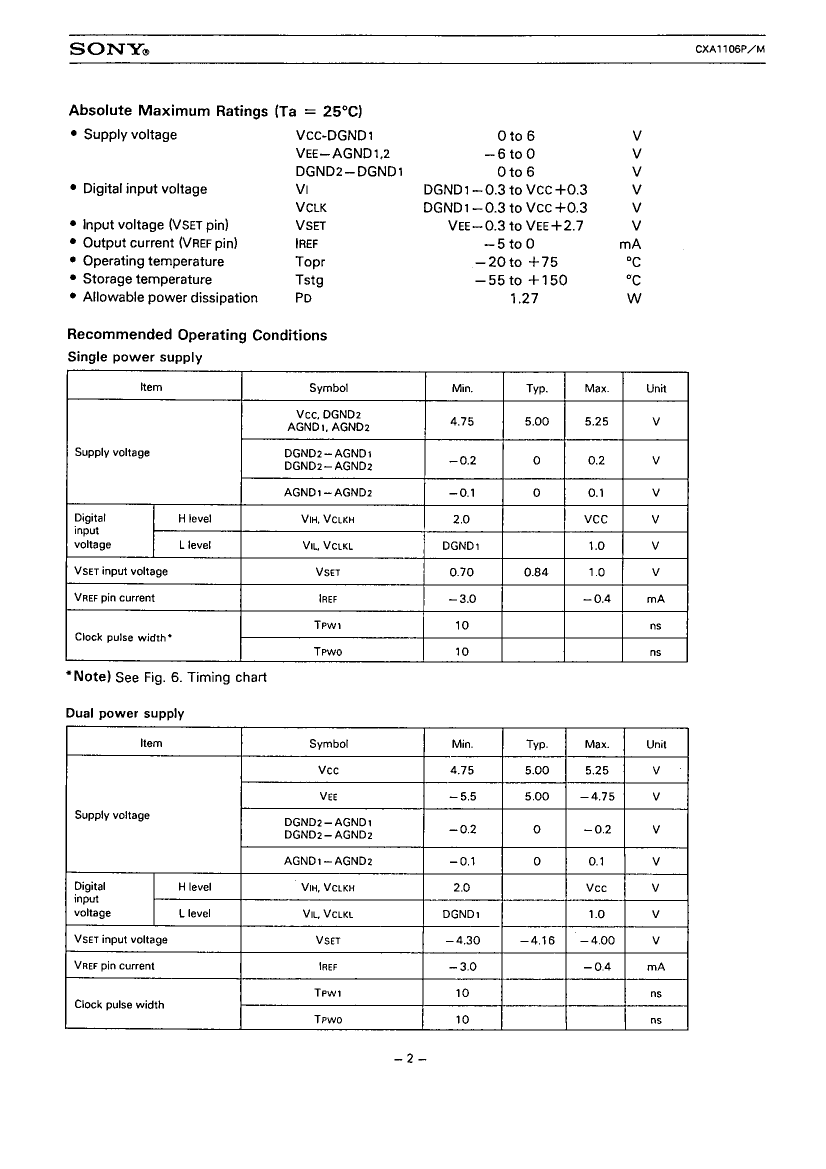

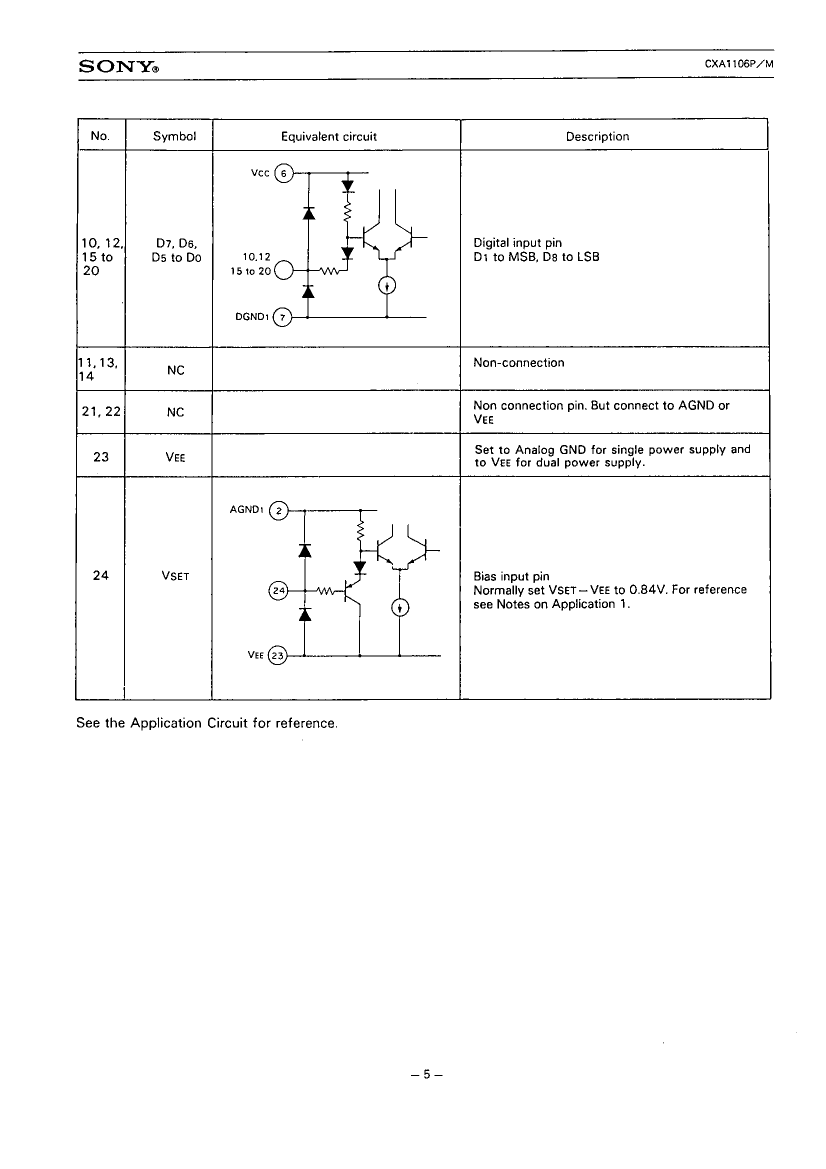

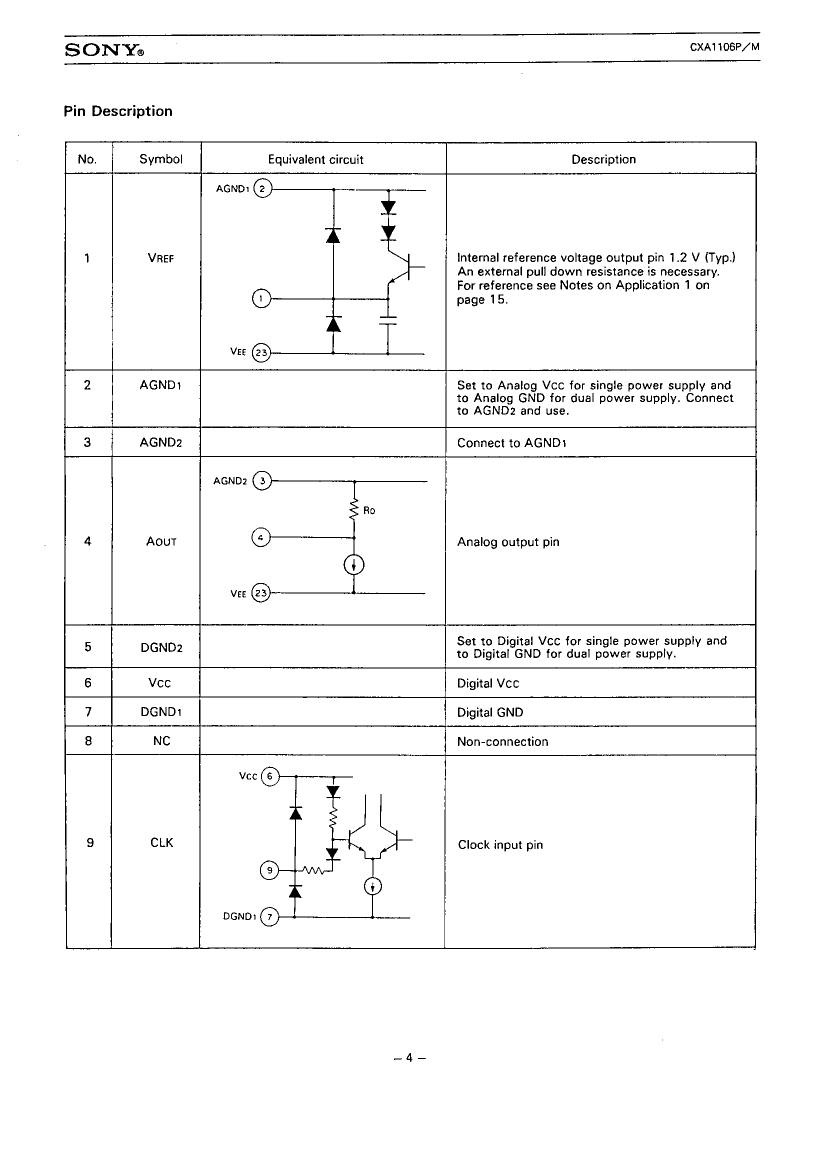

8-BIT 35 MSPS HIGH-SPEED D/A CONVERTER

Preview

Download Datasheet

View All

CXA1106 Related Products

	CXA1106	CXA1106M	CXA1106P
Description	8-BIT 35 MSPS HIGH-SPEED D/A CONVERTER	8-BIT 35 MSPS HIGH-SPEED D/A CONVERTER	8-BIT 35 MSPS HIGH-SPEED D/A CONVERTER
Is it Rohs certified?	-	incompatible	incompatible
Parts packaging code	-	SOIC	DIP
package instruction	-	SOP, SOP24,.3	DIP, DIP24,.4
Contacts	-	24	24
Reach Compliance Code	-	unknow	unknow
Maximum analog output voltage	-	1.1 V	1.1 V
Minimum analog output voltage	-	0.9 V	0.9 V
Converter type	-	D/A CONVERTER	D/A CONVERTER
Enter bit code	-	BINARY	BINARY
Input format	-	PARALLEL, 8 BITS	PARALLEL, 8 BITS
JESD-30 code	-	R-PDSO-G24	R-PDIP-T24
JESD-609 code	-	e0	e0
length	-	15 mm	30.2 mm
Maximum linear error (EL)	-	0.1953%	0.1953%
Nominal negative supply voltage	-	-5 V	-5 V
Number of digits	-	8	8
Number of functions	-	1	1
Number of terminals	-	24	24
Maximum operating temperature	-	75 °C	75 °C
Minimum operating temperature	-	-20 °C	-20 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SOP	DIP
Encapsulate equivalent code	-	SOP24,.3	DIP24,.4
Package shape	-	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	IN-LINE
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED
power supply	-	5/+-5 V	5/+-5 V
Certification status	-	Not Qualified	Not Qualified
Maximum seat height	-	2.25 mm	4.1 mm
Nominal settling time (tstl)	-	0.016 µs	0.016 µs
Maximum slew rate	-	60 mA	60 mA
Nominal supply voltage	-	5 V	5 V
surface mount	-	YES	NO
technology	-	BIPOLAR	BIPOLAR
Temperature level	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	GULL WING	THROUGH-HOLE
Terminal pitch	-	1.27 mm	2.54 mm
Terminal location	-	DUAL	DUAL
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED
width	-	5.3 mm	10.16 mm
Base Number Matches	-	1	1
