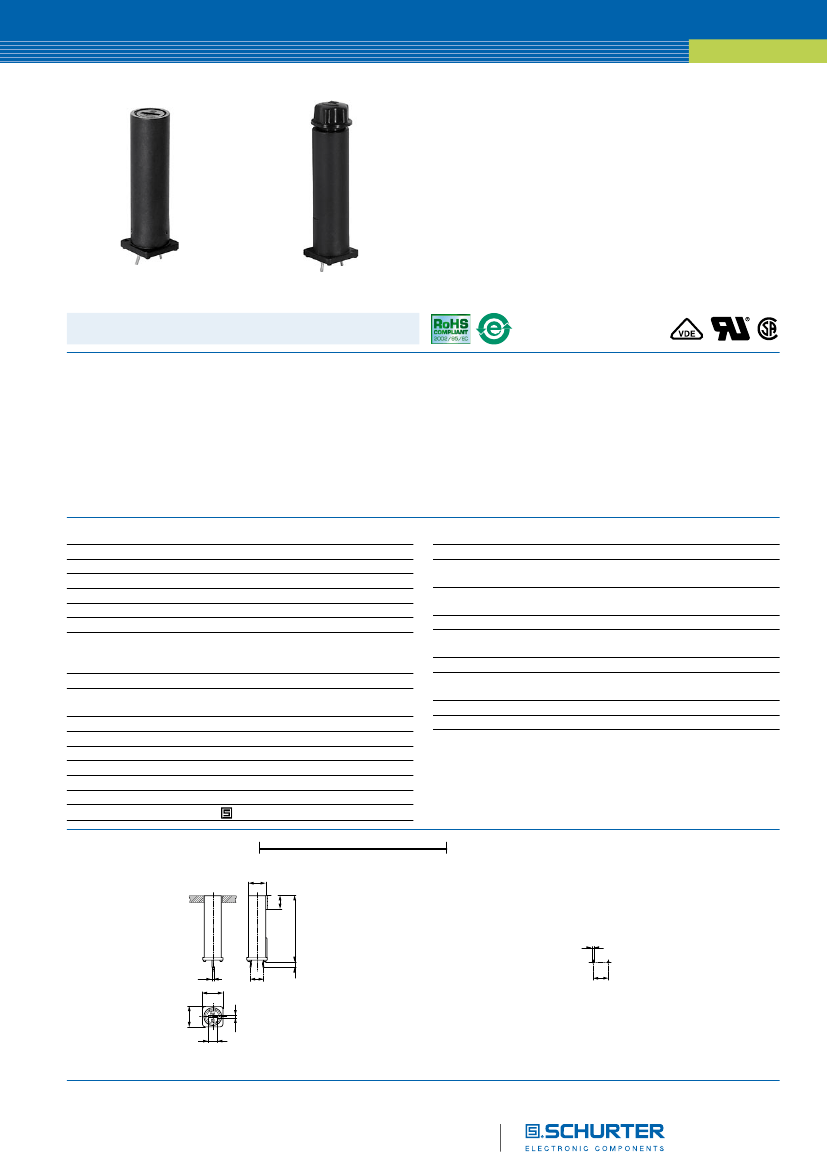

Shock-Safe Fuseholder, 5 x 20 / 6.3 x 32 mm, Slot, vertical
FAC
250 VAC · 3.2 W / 10 A (VDE)16 A (UL/CSA)
Description
Standards
- Kicked or straight PCB-terminals
- Vertical style
- IEC 60127-6
- UL 4248-1 / UL 512
- CSA C22.2 no. 39
References
Weblinks
pdf, General Product Information, Approvals, RoHS, CHINA-RoHS, e-
Store, SCHURTER-Stock-Check, Distributor-Stock-Check, Accessories
Approvals
- VDE Certificate Number: 6945
- UL File Number: E39328
- CSA File Number: 38456
Technical Data
Shocksafe Category
Fuse-Link
Mounting
Terminal
Rated Voltage
Rated Current
Rated Power Acceptance IEC
PC2
5 x 20 or 6.3 x 32 mm
PCB
Solder THT
250 VAC
10 A (VDE), 16 A (UL/CSA)
3.2 W / 10 A @ Ta 23 °C
2.5 W / 10 A for 5x20 mm fuse-link, see
derating curves
Degree of Protection
IP 40
Protection Class
Suitable for appliances with protection
class 1 or 2 acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category
40/085/21 acc. to IEC 60068-1
Material: Socket
Thermoplastic, black, UL 94V-0
Material: Terminals
Tin-Plated Copper Alloy
Unit Weight (Socket/Cap)
6.5 g / 2.3 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Voltage, Current, Approvals
Soldering Methods
Solderability
Resistance to Soldering Heat
Contact Resistance
Dielectric Strength
Impulse Withstand Voltage
Insulation Resistance
Overvoltage Category
Pollution Degree
Wave
235 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 1
260 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 1A
< 5 mΩ at 20 mV
> 3 kV between L-N
(50 Hz; 1 min)
> 4 kV between L-N
> 10 MΩ between L-N
(500 VDC; 1 min)
I - III acc. to IEC 60664-1
1 - 3 acc. to IEC 60664-1
Abmessungen
13
±0.2
L=10
±0.2
47.5 mm
47.5
1.3
+0.1
0
4.5
1.05
max. 14.9
max. 14.9
10
10
±0.1
6.5
1.8
Variant 0031.3803 and 0031.3804
Drilling diagram
Fuses
FAC
www.schurter.com/pg02

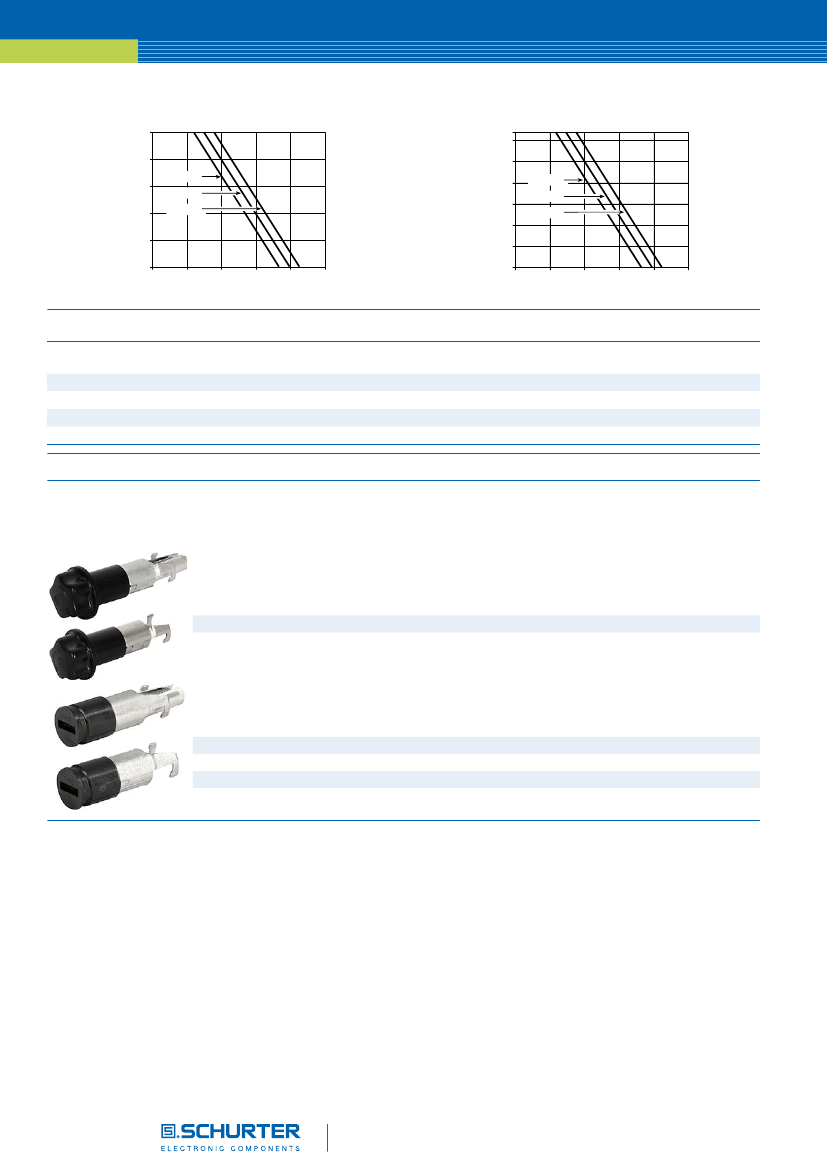

Derating Curves
5x20 mm
Admissible Power Acceptance in Watt
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Fuseholders
6.3x32 mm
Admissible Power Acceptance in Watt
3.2
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = < < I
n
Ambient Air Temperature Ta °C
Ambient air temperature Ta °C
Variants
Holder
l
l
l
l
Cap
-
-
Slot Knob
Fingergrip
Fuse-Link
5 x 20 or 6.3 x 32mm
5 x 20 or 6.3 x 32mm
6.3 x 32mm
6.3 x 32mm
Terminal
Straight
Kicked
Kicked
Kicked
Degree of Pro-
tection
IP 40
IP 40
IP 40
IP 40
Colour Cap
-
-
Grey
-
Remark
-
-
0031.3804 + 0031.1666
0031.3804 + 0031.1667
Comment
-
-
-
-
Order Number
0031.3803
0031.3804
0031.3822
0031.3823
Packaging Unit
Required Accessory
Bulk (100 pcs.)
Description
Fingergrip FEU, FAU, FAC
Caps Fingergrip for Holder FEU, FAU, FAC
Fingergrip, 6.3 x 32 mm, IP 40
Fingergrip, 5 x 20 mm, IP 40
0031.1667
0031.1741
Caps to FEU, FAU, FAC
Caps to Holder FEU, FEU (Med), FAU, FAC
Slot Knob, 6.3 x 32 mm, IP 40
Slot Knob, 5 x 20 mm, IP 40
Slot Knob, 6.3 x 32 mm, Grey, IP 40
0031.1661
0031.1663
0031.1666
2
The specifications, descriptions and illustrations indicated in this document are based on
Fuses
current information. All content is subject to modifications and amendments.
