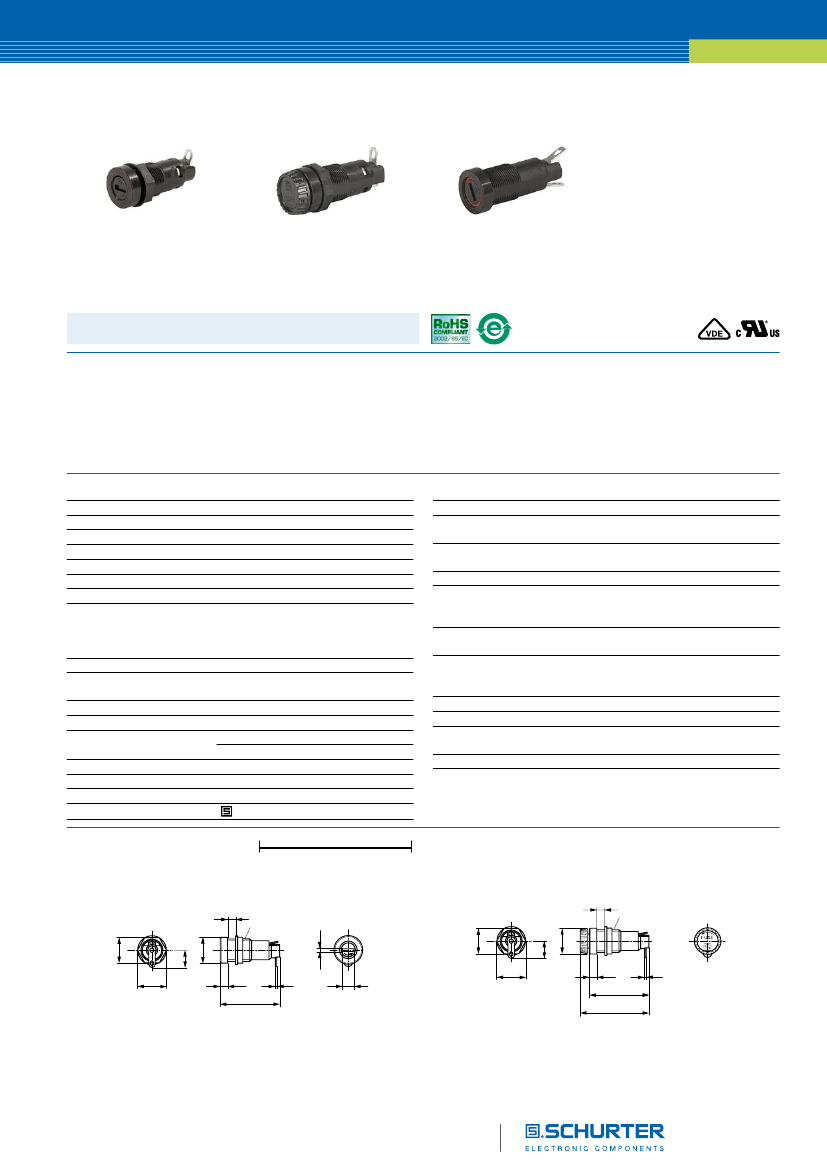

Shock-Safe Fuseholder, 5 x 20 mm, Slot/Fingergrip, IP 40 / IP 54
FEF
Fingergrip
Variant 2
250 VAC · 4 W / 10 A (VDE)10 A (UL/CSA)
Standards
- IEC 60127-6
- UL 4248-1 / UL 512
- CSA 4248-1 / no. 39
References
Weblinks
Approvals
pdf, General Product Information, Approvals, RoHS, CHINA-RoHS, e-
Store, SCHURTER-Stock-Check, Distributor-Stock-Check
- VDE Certificate Number: 131952
- UL File Number: E39328
- CSA File Number: E39328
Technical Data
Shocksafe Category
Fuse-Link
Mounting
Mounting
Terminal
Rated Voltage
Rated Current
Rated Power Acceptance IEC
PC2
5 x 20 mm
Panel Mount, Front-Side
Fixing Nut
Solder or Quick-Connect 2.8 x 0.5 mm
250 VAC
10 A (VDE), 10 A (UL/CSA)
4 W / 10 A @ Ta 23 °C
Admissible power acceptance at hig-
her ambient temperature see derating
curves
Degree of Protection
IP 40 / IP 54
Protection Class
Suitable for appliances with protection
class 1 or 2 acc. to IEC 61140
Admissible Ambient Air Temp. -40 °C to 85 °C
Climatic Category
40/085/21 acc. to IEC 60068-1
Material: Socket
Thermoset, black, UL 94V-0
Material: Cap
Thermoplastic, black, UL 94V-0
Material: Terminals
Tin-Plated Copper Alloy
Unit Weight (Socket/Cap)
5.95 g
Storage Conditions
0 °C to 60 °C, max. 70% r.h.
Product Marking
, Type, Voltage, Approvals
Soldering Methods
Solderability
Resistance to Soldering Heat
Contact Resistance
Dielectric Strength
Iron
350 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 2
350 °C / 10 sec acc. to IEC 60068-2-20,
Test Tb, method 2
< 5 mΩ at 20 mV
> 3 kV between L-N
> 4 kV between L/N-PE
(50 Hz; 1 min)
> 4 kV between L-N
> 6 kV between L/N-PE
> 10 MΩ between L-N
> 100 MΩ between L/N-PE
(500 VDC; 1 min)
I - III acc. to IEC 60664-1
1 - 3 acc. to IEC 60664-1
max 1.2 Nm
max 7 mm
Impulse Withstand Voltage
Insulation Resistance
Overvoltage Category
Pollution Degree
Admissible Torque on Fixing
Nut
Panel Thickness s
Abmessungen
38.4 mm
max. 7
max. 7
SW 14
M12.7x1.5 / 2
SW 14
ø 15
1.8
ø 15
M12.7x1.5 / 2
9.4
16.2
16.2
4
33
0.5
6
9.4
4
33
38
0.5
Variant 0031.1081
Variant Fingergrip 0031.1907
Fuses
FEF
www.schurter.com/pg02
Fuseholders
max. 7
M12.7x1.5 / 2
12.7
-0.1
SW 14
ø 15
1.8
0
0
16.2
38.4
Variant 2 0031.1185
0.5
2.8
4
6
13
-0.3
12
-0.1
0
Mounting Holes 0031.1161, 0031.1165, 0031.1913 and 0031.1914
Derating Curves
Admissible Power Acceptance in Watt
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
20
40
60
80
100
I = 1.0 I
n
I = 0.7 I
n
I = << I
n
Ambient Air Temperature Ta °C
Variants
Holder
l
l
l
Cap
Slot Knob
Fingergrip
Slot Knob
Terminal
Solder
Solder
Solder
Degree of Pro-
tection
IP 40
IP 40
IP 54
Order Number
0031.1081
0031.1907
0031.1185
Quick-Connect Terminals on Request
Packaging Unit
Bulk (100 pcs.)
2
