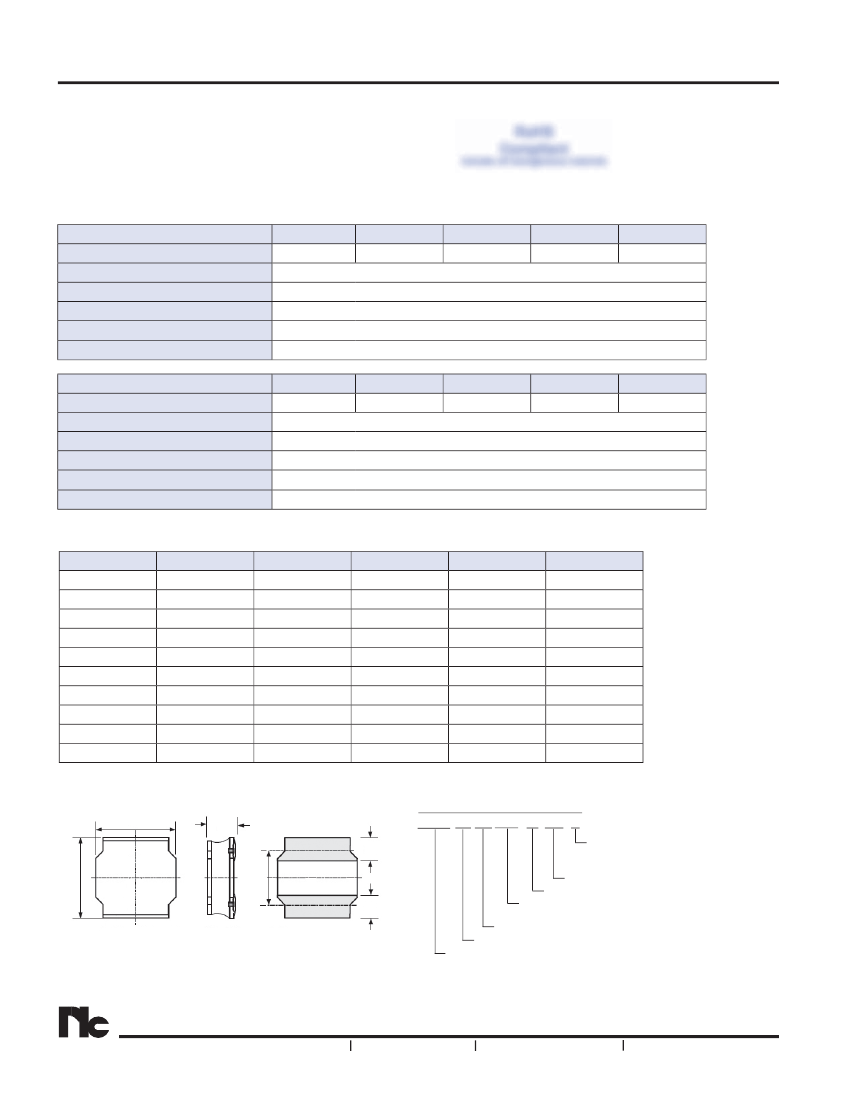

NPIS Shielded Power Inductors
FEATURES
• SHIELDED POWER INDUCTOR
• HIGH CURRENT (UP TO 10.35 AMPS)
• SURFACE MOUNTABLE CONSTRUCTION
• HIGH INDUCTANCE (UP TO 330μH)
• TAPED AND REELED FOR AUTOMATIC INSERTION
• FOR USE IN DC/DC CONVERTERS
CHARACTERISTICS
Case Size
Inductance Range
Ambient Operating Temperature Range
Temperatrue Rise at Irms
Inductance Change at Isat
Inductance Tolerance
Resistance to Solder Heat
Case Size
Inductance Range
Ambient Operating Temperature Range
Temperatrue Rise at Irms
Inductance Change at Isat
Inductance Tolerance
Resistance to Solder Heat
NPIS43LS
0.91 ~ 120μH
NPIS62LS
1.0 ~ 100μH
NPIS31LS
1.0 ~ 47μH
NPIS32LS
0.82 ~ 100μH
NPIS35LS
1.0 ~ 62μH
NPIS41LS
0.82 ~ 100μH
NPIS__LS Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
NPIS42LS
1.0 ~ 100μH
-25°C ~ +120°C (including self-heating)
Maximum +40°C Temperature Rise
Maximum -30% Indcutance Drop From Initial Measured Value
±20% (M), ±30% (Y)
+260°C for 10 seconds
NPIS63LS
1.5 ~ 100μH
NPIS65LS
0.82 ~ 330μH
NPIS84LS
1.0 ~ 330μH
-25°C ~ +120°C (including self-heating)
Maximum +40°C Temperature Rise
Maximum -30% Indcutance Drop From Initial Measured Value
±20% (M), ±30% (Y)
+260°C for 10 seconds
DIMENSIONS (mm)
Series
NPIS31LS
NPIS32LS
NPIS35LS
NPIS41LS
NPIS42LS
NPIS43LS
NPIS62LS
NPIS63LS
NPIS65LS
NPIS84LS
A ± 0.3
3.0
3.0
3.0
4.0
4.0
4.0
6.0
6.0
6.0
8.0
B ± 0.3
3.0
3.0
3.0
4.0
4.0
4.0
6.0
6.0
6.0
8.0
C max.
1.2
1.4
1.7
1.4
2.2
3.0
2.2
2.8
4.5
4.2
D ± 0.3
1.5
1.5
1.5
2.1
2.1
2.1
4.0
4.0
4.0
5.6
E ± 0.3
0.75
0.75
0.75
0.95
0.95
0.95
1.55
1.55
1.55
5.6
A
C
E
PART NUMBER SYSTEM
NPIS 31 LS 470 M TR F
Termination Finish:
F = Standard Pb-free (100%Sn)
Packaging: TR = Tape & Reel
Inductance Tolerance Code: M=±20%
Inductance Code (μH): 1st two digits are significant,
3rd digit is multiplier.
Construction Code (see drawing for details)
Size Code (see table for details)
B
D
E
Series
®
110
