METALLIZED POLYESTER FILM CAPACITOR
D.C MULTIPURPOSE APPLICATIONS
R66
MKT Series
Typical applications:
this series combines small size,
good performances in by-passing, blocking and interference
suppression in low voltage applications (i.e.: AUTOMOTIVE).
PRODUCT CODE:
R66
p = 7.5mm
Note:
R66 series has replaced the R84 series (available only
upon request).
For new design we suggest the use of the R66 series
B
Ød ±0.05
<3.5
0.5
≥4.0
0.6
Pitch Box thickness (B)
(mm)
(mm)
7.5
All
Maximum dimensions (mm)
B max
H max
L max
B +0.1
H +0.1
L +0.2
All dimensions are in mm.
GENERAL TECHNICAL DATA
Dielectric:
polyester
fi
lm (polyethylene terephthalate).
The part number, comprising 14 digits, is formed as follows:
Plates:
aluminium layer deposited by evaporation under
1 2 3
4
5
6 7 8 9 10 11 12 13 14
vacuum.
Winding:
non-inductive type.
D
-
R 6 6
Leads:
tinned wire.
Protection:
plastic case, thermosetting resin
fi
lled.
Digit 1 to 3
Series code.
Box material is solvent resistant and
fl
ame
Digit 4
d.c. rated voltage:
retardant according to UL94.
C = 50V
D = 63V E = 100V
Marking:
Manufacturer’s logo, capacitance, tolerance,
I = 250V M = 400V P = 630V
D.C. rated voltage.
Digit 5
Pitch: D = 7.5 mm
Climatic category:
55/105/56 IEC 60068-1
Digit 6 to 9
Digits 7 - 8 - 9 indicate the
fi
rst three digits of
Operating temperature range:
-55 to +105°C
For stacked technology an upper operating
Capacitance value and the 6th digit indicates
temperature of +125°C is allowed for a max operating
the number of zeros that must be added to
time of 1000 h.
obtain the Rated Capacitance in pF.
Related documents:
IEC 60384-2
Digit 10 to 11 Mechanical version and/or packaging (table1)
Digit 12
Identifies the dimensions and electrical
characteristics.
Winding scheme
Digit 13
Internal use
Digit 14
Capacitance tolerance:
J=5%; K=10%; M=20%.
PRODUCT CODE SYSTEM
Table 1 (for more detailed information, please refer to page
14).
Standard
packaging style
Lead
length
(mm)
Taping
style
Figure No.
Ordering
code
(Digit 10 to 11)
single sided metallized
polyester
fi
lm
AMMO-PACK
AMMO-PACK
Reel Ø 355 mm
Loose, short leads
Loose, long leads
4
+2
17
+1/-2
1
2
1
DQ
28
CK
AA
Z3
10/2006
42
METALLIZED POLYESTER FILM CAPACITOR
D.C. MULTIPURPOSE APPLICATIONS
p = 7.5 mm
PRODUCT CODE:
R66
R66
MKT Series
STACKED VERSION
Rated
Cap.
B
0.68
µF
1.0
µF
1.5
µF
F
2.2
µF
2
3.3
µF
4.7
µF
50Vdc/30Vac*
Std dimensions
H
L
p
3.0
8.0 10.0
7.5
Max
dv/dt
(V/
µs)
100
100
00
Max K
0
(V
2
/
µs)
10 E3
10 E3
10 E3
Part Number
Rated
Cap.
B
0.068
µF
0.10
µF
0.15
µF
0.22
µF
0.33
µF
0.47
µF
0.68
µF
1.0
1.5
µF
µF
3.0
3.0
3.0
3.0
4.0
4.0
4.0
100Vdc/63Vac
Std dimensions
H
L
p
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
8.0 10.0
8.0 10.0
8.0 10.0
8.0 10.0
9.0 10.0
9.0 10.0
9.0 10.0
Max
dv/dt
(V/
µs)
150
150
150
150
150
150
150
150
150
Max K
0
(V
2
/
µs)
30 E3
30 E3
30 E3
30 E3
30 E3
30 E3
30 E3
30 E3
30 E3
R66ED 2680
--
7
--
R66ED 3100
--
7
--
R66ED 3150
--
7
--
R66ED 3220
--
7
--
R66ED 3330
--
7
--
R66ED 3470
--
7
--
R66ED 3680
--
7
--
R66ED 4100
--
7
--
R66ED 4150
--
6
--
Part Number
ESS
OG
R
N
PR
I
3.0
4.0
0
8.0
10.0
0
75
7.5
7.5
7.5
7.5
9.0 10.0
100
100
5.0 10.5
10 0
10.0
5.0
100
10 E3
10.5 10.0
10 E3
6.0 12.0 10.5
7.5
100
10 E3
R66CD3680
--
6
--
R66CD 4100
--
6
--
R66
R66CD 4150
--
6
--
R66CD 4220
--
6
--
R66CD 4330
--
6
--
R66CD 4470
--
6
--
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
5.0 10.5 10.0
6.0 12.0 10.5
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
Rated
Cap.
B
0.33
µF
0.47
µF
0.68
µF
1.0
µF
1.5
µF
2.2
µF
3.3
µF
3.0
3.0
4.0
4.0
63Vdc/40Vac
Std dimensions
H
L
p
7.5
7.5
7.5
7.5
7.5
7.5
7.5
8.0 10.0
8.0 10.0
9.0 10.0
9.0 10.0
Max
dv/dt
(V/
µs)
120
120
120
120
120
120
120
Max K
0
(V
2
/
µs)
15 E3
15 E3
15 E3
15 E3
15 E3
15 E3
15 E3
R66DD 3330
--
7
--
R66DD 3470
--
6
--
R66DD 3680
--
7
--
R66DD 4100
--
7
--
R66DD 4150
--
7
--
R66DD 4220
--
6
--
R66DD 4330
--
6
--
0.022µF
0.033
µF
0.047
µF
0.068
µF
0.10
µF
0.15
µF
0.22
µF
0.33
µF
Part Number
Rated
Cap.
B
3.0
3.0
3.0
3.0
4.0
4.0
250Vdc/160Vac
Std dimensions
H
L
p
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
8.0 10.0
8.0 10.0
8.0 10.0
8.0 10.0
9.0 10.0
9.0 10.0
Max
dv/dt
(V/
µs)
200
200
200
200
200
200
200
200
Max K
0
(V
2
/
µs)
100 E3
100 E3
100 E3
100 E3
100 E3
100 E3
100 E3
100 E3
R66ID 2220
--
7
--
R66ID 2330
--
7
--
R66ID 2470
--
7
--
R66ID 2680
--
6
--
R66ID 3100
--
7
--
R66ID 3150
--
7
--
R66ID 3220
--
7
--
R66ID 3330
--
6
--
Part Number
5.0 10.5 10.0
6.0 12.0 10.5
6.0 12.0 10.5
5.0 10.5 10.0
6.0 12.0 10.5
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
a) WOUND version
b) STACKED version
Rated
Cap.
6800 pF
0.010
µF
0.015
µF
0.022
µF
0.033
µF
0.047
µF
0.068
µF
0.10
µF
0.15
µF
400Vdc/200Vac
Std dimensions
B
H
L
p
3.0 8.0 10.0 7.5
3.0
3.0
3.0
4.0
4.0
8.0
8.0
8.0
9.0
9.0
10.0
10.0
10.0
10.0
10.0
10.0
10.5
10.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
Max
dv/dt
(V/µs)
275
275
275
275
275
275
275
275
275
Max K
0
(V
2
/µs)
220 E3
220 E3
220 E3
220 E3
220 E3
220 E3
220 E3
220 E3
220 E3
Part Number
R66MD1680
--
7
--
R66MD2100
--
7
--
R66MD2150
--
7
--
R66MD2220
--
6
--
R66MD2330
--
7
--
R66MD2470
--
7
--
R66MD2680
--
7
--
R66MD3100
--
6
--
R66MD3150
--
6
--
630Vdc/220Vac*
Std dimensions
B
H
L
p
a)
1000 pF 3.0 8.0 10.0 7.5
a)
1500 pF 3.0
a)
2200 pF 3.0
a)
3300 pF 3.0
a)
4700 pF 3.0
a)
6800 pF 4.0
b)
0.010
µF
4.0
b)
0.015
µF
4.0
8.0 10.0
8.0 10.0
8.0 10.0
8.0 10.0
9.0 10.0
9.0 10.0
9.0 10.0
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
7.5
Rated
Cap.
Max
dv/dt
(V/µs)
40
40
40
40
40
40
300
300
300
300
300
Max K
0
(V
2
/µs)
50 E3
50 E3
50 E3
50 E3
50 E3
50 E3
378 E3
378 E3
378 E3
378 E3
378 E3
Part Number
R66PD 1100
--
1
--
R66PD1150
--
1
--
R66PD 1220
--
1
--
R66PD 1330
--
1
--
R66PD 1470
--
1
--
R66PD 1680
--
1
--
R66PD 2100
--
7
--
R66PD 2150
--
7
--
R66PD 2220
--
7
--
R66PD 2330
--
6
--
R66PD 2470
--
6
--
5.0 10.5
6.0 12.0
6.0 12.0
b)
0.022
µF
5.0 10.5 10.0
b)
0.033
µF
6.0 12.0 10.5
b)
0.047
µF
6.0 12.0 10.5
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
Mechanical version and packaging (Table1)
Internal use
Tolerance: J (±5%); K (±10%); M (±20%)
All dimensions are in mm.
Note: If the working voltage (V) is lower than the rated voltage (V
R
), the capacitor may work at higher dv/dt. In this case the
maximum value allowed is obtained multiplying the above value (see table dv/dt) with the ratio V
R
/V.
The pulse characteristic K
0
depends on the voltage wave-form and in any case it cannot overcome the value given in
the above table.
*Not suitable for across-the-line applications. Please refer to Interference Suppression Capacitors (page 183).
43
10/2006
METALLIZED POLYESTER FILM CAPACITOR
D.C. MULTIPURPOSE APPLICATIONS
p = 7.5 mm
PRODUCT CODE:
R66
R66
MKT Series
ELECTRICAL CHARACTERISTICS
Rated voltage (V
R
):
50 Vdc
250 Vdc
63 Vdc
400 Vdc
100 Vdc
630 Vdc
TEST METHOD AND PERFORMANCE
Damp heat, steady state:
Test conditions
Temperature:
Relative humidity (RH):
Test duration:
Performance
Capacitance change |∆C/C|:
DF change (∆tg
δ
):
Insulation resistance:
Endurance:
Test conditions
Temperature:
Test duration:
Voltage applied:
Performance
Capacitance change |∆C/C|:
DF change (∆tg
δ
):
Insulation resistance:
Resistance to soldering heat:
+105°C ±2°C
2000 h
1.25xV
C
≤5%
≤50
10
-4
at 10kHz
≥50%
of initial limit.
+40°C ±2°C
93% ±2%
56 days
≤5%
≤50x10
-4
at 1kHz
≥50%
of initial limit.
Rated temperature (T
R
):
+85 °C
Temperature derated voltage:
for temperatures between +85°C and the upper operating
temperature ( +105°C for wound technology and +125°C
for stacked technology) a decreasing factor of 1.25% per
degree °C on the rated voltage V
R
(d.c. and a.c.) has to be
applied.
Capacitance range:
Capacitance values:
E6 series (IEC 60063 Norm).
Capacitance tolerances
(measured at 1 kHz):
± 5% (J); ±10% (K); ±20% (M).
Total self-inductance
(L):
≈8nH
(lead length ~2mm)
Dissipation factor (DF):
tgd 10
-4.
at +25°C ”5°C
kHz
1
10
tgδ x 10
-4
≤
100
≤
150
1000 pF to 4.7
µ
F
Insulation resistance:
Test conditions
Temperature
Voltage charge time:
Voltage charge:
Performance
For V
R
≤100
Vdc
≥3750
MΩ for C
≤0.33µF
(5000 MΩ)*
≥1250
s
for C >0.33µF (5000 s)*
For V
R
>100 Vdc
≥30000MΩ
(50000 MΩ)*
*Typical value
Test voltage between terminals:
1.6xV
R
applied for 2 s at +25°C ± 5°C
+25°C±5°C
1 min
50 Vdc for V
R
<100 Vdc
100 Vdc for V
R
≥100
Vdc
Test conditions
Solder bath temperature:
+260°C±5°C
Dipping time (with heat screen):10 s ±1 s
Performance
Capacitance change |∆C/C|:
≤2%
≤50x10
-4
at 10kHz
DF change (∆tg
δ
):
Insulation resistance:
≥
initial limit.
Long term stability
(after two years):
Storage
standard environmental conditions (see page 12).
Performance
Capacitance change |∆C/C|:
≤3%
for C≤0.1µF
≤2%
for C>0.1µF
RELIABILITY
Reference MIL HDB 217
Application conditions:
Temperature:
+40°C±2°C
Voltage:
0.5xV
R
Failure rate:
≤2
FIT
-9
(1 FIT = 1 10 failures/components h)
Failure criteria:
(according to DIN 44122)
Short or open circuit
Capacitance change |∆C/C|:
>10%
>2 x initial limit.
DF change (∆tg
δ
):
Insulation resistance:
<0.005 x initial limit.
10/2006
44
METALLIZED POLYESTER FILM CAPACITOR
D.C. MULTIPURPOSE APPLICATIONS
p = 7.5 mm
PRODUCT CODE:
R66
R66
MKT Series

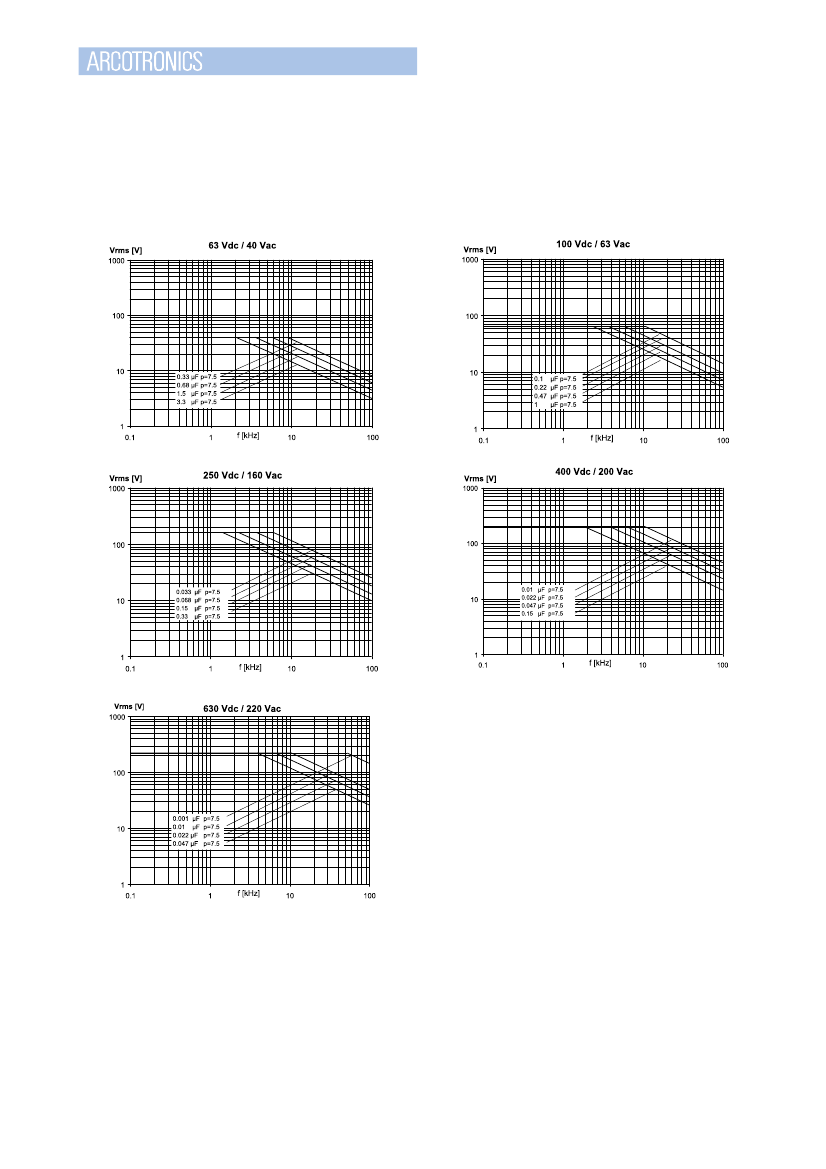

MAX. VOLTAGE (Vr.m.s.) VERSUS FREQUENCY (sinusoidal wave-form / Th
≤
40°C)
Note: p (pitch) in mm.
45
10/2006
METALLIZED POLYESTER FILM CAPACITOR
D.C. MULTIPURPOSE APPLICATIONS
p = 7.5 mm
PRODUCT CODE:
R66
R66
MKT Series

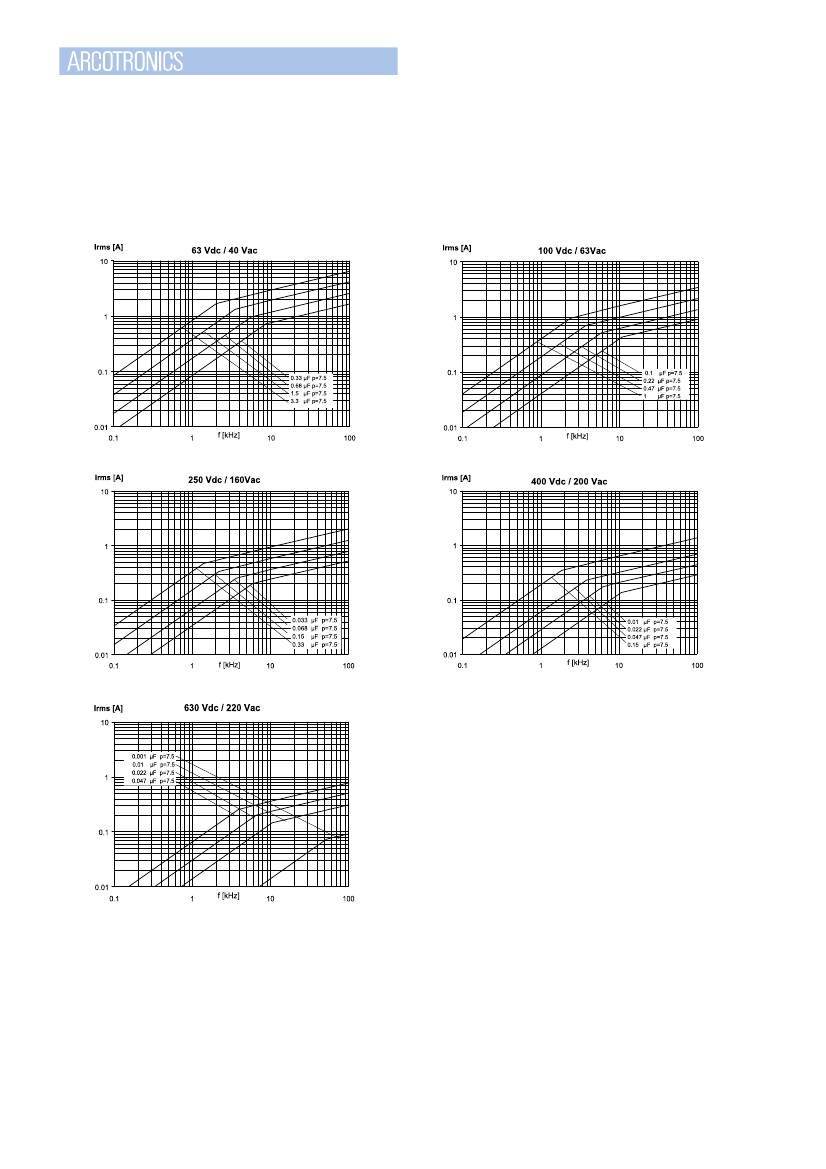

MAX. CURRENT (Ir.m.s.) VERSUS FREQUENCY (sinusoidal wave-form / Th
≤
40°C)
Note: p (pitch) in mm.
10/2006
46
京公网安备 11010802033920号
EEWORLD
