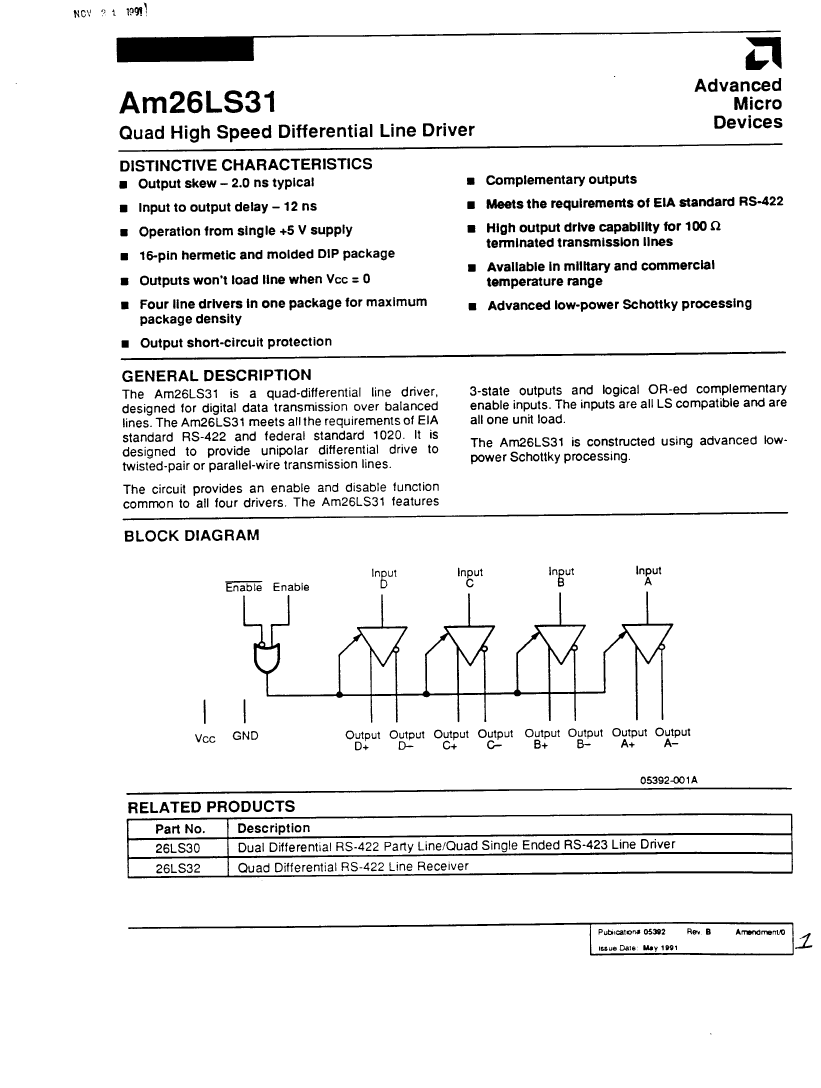

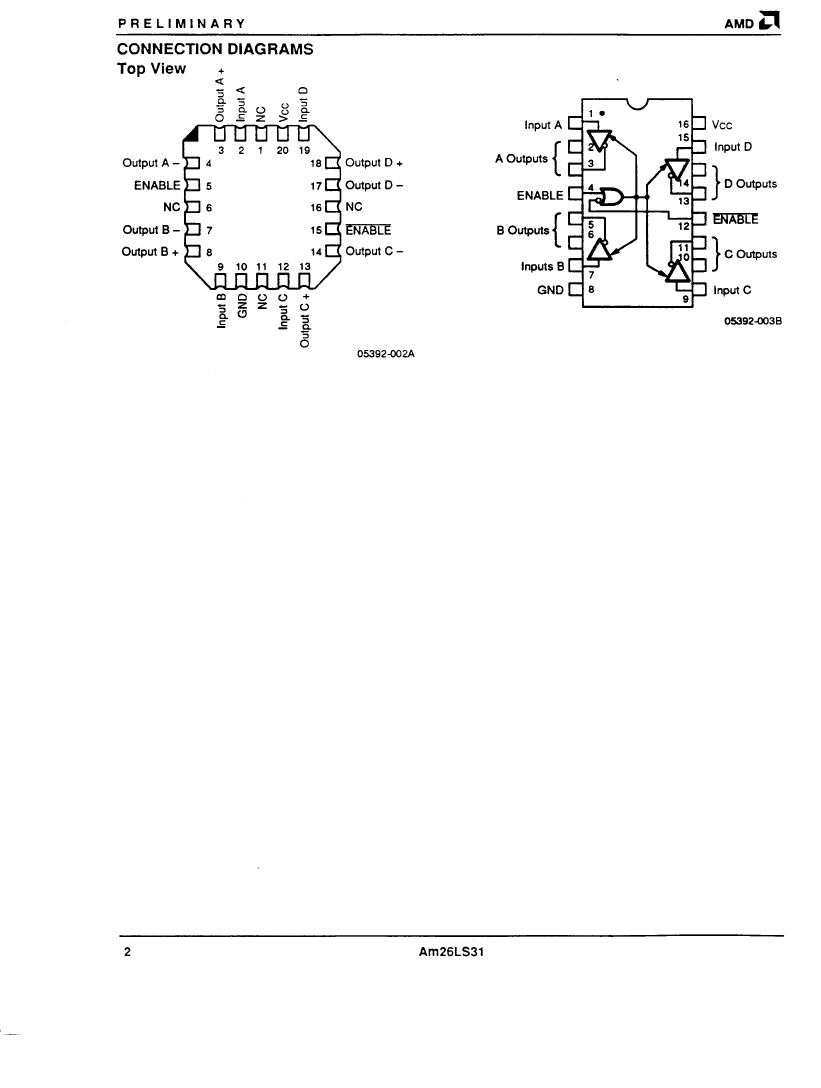

Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP16,.3 |
| Contacts | 16 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Differential output | YES |
| Number of drives | 4 |
| High level input current maximum value | 0.00002 A |
| Input properties | STANDARD |
| Interface integrated circuit type | LINE DRIVER |
| Interface standards | EIA-422; FED STD 1020 |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| length | 19.431 mm |
| Number of functions | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Minimum output swing | 2 V |
| Output characteristics | 3-STATE |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum receive delay | |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage | 5.25 V |
| Minimum supply voltage | 4.75 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| maximum transmission delay | 30 ns |
| width | 7.62 mm |
| Base Number Matches | 1 |

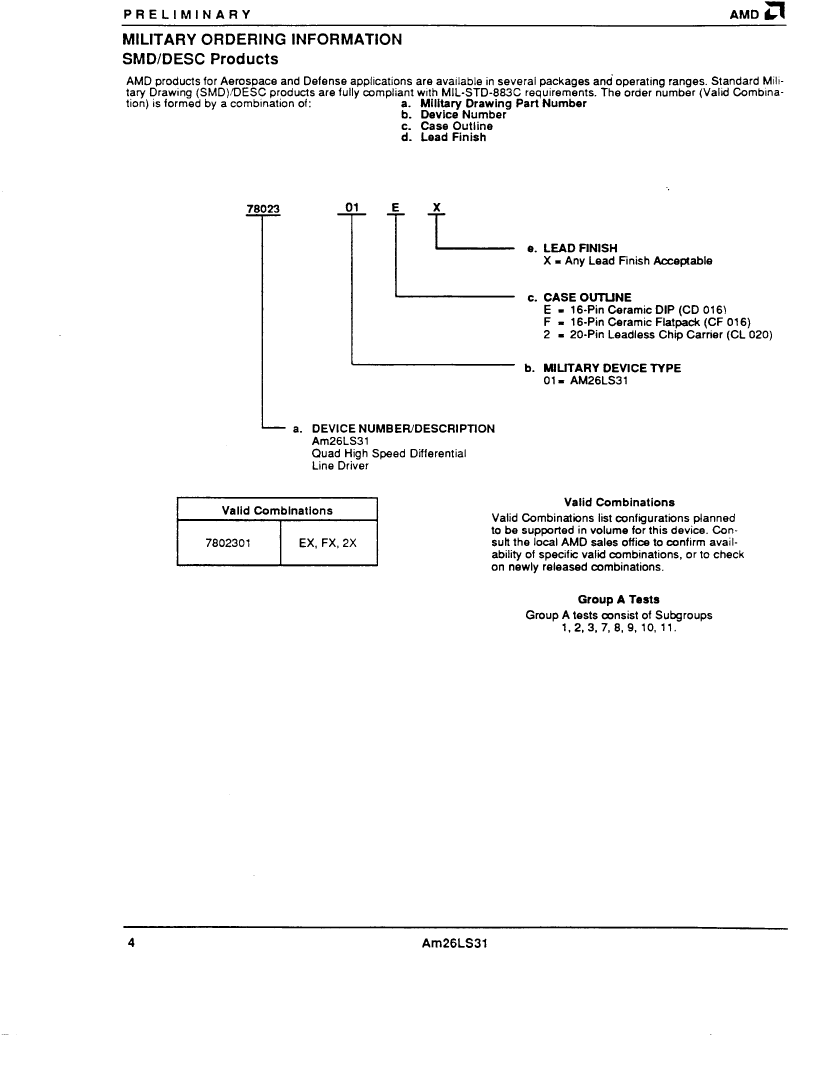

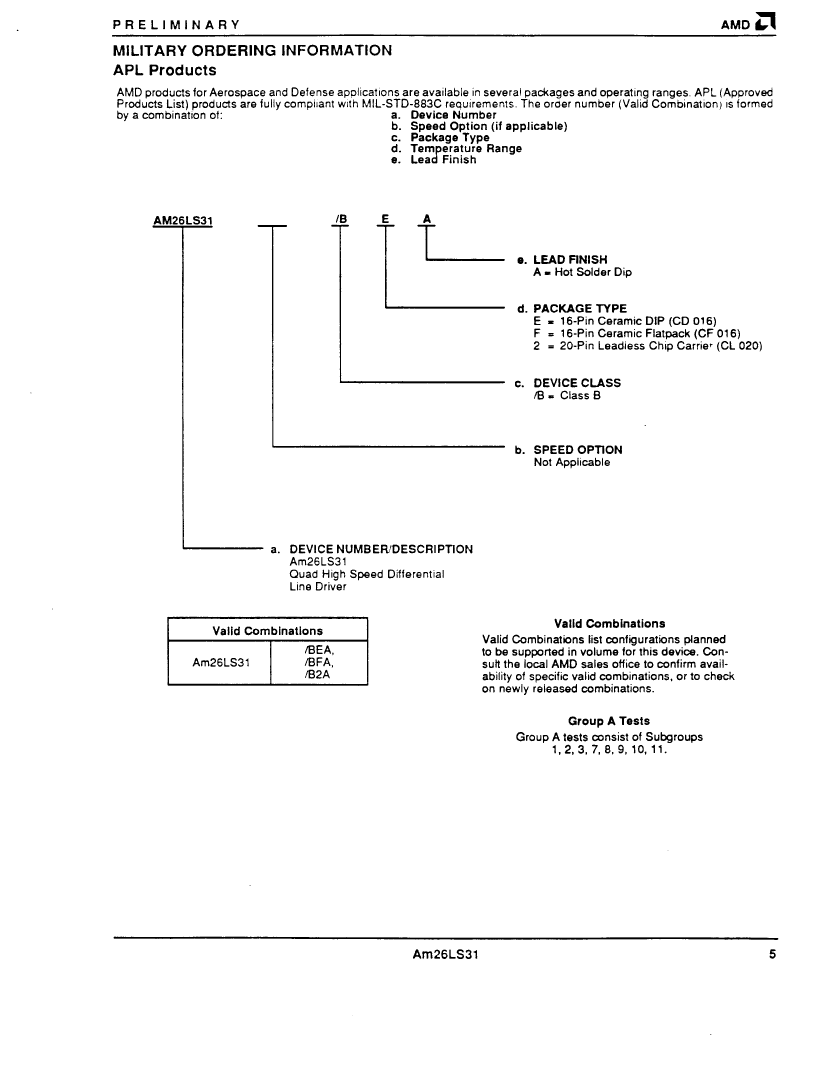

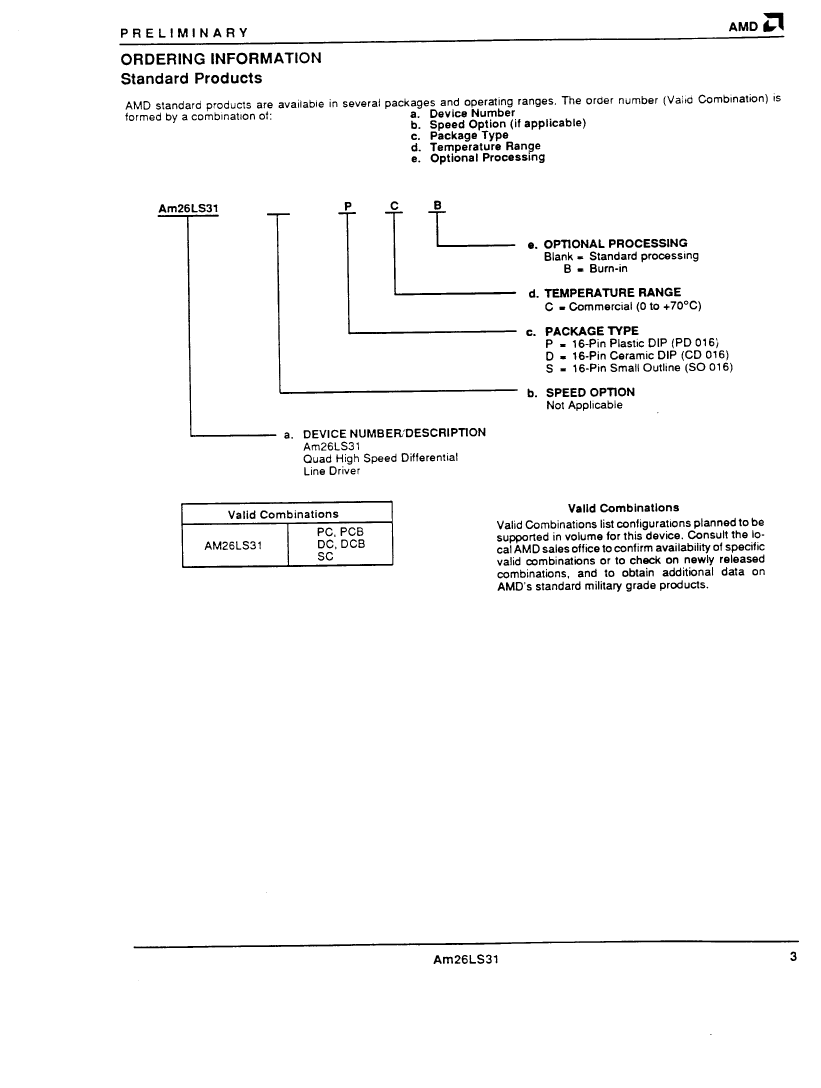

| AM26LS31DC | AM26LS31PCB | 7802301EX | 7802301FX | |
|---|---|---|---|---|
| Description | Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, CERAMIC, DIP-16 | Line Driver, 4 Func, 4 Driver, BIPolar, PDIP16, PLASTIC, DIP-16 | Line Driver, 1 Func, 4 Driver, CDIP16, | Line Driver, 1 Func, 4 Driver, CDFP16, |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, | DFP, |
| Reach Compliance Code | unknow | unknow | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Differential output | YES | YES | YES | YES |
| Number of drives | 4 | 4 | 4 | 4 |
| Input properties | STANDARD | STANDARD | STANDARD | STANDARD |
| Interface integrated circuit type | LINE DRIVER | LINE DRIVER | LINE DRIVER | LINE DRIVER |
| Interface standards | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 |
| JESD-30 code | R-GDIP-T16 | R-PDIP-T16 | R-GDIP-T16 | R-GDFP-F16 |
| length | 19.431 mm | 19.1135 mm | 19.43 mm | 9.6645 mm |
| Number of functions | 4 | 4 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 125 °C | 125 °C |
| Package body material | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP | DFP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | FLATPACK |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 5.08 mm | 5.08 mm | 2.032 mm |
| Maximum supply voltage | 5.25 V | 5.25 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.75 V | 4.75 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | YES |
| Temperature level | COMMERCIAL | COMMERCIAL | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | FLAT |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| maximum transmission delay | 30 ns | 30 ns | 15 ns | 15 ns |
| width | 7.62 mm | 7.62 mm | 7.62 mm | 6.604 mm |
| Base Number Matches | 1 | 1 | 1 | 1 |
| Part Number | Manufacturer | Description |
|---|---|---|
| DS26F31MJ | Rochester Electronics | LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| AM26LS31CN | Texas Instruments(德州仪器) | 四路差动线路驱动器 |
| AM26LS31MJB | Texas Instruments(德州仪器) | Quadruple Differential Line Driver 16-CDIP -55 to 125 |
| DS26LS31CN | National Semiconductor（TI ） | QUAD LINE DRIVER, PDIP16 |
| DS26LS31MJ-SMD | National Semiconductor（TI ） | IC QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16, Line Driver or Receiver |
| DS26F31MJ-QMLV | National Semiconductor（TI ） | QUAD LINE DRIVER, CDIP16 |
| AM26LS31PC | Texas Instruments(德州仪器) | RS-422 Interface IC Quad Hi Spd Diff |
| AM26LS31DC | Motorola ( NXP ) | QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| 5962F7802302VEA | Texas Instruments(德州仪器) | QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| 5962-F7802301VEA | National Semiconductor（TI ） | IC QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16, Line Driver or Receiver |
| AM26LS31/BEA | Rochester Electronics | Line Driver |
| AM26LS31CNE4 | Texas Instruments(德州仪器) | Quadruple Differential Line Driver 16-PDIP 0 to 70 |
| DS26F31CJ | Texas Instruments(德州仪器) | LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| AM26LS31IN | Philips Semiconductors (NXP Semiconductors N.V.) | Line Driver/Receiver, 4 Driver, BIPolar, PDIP16, |
| DS26F31MJFQMLV | Texas Instruments(德州仪器) | QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| DS26LS31CN/NOPB | Texas Instruments(德州仪器) | Quad High Speed Differential Line Drivers 16-PDIP 0 to 70 |
| 5962-7802301VEA | Texas Instruments(德州仪器) | RS-422 Interface IC Not available Through Mouser |
