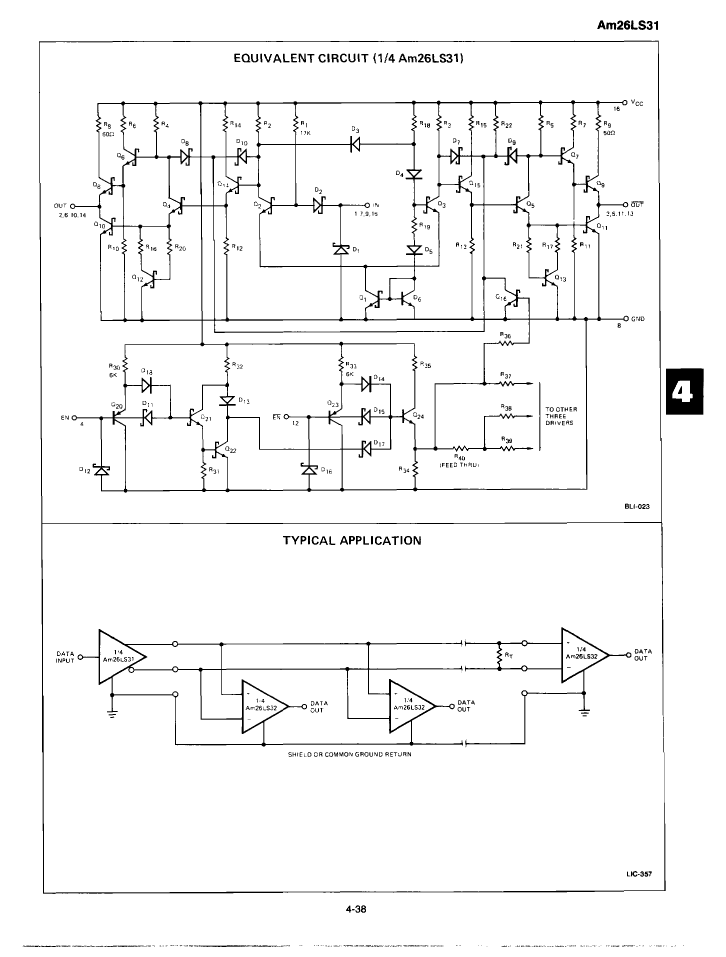

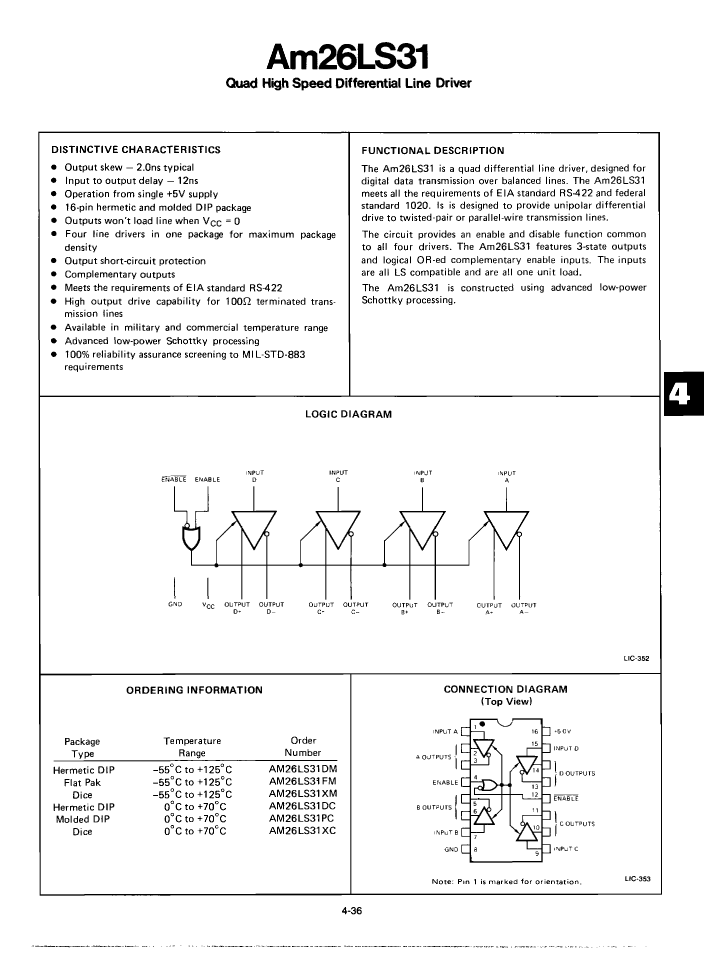

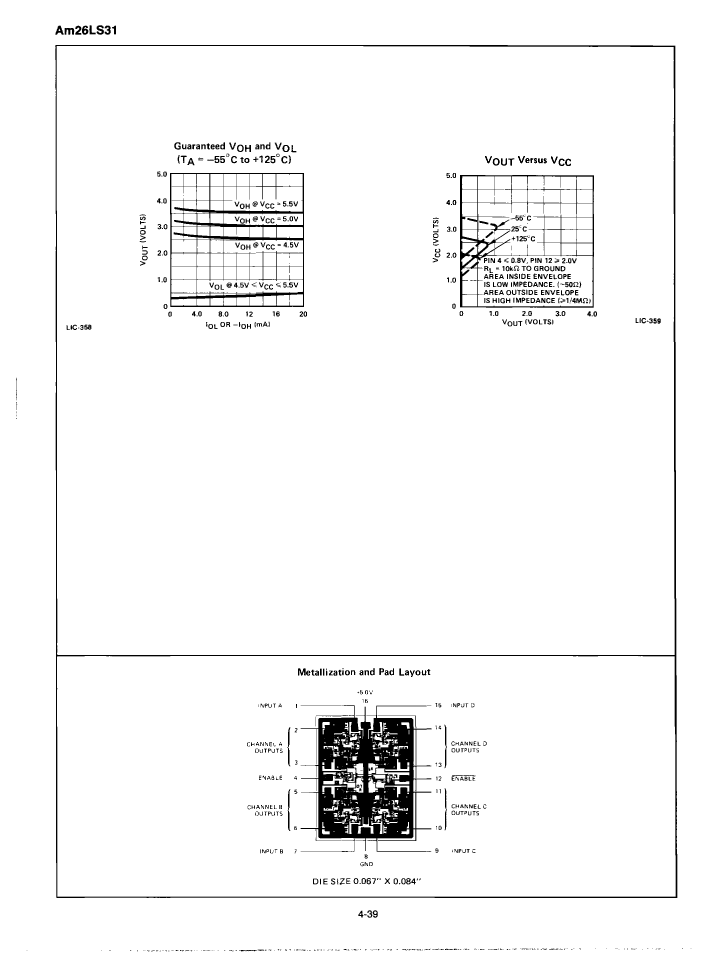

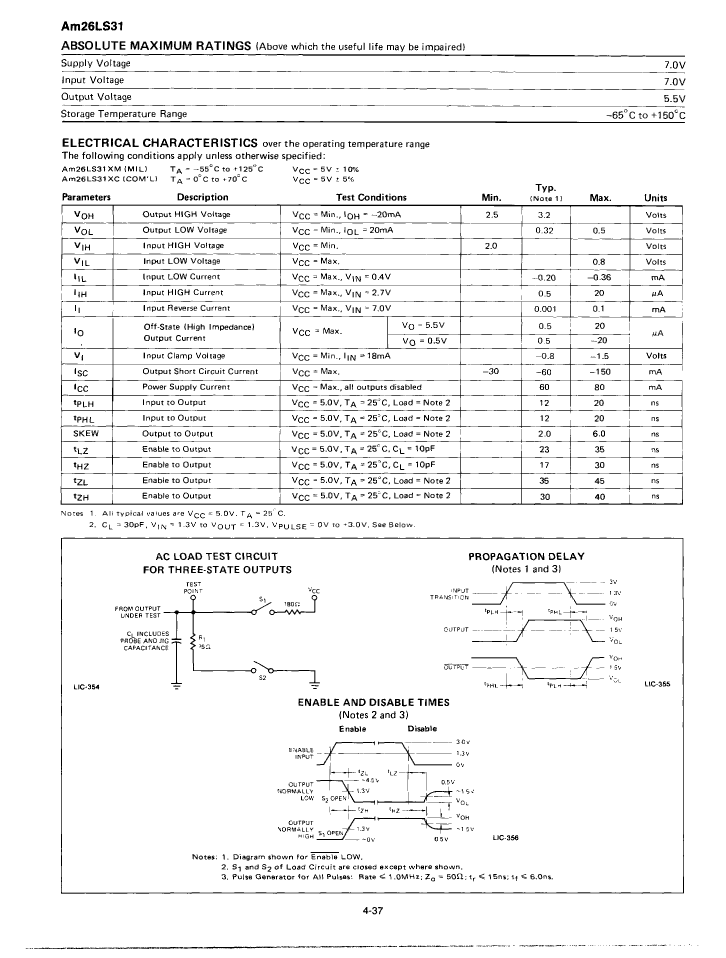

Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, HERMETIC SEALED, DIP-16
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| package instruction | DIP, DIP16,.3 |
| Contacts | 16 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Differential output | YES |
| Number of drives | 4 |
| High level input current maximum value | 0.00002 A |
| Input properties | STANDARD |
| Interface integrated circuit type | LINE DRIVER |
| Interface standards | EIA-422; FED STD 1020 |
| JESD-30 code | R-CDIP-T16 |
| JESD-609 code | e0 |
| length | 19.431 mm |
| Number of functions | 4 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Minimum output swing | 2 V |
| Output characteristics | 3-STATE |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum receive delay | |
| Filter level | MIL-STD-883 Class C |
| Maximum seat height | 5.08 mm |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| maximum transmission delay | 30 ns |
| width | 7.62 mm |
| Base Number Matches | 1 |
| AM26LS31DM | AM26LS31DM883B | AM26LS31FM | AM26LS31XC | AM26LS31XM | |
|---|---|---|---|---|---|
| Description | Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, HERMETIC SEALED, DIP-16 | Line Driver, 4 Func, 4 Driver, BIPolar, CDIP16, HERMETIC SEALED, DIP-16 | Line Driver, 4 Func, 4 Driver, BIPolar, CDFP16, CERPACK-16 | Line Driver, 4 Func, 4 Driver, BIPolar, 0.067 X 0.084 INCH, DIE-16 | Line Driver, 4 Func, 4 Driver, BIPolar, 0.067 X 0.084 INCH, DIE-16 |
| Parts packaging code | DIP | DIP | DFP | DIE | DIE |
| package instruction | DIP, DIP16,.3 | DIP, | DFP, FL16,.3 | DIE, | DIE, |
| Contacts | 16 | 16 | 16 | 16 | 16 |
| Reach Compliance Code | unknow | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Differential output | YES | YES | YES | YES | YES |
| Number of drives | 4 | 4 | 4 | 4 | 4 |
| Input properties | STANDARD | STANDARD | STANDARD | STANDARD | STANDARD |
| Interface integrated circuit type | LINE DRIVER | LINE DRIVER | LINE DRIVER | LINE DRIVER | LINE DRIVER |
| Interface standards | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 | EIA-422; FED STD 1020 |
| JESD-30 code | R-CDIP-T16 | R-CDIP-T16 | R-CDFP-F16 | R-XUUC-N16 | R-XUUC-N16 |
| Number of functions | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 70 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | - | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | UNSPECIFIED | UNSPECIFIED |
| encapsulated code | DIP | DIP | DFP | DIE | DIE |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | FLATPACK | UNCASED CHIP | UNCASED CHIP |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | YES | YES | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY | COMMERCIAL | MILITARY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | FLAT | NO LEAD | NO LEAD |
| Terminal location | DUAL | DUAL | DUAL | UPPER | UPPER |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| length | 19.431 mm | 19.431 mm | 10.0965 mm | - | - |
| Output characteristics | 3-STATE | - | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | COMPLEMENTARY | - | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Filter level | MIL-STD-883 Class C | MIL-STD-883 Class B | MIL-STD-883 Class C | - | - |
| Maximum seat height | 5.08 mm | 5.08 mm | 2.159 mm | - | - |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | - | - |
| maximum transmission delay | 30 ns | - | 30 ns | 20 ns | 20 ns |
| width | 7.62 mm | 7.62 mm | 6.731 mm | - | - |
| Part Number | Manufacturer | Description |
|---|---|---|
| DS26F31MJ | Rochester Electronics | LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| AM26LS31CN | Texas Instruments(德州仪器) | 四路差动线路驱动器 |
| AM26LS31MJB | Texas Instruments(德州仪器) | Quadruple Differential Line Driver 16-CDIP -55 to 125 |
| DS26LS31CN | National Semiconductor（TI ） | QUAD LINE DRIVER, PDIP16 |
| DS26LS31MJ-SMD | National Semiconductor（TI ） | IC QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16, Line Driver or Receiver |
| DS26F31MJ-QMLV | National Semiconductor（TI ） | QUAD LINE DRIVER, CDIP16 |
| AM26LS31PC | Texas Instruments(德州仪器) | RS-422 Interface IC Quad Hi Spd Diff |
| AM26LS31DC | Motorola ( NXP ) | QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| 5962F7802302VEA | Texas Instruments(德州仪器) | QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| 5962-F7802301VEA | National Semiconductor（TI ） | IC QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16, Line Driver or Receiver |
| AM26LS31/BEA | Rochester Electronics | Line Driver |
| AM26LS31CNE4 | Texas Instruments(德州仪器) | Quadruple Differential Line Driver 16-PDIP 0 to 70 |
| DS26F31CJ | Texas Instruments(德州仪器) | LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| AM26LS31IN | Philips Semiconductors (NXP Semiconductors N.V.) | Line Driver/Receiver, 4 Driver, BIPolar, PDIP16, |
| DS26F31MJFQMLV | Texas Instruments(德州仪器) | QUAD LINE DRIVER, CDIP16, CERAMIC, DIP-16 |
| DS26LS31CN/NOPB | Texas Instruments(德州仪器) | Quad High Speed Differential Line Drivers 16-PDIP 0 to 70 |
| 5962-7802301VEA | Texas Instruments(德州仪器) | RS-422 Interface IC Not available Through Mouser |
