BAV199DW
QUAD SURFACE MOUNT LOW LEAKAGE DIODE

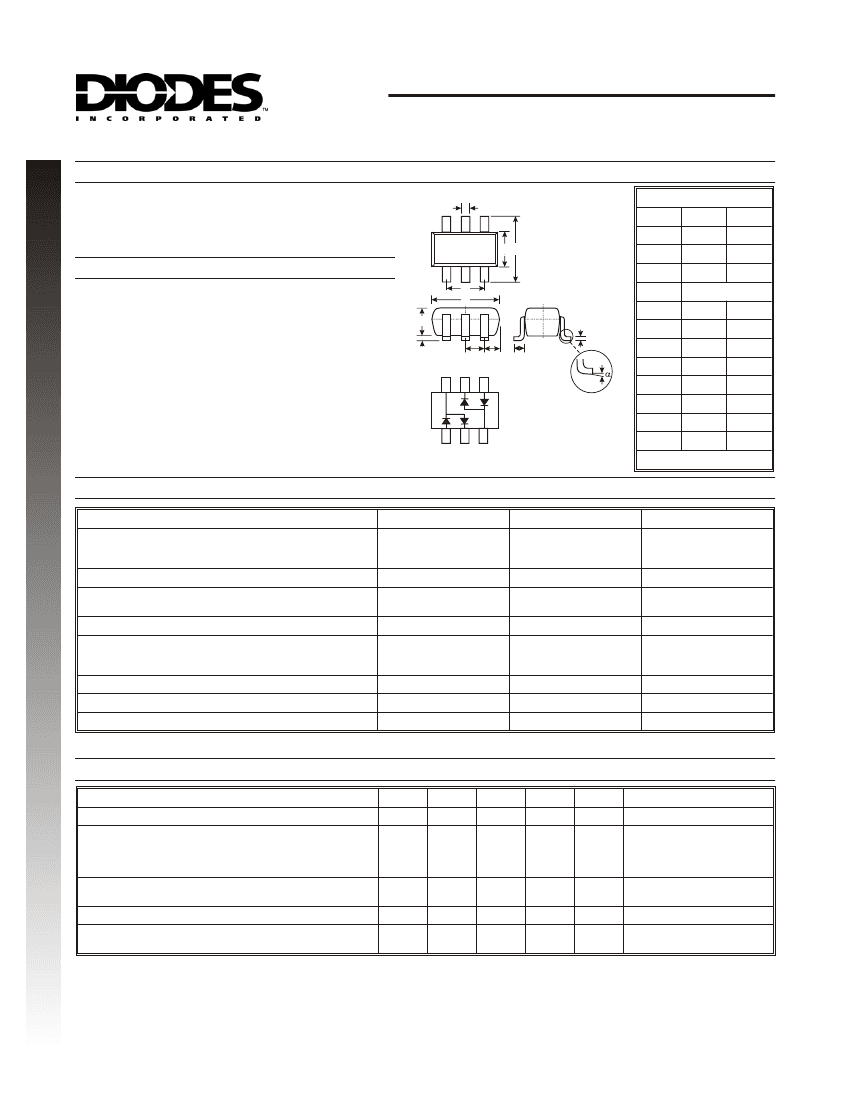

Features
NEW PRODUCT
·
·
·
·
·
·
·
·
·
·
·
Surface Mount Package Ideally Suited for Automatic
Insertion
Very Low Leakage Current
Available in Lead Free/RoHS Compliant Version (Note 3)
SOT-363
A
Dim
A
B C
Min
0.10
1.15
2.00
0.30
1.80
1.80
¾
0.90
0.25
0.10
0°
Max
0.30
1.35
2.20
0.40
2.20
2.20
0.10
1.00
0.40
0.25
8°
B
C
D
F
M
Mechanical Data
Case: SOT-363
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish - Matte Tin Solderable per MIL-STD-202,
Method 208
Also available in Lead Free Plating (Matte Tin Finish
annealed over Alloy 42 leadframe). Please see Ordering
Information, Note 5, Page 2
Polarity: See Diagram
Marking: K52 & Date Code (See Page 2)
Weight: 0.008 grams (approx.)
J
D
F
L
K
G
H
0.65 Nominal
G
H
J
K
L
M
AC
1
C
2
A
2
A
1
C
1
AC
2
a
TOP VIEW
All Dimensions in mm
Maximum Ratings
@ T
A
= 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 2)
Repetitive Peak Forward Current (Note 2)
Non-Repetitive Peak Forward Surge Current @ t = 1.0ms
@ t = 1.0ms
@ t = 1.0s
Power Dissipation (Note 2)
Thermal Resistance Junction to Ambient Air (Note 2)
Operating and Storage Temperature Range
Single diode
Double diode
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FRM
I
FSM
P
d
R
qJA
T
j
, T
STG
BAV199DW
85
60
160
140
500
4.0
1.0
0.5
200
625
-65 to +150
Unit
V
V
mA
mA
A
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 1)
Forward Voltage (Note 1)
@ T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
Min
85
¾
¾
¾
¾
Typ
¾
¾
¾
2
¾
Max
¾
0.90
1.0
1.1
1.25
5.0
80
¾
3.0
Unit
V
V
nA
nA
pF
ms
Test Condition
I
R
= 100mA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
j
= 150°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100W
Leakage Current (Note 1)
Total Capacitance
Reverse Recovery Time
Notes:
I
R
C
T
t
rr
1. Short duration test pulse to minimize self-heating effect.
2. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website
at http://www.diodes.com/datasheets/ap02001.pdf.
3. No purposefully added lead.
DS30417 Rev. 2 - 2
1 of 2
www.diodes.com
BAV199DW
ã
Diodes Incorporated

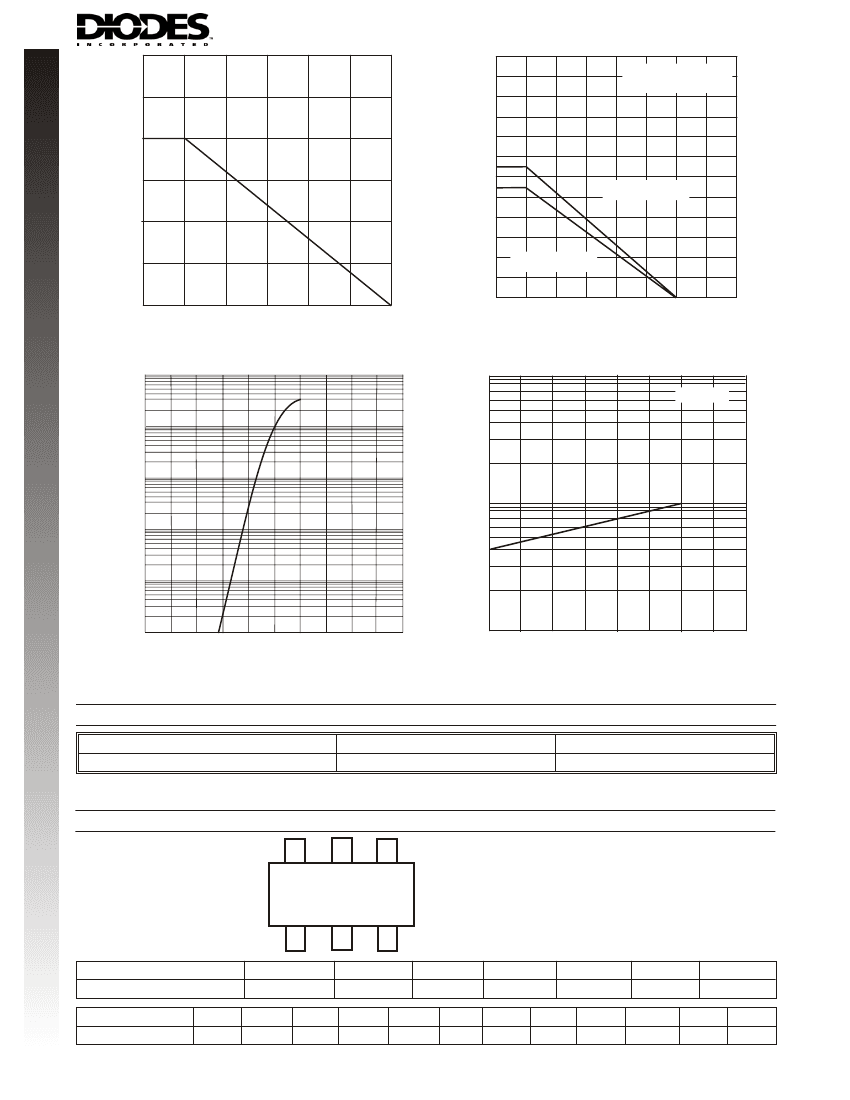

300
300
Device mounted on an
FR4 printed-circuit board
NEW PRODUCT
P
D
, POWER DISSIPATION (mW)
I
F
, FORWARD CURRENT (mA)
250
250
200
200
150
150
Single diode loaded
100
100
50
50
0
Double diode loaded
0
0
25
50
75
100
125
150
0
50
100
150
200
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Power Derating Curve
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 2 Current Derating Curve
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
1000
10
V
R
= 75V
100
10
I
R
, REVERSE CURRENT (nA)
1
1.0
0.1
0.01
0
1
2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 3 Typical Forward Characteristics
0.1
0
50
100
150
200
T
A
, AMBIENT TEMPERATURE (
°C
)
Fig. 4 Typical Reverse Characteristics
Ordering Information
(Note 4)
Device
BAV199DW-7
Notes:
Packaging
SOT-363
Shipping
3000/Tape & Reel
4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
5. For Lead Free/RoHS Compliant version part number, please add "-F" suffix to the part number above. Example: BAV199DW-7-F.
Marking Information
K52 = Product Type Marking Code
YM = Date Code Marking
Y = Year ex: P = 2003
M = Month ex: 9 = September
K52
YM
Date Code Key
Year
Code
Month
Code
Jan
1
Feb
2
2003
P
March
3
YM
K52
2004
R
Apr
4
5
2005
S
May
Jun
6
2006
T
Jul
7
Aug
8
2007
U
Sep
9
2008
V
Oct
O
Nov
N
2009
W
Dec
D
DS30417 Rev. 2 - 2
2 of 2
www.diodes.com
BAV199DW
