THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
D
LENGTH
2X, MOLDED BOOT
STRAIN RELIEF, PVC,
BLACK
C
SMA REVERSED
POLARIZED PLUG
RG174/U, 50 OHM COAXIAL CABLE
JACKET: PVC, BLACK
SMA REVERSED
POLARIZED JACK
(BULKHEAD)
C
B
B
RoHS Compliant
UNLESS OTHERWISE SPECIFIED,
APPROVALS
DRAWN BY
DATE
01/08/2004
01/08/2004
01/08/2004
PRODUCT DESCRIPTION
CATEGORY
A
NOTES:
CABLE ASSEMBLY SHALL BE TESTED FOR CONTINUITY.
CABLE ASSEMBLY SHALL BE INDIVIDUALLY PACKAGED IN A POLY BAG.
DIMENSIONS ARE IN INCHES [mm]
OVERALL CABLE LENGTH TOLERANCE:
≤12 [305] = +1 [25] / -0
>12 [305] ≤60 [1524] = +2 [51] / -0
>60 [1524] ≤120 [3048] = +4 [102] / -0
>120 [3048] ≤300 [7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = .3
.XX = .15
PROJECTION
C.MCCORMICK
CHECKED BY
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
D.PARHAM
APPROVED BY
R.CARRICK
COAXIAL

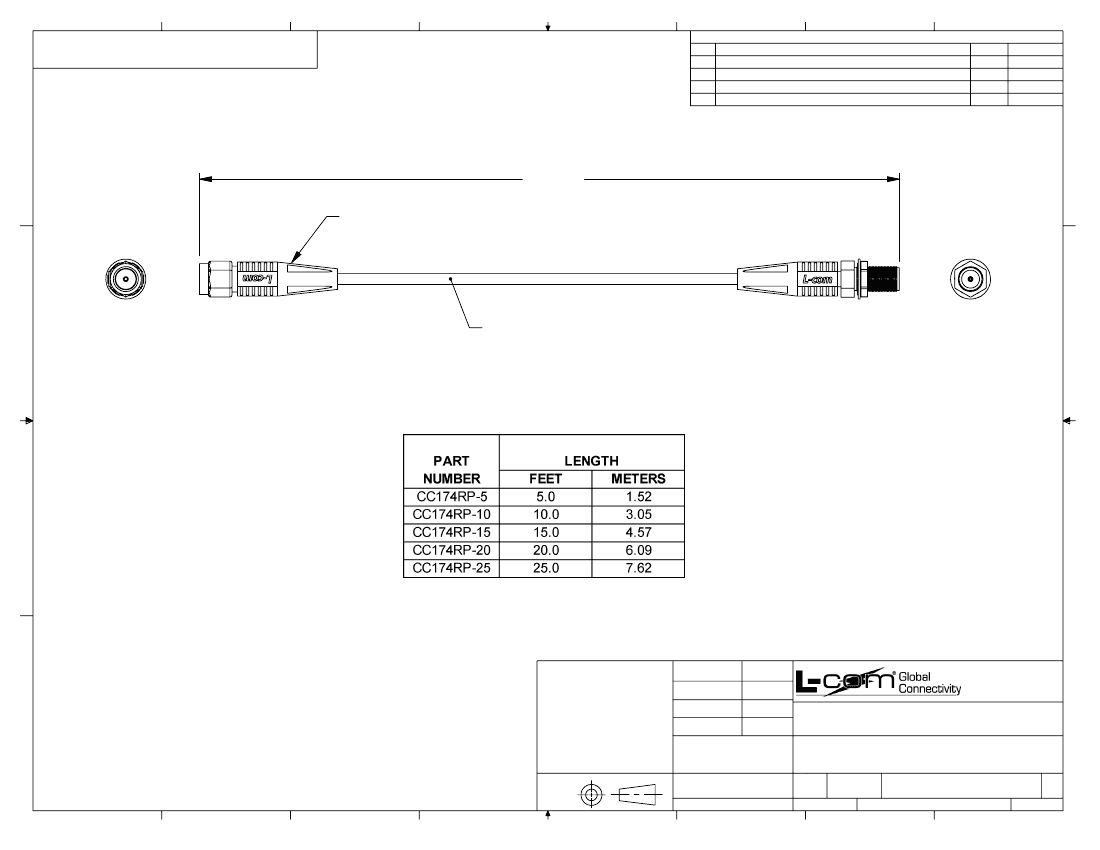

RG174 SMA REV POL CABLE ASSEMBLY
SIZE
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
A
43321
2
FSCM NO.
DWG. NO.
CC174RP
1
SCALE: NONE
CAD FILE:
CC174RP.SLDDRW
SHEET 1 OF 1
