F6803P datasheet, PDF - EEWORLD Datasheet

F6803P: DescriptionMicrocontroller, 8-Bit, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size117KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

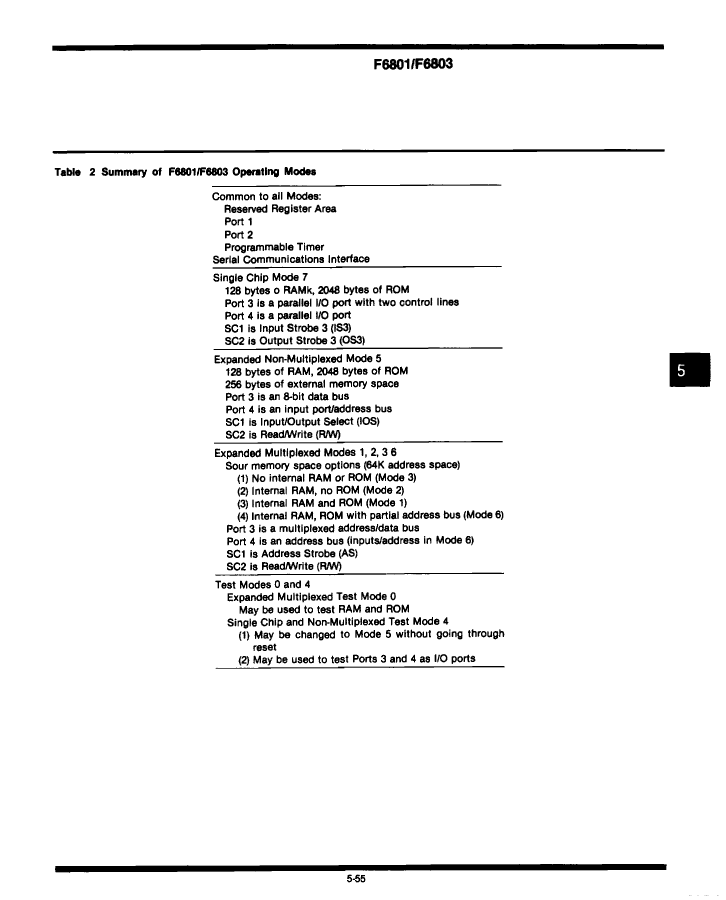

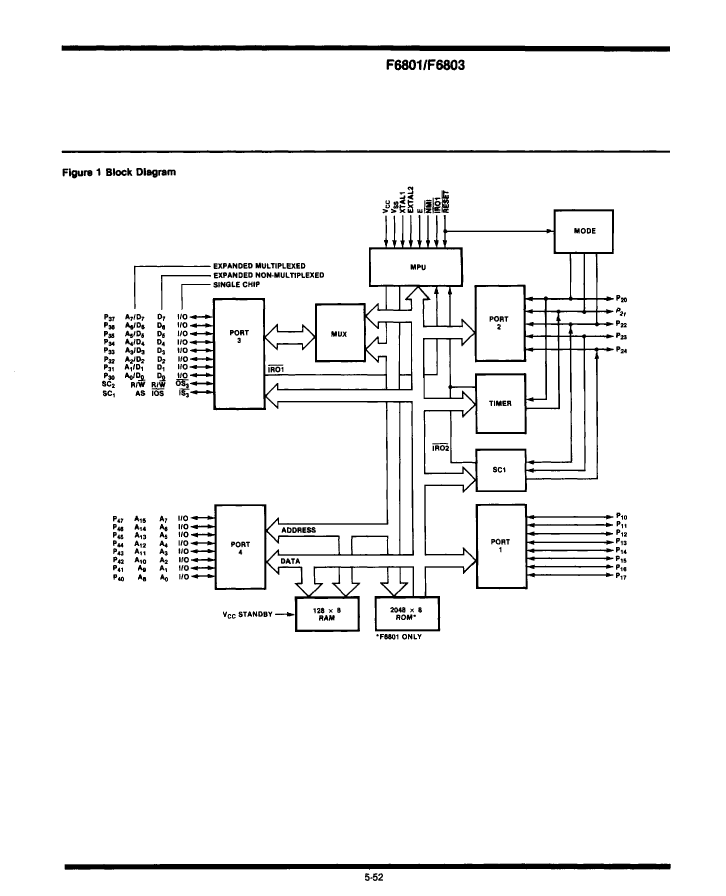

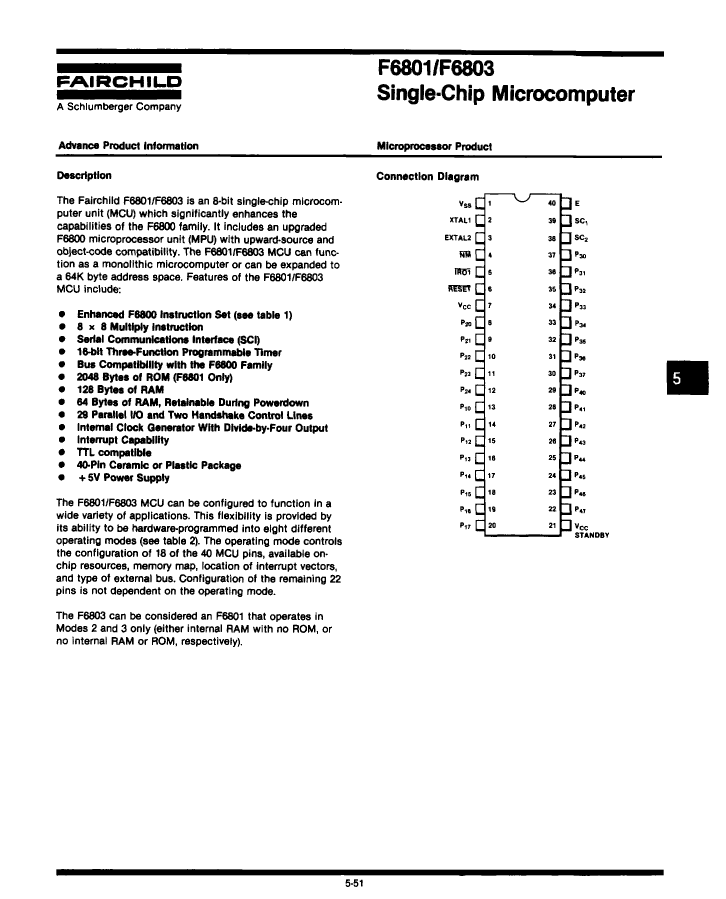

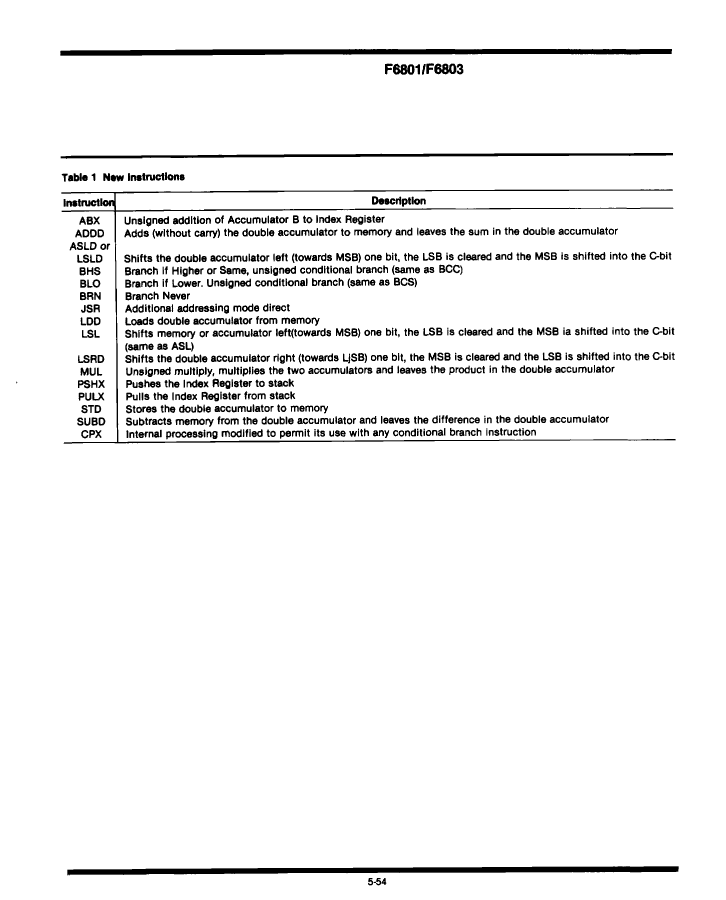

F6803P Overview

Microcontroller, 8-Bit, CMOS, PDIP40, PLASTIC, DIP-40

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP,
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T40
length	52.07 mm
Number of I/O lines	29
Number of terminals	40
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply voltage	5 V
Minimum supply voltage	5 V
surface mount	NO
technology	CMOS
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	F6803P	F6801-2P	F6803D
Description	Microcontroller, 8-Bit, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, CMOS, CDIP40, CERAMIC, DIP-40
Parts packaging code	DIP	DIP	DIP
package instruction	DIP,	DIP,	DIP,
Contacts	40	40	40
Reach Compliance Code	unknown	unknown	unknown
Has ADC	NO	NO	NO
Address bus width	16	16	16
bit size	8	8	8
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
External data bus width	8	8	8
JESD-30 code	R-PDIP-T40	R-PDIP-T40	R-GDIP-T40
length	52.07 mm	52.07 mm	52.1335 mm
Number of I/O lines	29	29	29
Number of terminals	40	40	40
PWM channel	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5 V	5 V	5 V
Minimum supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Fairchild	Fairchild	-
Base Number Matches	-	1	1
