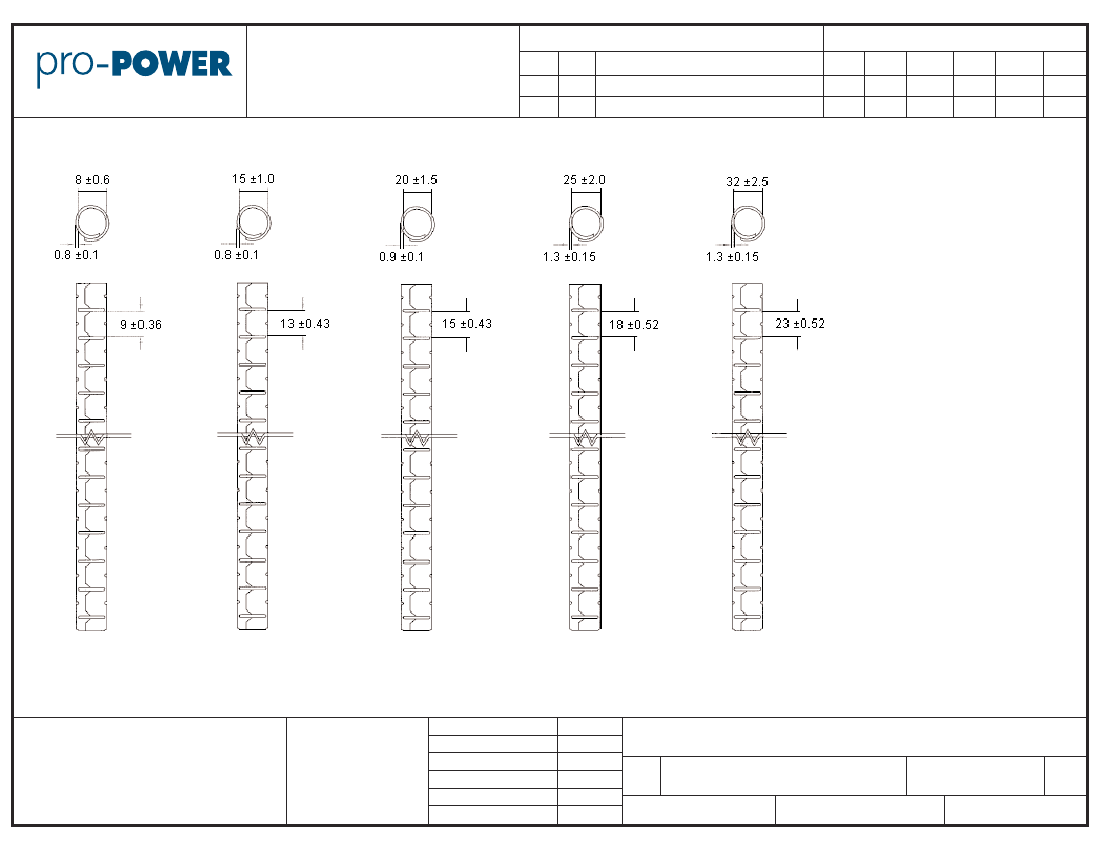

KL and KT Series
-
KL - 8
KL - 15
KL - 20
KL - 25
KL - 32
Dimensions : Millimetres
Important Notice :
This data sheet and its contents (the "Information") belong to the mem-
bers of the Premier Farnell group of companies (the "Group") or are licensed to it. No licence
is granted for the use of it other than for information purposes in connection with the prod-
ucts to which it relates. No licence of any intellectual property rights is granted. The
Information is subject to change without notice and replaces all data sheets previously sup-
plied. The Information supplied is believed to be accurate but the Group assumes no respon-
sibility for its accuracy or completeness, any error in or omission from it or for any use made
of it. Users of this data sheet should check for themselves the Information and the suitability
of the products for their purpose and not make any assumptions based on information
included or omitted. Liability for loss or damage resulting from any reliance on the
Information or use of it (including liability resulting from negligence or where the Group was
aware of the possibility of such loss or damage arising) is excluded. This will not operate to
limit or restrict the Group's liability for death or personal injury resulting from its negligence.
Pro-POWER is the registered trademark of the Group. © Premier Farnell plc 2011.
TOLERANCES:
UNLESS OTHERWISE
SPECIFIED,
DIMENSIONS ARE
FOR REFERENCE
PURPOSES ONLY.
DRAWN BY:
AMU
CHECKED BY:
VEE
APPROVED BY:
DATE:
03/06/11
DATE:
03/06/11
DATE:
17/06/11
DRAWING TITLE:
Cable Wrap
SIZE
A
DWG NO.
P10002672
U.O.M.: mm
ELECTRONIC FILE
REV
4-9
SHEET:
1
OF
A
SCALE: NTS
2
PART NO.
ECN #
REV
A
REVISIONS
DESCRIPTION
RELEASED
DRAWN
AMU
DATE
03/6/11
CHECKD
VEE
DATE
03/6/11
APPRVD
DATE
17/6/11
KL and KT Series
-
KT Type
W
92.3 ±1
125 ±2.5
172 ±2.5
179 ±2.5
197 ±2.5
H
43 ±0.6
59 ±0.6
72 ±1
80 ±1
83.5 ±1
H1
40.4 ±0.6
56 ±0.6
68 ±1
75.7 ±1
81 ±1
D
8.5 ±0.25
15 ±0.35
22.5 ±0.45
26 ±0.45
27 ±0.45
Part Number
KT8BK
KT15BK
KT20BK
KT25BK
KT32BK
Dimensions : Millimetres
Part Number Table
Description
Cable Wrap, 10mm, 5m
Cable Wrap, 16mm, 5m
Cable Wrap, 22mm, 5 m
Cable Wrap, 27mm, 5m
Cable Wrap, 35mm, 5m
Tool, Cable Wrap, 10mm
Tool, Cable Wrap, 16mm
Tool, Cable Wrap, 22mm
Tool, Cable Wrap, 27mm
Tool, Cable Wrap, 35mm
Part Number
KL8BK
KL15BK
KL20BK
KL25BK
KL32BK
KT8BK
KT15BK
KT20BK
KT25BK
KT32BK
TOLERANCES:
UNLESS OTHERWISE
SPECIFIED,
DIMENSIONS ARE
FOR REFERENCE
PURPOSES ONLY.
DRAWN BY:
AMU
CHECKED BY:
VEE
APPROVED BY:
DATE:
03/06/11
DATE:
03/06/11
DATE:
17/06/11
DRAWING TITLE:
