2SC3547BTE85L datasheet, PDF - EEWORLD Datasheet

2SC3547BTE85L: DescriptionTRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-236, BIP RF Small Signal; CategoryDiscrete semiconductor The transistor; File Size84KB，3 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

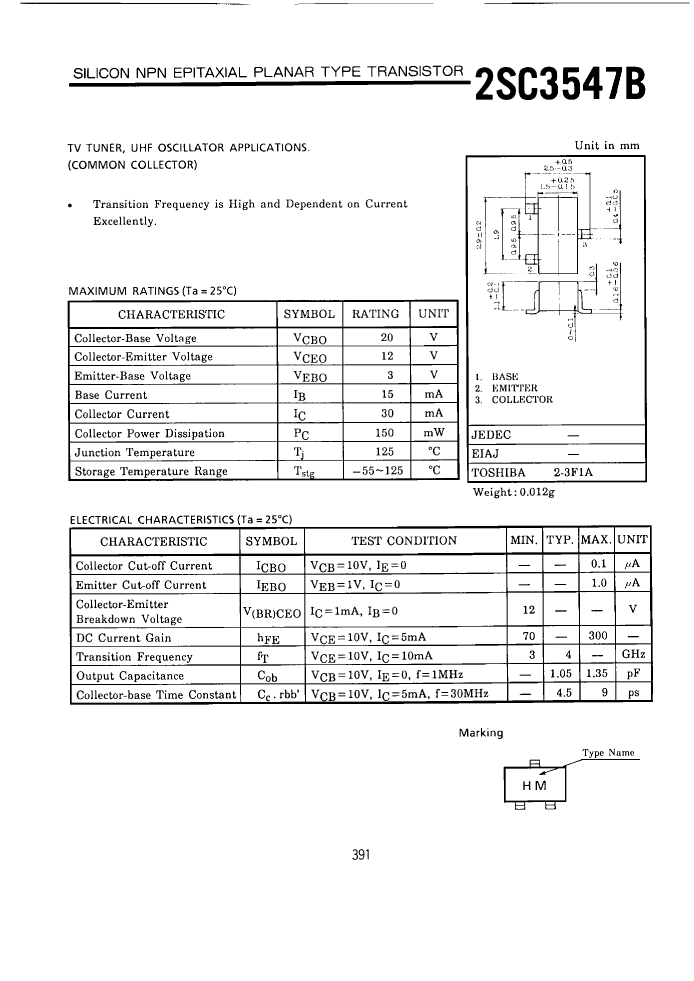

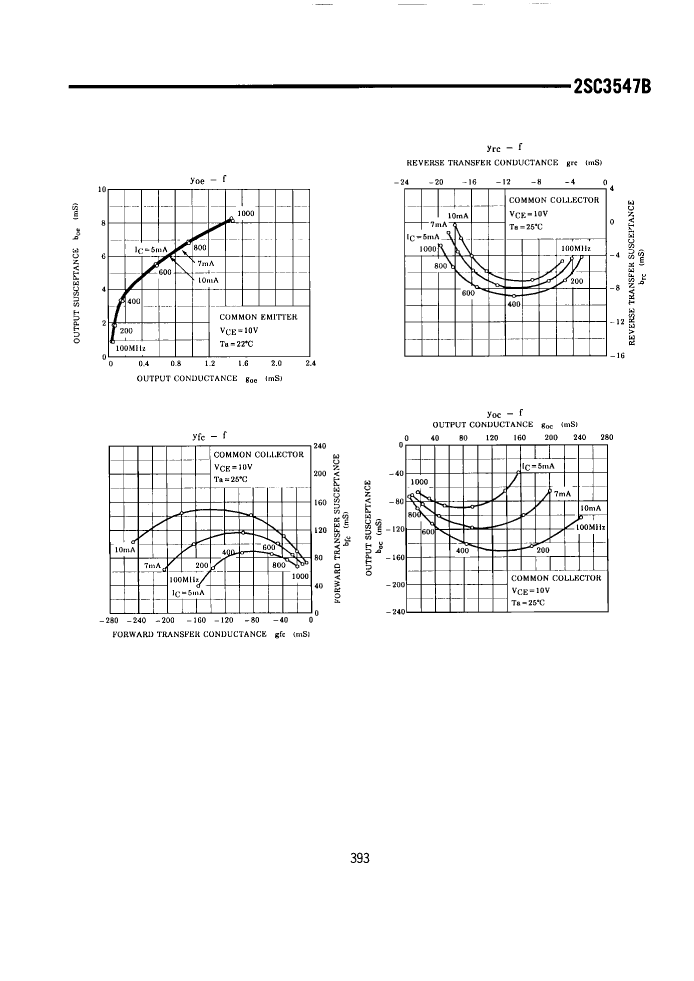

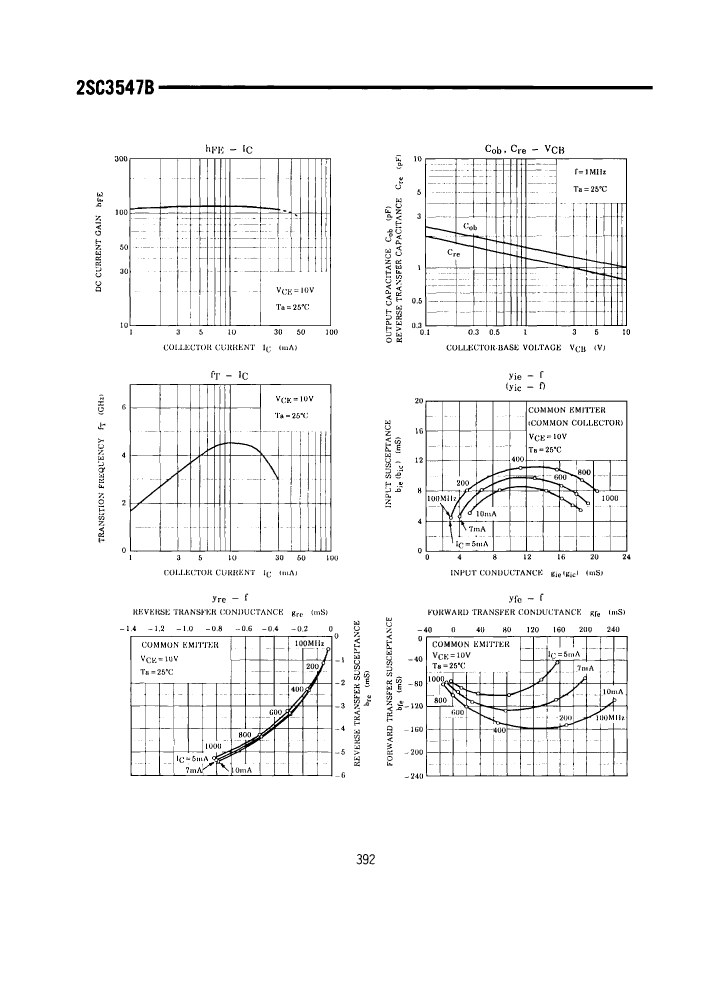

2SC3547BTE85L Overview

TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-236, BIP RF Small Signal

Parameter Name	Attribute value
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.03 A
Collector-based maximum capacity	1.35 pF
Collector-emitter maximum voltage	12 V
Configuration	SINGLE
Minimum DC current gain (hFE)	70
highest frequency band	ULTRA HIGH FREQUENCY BAND
JEDEC-95 code	TO-236
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	4000 MHz
Base Number Matches	1

	2SC3547BTE85L	2SC3547BTE85R
Description	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-236, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-236, BIP RF Small Signal
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Maximum collector current (IC)	0.03 A	0.03 A
Collector-based maximum capacity	1.35 pF	1.35 pF
Collector-emitter maximum voltage	12 V	12 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	70	70
highest frequency band	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JEDEC-95 code	TO-236	TO-236
JESD-30 code	R-PDSO-G3	R-PDSO-G3
Number of components	1	1
Number of terminals	3	3
Maximum operating temperature	125 °C	125 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	4000 MHz	4000 MHz
Base Number Matches	1	1
