BYV29-xxx, BYV29F-xxx, BYV29B-xxx, UG8xT, UGF8xT, UGB8xT
www.vishay.com
Vishay General Semiconductor
Ultrafast Rectifier

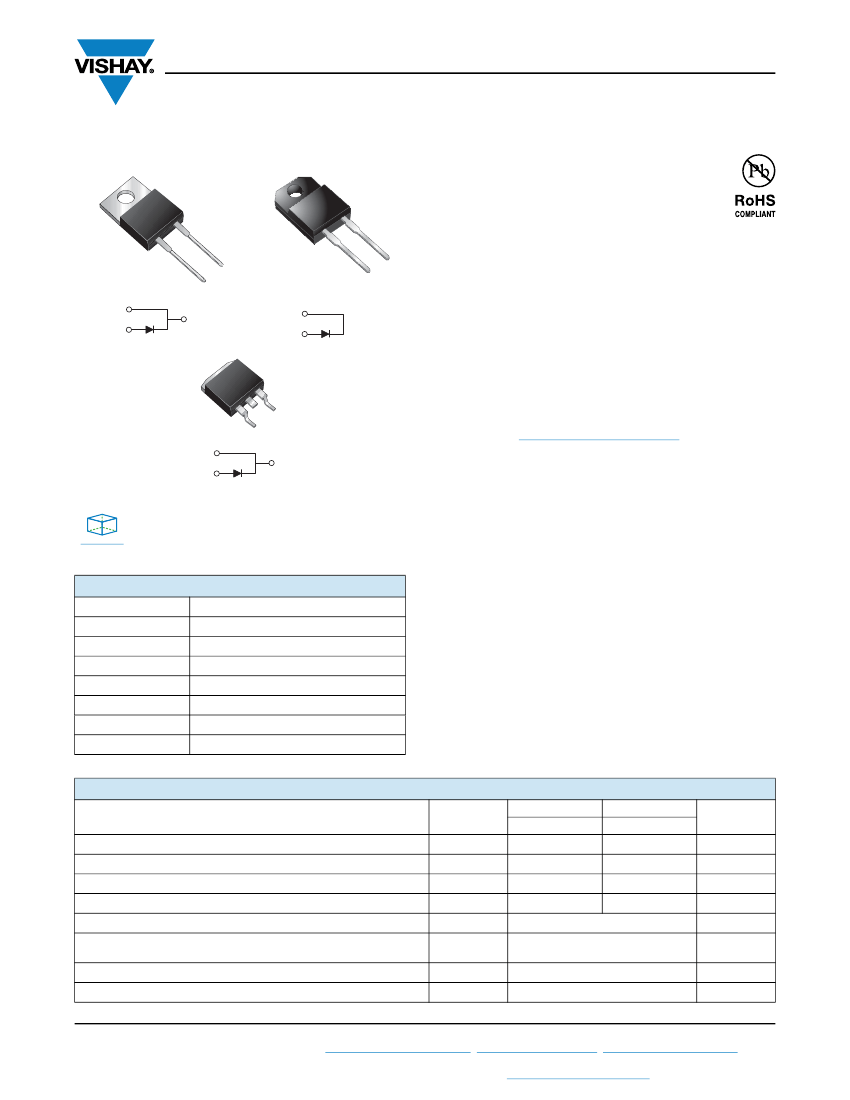

TO-220AC
ITO-220AC
FEATURES
• Power pack
• Glass passivated pellet chip junction
• Ultrafast recovery time
• Low switching losses, high efficiency
• Low forward voltage drop
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 245 °C (D
2
PAK (TO-263AB package))
• Solder dip 275 °C max. 10 s, per JESD 22-B106
(for TO-220AC and ITO-220AC package)
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3
(for ITO-220AC and D
2
PAK (TO-263AB package))
2
BYV29, UG8 Series
PIN 1
PIN 2
2
1
BYV29F, UGF8 Series
PIN 1
1
CASE
PIN 2
D
2
PAK (TO-263AB)
K
2
1
BYV29B, UGB8 Series
PIN 1
PIN 2
K
HEATSINK
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
TYPICAL APPLICATIONS
For use in high frequency rectifier of switching mode
power supplies, inverters, freewheeling diodes, DC/DC
converters, and other power switching application.
DESIGN SUPPORT TOOLS AVAILABLE
3D Models
D
D
3
3
MECHANICAL DATA
Case:
TO-220AC, ITO-220AC, D
2
PAK (TO-263AB)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commerical grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B,....)
Terminals:
matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix
meets JESD 201 class 2 whisker test
Polarity:
as marked
Mounting Torque:
10 in-lbs max.
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
t
rr
V
F
T
J
max.
Package
Circuit configurations
8.0 A
300 V to 400 V
110 A
35 ns
1.03 V
150 °C
TO-220AC, ITO-220AC, D
2
PAK (TO-263AB)
Single
MAXIMUM RATINGS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum working reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at T
C
= 100 °C
Peak forward surge current 8.3 ms single half sine-wave
superimposed on rated load
Operating junction and storage temperature range
Isolation voltage (ITO-220AC only) from terminal to heatsink t = 1 min
SYMBOL
V
RRM
V
RWM
V
RMS
V
DC
I
F(AV)
I
FSM
T
J
, T
STG
V
AC
BYV29-300
UG8FT
300
300
210
300
8.0
110
-40 to +150
1500
BYV29-400
UG8GT
400
400
280
400
UNIT
V
V
V
V
A
A
°C
V
Revision: 12-Jun-2019
Document Number: 88557
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYV29-xxx, BYV29F-xxx, BYV29B-xxx, UG8xT, UGF8xT, UGB8xT
www.vishay.com
Vishay General Semiconductor
BYV29-300,
UG8FT
1.25
V
F
(1)
ELECTRICAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
TEST CONDITIONS
I
F
= 8 A
I
F
= 20 A
Maximum DC reverse current at V
RRM
Maximum reverse recovery time
Maximum reverse recovery time
Maximum reverse recovery current
Maximum recovered stored charged
T
J
= 25 °C
T
J
= 150 °C
T
J
= 25 °C
T
C
= 25 °C
T
C
= 100 °C
I
F
= 0.5 A, I
R
= 1.0 A, I
rr
= 0.25 A
I
F
= 1.0 A, dI/dt = 100 A/μs,
V
R
= 30 V, I
rr
= 0.1 I
RM
I
F
= 10 A, dI/dt = 50 A/μs,
V
R
= 30 V, T
C
= 100 °C
I
F
= 2 A, dI/dt = 20 A/μs,
V
R
= 30 V, I
rr
= 0.1 I
RM
I
R
t
rr
t
rr
I
RM
Q
rr
SYMBOL
BYV29-400,
UG8GT
1.03
1.40
10
350
35
50
5.5
55
μA
ns
ns
A
nC
UNIT
Maximum instantaneous forward voltage
V
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
THERMAL CHARACTERISTICS
(T
C
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance from junction to case
SYMBOL
R
JC
BYV29
UG8
2.5
BYV29F
UGF8
5.5
BYV29B
UGB8
2.5
UNIT
°C/W
ORDERING INFORMATION
(Example)
PACKAGE
TO-220AC
ITO-220AC
D
2
PAK (TO-263AB)
D
2
PAK (TO-263AB)
ITO-220AC
D
2
PAK (TO-263AB)
D
2
PAK (TO-263AB)
PREFERRED P/N
BYV29-400-E3/45
BYV29F-400-E3/45
BYV29B-400-E3/45
BYV29B-400-E3/81
BYV29F-400HE3_A/P
(1)
BYV29B-400HE3_A/P
(1)
BYV29B-400HE3_A/I
(1)
UNIT WEIGHT (g)
1.80
1.95
1.77
1.77
1.95
1.77
1.77
PACKAGE CODE
45
45
45
81
P
P
I
BASE QUANTITY
50/tube
50/tube
50/tube
800/reel
50/tube
50/tube
800/reel
DELIVERY MODE
Tube
Tube
Tube
Tape and reel
Tube
Tube
Tape and reel
Note
(1)
AEC-Q101 qualified, available in ITO-220AC and TO-263AB package
Revision: 12-Jun-2019
Document Number: 88557
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYV29-xxx, BYV29F-xxx, BYV29B-xxx, UG8xT, UGF8xT, UGB8xT
www.vishay.com
Vishay General Semiconductor

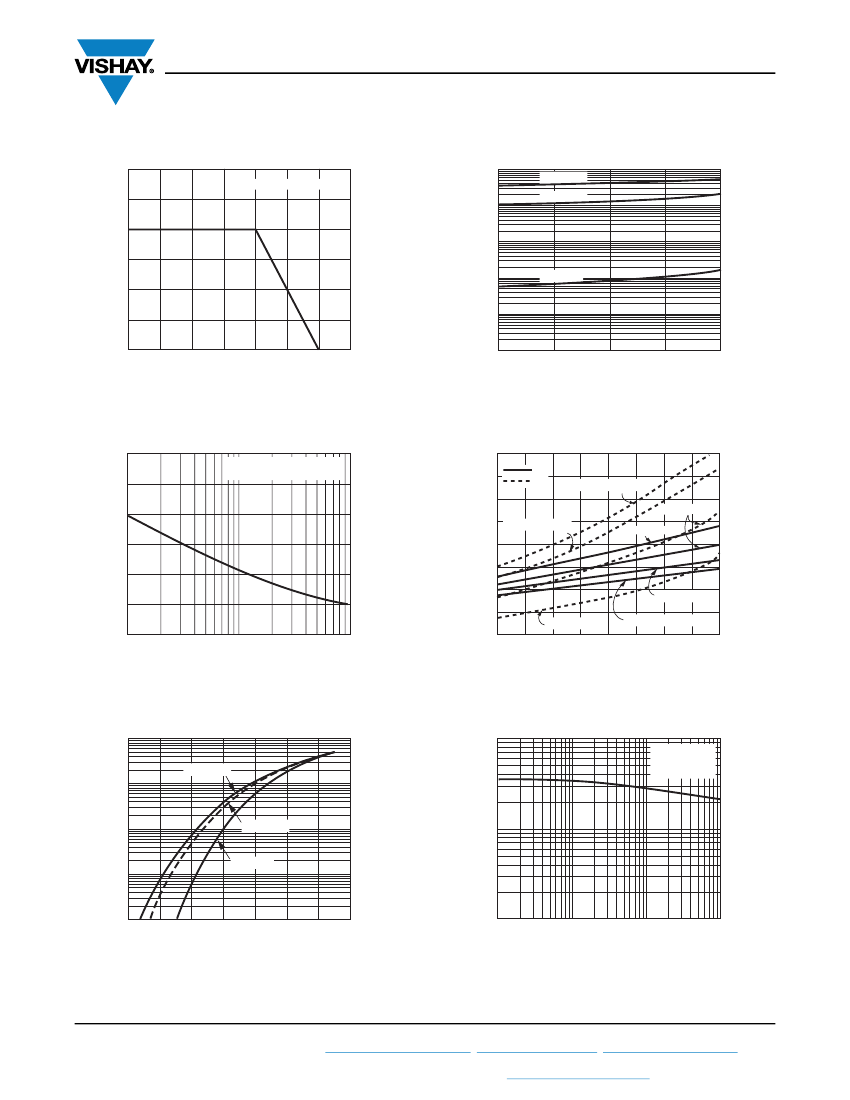

RATINGS AND CHARACTERISTICS CURVES
(T
C
= 25 °C unless otherwise noted)
12
1000
Average Forward Rectified Current (A)
Instantaneous Reverse Leakage
Current (μA)
Resistive or Inductive Load
10
T
J
= 125 °C
T
J
= 100 °C
100
8
10
6
1
T
J
= 25 °C
4
2
0.1
0
0
25
50
75
100
125
150
175
0.01
20
40
60
80
100
Case Temperature (°C)
Percent of Rated Peak Reverse Voltage (%)
Fig. 1 - Maximum Forward Current Derating Curve
Fig. 4 - Typical Reverse Leakage Charateristics
Peak Forward
Surge
Current (A)
T
C
= 100 °C
8.3 ms
Single
Half
Sine-Wave
125
Stored
Charge/Reverse Recovery Time
(nC/ns)
150
160
140
120
dI/dt = 50 A/μs
100
80
60
40
20
dI/dt = 20 A/μs
0
25
50
75
dI/dt = 150 A/μs
100
125
dI/dt = 100 A/μs
dI/dt = 100 A/μs
dI/dt = 20 A/μs
t
rr
Q
rr
dI/dt = 150 A/μs
100
75
50
25
0
1
10
100
Number of Cycles at 60 Hz
Junction Temperature (°C)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Fig. 5 - Reverse Switching Characteristics Per Leg
100
100
T
J
= 125 °C
T
J
= 25 °C
f = 1.0 MHz
V
sig
= 50 mV
p-p
Instantaneous Forward Current (A)
10
1
T
J
= 100 °C
Junction Capacitance (pF)
1.4
1.6
10
T
J
= 25 °C
0.1
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1
0.1
1
10
100
Instantaneous Forward Voltage (V)
Reverse Voltage (V)
Fig. 3 - Typical Instantaneous Forward Characteristics
Fig. 6 - Typical Junction Capacitance
Revision: 12-Jun-2019
Document Number: 88557
3
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
BYV29-xxx, BYV29F-xxx, BYV29B-xxx, UG8xT, UGF8xT, UGB8xT
www.vishay.com
PACKAGE OUTLINE DIMENSIONS
in inches (millimeters)
0.415 (10.54) MAX.
0.370 (9.40)
0.360 (9.14)
Vishay General Semiconductor
TO-220AC
0.154 (3.91) DIA.
0.148 (3.74) DIA.
0.113 (2.87)
0.103 (2.62)
0.145 (3.68)
0.135 (3.43)
0.635 (16.13)
0.625 (15.87)
0.603 (15.32)
0.573 (14.55)
0.185 (4.70)
0.175 (4.44)
0.055 (1.39)
0.045 (1.14)
45° REF.
0.600 (15.24)
0.580 (14.73)
1
0.404 (10.26)
0.384 (9.75)
ITO-220AC
0.190 (4.83)
0.170 (4.32)
0.110 (2.79)
0.100 (2.54)
7° REF.
0.140 (3.56) DIA.
0.125 (3.17) DIA.
7° REF.
0.350 (8.89)
0.330 (8.38)
7° REF.
0.135 (3.43) DIA.
0.122 (3.08) DIA.
0.076 (1.93) REF.
0.076 (1.93) REF.
PIN
2
0.671 (17.04)
0.651 (16.54)
0.350 (8.89)
0.330 (8.38)
1.148 (29.16)
1.118 (28.40)
1
0.160 (4.06)
0.140 (3.56)
0.057 (1.45)
0.045 (1.14)
0.105 (2.67)
0.095 (2.41)
PIN
2
0.191 (4.85)
0.171 (4.35)
0.110 (2.79)
0.100 (2.54)
PIN 1
PIN 2
CASE
0.560 (14.22)
0.530 (13.46)
0.057 (1.45)
0.045 (1.14)
0.035 (0.89)
0.025 (0.64)
0.205 (5.21)
0.195 (4.95)
0.110 (2.79)
0.100 (2.54)
0.560 (14.22)
0.530 (13.46)
0.025 (0.64)
0.015 (0.38)
0.028 (0.71)
0.020 (0.51)
0.037 (0.94)
0.027 (0.68)
0.205 (5.20)
0.195 (4.95)
0.022 (0.56)
0.014 (0.36)
D
2
PAK (TO-263AB)
0.411 (10.45)
0.380 (9.65)
0.245 (6.22)
MIN.
K
0.360 (9.14)
0.320 (8.13)
1
K
2
0.055 (1.40)
0.047 (1.19)
0.190 (4.83)
0.160 (4.06)
0.055 (1.40)
0.045 (1.14)
Mounting Pad Layout
0.42 (10.66) min.
0.33 (8.38) min.
0.624 (15.85)
0.591 (15.00)
0.670 (17.02)
0.591 (15.00)
0 to 0.01 (0 to 0.254)
0.110 (2.79)
0.090 (2.29)
0.021 (0.53)
0.014 (0.36)
0.15 (3.81) min.
0.08 (2.032) MIN.
0.105 (2.67)
0.095 (2.41)
0.037 (0.940)
0.027 (0.686)
0.105 (2.67)
0.095 (2.41)
0.205 (5.20)
0.195 (4.95)
0.140 (3.56)
0.110 (2.79)
Revision: 12-Jun-2019
Document Number: 88557
4
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of
typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding
statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a
particular product with the properties described in the product specification is suitable for use in a particular application.
Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over
time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.
Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for
such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document
or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
© 2019 VISHAY INTERTECHNOLOGY, INC. ALL RIGHTS RESERVED
Revision: 01-Jan-2019
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
