CUSTOM RADIAL-FIN HEAT SINK DATA SHEET
For BRIDGELUX RECTANGLE SERIES LED
Product Highlights and Features:
•
•
•
•
•
•
Manufactured Specifically for BRIDGELUX LED Light Engines
Light Weight Aluminum Construction
Radial-Fin Geometry Optimized for Natural Convection
Black Anodized for Maximum Thermal Performance
Mounting Features as part of Extrusion – Easy Mounting with Standard Hardware
Various Lengths Available – Size and Level of Performance can be Matched to
Specific LED Requirements

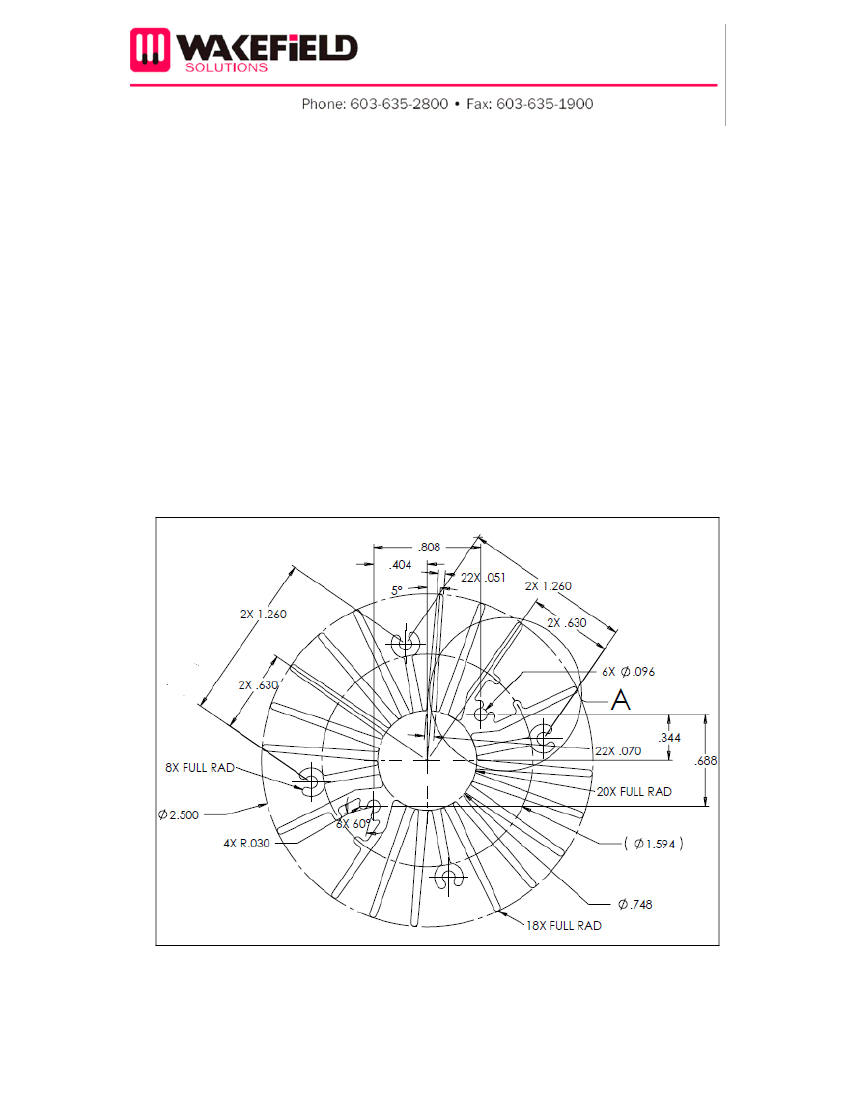

Product Dimensions:
19755- S/M/L/XL/XXL-AB
1
Product P/Ns and Relative Thermal Performance:
ORDERABLE
HS
BRIDGELUX P/N Form factor
P/N
Length Electrical
(in)
(W)
BXRA-C0802-00000
BXRA-W0802-00000
BXRA-W1202-00000
BXRA-W1203-00000
BXRA-C2002-00000
BXRA-C1202-00000
BXRA-N0802-00000
BXRA-N1203-00000
Rectangle
Rectangle
Rectangle
Rectangle
Rectangle
Rectangle
Rectangle
Rectangle
19755-S-AB
19755-M-AB
19755-L-AB
19755-XL-AB
19755-XXL-AB
19755-M-AB
19755-M-AB
19755-XL-AB
2.75
4.00
6.00
8.00
10.00
4.00
4.00
8.00
15.0
20.0
25.0
30.0
35.00
20.0
20.0
30.0
Thermal
(W)
11.3
15.0
18.8
22.5
26.3
15.0
15.0
22.5
HS TR
(C/W)
2.20
1.82
1.49
1.29
1.15
1.82
1.82
1.29
T RISE
(C)
24.7
27.3
27.9
29.0
30.2
27.3
27.3
29.0
Product Thermal Performance – Natural Convection – Vertical Orientation:
WAKEFIELD CUSTOM RADIAL-FIN HEAT SINKS
for BRIDGELUX RECTANGLE SERIES LED
19755-S-AB
19755-M-AB
19755-XL-AB
19755-XL-AB
19755-XXL-AB
100.0
90.0
88.0
77.0
66.0
63.7
55.0
54.6
44.0
45.5
44.7
38.7
40.3
34.5
33.0
22.0
18.2
14.9
12.9
11.5
27.3
22.4
19.4
17.3
37.3
32.3
28.8
52.2
45.2
46.0
72.8
T RISE ABOVE AMBIENT (C)
80.0
70.0
60.0
50.0
40.0
30.0
20.0
10.0
0.0
10
15
20
25
30
59.6
51.6
36.4
29.8
25.8
23.0
35
40
THERMAL POWER (W)
