67094-016LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 67094-016LF

67094-016LF: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, LEAD FREE; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

67094-016LF Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Terminal, Locking, Black Insulator, LEAD FREE

67094-016LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
body width	0.228 inch
subject depth	0.276 inch
body length	1.673 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (79) OVER NICKEL
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VDC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	67094
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	79u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

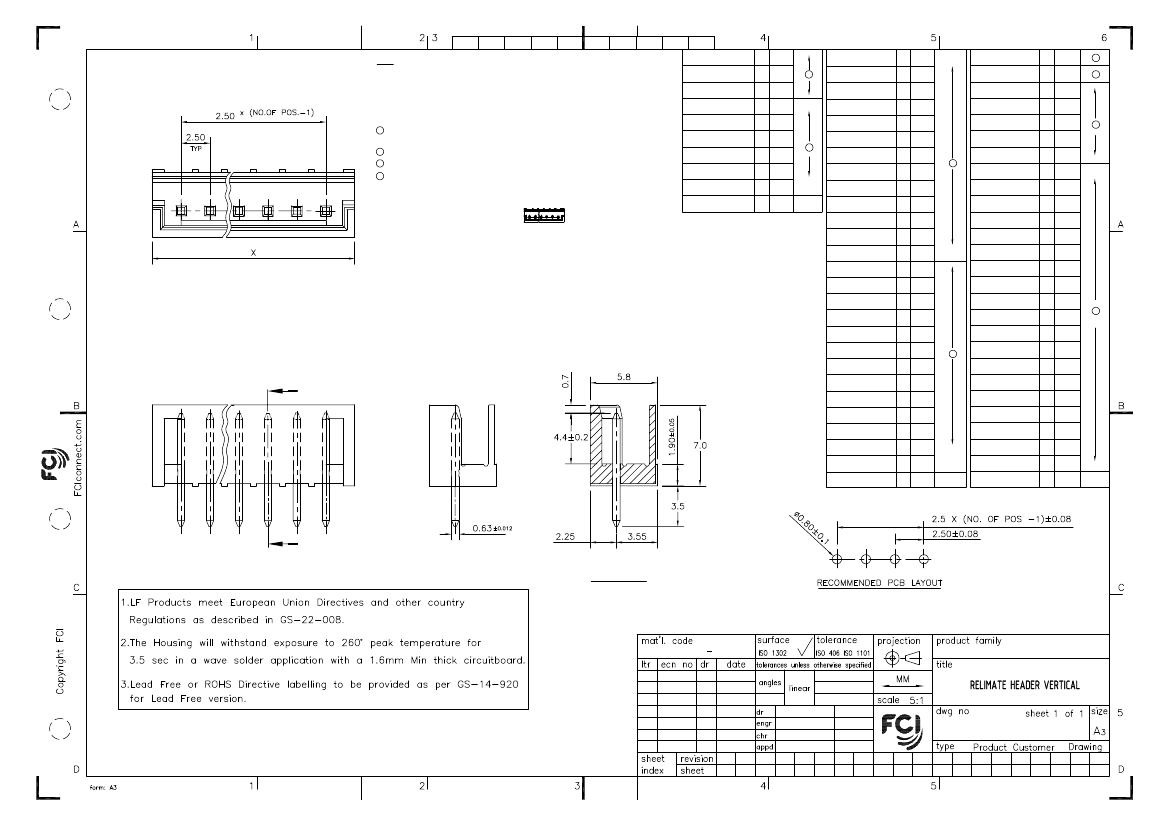

NOTE

MATERIAL:

1.HOUSING : PBT 15% GLASS FILLED UL94 V0 BLACK

THE HOUSING WILL WITHSTAND EXPOSURE TO 260-265°C FOR 3.5 SECONDS

IN A WAVESOLDERING APPLICATION.

2.PIN : BRASS

PLATING :

3. 2 MICRON MIN SnPb OVER 1.27 MICRON MIN. NICKEL UNDER COAT (FOR LEADED VERSION)

2 MICRON MIN MATTE TIN OVER 1.27 MICRON MIN. NICKEL UNDER COAT(FOR LEAD FREE VERSION)

4. 0.5 MICRON MIN Au OVER 1.27 MICRON MIN. NICKEL.

5. 0.1 MICRON MIN Au OVER 1.27 MICRON MIN. NICKEL.

6. 0.3 MICRON MIN Au OVER 1.27 MICRON MIN. NICKEL.

7. POLARIZED HEADER SPECIFIED POSITION DOSE NOT HAVE PIN AS SHOWN

67094-098 / 67094-098LF

67094-097 / 67094-097LF

67094-096 / 67094-096LF

67094-095 / 67094-095LF

67094-094 / 67094-094LF

67094-093 / 67094-093LF

67094-092 / 67094-092LF

67094-091 / 67094-091LF

67094-090 / 67094-090LF

PART NUMBER

47.5

37.5

22.5

52.5

50.0

47.5

45.0

42.5

40.0

67094-089 / 67094-089LF

67094-088 / 67094-088LF

67094-087 / 67094-087LF

67094-086 / 67094-086LF

67094-085 / 67094-085LF

67094-084 / 67094-084LF

67094-083 / 67094-083LF

67094-082 / 67094-082LF

67094-081 / 67094-081LF

67094-080 / 67094-080LF

67094-079 / 67094-079LF

67094-078 / 67094-078LF

67094-077 / 67094-077LF

67094-076 / 67094-076LF

67094-075 / 67094-075LF

67094-074 / 67094-074LF

67094-073 / 67094-073LF

67094-072 / 67094-072LF

67094-071 / 67094-071LF

67094-070 / 67094-070LF

67094-069 / 67094-069LF

67094-068 / 67094-068LF

67094-067 / 67094-067LF

67094-066 / 67094-066LF

67094-065 / 67094-065LF

67094-064 / 67094-064LF

PART NUMBER

37.5

35.0

32.5

30.0

27.5

25.0

22.5

20.0

17.5

15.0

12.5

10.0

7.5

52.5

50.0

47.5

45.0

42.5

40.0

37.5

35.0

32.5

30.0

25.0

20.0

17.5

PLATING

67094-063 / 67094-063LF

67094-062 / 67094-062LF

67094-061 / 67094-061LF

67094-060 / 67094-060LF

67094-059 / 67094-059LF

67094-058 / 67094-058LF

67094-057 / 67094-057LF

67094-020 / 67094-020LF

67094-019 / 67094-019LF

67094-018 / 67094-018LF

67094-017 / 67094-017LF

15.0

17.5

27.5

22.5

12.5

10.0

7.5

52.5

50.0

47.5

45.0

42.5

40.0

37.5

35.0

32.5

30.0

27.5

25.0

22.5

20.0

17.5

15.0

12.5

10.0

7.5

* 67094-097 .........4TH FROM RIGHT

* 67094-098 .........2ND FROM RIGHT

LEFT

RIGHT

POS. DIMN. X PLATING

8. OPERATING TEMPERATURE

: -25°C TO +85°C

9. MECHANICAL PERFORMANCE

DURABILITY (MATING CYCLES)

GOLD

: 50

TIN-LEAD

: 20

CONTACT RETENTION - 1.5 KG

10. ELECTRICAL PERFORMANCE

WITHSTANDING VOLTAGE

: 750 V

INSULATION RESISTANCE

: 500M

Ω

min

CURRENT RATING

: 2 amp DC

CONTACT RESISTANCE

: 20m

Ω

max

67094-016 / 67094-016LF 16

67094-015 / 67094-015LF 15

67094-014 / 67094-014LF

67094-013 / 67094-013LF 13

67094-012 / 67094-012LF

67094-011 / 67094-011LF

67094-010 / 67094-010LF

67094-009 / 67094-009LF

67094-008 / 67094-008LF

67094-007 / 67094-007LF

67094-006 / 67094-006LF

67094-005 / 67094-005LF

67094-004 / 67094-004LF

67094-003 / 67094-003LF

67094-002 / 67094-002LF

PART NUMBER

POS. DIMN. X

PLATING

+0.3

-0.2

SECTION-AA

RELIMATE

I06-0123

I07-0039

HVN

2006-07-20

2007-03-16

0°±2°

MINI K VANDANATH 2003-04-14

Hiran V N

HIRAN V N

2003-04-14

2007-03-16

±0.13

67094

PDM: Rev:R

STATUS:

Released

Printed: Mar 16, 2009
