2N4880 datasheet, PDF - EEWORLD Datasheet

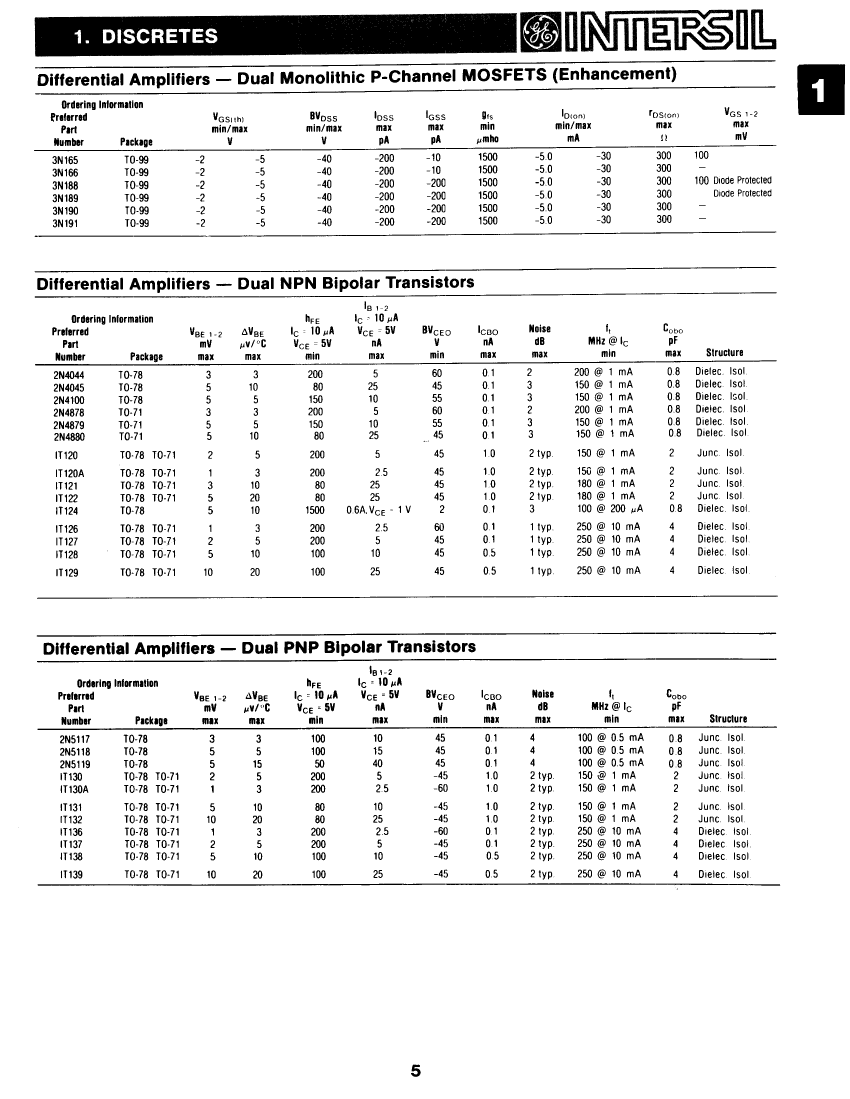

2N4880: Description2N4880; CategoryDiscrete semiconductor The transistor; File Size50KB，1 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

2N4880 Overview

2N4880

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	_compli
Maximum collector current (IC)	0.01 A
Configuration	Single
Minimum DC current gain (hFE)	100
JESD-609 code	e0
Maximum operating temperature	175 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.3 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	15 MHz
Base Number Matches	1

	2N4880	2N4044	2N5117	2N5118	IT120A	IT126	IT127	IT120
Description	2N4880	10mA, 60V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-78, TO-78, 8 PIN	2N5117	2N5118	IT120A	SMALL SIGNAL TRANSISTOR	SMALL SIGNAL TRANSISTOR	IT120
Reach Compliance Code	_compli	_compli	_compli	_compli	not_compliant	compliant	compliant	_compli
Maximum collector current (IC)	0.01 A	0.01 A	0.01 A	0.01 A	0.05 A	0.1 A	0.1 A	0.05 A
Minimum DC current gain (hFE)	100	225	100	100	200	150	150	200
Polarity/channel type	NPN	NPN	PNP	PNP	NPN	NPN	NPN	NPN
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Nominal transition frequency (fT)	15 MHz	200 MHz	100 MHz	100 MHz	220 MHz	250 MHz	250 MHz	220 MHz
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	-	incompatible
JESD-609 code	e0	e0	e0	e0	e0	-	-	e0
Maximum operating temperature	175 °C	200 °C	175 °C	175 °C	-	150 °C	150 °C	-
Maximum power dissipation(Abs)	0.3 W	-	0.4 W	0.4 W	-	0.4 W	0.4 W	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1	1	1	1	-
