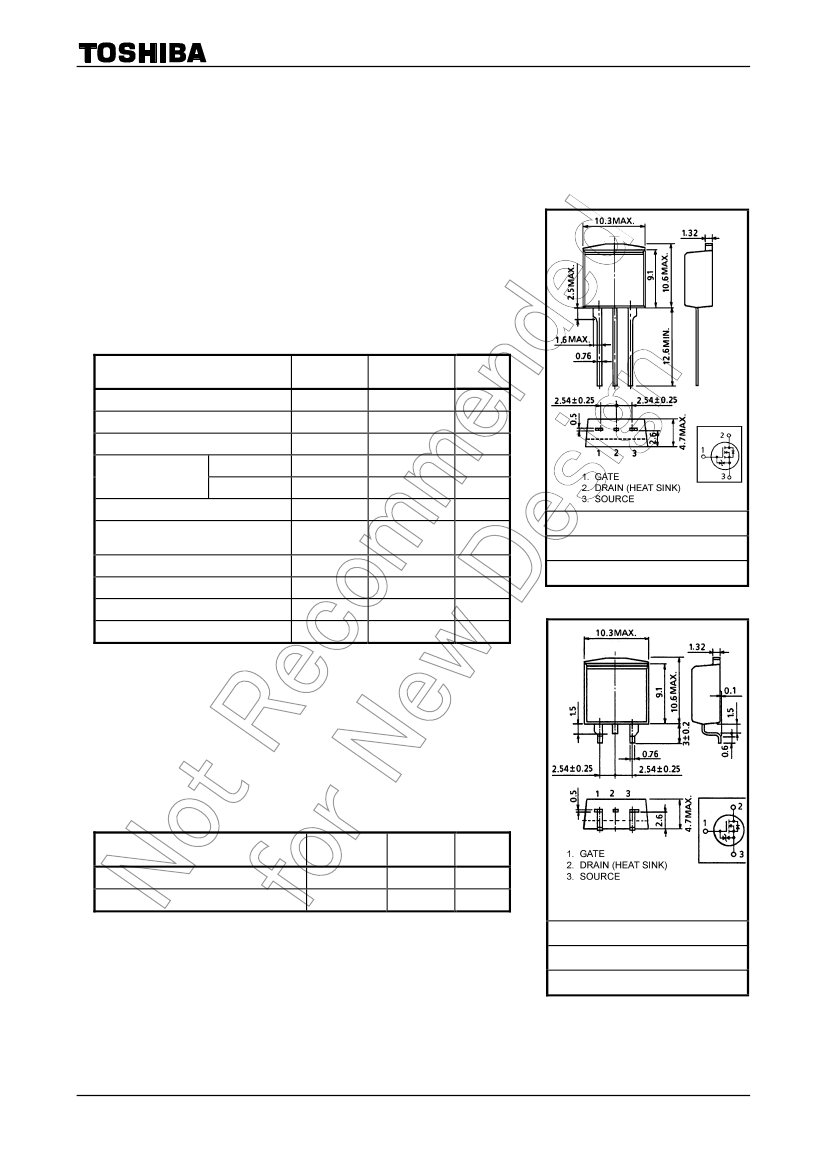

2SK2884
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π−MOSIII)
2SK2884
Chopper Regulator, DC−DC Converter Applications
Low drain−source ON resistance
High forward transfer admittance
Low leakage current
Enhancement mode
: R
DS (ON)
= 1.9
Ω
(typ.)
Unit: mm
: |Y
fs
| = 3.8 S (typ.)
: I
DSS
= 100
μA
(max) (V
DS
= 640 V)
: V
th
= 2.0 to 4.0 V (V
DS
= 10 V, I
D
= 1 mA)

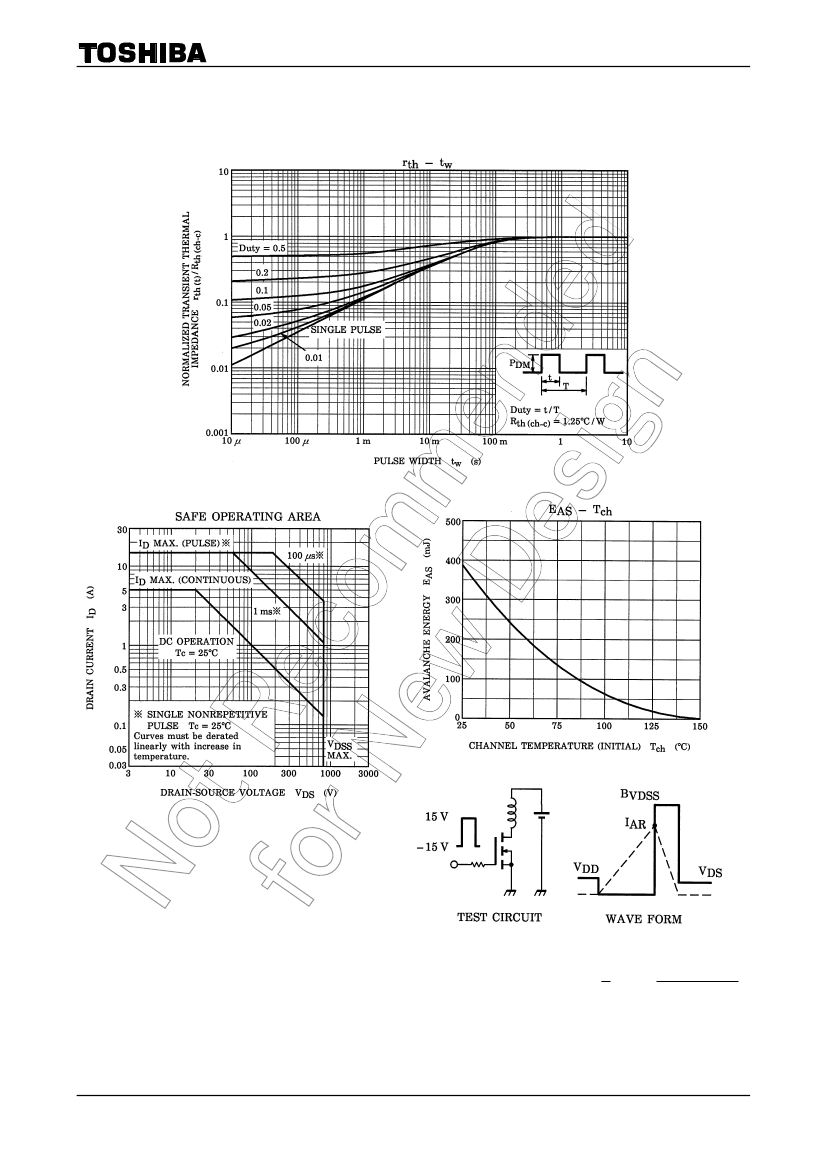

Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Drain−source voltage
Drain−gate voltage (R
GS
= 20 kΩ)
Gate−source voltage
Drain current
DC
(Note 1)
Symbol
V
DSS
V
DGR
V
GSS
I
D
I
DP
P
D
E
AS
I
AR
E
AR
T
ch
T
stg
Rating
800
800
±30
5
15
100
370
5
10
150
−55
to 150
Unit
V
V
V
A
A
W
Pulse (Note 1)
Drain power dissipation (Tc=25°C)
Single pulse avalanche energy
(Note 2)
Avalanche current
Repetitive avalanche energy (Note 3)
Channel temperature
Storage temperature range
JEDEC
mJ
A
mJ
°C
°C
―
―
2-10S1B
JEITA
TOSHIBA
Weight: 1.5 g (typ.)
Note:
Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature, etc.)
may cause this product to decrease in the reliability significantly even if the
operating conditions (i.e. operating temperature/current/voltage, etc.) are
within the absolute maximum ratings. Please design the appropriate
reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual
reliability data (i.e. reliability test report and estimated failure rate, etc).
Thermal Characteristics
Characteristics
Thermal resistance, channel to case
Thermal resistance, channel to ambient
Symbol
R
th (ch−c)
R
th (ch−a)
Max
1.25
83.3
Unit
°C / W
°C / W
Note 1: Ensure that the channel temperature does not exceed 150°C.
Note 2: V
DD
= 90 V, T
ch
= 25°C (initial), L = 27 mH, R
G
= 25
Ω,
I
AR
= 5 A
Note 3: Repetitive rating: pulse width limited by maximum channel
temperature.
This transistor is an electrostatic-sensitive device.
Please handle with caution.
JEDEC
JEITA
TOSHIBA
―
―
2-10S2B
Weight: 1.5 g (typ.)
1
2009-09-29
2SK2884

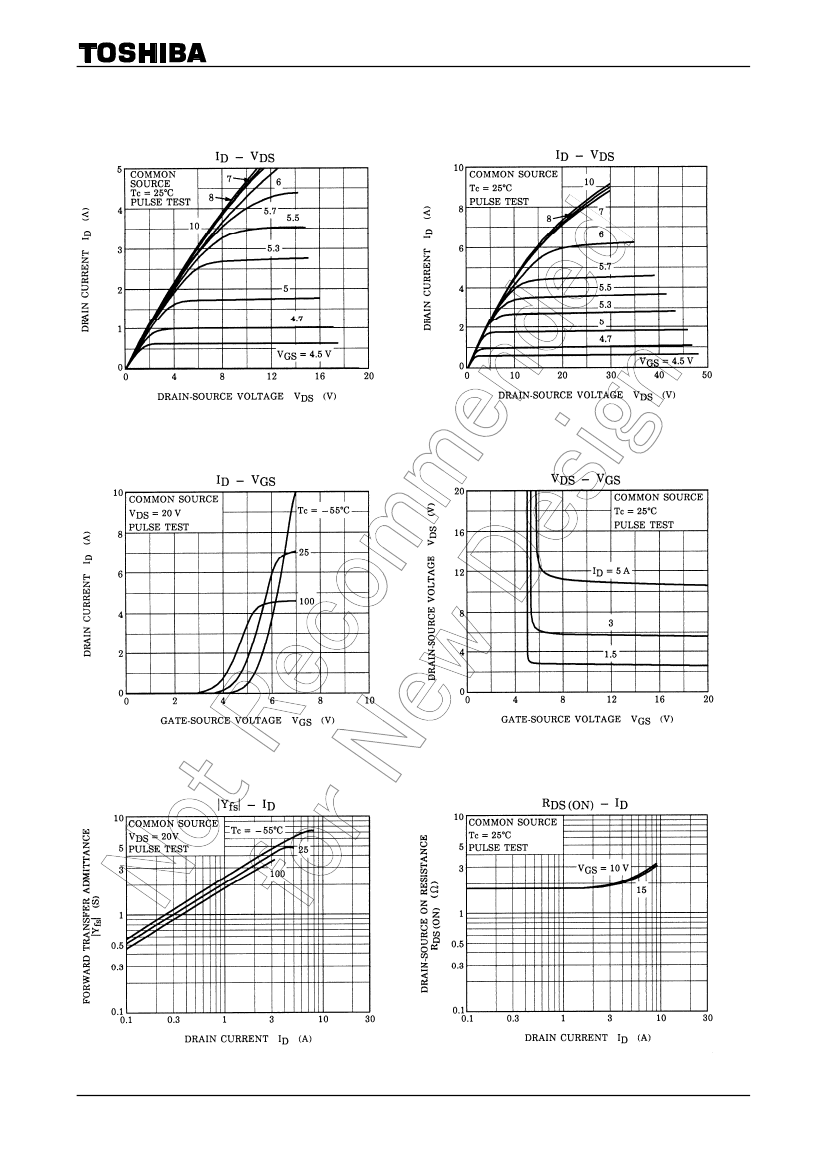

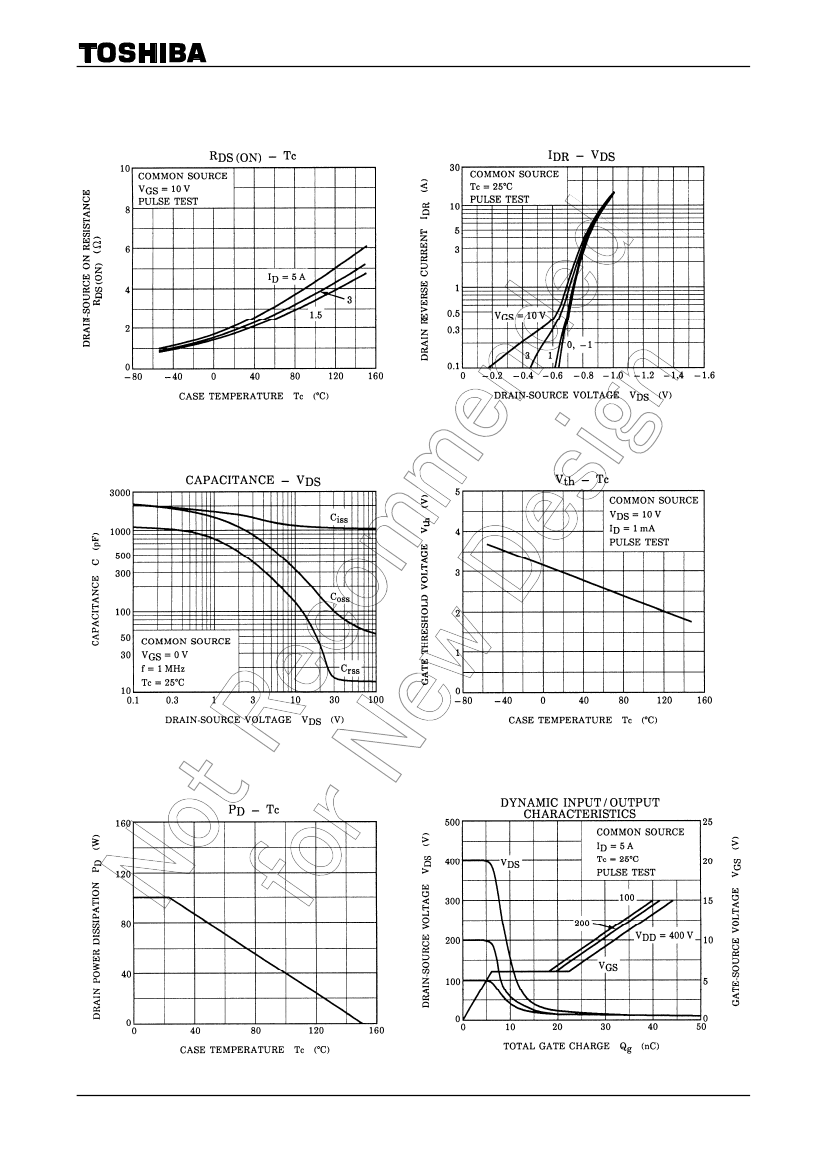

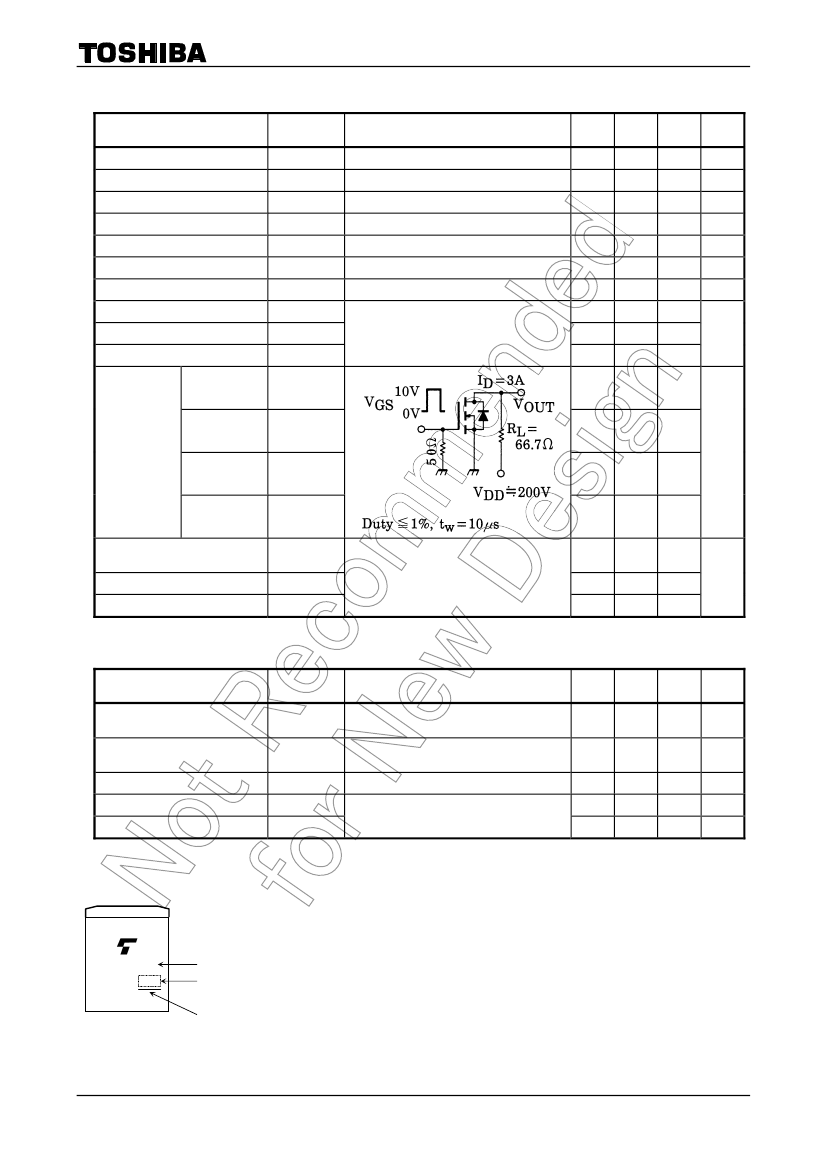

Electrical Characteristics
(Ta = 25°C)
Characteristics
Gate leakage current
Gate−source breakdown voltage
Drain cut−off current
Drain−source breakdown voltage
Gate threshold voltage
Drain−source ON resistance
Forward transfer admittance
Input capacitance
Reverse transfer capacitance
Output capacitance
Rise time
Symbol
I
GSS
V
(BR) GSS
I
DSS
V
(BR) DSS
V
th
R
DS (ON)
|Y
fs
|
C
iss
C
rss
C
oss
t
r
V
DS
= 25 V, V
GS
= 0 V, f = 1 MHz
Test Condition
V
GS
= ±30 V, V
DS
= 0 V
I
G
= ±10
μA,
V
DS
= 0 V
V
DS
= 640 V, V
GS
= 0 V
I
D
= 10 mA, V
GS
= 0 V
V
DS
= 10 V, I
D
= 1 mA
V
GS
= 10 V, I
D
= 3 A
V
DS
= 15 V, I
D
= 3 A
Min
—
±30
—
800
2.0
—
1.0
—
—
—
—
Typ.
—
—
—
—
—
1.9
3.8
1080
16
105
40
Max
±10
—
100
—
4.0
2.2
—
—
—
—
—
pF
Unit
μA
V
μA
V
V
Ω
S
Turn−on time
Switching time
Fall time
t
on
—
80
—
ns
t
f
—
40
—
Turn−off time
Total gate charge (gate−source
plus gate−drain)
Gate−source charge
Gate−drain (“miller”) Charge
t
off
Q
g
Q
gs
Q
gd
V
DD
≈
400 V, V
GS
= 10 V, I
D
= 5 A
—
—
—
—
140
34
16
18
—
—
—
—
nC
Source−Drain Ratings and Characteristics
(Ta = 25°C)
Characteristics
Continuous drain reverse current
(Note 1)
Pulse drain reverse current
(Note 1)
Forward voltage (diode)
Reverse recovery time
Reverse recovery charge
Symbol
Test Condition
—
—
I
DR
= 5 A, V
GS
= 0 V
I
DR
= 5 A, V
GS
= 0 V
dI
DR
/ dt = 100 A /
μs
Min
—
—
—
—
—
Typ.
—
—
—
1000
7.5
Max
5
15
−1.9
—
—
Unit
A
A
V
ns
μC
I
DR
I
DRP
V
DSF
t
rr
Q
rr
Marking
Note 4: A line under a Lot No. identifies the indication of product
Labels.
Not underlined: [[Pb]]/INCLUDES > MCV
Underlined: [[G]]/RoHS COMPATIBLE or [[G]]/RoHS [[Pb]]
Part No. (or abbreviation code)
Lot No.
Note 4
K2884
Please contact your TOSHIBA sales representative for details as to
environmental matters such as the RoHS compatibility of Product.
The RoHS is the Directive 2002/95/EC of the European Parliament
and of the Council of 27 January 2003 on the restriction of the use of
certain hazardous substances in electrical and electronic equipment.
2
2009-09-29
