AM2966FM datasheet, PDF - EEWORLD Datasheet

AM2966FM: DescriptionBuffer/Inverter Based Peripheral Driver, 0.2A, BIPolar, FP-20; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size181KB，6 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

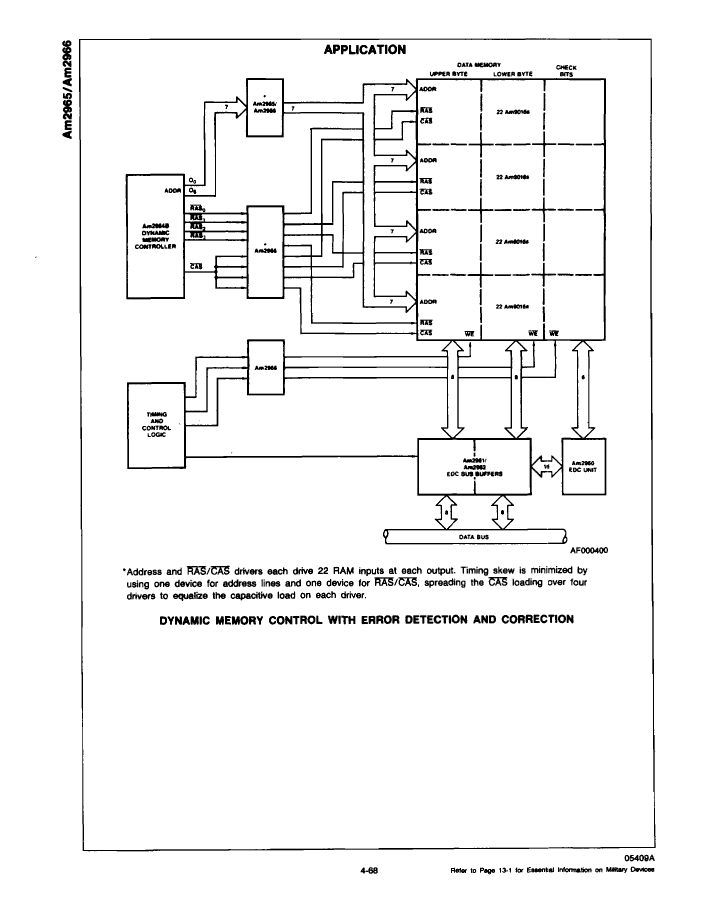

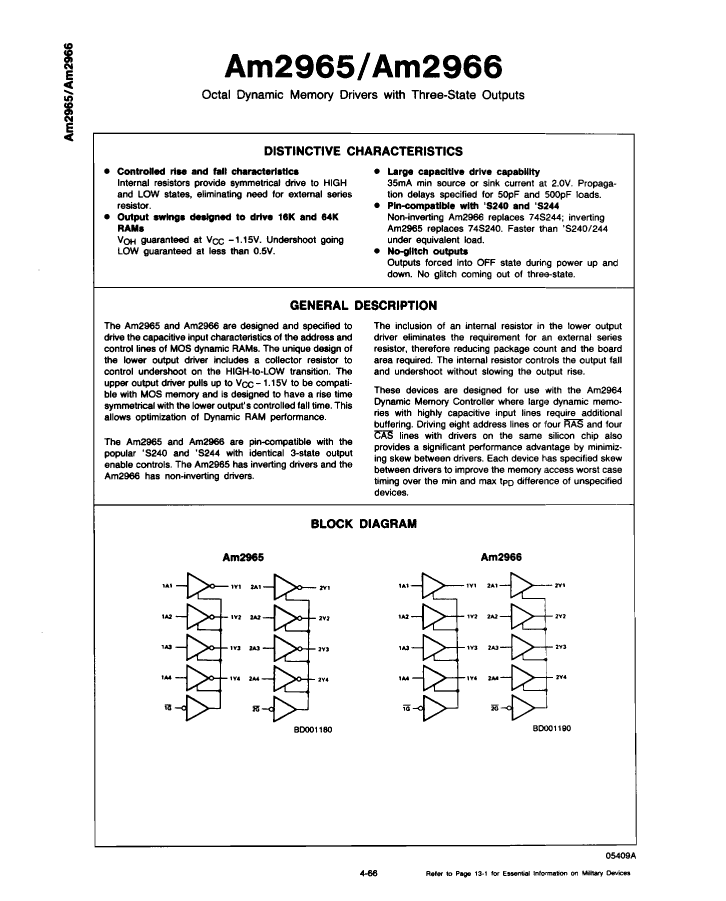

AM2966FM Overview

Buffer/Inverter Based Peripheral Driver, 0.2A, BIPolar, FP-20

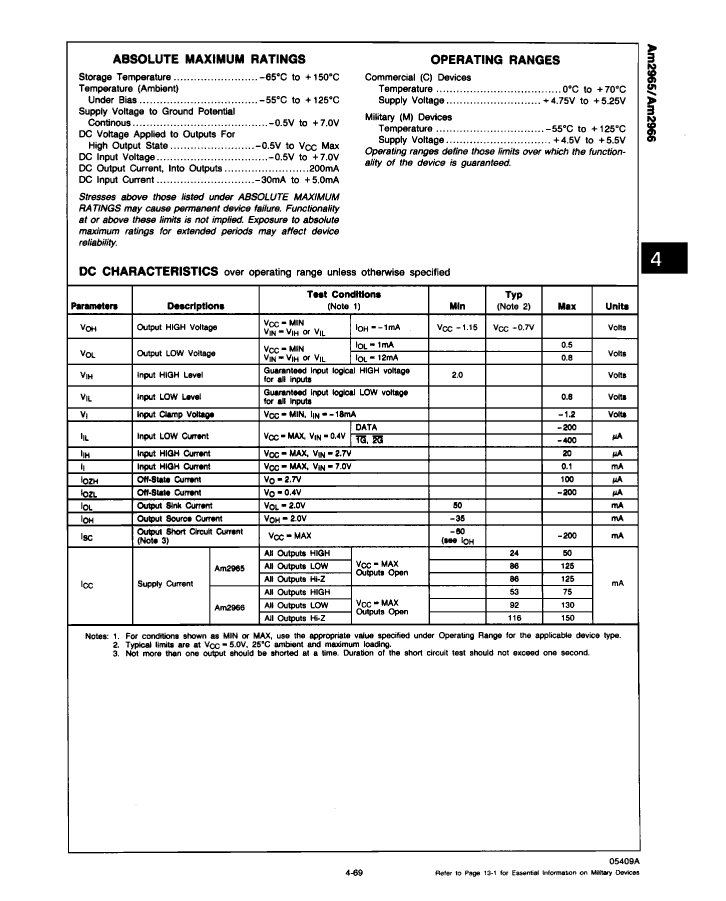

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD

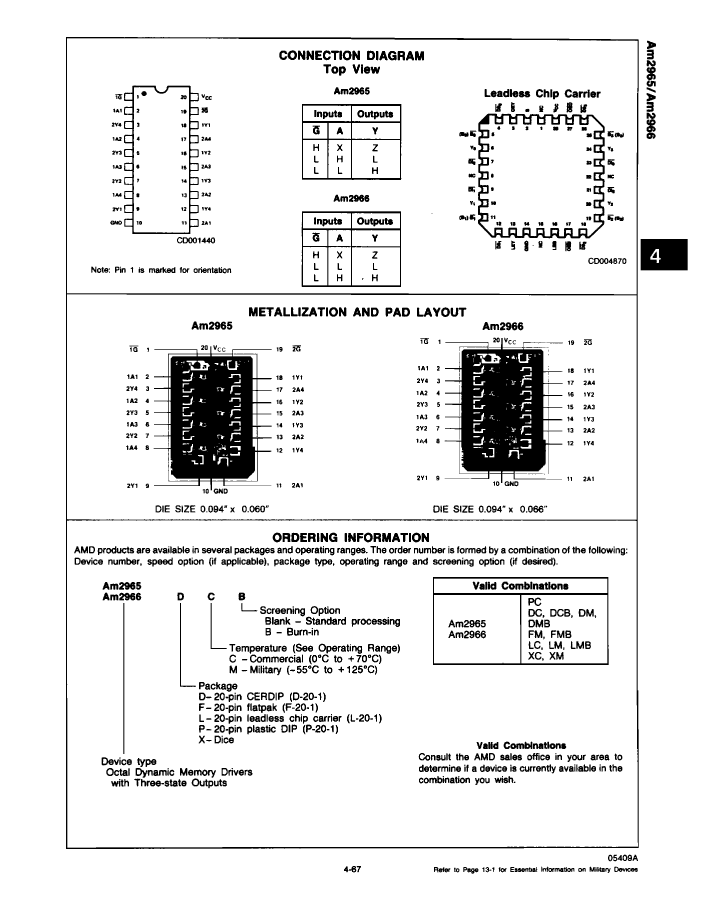

Parts packaging code	DFP
package instruction	DFP,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Built-in protection	TRANSIENT
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-XDFP-F20
JESD-609 code	e0
length	12.827 mm
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output current flow direction	SOURCE AND SINK
Nominal output peak current	0.2 A
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	2.159 mm
Maximum slew rate	150 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

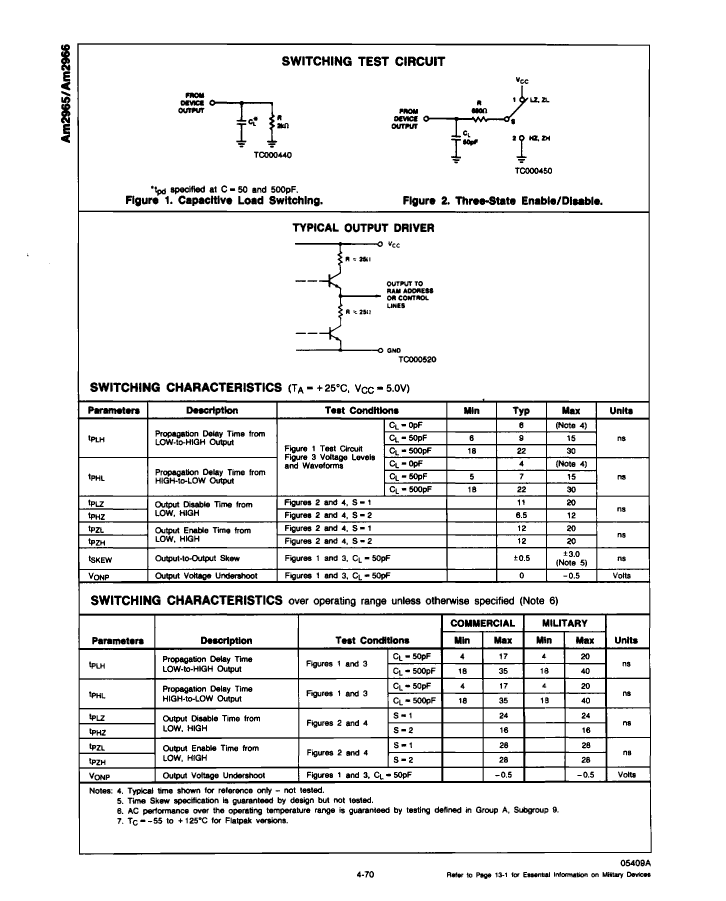

Disconnect time	0.04 µs
connection time	0.04 µs
width	6.731 mm
