2N4016

Description
Small Signal Bipolar Transistor, 0.3A I(C), 60V V(BR)CEO, 2-Element, PNP, Silicon, TO-78,
CategoryDiscrete semiconductor    The transistor

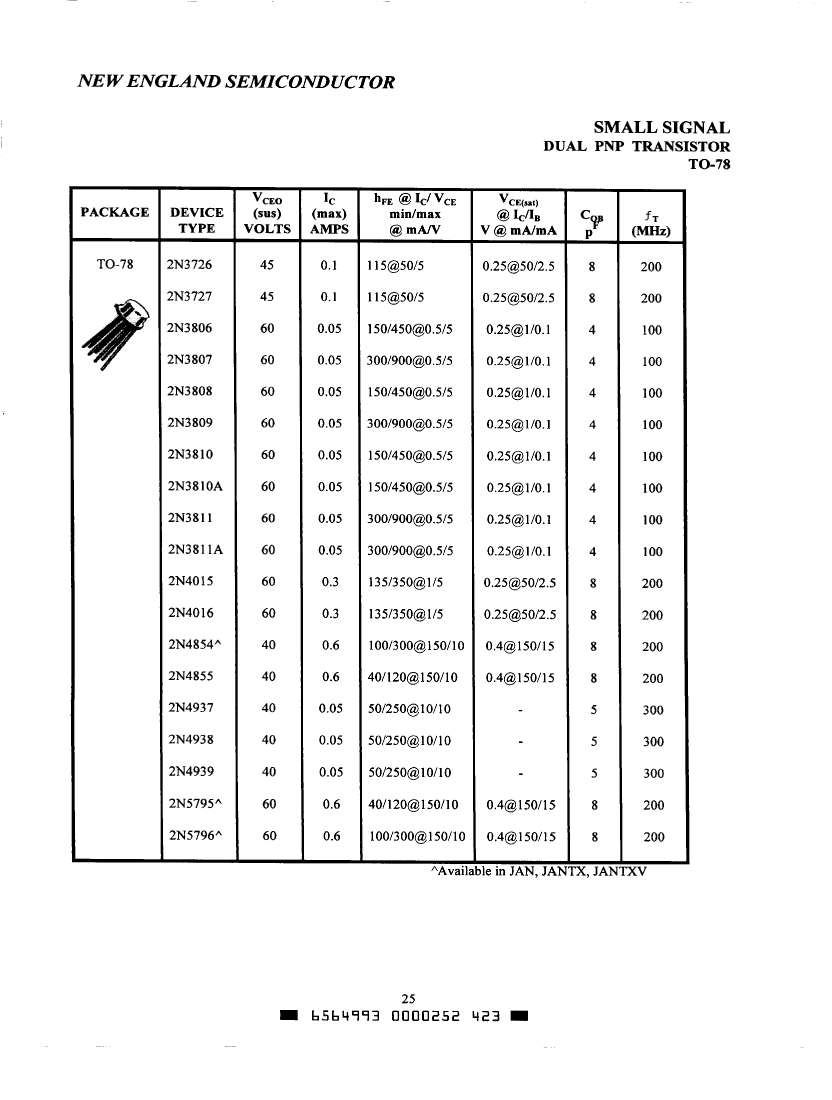

File Size32KB,1 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric View All

2N4016 Overview

Small Signal Bipolar Transistor, 0.3A I(C), 60V V(BR)CEO, 2-Element, PNP, Silicon, TO-78,

2N4016 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instructionCYLINDRICAL, O-MBCY-W8
Reach Compliance Codeunknow
ECCN codeEAR99
Maximum collector current (IC)0.3 A
Collector-based maximum capacity8 pF
Collector-emitter maximum voltage60 V
ConfigurationSEPARATE, 2 ELEMENTS
Minimum DC current gain (hFE)135
JEDEC-95 codeTO-78
JESD-30 codeO-MBCY-W8
JESD-609 codee0
Number of components2
Number of terminals8
Package body materialMETAL
Package shapeROUND
Package formCYLINDRICAL
Polarity/channel typePNP
Certification statusNot Qualified
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formWIRE
Terminal locationBOTTOM
Transistor component materialsSILICON
Nominal transition frequency (fT)200 MHz
VCEsat-Max0.25 V
Base Number Matches1
