2SK2889(2-10S1B)

Description
TRANSISTOR 10 A, 600 V, 0.75 ohm, N-CHANNEL, Si, POWER, MOSFET, 2-10S1B, 3 PIN, FET General Purpose Power
CategoryDiscrete semiconductor    The transistor
File Size456KB,6 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric Compare View All

2SK2889(2-10S1B) Overview

TRANSISTOR 10 A, 600 V, 0.75 ohm, N-CHANNEL, Si, POWER, MOSFET, 2-10S1B, 3 PIN, FET General Purpose Power

2SK2889(2-10S1B) Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instructionIN-LINE, R-PSIP-T3
Contacts3
Reach Compliance Codeunknow
Avalanche Energy Efficiency Rating (Eas)363 mJ
Shell connectionDRAIN
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage600 V
Maximum drain current (ID)10 A
Maximum drain-source on-resistance0.75 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PSIP-T3
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum pulsed drain current (IDM)40 A
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1

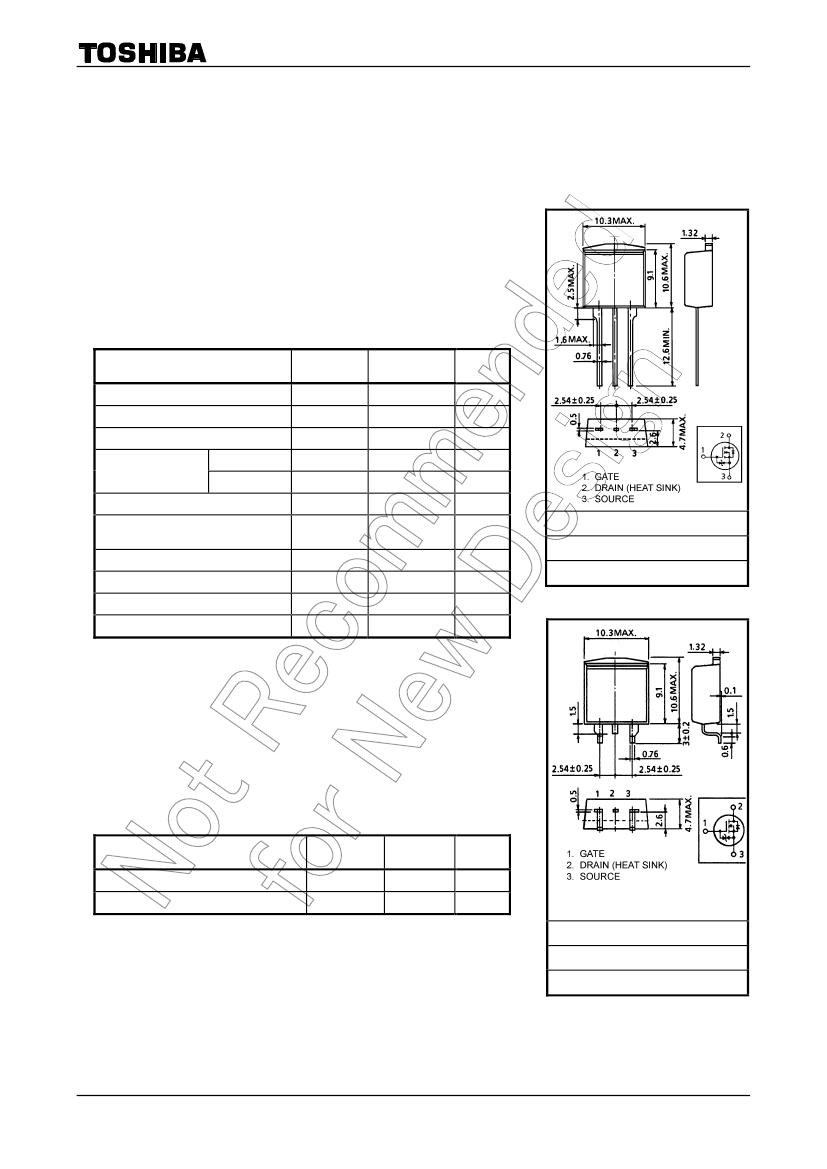

2SK2889
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (π−MOSV)
2SK2889
Chopper Regulator, DC−DC Converter and Motor Drive
Applications
Low drain−source ON resistance
: R
DS (ON)
= 0.54
(typ.)
High forward transfer admittance
: |Y
fs
| = 9.0 S (typ.)
Low leakage current
: I
DSS
= 100
μA
(max) (V
DSS
= 600 V)
Enhancement mode
: V
th
= 2.0 to 4.0 V (V
DS
= 10 V, I
D
= 1 mA)
Unit: mm
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Drain−source voltage
Drain−gate voltage (R
GS
= 20 kΩ)
Gate−source voltage
Drain current
DC
(Note 1)
Symbol
V
DSS
V
DGR
V
GSS
I
D
I
DP
P
D
E
AS
I
AR
E
AR
T
ch
T
stg
Rating
600
600
±30
10
40
100
363
10
10
150
−55
to 150
Unit
V
V
V
A
A
W
mJ
A
mJ
°C
°C
Pulse (Note 1)
Drain power dissipation (Tc = 25°C)
Single pulse avalanche energy
(Note 2)
Avalanche current
Repetitive avalanche energy (Note 3)
Channel temperature
Storage temperature range
JEDEC
JEITA
TOSHIBA
2-10S1B
Weight: 1.5 g (typ.)
Note:
Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in temperature,
etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage,
etc.) are within the absolute maximum ratings. Please design the
appropriate reliability upon reviewing the Toshiba Semiconductor
Reliability Handbook (“Handling Precautions”/“Derating Concept and
Methods”) and individual reliability data (i.e. reliability test report and
estimated failure rate, etc).
Thermal Characteristics
Characteristics
Thermal resistance, channel to case
Thermal resistance, channel to ambient
Symbol
R
th (ch−c)
R
th (ch−a)
Max
1.25
83.3
Unit
°C / W
°C / W
Note 1: Ensure that the channel temperature does not exceed 150°C.
Note 2: V
DD
= 90 V, T
ch
= 25°C (initial), L = 6.36 mH, R
G
= 25
Ω,
I
AR
= 10 A
Note 3: Repetitive rating: pulse width limited by maximum channel
temperature
This transistor is an electrostatic-sensitive device.
Please handle with caution.
JEDEC
JEITA
TOSHIBA
2-10S2B
Weight: 1.5 g (typ.)
1
2009-09-29

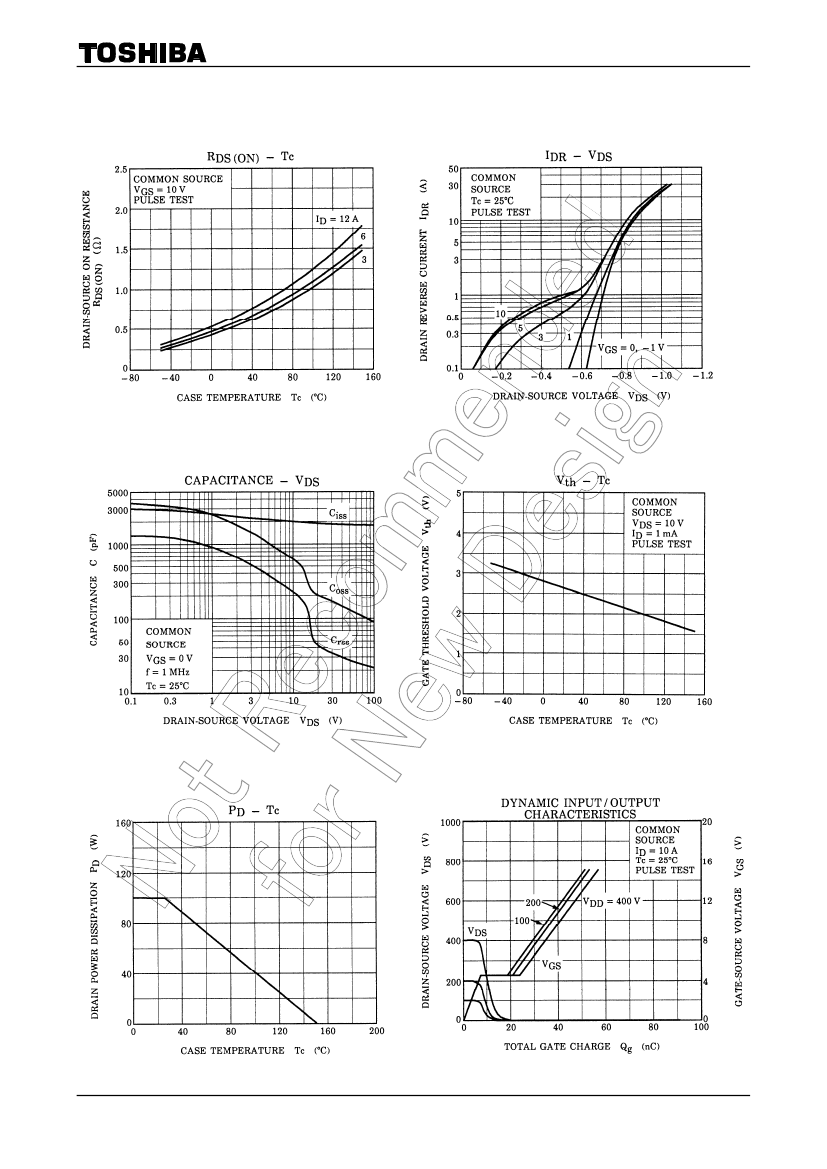

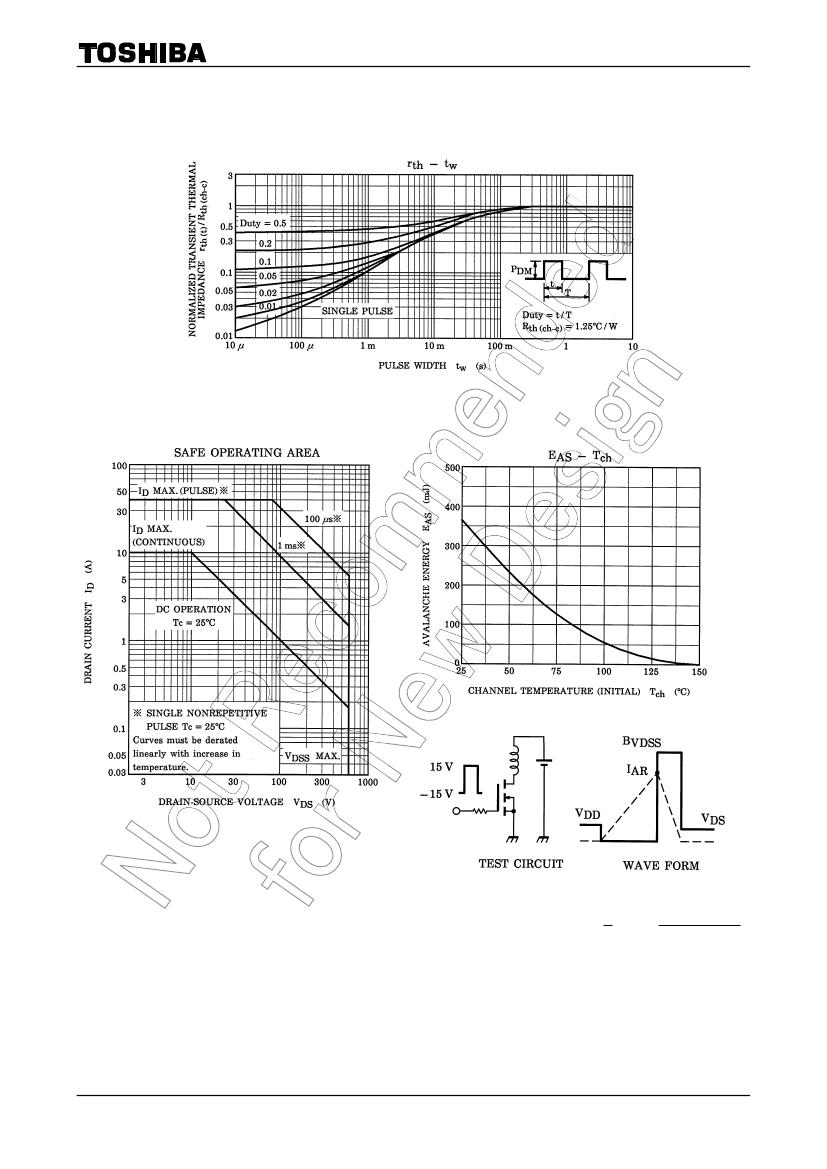

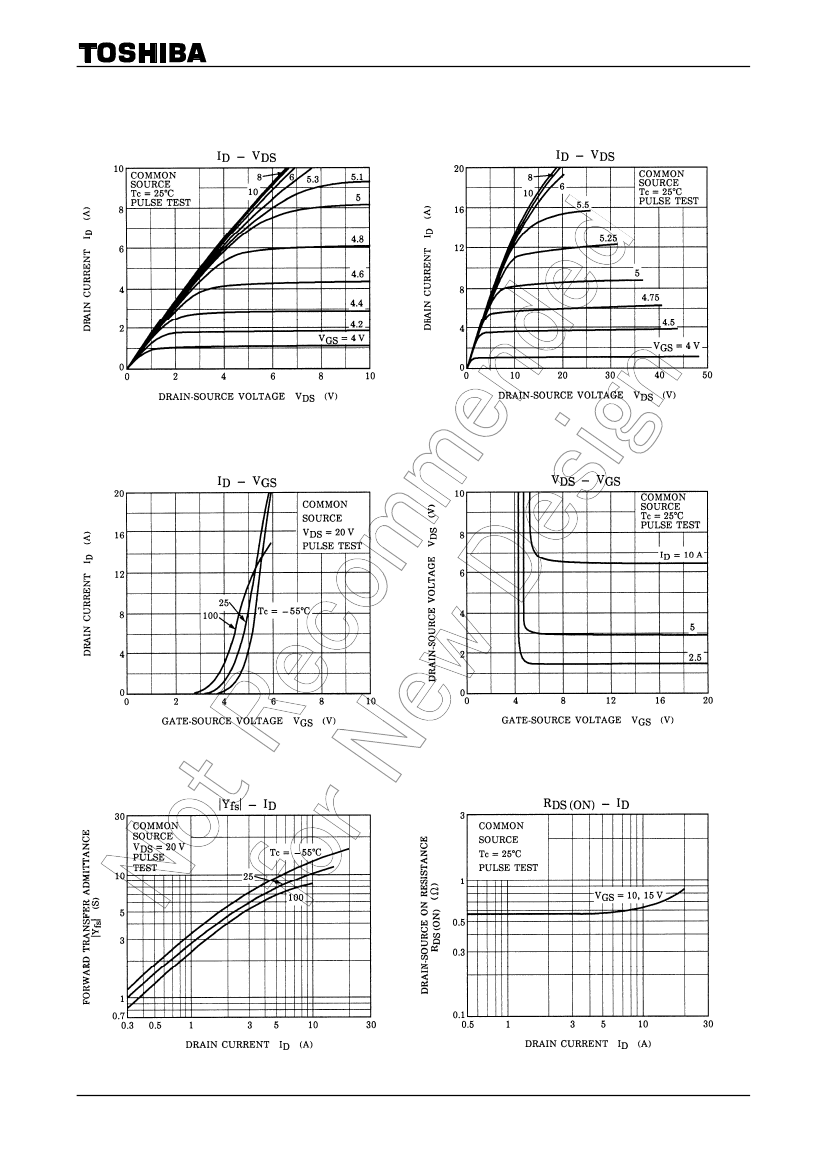

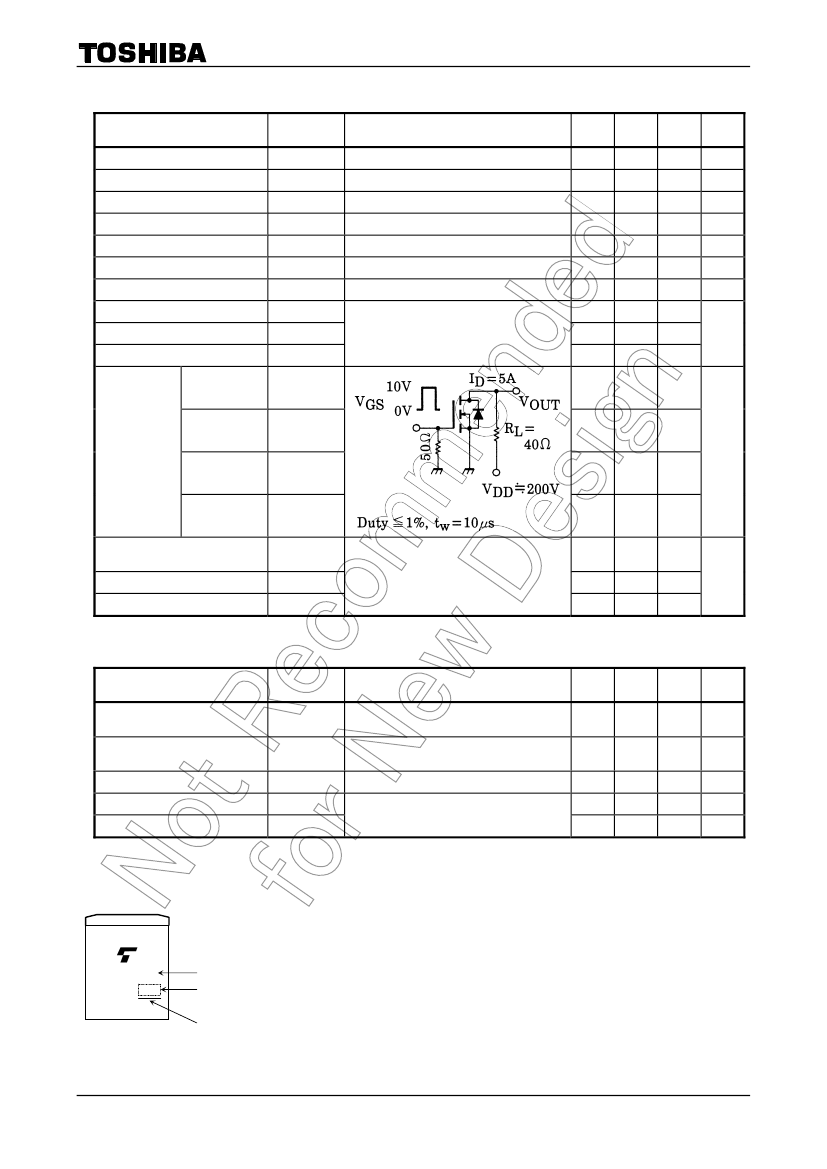

2SK2889(2-10S1B) Related Products

2SK2889(2-10S1B) 2SK2889(2-10S2B) 2SK2889(Q)
Description TRANSISTOR 10 A, 600 V, 0.75 ohm, N-CHANNEL, Si, POWER, MOSFET, 2-10S1B, 3 PIN, FET General Purpose Power TRANSISTOR 10 A, 600 V, 0.75 ohm, N-CHANNEL, Si, POWER, MOSFET, 2-10S2B, 3 PIN, FET General Purpose Power mosfet N-CH 600v 10a to220fl
Reach Compliance Code unknow unknow unknown
Base Number Matches 1 1 1
Is it lead-free? Contains lead Contains lead -
Is it Rohs certified? incompatible incompatible -
package instruction IN-LINE, R-PSIP-T3 SMALL OUTLINE, R-PSSO-G2 -
Avalanche Energy Efficiency Rating (Eas) 363 mJ 363 mJ -
Shell connection DRAIN DRAIN -
Configuration SINGLE WITH BUILT-IN DIODE SINGLE WITH BUILT-IN DIODE -
Minimum drain-source breakdown voltage 600 V 600 V -
Maximum drain current (ID) 10 A 10 A -
Maximum drain-source on-resistance 0.75 Ω 0.75 Ω -
FET technology METAL-OXIDE SEMICONDUCTOR METAL-OXIDE SEMICONDUCTOR -
JESD-30 code R-PSIP-T3 R-PSSO-G2 -
Number of components 1 1 -
Number of terminals 3 2 -
Operating mode ENHANCEMENT MODE ENHANCEMENT MODE -
Package body material PLASTIC/EPOXY PLASTIC/EPOXY -
Package shape RECTANGULAR RECTANGULAR -
Package form IN-LINE SMALL OUTLINE -
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED -
Polarity/channel type N-CHANNEL N-CHANNEL -
Maximum pulsed drain current (IDM) 40 A 40 A -
Certification status Not Qualified Not Qualified -
surface mount NO YES -
Terminal form THROUGH-HOLE GULL WING -
Terminal location SINGLE SINGLE -
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED -
transistor applications SWITCHING SWITCHING -
Transistor component materials SILICON SILICON -
