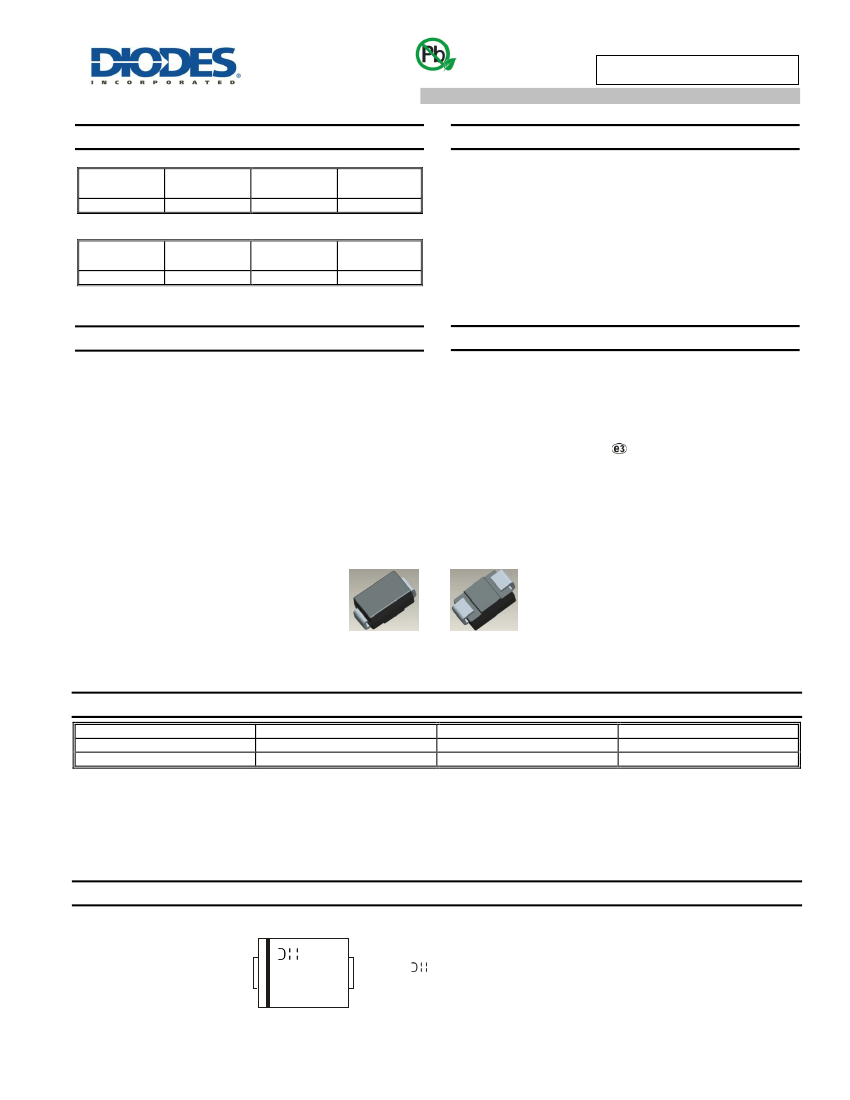

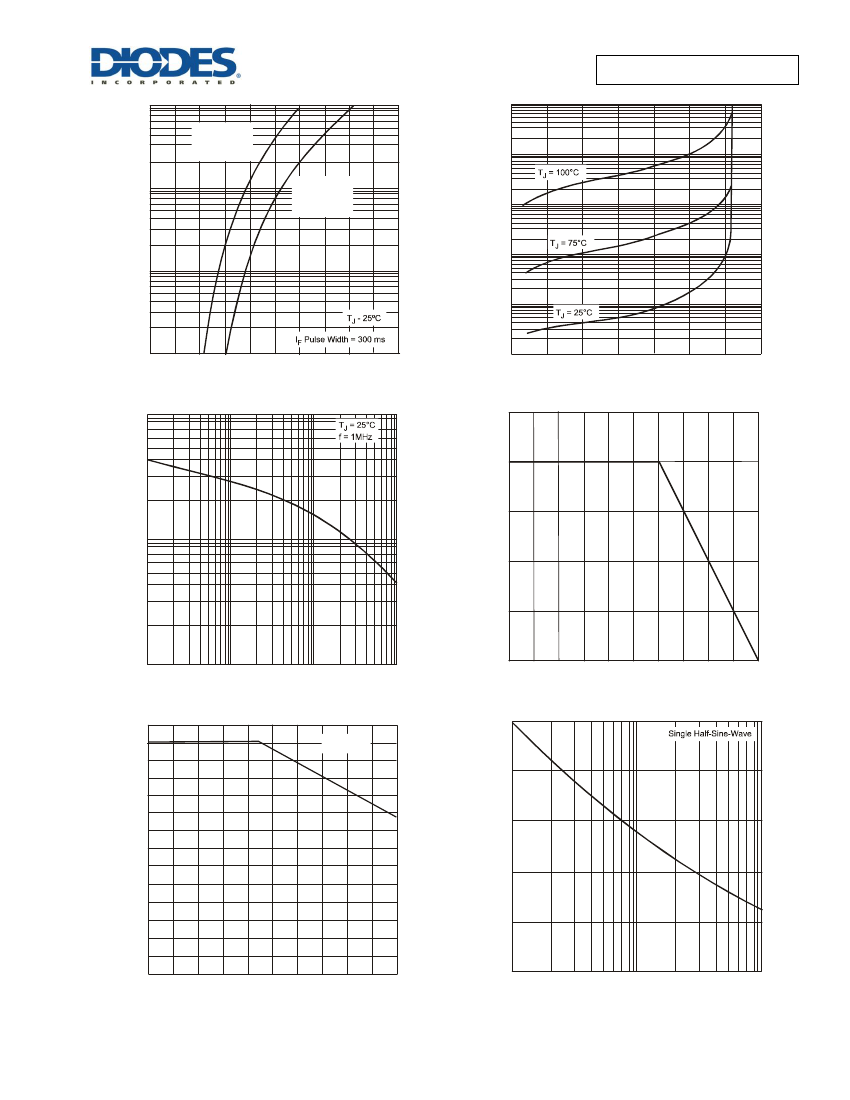

Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 30A Peak
For Use in Low-Voltage, High-Frequency Inverters
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Notes 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Description and Applications
This Schottky Barrier Rectifier is designed to meet the general
requirements of commercial applications. It is ideally suited for use
as:
Polarity Protection Diode
Re-Circulating Diode
Switching Diode
Blocking Diode
Freewheel Diode
Mechanical Data
Case: SMA/SMB
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
Weight: SMA 0.064 grams (Approximate)
SMB 0.093 grams (Approximate)
SMA/SMB
Top View
Bottom View
Ordering Information
(Note 5)
Part Number
B2X0AQ-13-F
B2X0Q-13-F
Notes:
Qualification
Automotive
Automotive
Case
SMA
SMB
Packaging
5,000/Tape & Reel
3,000/Tape & Reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/product_compliance_definitions.html
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
B2X0A = Product Type Marking Code, ex: B220A (SMA Package)
B2X0 = Product Type Marking Code, ex: B230 (SMB Package)
