2SC4203
TOSHIBA Transistor Silicon Epitaxial Planar Type
2SC4203
Video Output for High Definition VDT
High Speed Switching Applications
•
•
•
•
High transition frequency: f
T
= 400 MHz (typ.)
(V
CE
= 10 V, I
C
= 70 mA)
Low output capacitance: C
ob
< 5 pF (max) (V
CB
= 30 V)
High voltage: V
CEO
= 150 V
High power dissipation: P
C
= 10 W
Unit: mm
Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current (DC)
Collector current (pulse)
Base current
Power dissipation
Junction temperature
Storage temperature range
Ta = 25°C
Tc = 25°C
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
I
B
P
C
T
j
T
stg
Rating
180
150
5
0.3
0.5
0.2
1.0
10
150
−55
to 150
Unit
V
V
V
A
A
A
W
°C
°C

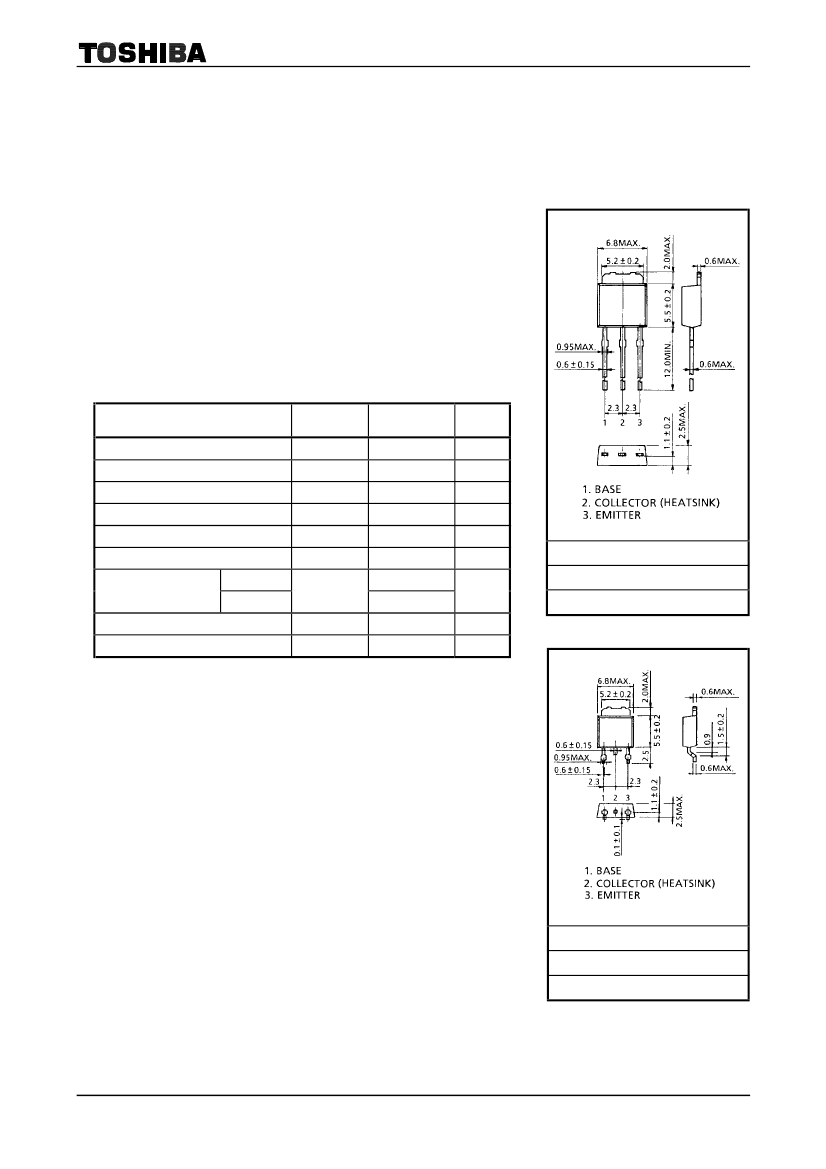

JEDEC
JEITA
TOSHIBA
―
―
2-7B1A
Weight: 0.36 g (typ.)
JEDEC
JEITA
TOSHIBA
―
―
2-7B2A
Weight: 0.36 g (typ.)
1
2002-07-23
2SC4203
Electrical Characteristics
(Ta = 25°C)
Characteristics
Collector cut-off current
Emitter cut-off current
Collector-emitter breakdown voltage
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage
Transition frequency
Collector output capacitance
Symbol
I
CBO
I
EBO
V
(BR) CEO
h
FE (1)
h
FE (2)
V
CE (sat)
V
BE (sat)
f
T
C
ob
Test Condition
V
CB
= 150 V, I
E
= 0
V
EB
= 5 V, I
C
= 0
I
C
= 1 mA, I
B
= 0
V
CE
= 10 V, I
C
= 50 mA
V
CE
= 10 V, I
C
= 200 mA
I
C
= 200 mA, I
B
= 20 mA
I
C
= 200 mA, I
B
= 20 mA
V
CE
= 10 V, I
C
= 70 mA
V
CB
= 30 V, f = 1 MHz, I
E
= 0
Min
―
―
150
40
20
―
―
300
―
Typ.
―
―
―
―
―
―
―
400
4.0
Max
10
10
―
240
―
2.0
1.5
―
5.0
V
V
MHz
pF
Unit
µA
µA
V
Marking
C4203
Product No.
Lot No.
Explanation of Lot No.
Month of manufacture: January to December are denoted by letters A to L respectively.
Year of manufacture: last decimal digit of the year of manufacture
2
2002-07-23

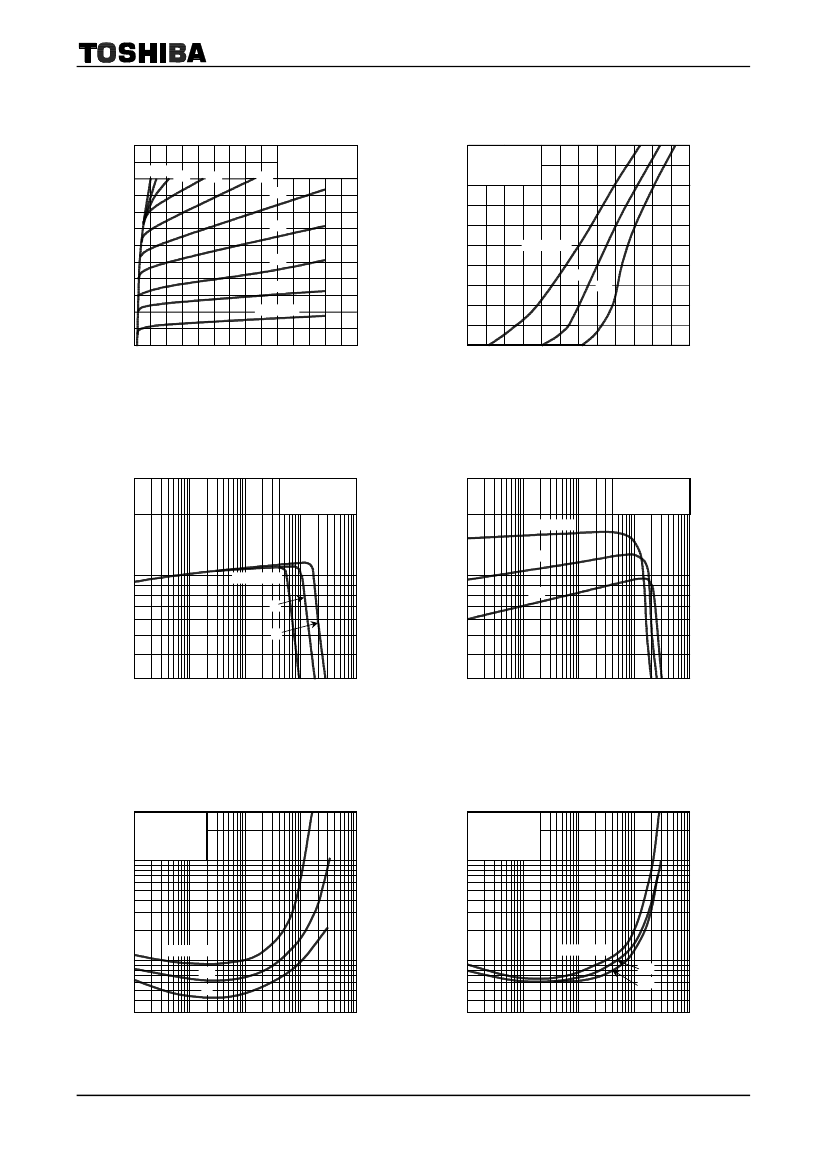

2SC4203
